Littelfuse

L60S040 - L60S040 - L60S Series

Category Semiconductor, Rectifier, High Voltage Fuses

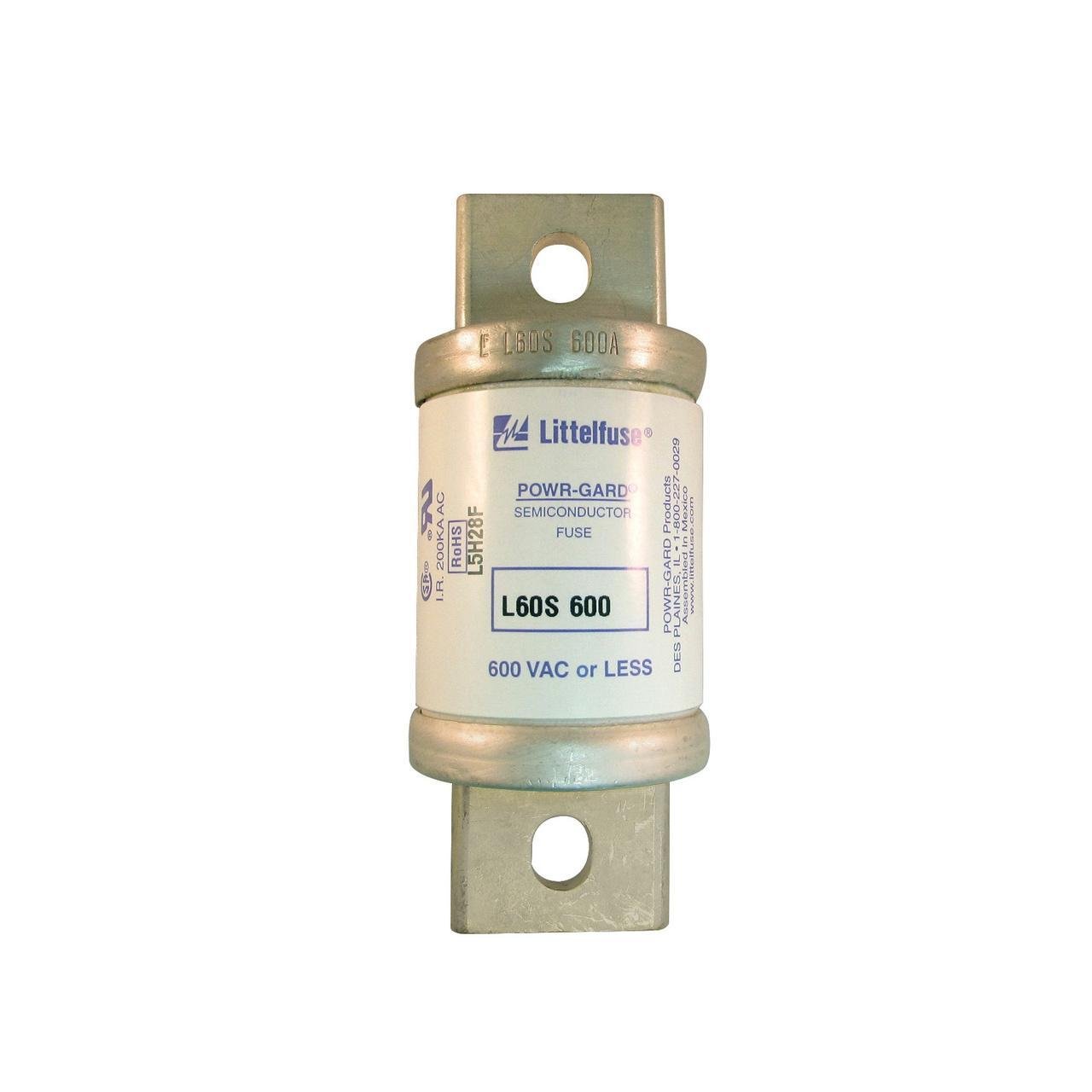

Picture of L60S040 - L60S040 - L60S Series
Littelfuse

L60S040 - L60S040 - L60S Series

Item Code: 937935
Category Semiconductor, Rectifier, High Voltage Fuses
Manufacturer Littelfuse
Manufacturer Ref L60S040

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Designed to protect today’s equipment and systems, Littelfuse semiconductor fuses are manufactured with Littelfuse-developed technology that sets tomorrow’s standards for accuracy, consistent quality, reliability, and predictable performance. By using advanced metallurgical, polymer, and materials research; mathematical modeling, and computerized statistical analysis; Littelfuse engineers have redefined “State-of-the-Art.” Designed specifically for supplementary protection of semiconducting devices such as silicon controlled rectifiers (SCR’s), diodes, thyristors, triacs, transistors, and similar solid-state devices. These devices are used in power equipment including variable speed drives, power rectifiers, UPS systems, DC power supplies, and in a wide range of electronic equipment. May be used wherever extremely fast-acting, current-limiting fuses with no time delay are required.

Specifications

Weight

0.14lb

Height

2mm

Width

5.2mm

Length

4.3mm

AD Brand (Description)

Littelfuse

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

FUSE SEMICOND 40A 600VAC 200KA CRTG/RND

AD Item Features 01

Reliable interruption of all overcurrents upto 200 kA meets present and future system requirements

AD Item Features 02

Extremely current limiting - low i2t and peak let-through currents meet most semiconductor requirements

AD Item Features 03

Low watt losses - means less heating and power consumption in circuit

AD Item Features 04

Controlled transient overvoltages - all circuits are subject to transient overvoltages during fault current interruption

AD Item Features 05

These transient overvoltages (arc voltages) start when fuse links melt or circuit breaker contacts part and subside when circuit is interrupted

AD Item Features 06

Semiconductors are very sensitive to overvoltages

AD Item Features 07

Littelfuse® semiconductor fuse designs keep transient overvoltages to low levels and help reduce semiconductor failure

AD Item Features 08

May be used wherever extremely fast acting, current limiting fuses with no time delay are required

AD Manufacturer (Description)

Littelfuse

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

4.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1400

AD Package Weight UOM

LB

AD Package Width

5.2000

AD Package Width UOM

IN

AD Video Links

https://players.brightcove.net/1799386164001/default_default/index.html?videoId=4814378601001

Brand

Littelfuse

Category

SEMICONDUCTOR, RECTIFIER, HIGH VOLTAGE FUSES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

40

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

600

Spec 2 Attribute

Body Size

Spec 2 Attribute Value

13/16 in Dia x 4-3/8 in L

Spec 3 Attribute

Body Type

Spec 3 Attribute Value

Cartridge/Round

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

200

Spec 5 Attribute

Material

Spec 5 Attribute Value

Fiberglass

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bolt

Spec 7 Attribute

Series

Spec 7 Attribute Value

L60S

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Blade

Spec 9 Attribute

Type

Spec 9 Attribute Value

High Speed Traditional Very Fast Acting
