2BLT4 40L ADP LP835 - Basket LED lensed troffer 2x4, Nominal 4000 lumens, Acrylic diffuser, linear prismatic lens, 80+ CRI, 3500K
Description
Specifications
17.24lb
3.23mm
25mm
49.38mm

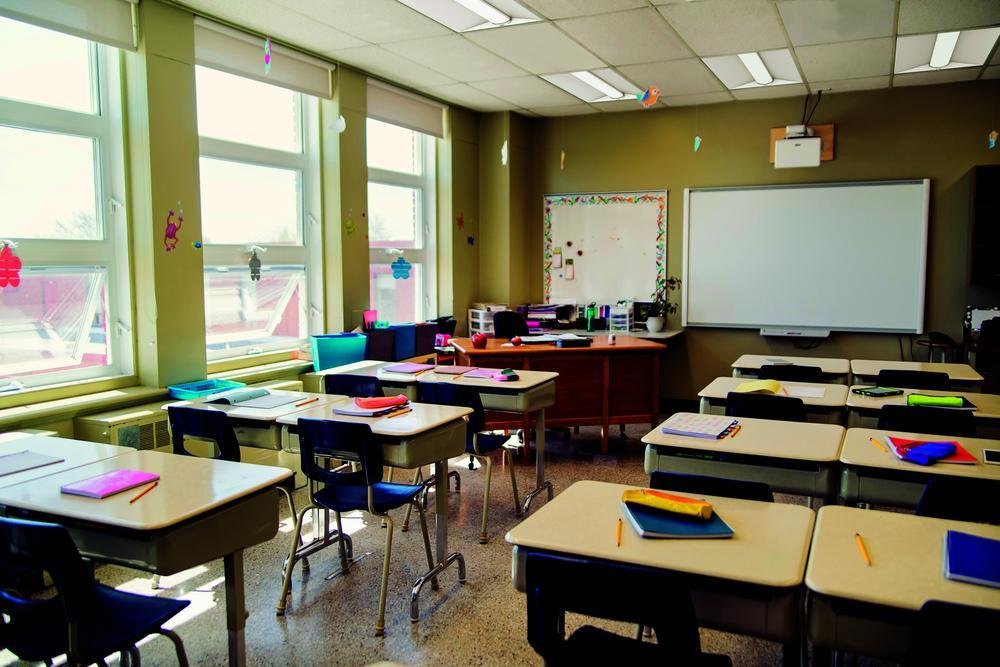

Education, Offices, Banks and Retail Applications
Lithonia Lighting
USA
MX
243P2M
TROFFER INDOOR STATIC LED 120 TO 277VAC

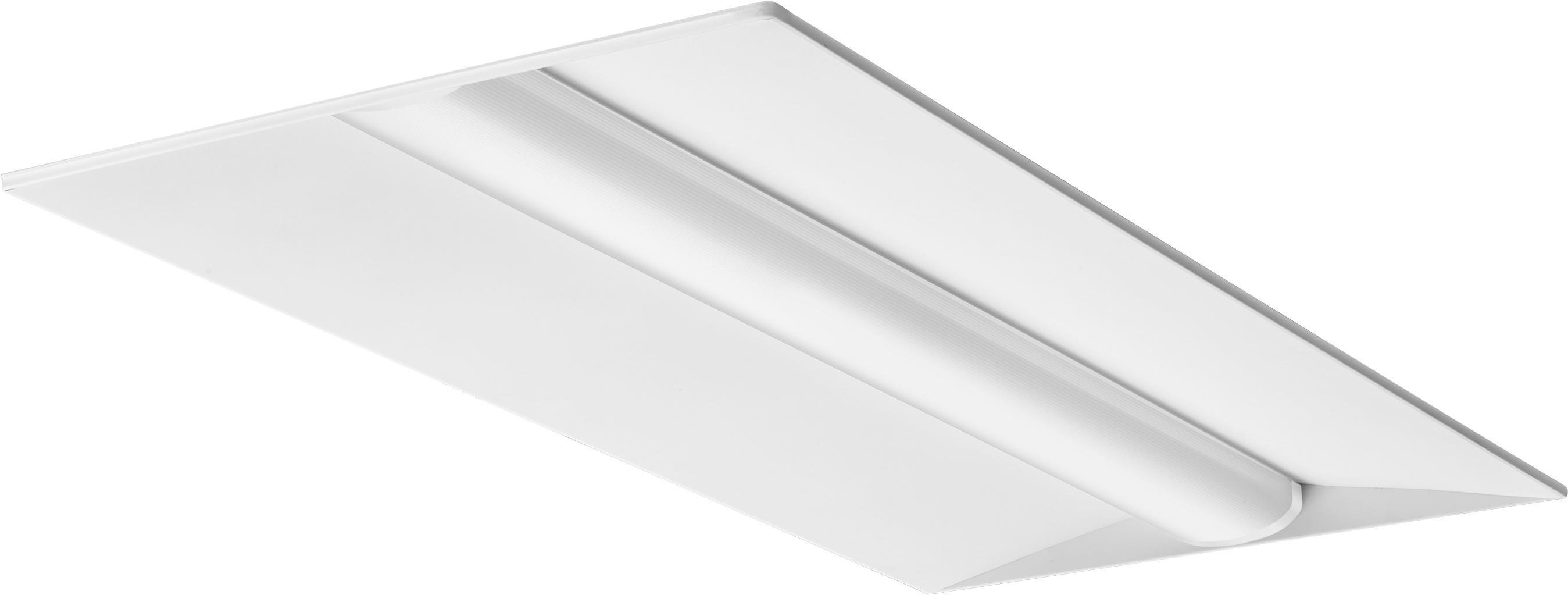

The 2 ft x 4 ft BLT low-profile recessed LED lay-in by Lithonia Lighting is what you've come to expect from the leader in lighting
With its endless options and configurations, BLT provides the versatility you need at a value that can't be beat
TECHNOLOGY - High performance acrylic diffusers conceal LEDs and deliver light with a volumetric distribution
ENERGY SAVINGS - High efficiency fixture offers 126 LPW
DIMMING - eldoLED driver for dimming down to 1 percent
VOLTAGE - Standard MVOLT (120-277 V) and fits into standard 15/16 in and narrow 9/16 in T-grid ceiling systems
HOURS OF LIFE - 80 percent LED lumen maintained after 60,000 hr (L80/60,000)
BATTERY - Battery pack options include 700 or 1400 lumens, 1400 lumen with self-diagnostic testing feature or EM self-diagnostic battery back
Acuity Brands
3.2300
IN
49.3800
IN
1
17.2400
LB
25.0000
IN
https://www.youtube.com/watch?v=fg0Y80sIlVs&feature=youtu.be
Lithonia Lighting
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Average Life
HR
60000
Lumens
Lumens
4000
Mounting Type
Ceiling
Series
2BLT4
Type
Low Profile Traditional
Voltage Rating
V AC
120 To 277
Ballast Type
0 to 10 VDC Dimmable Driver
Color Rendering Index (CRI)
82
Color Temperature
K
3500
Dimensions
47-3/4 in L x 23-3/4 in W x 2-3/8 in H
Fixture Wattage
W
34
Housing Material
Steel
Lens Type
Curved Linear Prismatic
Light Color
White
