CNY LED ALO SWW2 UVOLT - LITH CNY LED ALO SWW2 UVOLT PE PIR
Description
Specifications
5.15
11.1
3.2
10.83

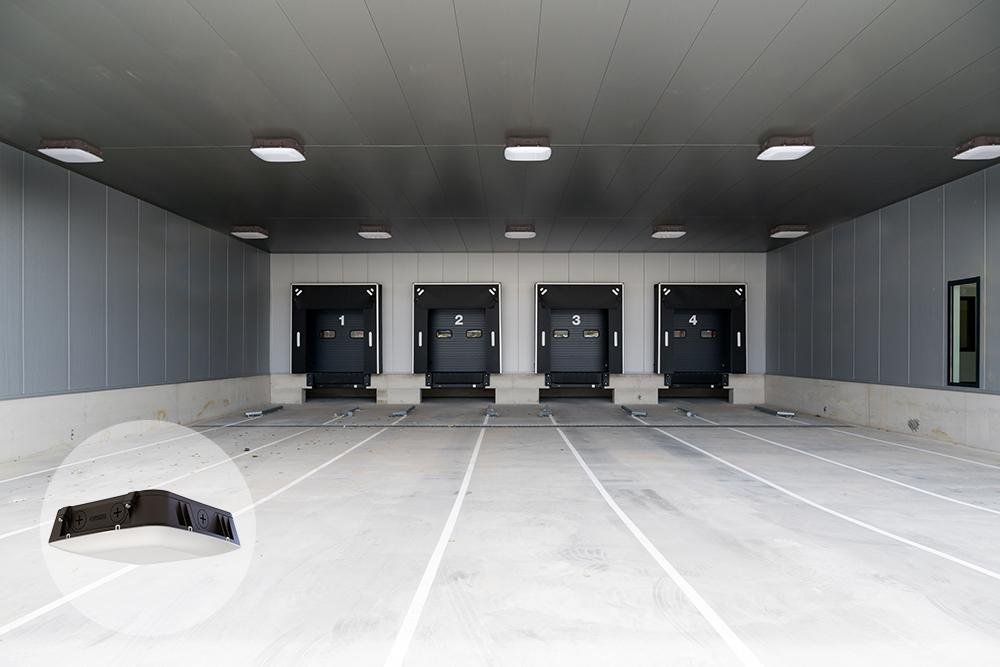

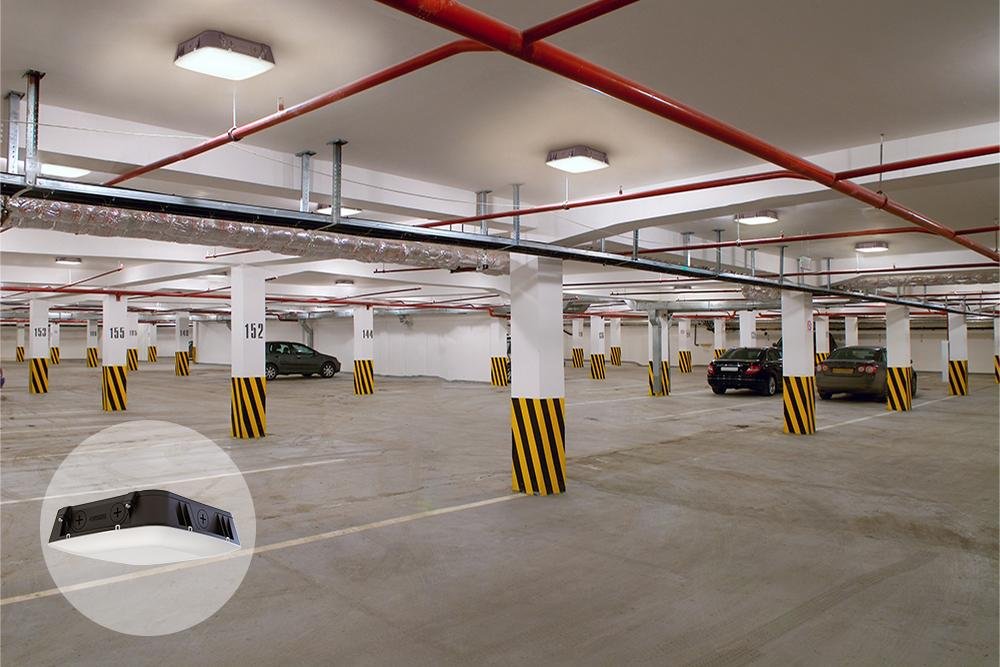

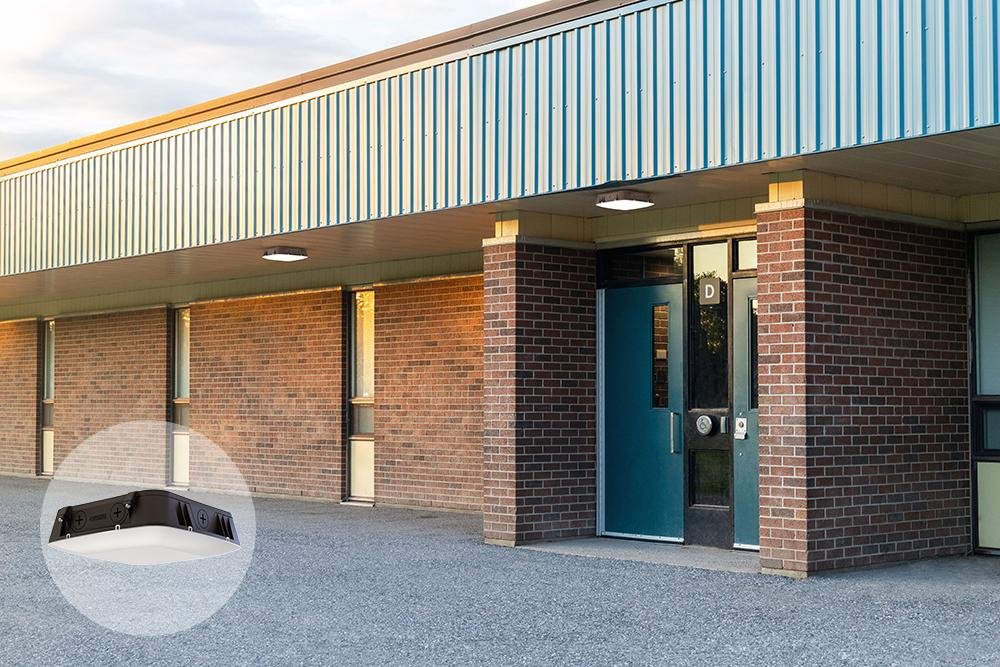

Allow for this canopy luminaire to offer 54 customizable options in one fixture, designed for uniform light distribution while providing visually comfortable illumination, Ideal for parking garages, building entrances and walkways
Lithonia Lighting
USA
VN
A selectable photocell that turns the fixture on in the evening and off the next morning and a selectable occupancy sensor that turns on when motion is detected and can be set
OUTDOOR CANOPY LTG LED 34 52 75W

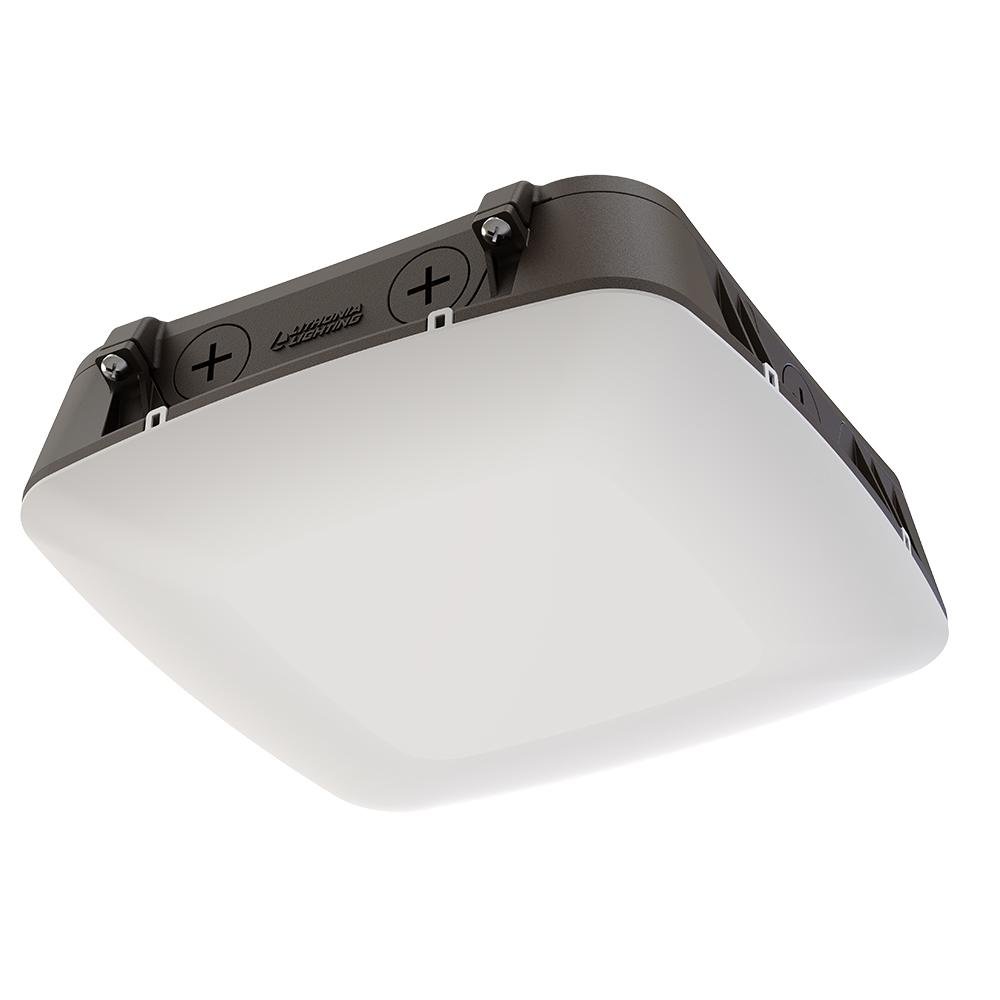

The CNY LED ALO Canopy Luminaire from Lithonia Lighting is where versatility meets innovation With an incredible 54 customizable options packed into a single luminaire, you have the power to tailor your lighting experience right on the spot
It's your lighting, your way The CNY LED ALO's 10 in x 10 in footprint, matching that of typical HID luminaires, goes beyond aesthetics
It expertly conceals any unsightly imperfections, ensuring a seamless, hassle-free installation that eliminates the need for extra patching or repairs
Transform your outdoor space with the CNY LED ALO and enjoy the perfect combination of visually comfortable illumination, energy efficiency, and complete customization - all bundled in a sleek and durable package
HOURS OF LIFE - High-efficiency LEDs maintains over 70 Percent of light output at 100,000 hr (L70>100,000 hr)
INSTALLATION - Quick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free and can be separated for surface mounting and reattached via a hinge for support while wiring
Acuity Brands
11.1000
IN
10.8300
IN
1
5.1500
LB
3.2000
IN
https://www.youtube.com/watch?v=EMoqlWJeyPc&feature=youtu.be
Lithonia Lighting
Miscellaneous
Average Life
hrs
100000
Light Output
Lumens/W
139/147/143/133/144/137/123/136/125
Lumens
Lumens
5000/7500/10000
Mounting Type
Surface
Series
CNY
Type
Square
Voltage Rating
V
120 to 347
Ballast Type
0 to 10 V Continuous Dimmable
Color Rendering Index (CRI)
80
Color Temperature
K
3000/4000/5000
Dimensions
3 in H x 10 in W x 10 in D
Fixture Wattage
W
34, 52, 75
Housing Finish
Dark Bronze
Housing Material
Die-Cast Aluminum
Lens Type
Frosted
