CPRB ALO13 UVOLT GZ10 SWW9 - LITH CPRB ALO13 UVOLT SWW9 80CRI DW
Description
Specifications
6.2lb
4.25mm
14.57mm
14.57mm

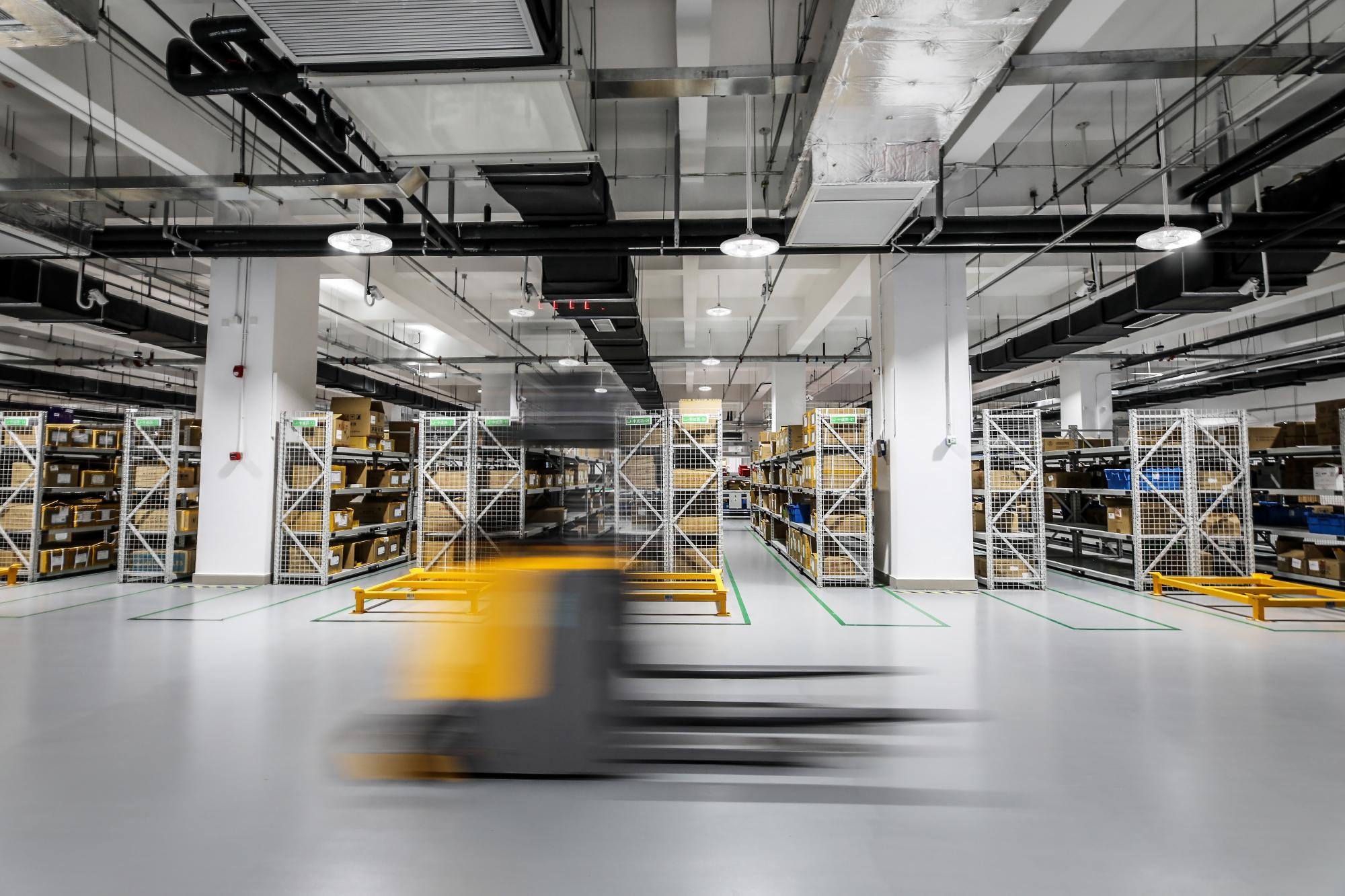

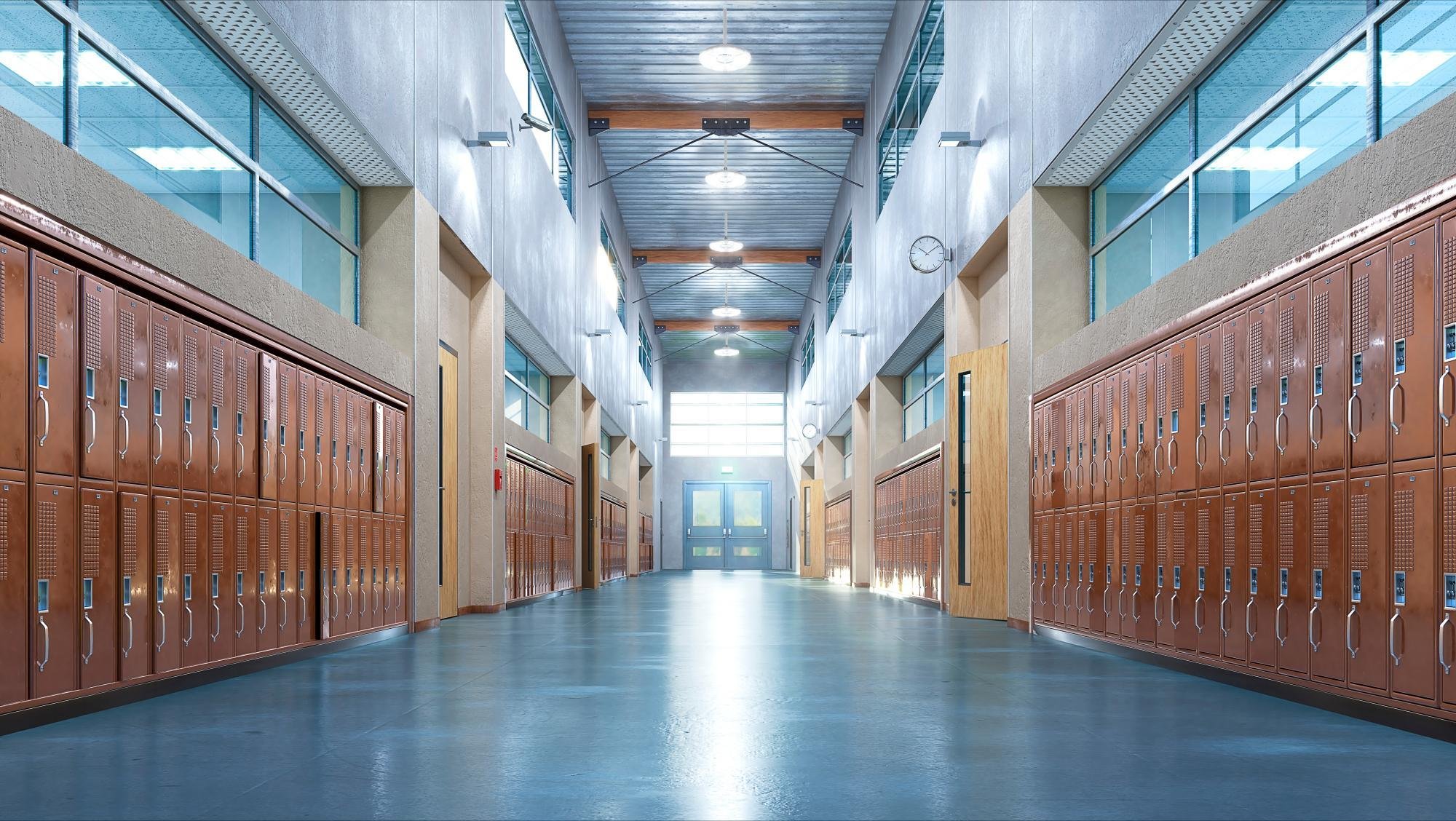

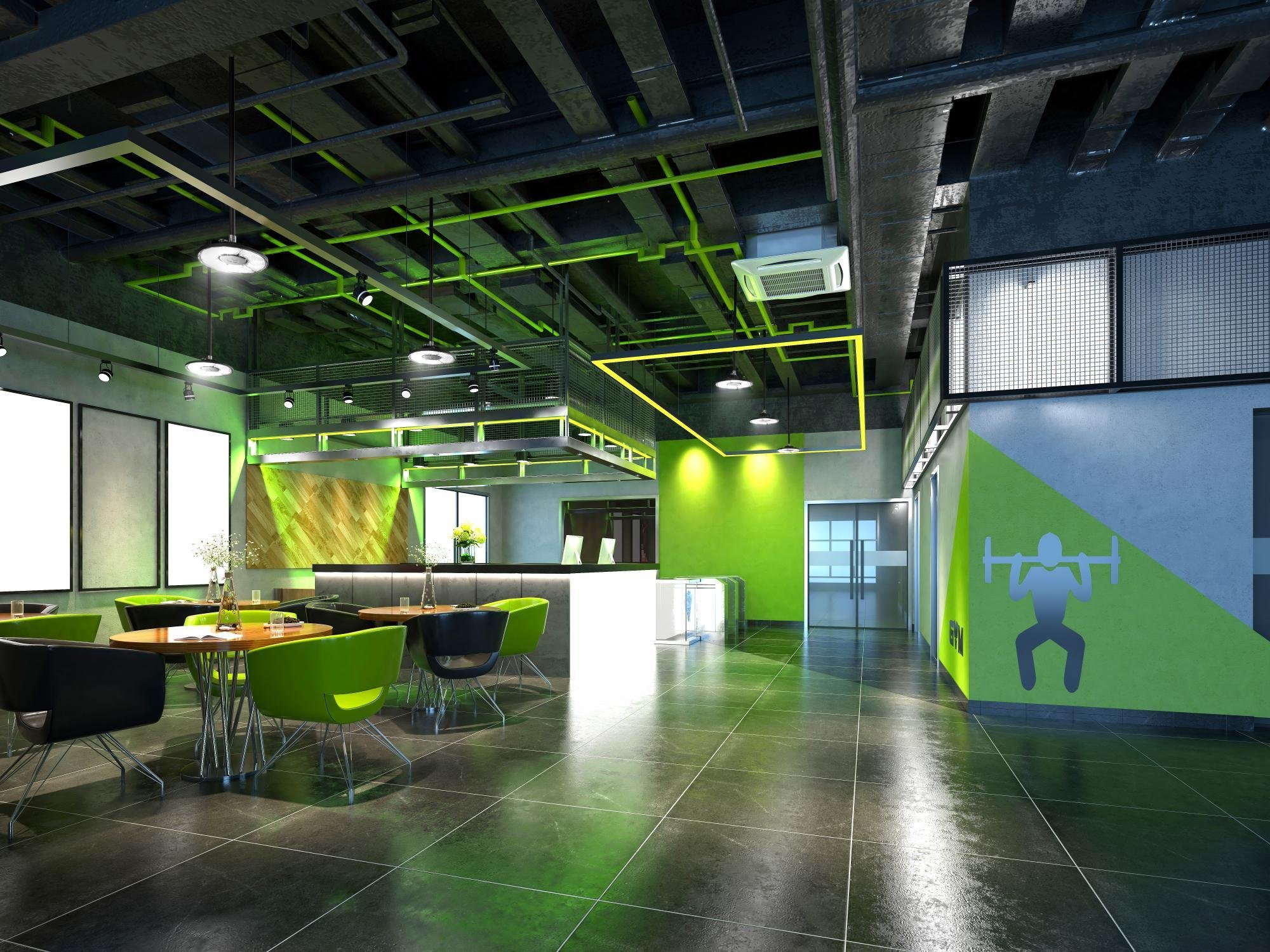

Common Areas, Sports and Recreation, Warehouses
Lithonia Lighting
USA
MY

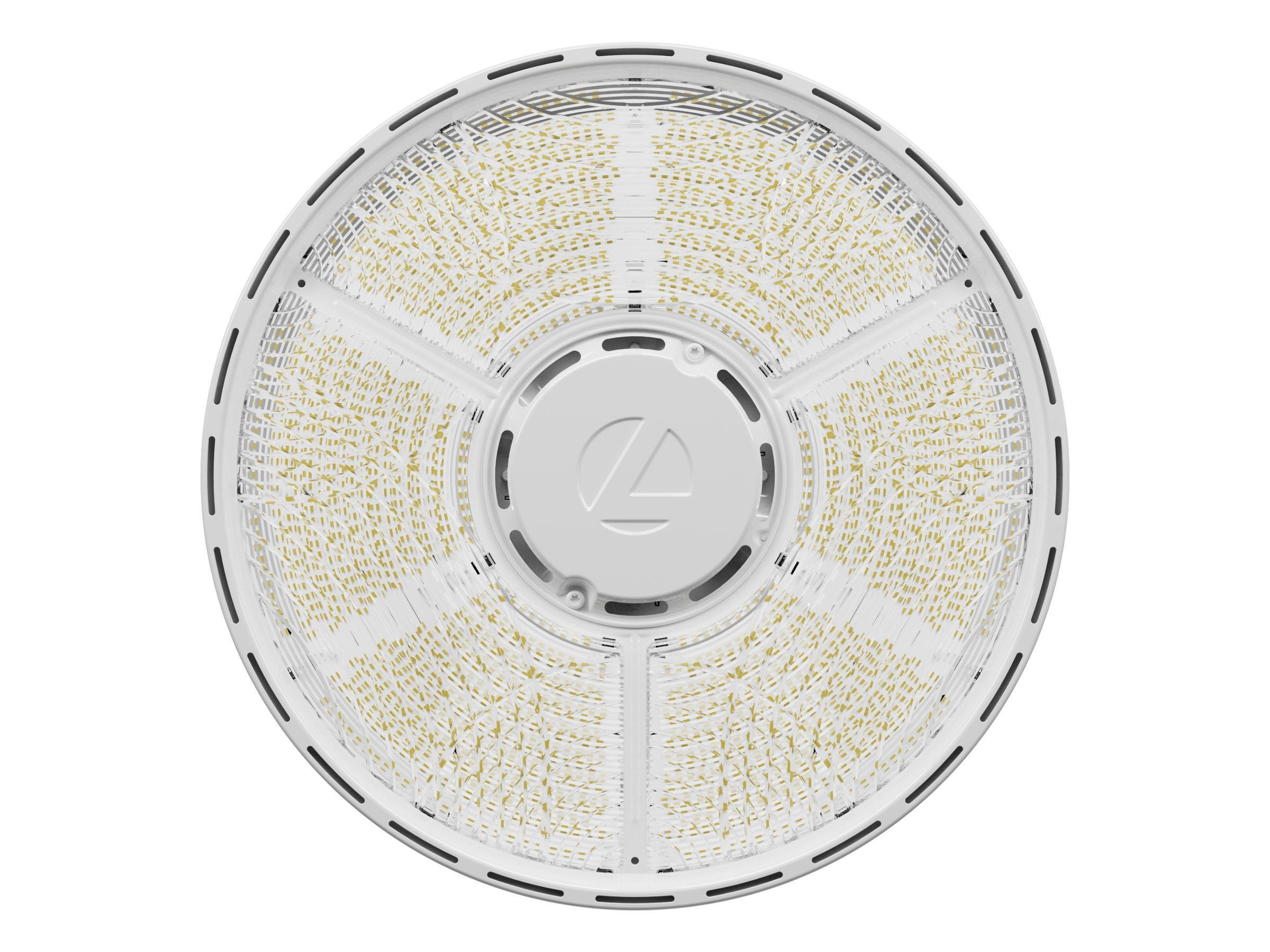

INDOOR H BAY FXTR STATIC LED 132W
The Compact Pro High Bay (CPRB) is a budget-oriented high bay designed specifically with the contractor in mind
Its compact design makes it easier and quicker to install
TECHNOLOGY - Adjustable Lumen Output (12000/15000/18000) and Switchable White (4000K/5000K) features allow for 9 potential configurations within one fixture, using two switches
ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
HOURS OF LIFE - 70 Percent lumen maintenance at greater than 100,000 hr
BATTERY - Emergency battery pack, 40W AC output, sold separately
CONTROLS - 0-10V dimming driver standard for 10 Percent to 100 Percent dimming capabilities, Available with nLight AIR Wireless Controls option
Acuity Brands
4.2500
IN
14.5700
IN
1
6.2000
LB
14.5700
IN
https://youtu.be/1JER9fXa0SU
Lithonia Lighting
Miscellaneous
Average Life
HR
54000
Lumens
Lumens
18000
Mounting Type
Hook/Pendant/Surface
Series
CPRB
Type
Round
Voltage Rating
V
120 To 277
Ballast Type
0 to 10 V Dimmable
Color Rendering Index (CRI)
80
Color Temperature
K
4000/5000
Dimensions
3.16 in H x 12.98 in W x 12.98 in L
Fixture Wattage
W
132
Housing Finish
White
Housing Material
Aluminum
Lens Type
Polycarbonate Diffuser
