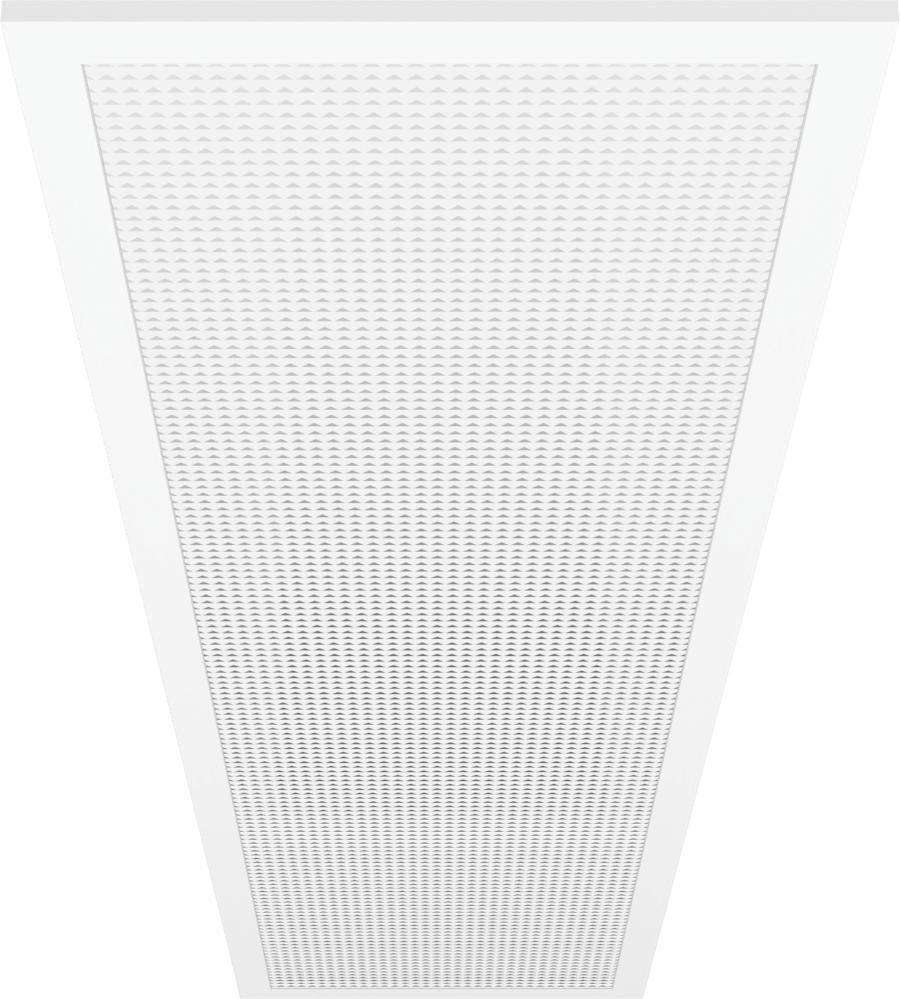

CPX 1X4 ALO7 SWW7 M4 - 1'X4' Switchable LED Flat Panel, 3500K/4000K/5000K Switchable Color Temperature, 120-277
Description
Specifications
7.4lb
12.2mm
48mm
For Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Lithonia Lighting
USA
CN
INDOOR TROFFERS STATIC LED 35.7W
The 1 ft x 4 ft CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price
The smooth, even lens projects a crisp and clean aesthetic
This CPX configuration offers Adjustable Light Output (ALO) for the option of 2400-4000 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT, neutral to daylight color temperature
CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects
TECHNOLOGY - CPX features fully switchable color and adjustable lumen technology for maximum customization
INSTALLATION - Low-profile design provides increased installation flexibility especially in restricted plenum spaces, Can be installed in T-grid drop ceilings or suspended
COMPATIBLE CONTROLS - SensorSwitch wireless dimming (JOT) or luminaire-embedded occupancy sensor control (JOTVTX15) with JOT pairing
HOURS OF LIFE - Greater than 70 percent LED lumen maintenance at 50,000 hr (L70>50,000)
BATTERY -
Acuity Brands
IN
48.0000
IN
1
7.4000
LB
12.2000
IN
https://youtu.be/eRlXWCX93UQ
Lithonia Lighting
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Average Life
hrs
50000
Series
CPX
Type
Flat
Voltage Rating
V
120 To 277
Color Rendering Index (CRI)
80
Color Temperature
K
3500/4000/5000
Dimensions
47.8 in L x 11.8 in W x 2.1 in D
Fixture Wattage
W
35.7
Housing Material
Aluminum
Lens Type
Acrylic
Lumens
Lumens
2500, 3200, 4000
Mounting Type
Ceiling/Recessed/Surface/Suspended
