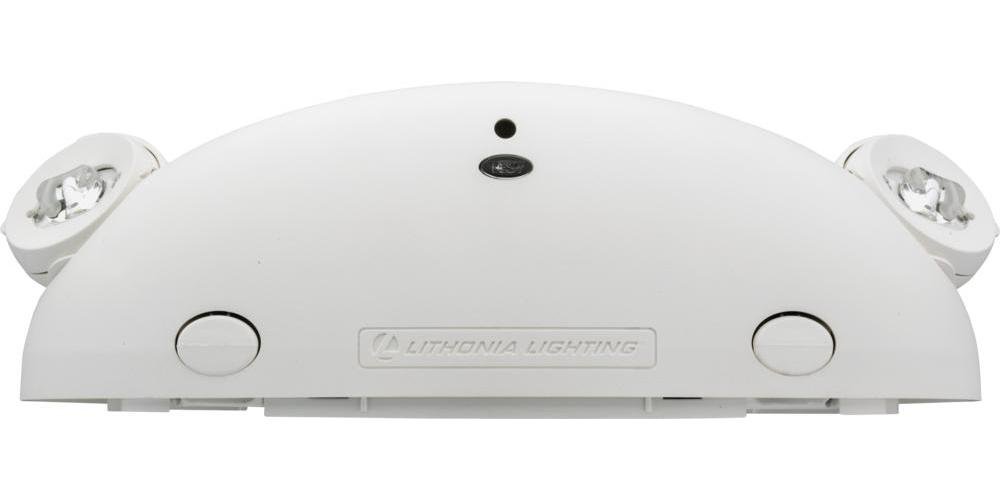

ELM2L M12 - EMERGENCY LTG UNIT AIMABLE LED WH
Description
Specifications
2.61lb
4.1mm
10.25mm
3.5mm
Education, Government, Healthcare, Hospitality, Offices, Banks, Religious, Retail, Sports and Recreation and Residential Applications
Lithonia Lighting
USA
MX
264E6T
LIGHT 2.4W STATIC LED 120/277VAC 2 60HZ
The Quantum series from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain
The advanced optical design and electronic technology deliver high-quality light output when it is needed most
DESIGN - The housing is a standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
BATTERY - Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free 3.6V nickel-cadmium battery provides 90 min of emergency power
VOLTAGE - Functions between 120 or 277 V (60 Hz) with input wattage of 0.36 W
Acuity Brands
4.1000
IN
3.5000
IN
1
2.6100
LB
10.2500
IN
https://www.youtube.com/embed/_wkFBlQ0F7M
Lithonia Lighting
Emergency Lighting
Amperage Rating
A
0.018/0.012
Lens Type
Acrylic
Lumens
Lumens
220
Material
Thermoplastic
Mounting Type
Ceiling/Surface/Wall
Number of Heads
2
Power Source
Battery
Series
ELM2L
Type
Adjustable Optics
Voltage Rating
V AC
120/277
Average Life
years
10
Color
White
Color Temperature
K
5000
Dimensions
9.72 in L x 3.1 in W x 4.68 in H
Fixture Wattage
W
1.09/1.34
Frequency Rating
HZ
60
Lamp Type
Led
Lamp Wattage
W
2.4
