ELM4L - LITH ELM4L ELM4L
Description
Specifications
2.34
4.1
14
4
Education, Government, Healthcare, Hospitality, Offices, Banks, Religious, Retail, Sports and Recreation and Residential Applications
Lithonia Lighting
USA
MX
LIGHT 6.6W STATIC LED 120/277VAC 2 3.15W

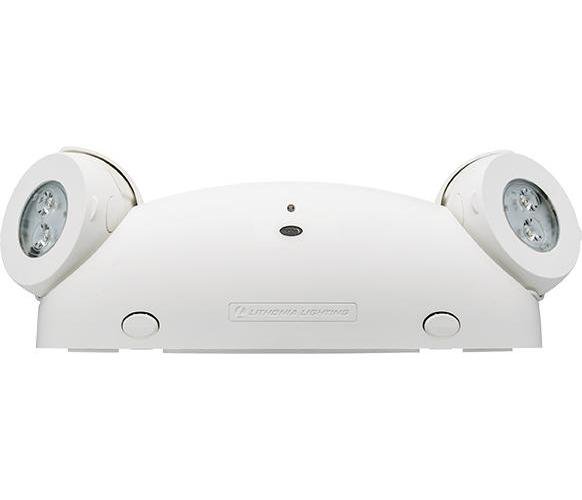

The Quantum series from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain
The advanced optical design and electronic technology deliver high-quality light output when it is needed most
INSTALLATION - Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
DIMMING - Not applicable
VOLTAGE - Functions between 120 and 277 V with input wattage of 3.15 W
DESIGN - The housing is a standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
BATTERY - Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 min of emergency power
Acuity Brands
4.1000
IN
4.0000
IN
1
2.3400
LB
14.0000
IN
https://www.youtube.com/embed/_wkFBlQ0F7M
Lithonia Lighting
Emergency Lighting
Amperage Rating
A
0.032/0.036
Lens Type
Acrylic/Polycarbonate
Lumens
Lumens
640
Material
Thermoplastic
Mounting Type
Ceiling/Surface/Wall
Number of Heads
2
Power Source
Battery
Series
ELM4L
Type
Adjustable Optics
Voltage Rating
V AC
120/277
Average Life
years
10
Color
White
Color Temperature
K
5000
Dimensions
13-3/8 in L x 3-45/64 in W x 5-5/16 in H
Fixture Wattage
W
3.15
Frequency Rating
HZ
50/60
Lamp Type
Led
Lamp Wattage
W
6.6
