ESXF1ALOSWW2KYDDBM2 - LITH ESXF1 ALO SWW2 KY DDB M2 ESXF1
Description
Specifications
3.03lb
1.86mm
1.97mm
7.32mm
276ALH
Lithonia Lighting®
USA
VN
Specification Sheet
Instruction/Installation Manual
00196182393204
19067548
FL LT FXTR LED 120TO277V DARK BRONZE

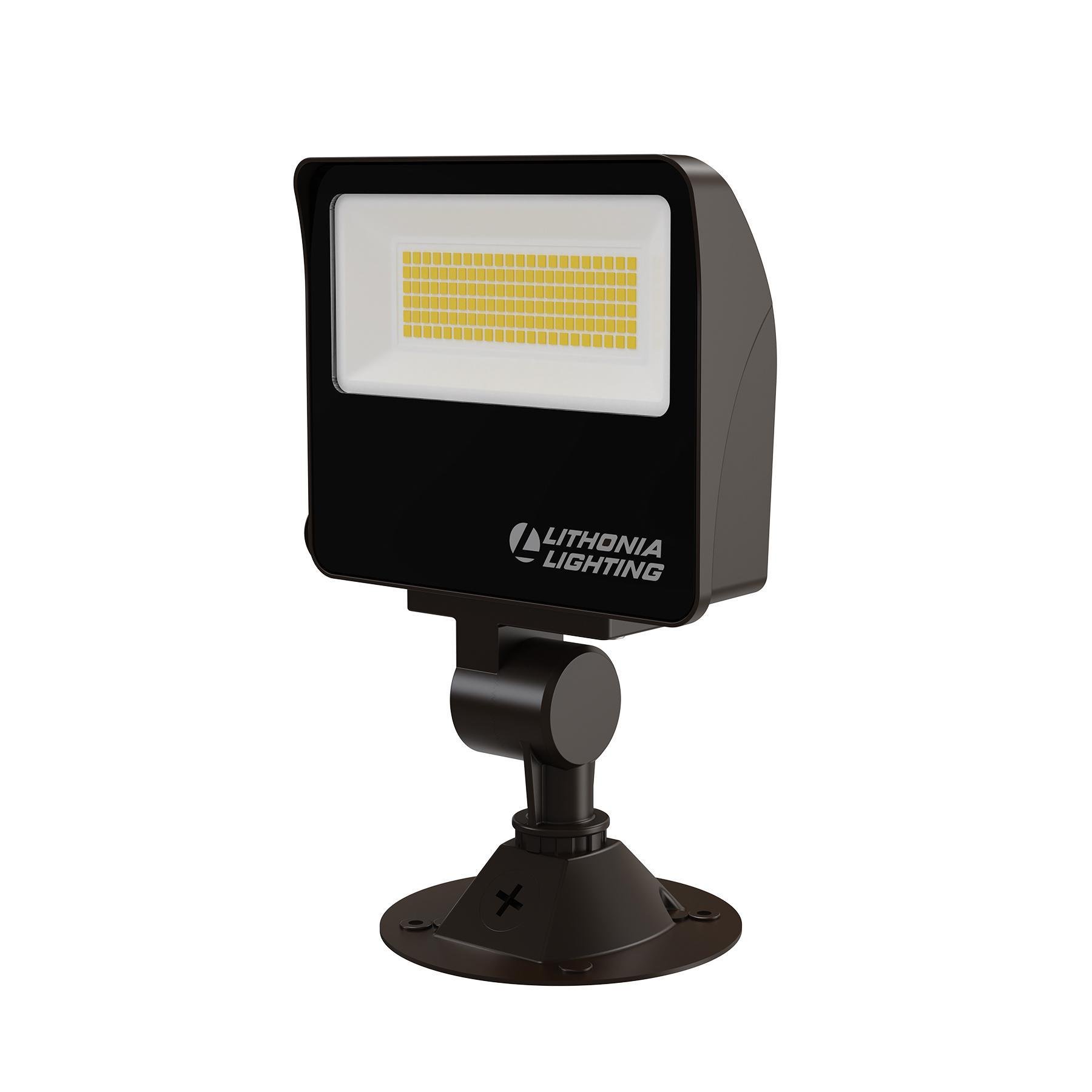

The Lithonia Lighting ESXF LED all-in-one floodlight gives you the precise illumination you want, whenever and wherever
ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot
ENERGY SAVINGS - Energy-efficient LEDs with a lumen output of 1500, 3000, and 5000 lumens
INTENDED USE - Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
INSTALLATION - Ships with 1/2 NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4 in electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
VOLTAGE - MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90 Percent and THD less than 20 Percent
ESXF1 ALO SWW2 KY DDB M2 ESXF Adjustable Floodlights, LED Lamp, 120 to 277 V, Dark Bronze Housing ; Lithonia Lighting ; ESXF1 ALO SWW2 KY DDB M2 ; 276ALH ; 19067548 ; 196182393204 ; Flood Light Fixtures
Acuity Brands
1.8600
IN
7.3200
IN
1
3.0300
LB
1.9700
IN
ESXF1 ALO SWW2 KY DDB M2 ; 196182393204 ; 19618239320 ; 00196182393204
https://youtu.be/0UujBfFuz7s
Lithonia Lighting
Miscellaneous
Ballast Type
Electronic/0 to 10 V Dimmable Driver
Mounting Type
Knuckle/Yoke
Series
ESXF
Type
Adjustable
Voltage Rating
V
120 To 277
Color Rendering Index (CRI)
80
Color Temperature
K
3000/4000/5000
Enclosure Type
IP66
Housing Finish
Dark Bronze
Housing Material
Die-Cast Aluminum
Lamp Type
Led
Light Output
Lumens/W
147
Lumens
Lumens
1500, 3000, 5000
