ESXF4ALOSWW2KYDDBM2 - LITH ESXF4 ALO SWW2 YS DDB M2 ESXF4
Description
Specifications
10.85lb
3.12mm
24.7mm
17.32mm
Lithonia Lighting
USA
VN
FL LT FXTR LED 120TO277V DARK BRONZE

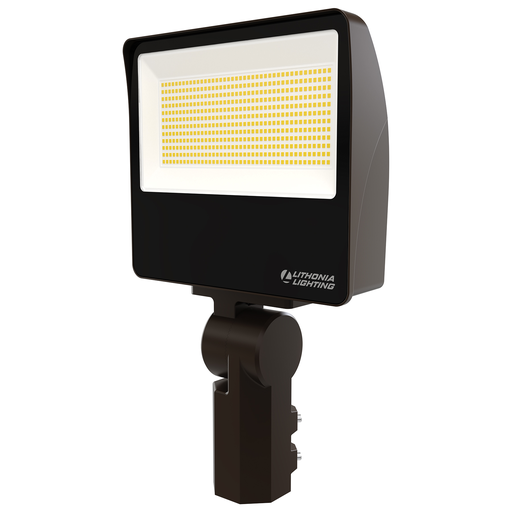

The Lithonia Lighting ESXF LED all-in-one floodlight gives you the superior illumination you want
ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot
ENERGY SAVINGS - Energy-efficient LEDs with lumen output of 16000, 18000, and 20000 lumens
VOLTAGE - MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90 Percent and THD less than 20 Percent
INTENDED USE - Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
Acuity Brands
3.1200
IN
17.3200
IN
1
10.8500
LB
24.7000
IN
https://youtu.be/0UujBfFuz7s
Lithonia Lighting
Miscellaneous
Ballast Type
Electronic/0 to 10 V Dimmable Driver
Mounting Type
Yoke/SlipFitter
Series
ESXF
Type
Adjustable
Voltage Rating
V
120 To 277
Color Rendering Index (CRI)
80
Color Temperature
K
3000/4000/5000
Enclosure Type
IP66
Housing Finish
Dark Bronze
Housing Material
Die-Cast Aluminum
Lamp Type
Led
Light Output
Lumens/W
139
Lumens
Lumens
16000, 18000, 20000
