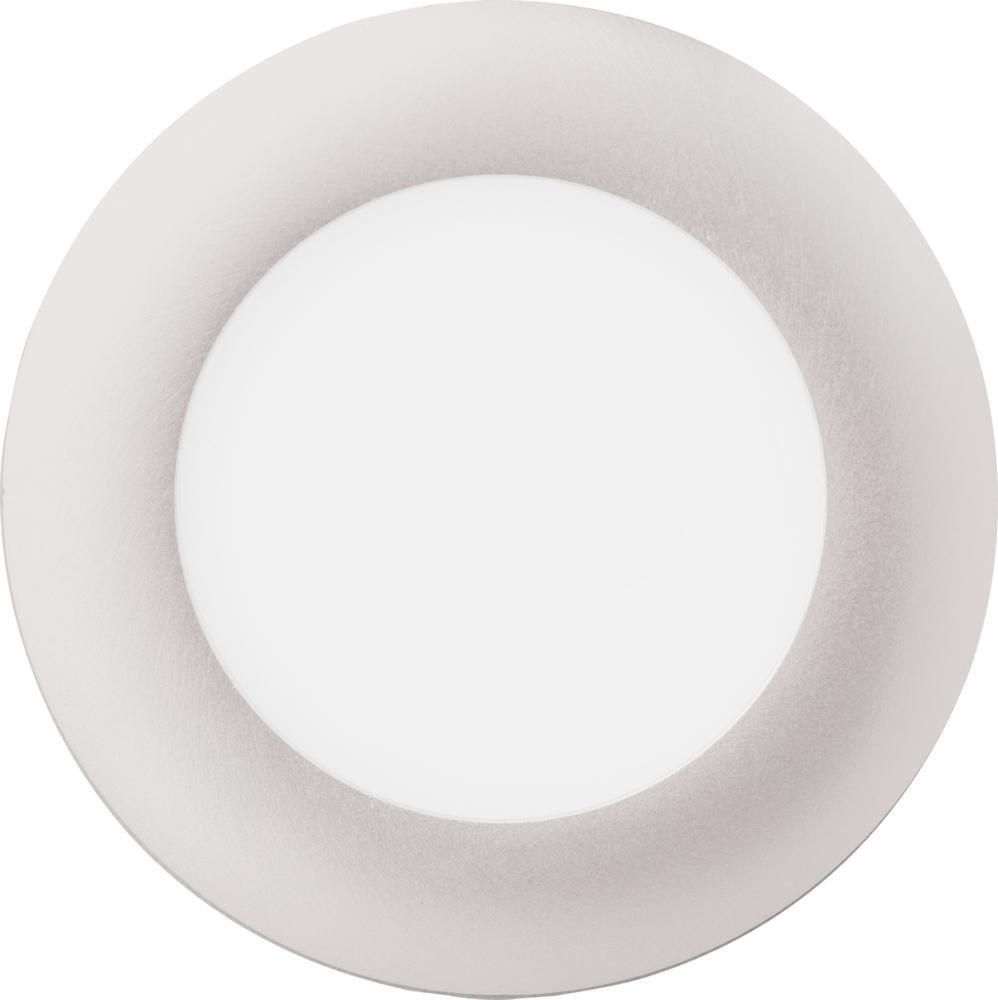

WF3 LED 27K MW M6 - LITH WF3 LED 27K MW M6 3IN wafer-th
Description
Specifications
1.6lb
3.14mm
4.25mm
6.38mm
Education, Hospitality, Residential, Retail, Closets, Attics, Hallways, Bathrooms, Kitchens, Basements, Soffits, Entry Ways, Porches, Garages, Stairwells, Corridors, Nursing/Retirement Homes, Condos, Elevators, Apartments, Indoor and Outdoor Applications
Lithonia Lighting
USA
CN
261L7U
Lamp
DOWNLIGHT STATIC LED 3IN 120VAC 0.07A 8W
Quality, housing-free recessed downlighting is achieved with its narrow remote driver box
The Wafer LED is quick and simple to install from below the ceiling with as little as 6 in ceiling plenum clearance
DESIGN - This innovative wafer-slim design allows easy installation for new construction or remodel from below the ceiling without the requirement of a pot light housing for insulation, it easily replaces up to 50 Wincandescent downlights
ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
DIMMING - Dimming down to 10 percent
VOLTAGE - Dedicated to 120 V
HOURS OF LIFE - Greater than 70 percent LED lumen maintenance at 50,000 hr (L70>50,000)
BATTERY - Field-installable LED emergency driver sold separately
Acuity Brands
3.1400
IN
6.3800
IN
1
1.6000
LB
4.2500
IN
https://www.youtube.com/watch?v=wkSeLp_blHY
Lithonia Lighting
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Amperage Rating
A
0.07
Lens Type
Polycarbonate
Light Color
Soft White
Light Output
Lumens/W
67.5
Lighting Technology
Led
Lumens
Lumens
540
Mounting Type
Ceiling
Series
WF3
Type
Dimmable Round Wafer Thin
Voltage Rating
V AC
120
Average Life
HR
35000
Ceiling Opening
IN
3
Color Rendering Index (CRI)
80
Color Temperature
K
2700
Dimensions
6.38 in L x 4.25 in W x 3.14 in H
Housing Material
Die Cast Aluminum
Lamp Type
Led
Lamp Wattage
W
8
