WPX0 LED ALO SWW2 MVOLT PE DDBXD M2 - LITH WPX0 LED ALO SWW2 MVOLT PE DDB
Description
Specifications
4.89lb
5.75mm
6.42mm
2.76mm
Automotive & Parking, Common Areas, Decorative, Education, Entertainment, Healthcare, House of Worship, Offices & Banks, Parking Garage, Roadways, Bridges & Tunnels, Sports and Recreation
Lithonia Lighting
USA
VN
OUTDOOR WALLPACKS STATIC LED

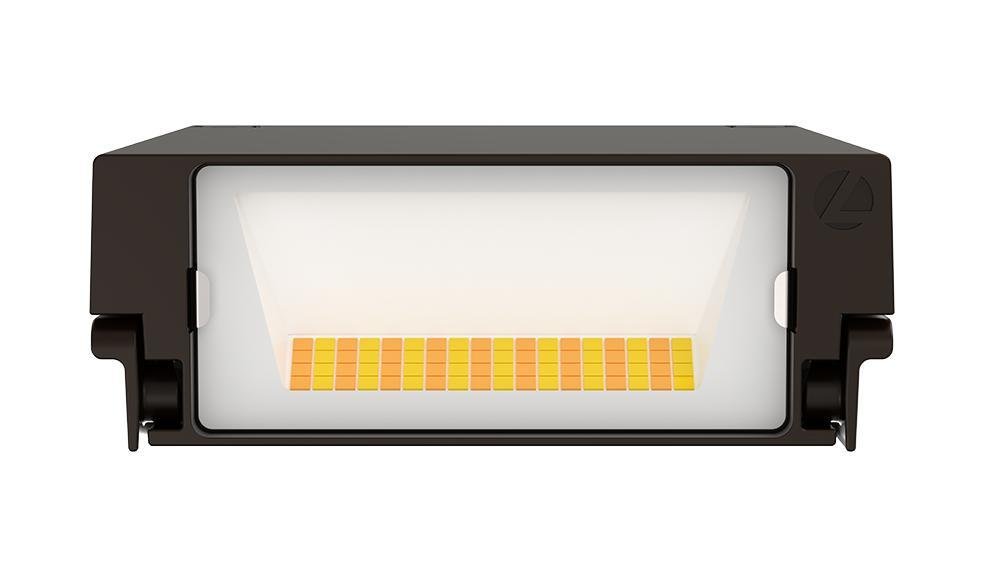

Lithonia Lighting WPX0 wall pack features a uniform photometric distribution with four adjustable light outputs (ALO), three switchable color temperatures (SWW) 30/40/50K CCT and a switchable dusk-to-dawn photocell
Designed to provide a cost-effective, energy-efficient solution for the one-for-one replacement of existing HID wall packs and new construction opportunities
Easily installed onto any junction box by simply making the connections in the integral wiring compartment and WPX0 is ready to use
ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life
VOLTAGE - Standard MVOLT for 120-277 V
INSTALLATION - Mounted directly over a standard junction box and is only recommended for installations with LEDs facing downwards
BATTERY - Emergency battery back-up is not available
Acuity Brands
5.7500
IN
2.7600
IN
1
4.8900
LB
6.4200
IN
https://www.youtube.com/watch?v=MRKn9SXJmD8
Lithonia Lighting
Miscellaneous
Average Life
HR
100000
Lumens
Lumens
1650, 850
Mounting Type
Wall
Series
WPX
Voltage Rating
V
120 To 277
Color Rendering Index (CRI)
80
Color Temperature
K
3000. 4000/5000
Dimensions
5-3/4 in H x 5-1/2 in W
Fixture Wattage
W
13, 6.4, 7.8, 9.2
Housing Finish
Dark Bronze
Housing Material
Aluminum
Lamp Base Type
Integrated
Lamp Type
Led
