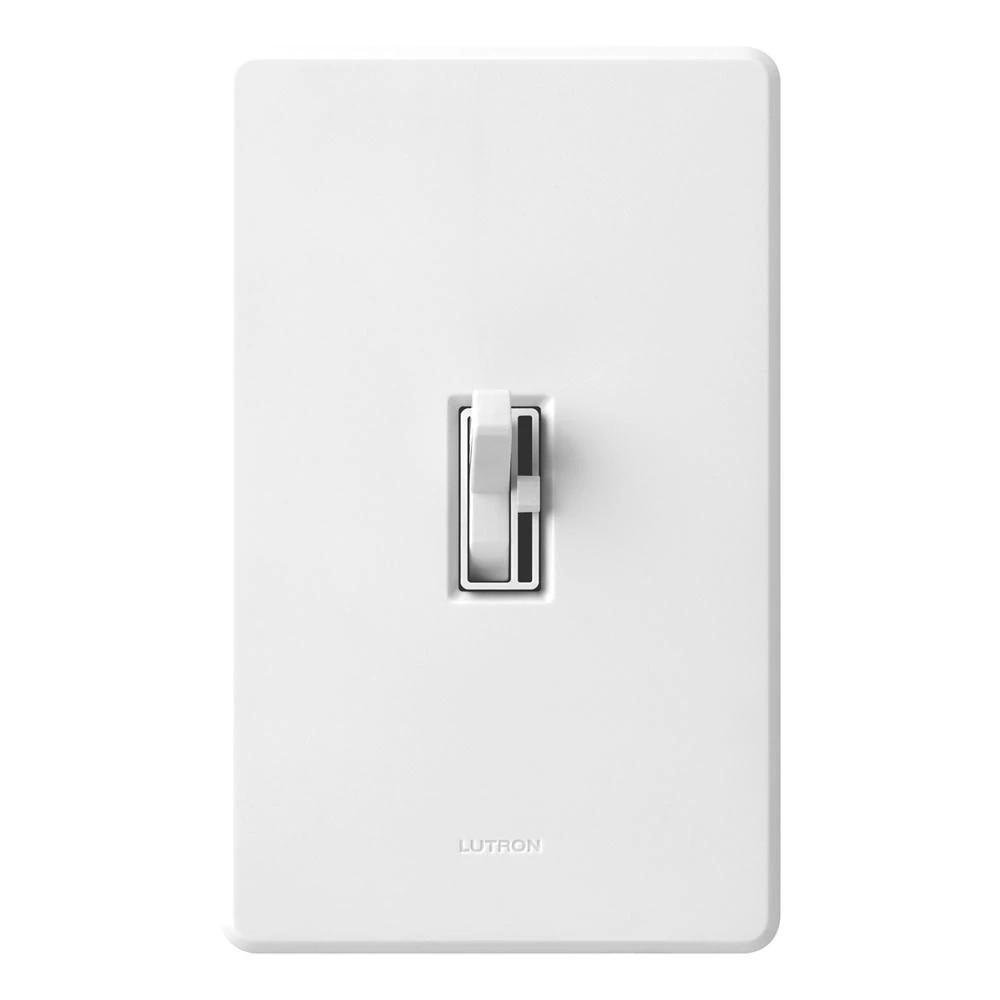

AYCL-153P-WH - Ariadni Dimmer Switch, White

Item Code: 737146

Category Lighting Dimmers

Manufacturer LUTRON ELECTRONICS

Manufacturer Ref AYCL-153P-WH

Catalog
Full Engineering Drawing
Instruction Installation Manual
Specification Sheet
Warranty Information

selection not available, try a different combination

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

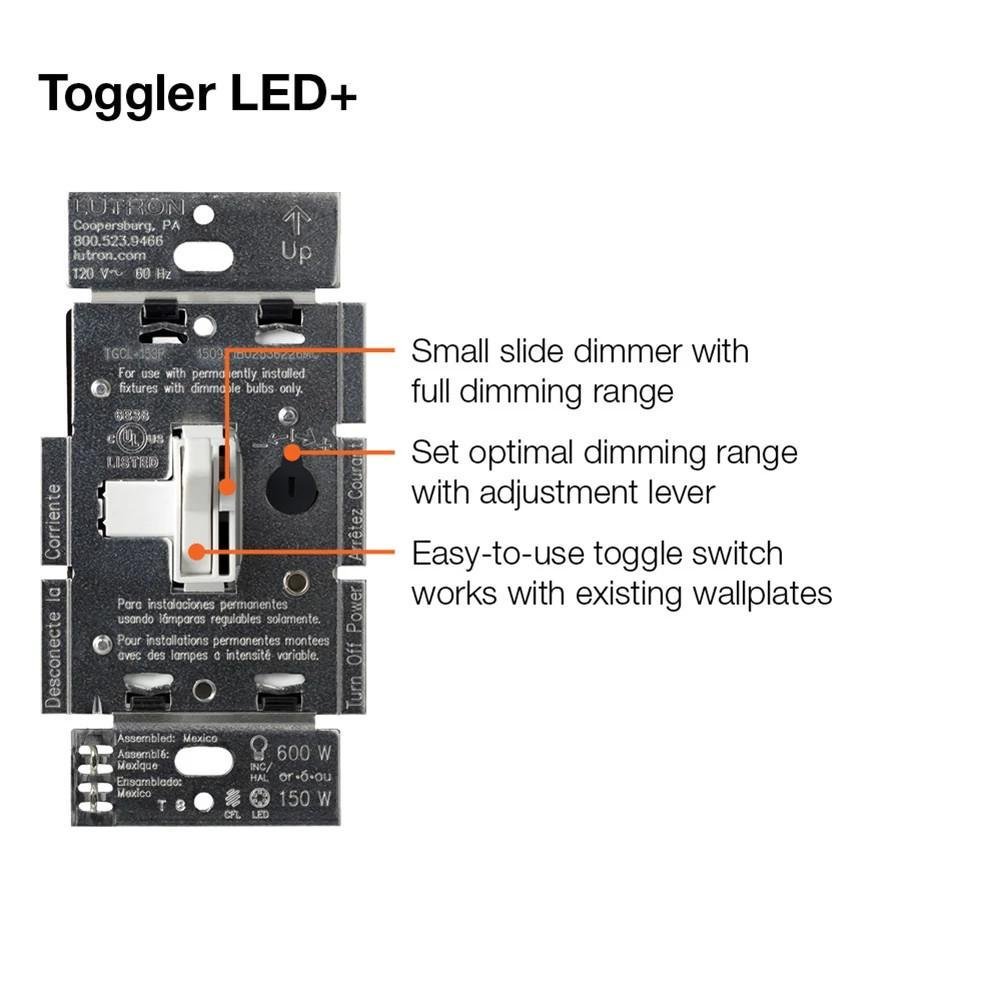

The Ariadni LED+ dimmer provides optimal dimming performance of LED bulbs. This dimmer works with up to 150-Watt of dimmable LED/CFL or 600-Watt of incandescent/halogen, allowing you to control multiple bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. The Ariadni dimmer features a toggle switch to turn your lights off or on- returning the lights to your favorite level. Adjust your light to any activity using the discreet slide control next to the switch. Coordinating wall plate sold separately.

Purchasing Quantities

EACH

1

BOX

24

Specifications

Height

4.5mm

Width

2.25mm

Length

2.25mm

Brand

Lutron

Category

LIGHTING DIMMERS

Color

White

Control

Toggle

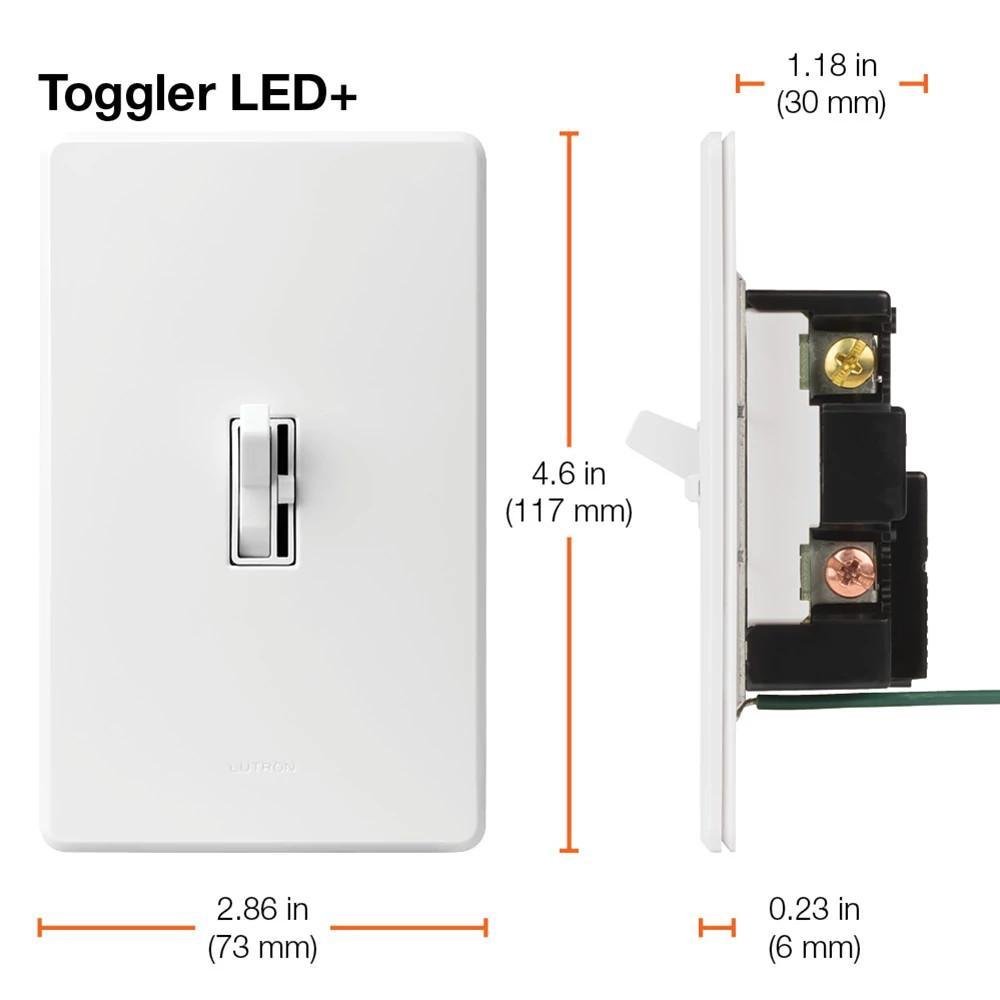

Dimensions

4.6 in H x 2.86 in W x 0.23 in D

Frequency Rating

60 Hz

Lamp Type

CFL/Halogen/Incandescent/LED

Material

Plastic

Mounting Type

Wall

Number Of Poles

1

Operation Mode

Slide-to-Bright/Dim

Power Rating

150/600 W

Series

Ariadni®

Start Type

Preset

Temperature Rating

0 To 40 Deg C

Terminal Type

Push-In/Screw

Type

3-Way Traditional Style

Voltage Rating

120 V AC
