Lutron

DVRF-5NE-WH - Diva Caseta Dimmer, White

Category Lighting Dimmers
Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White
Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White
Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White
Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White
Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White Picture of DVRF-5NE-WH - Diva Caseta Dimmer, White
Lutron

DVRF-5NE-WH - Diva Caseta Dimmer, White

Item Code: 1226035
Category Lighting Dimmers
Manufacturer LUTRON ELECTRONICS
Manufacturer Ref DVRF-5NE-WH

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

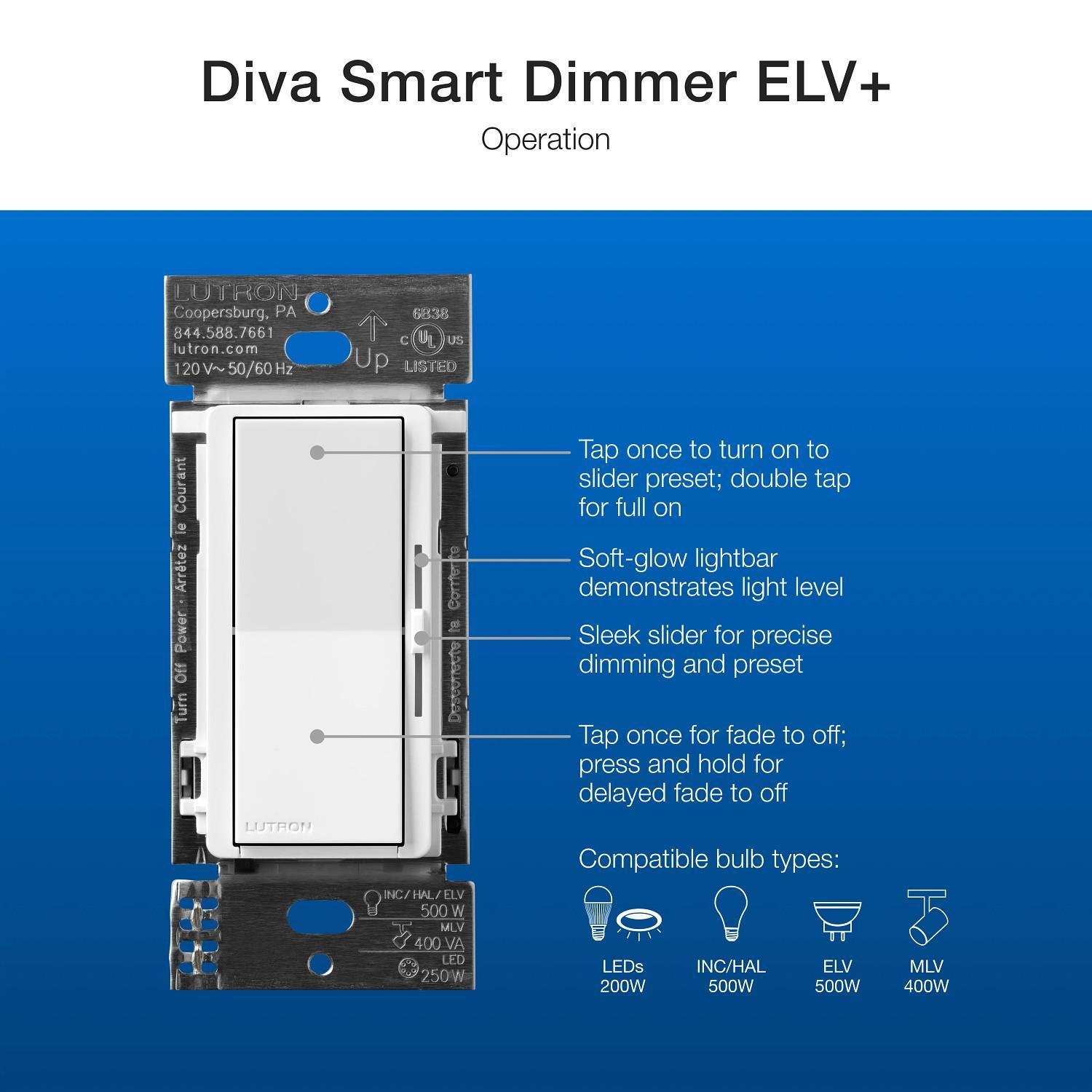

The Lutron Diva smart ELV+ dimmer for Caseta is the perfect dimmer for nearly any residential light source – overhead, undercabinet, toe kick, or track lighting. The Diva smart ELV+ dimmer switch works with up to 250W of dimmable LED, 500W of electronic low-voltage (ELV)/ incandescent/halogen, or 400Watt of magnetic low-voltage (MLV). A neutral wire connection is only required for ELV load types, for other load types such as LED, MLV, and incandescent, a neutral wire connection is optional; a 10-Watt minimum load required for all load types.       This dimmer is pre-programmed to reverse phase for ELV, however the dimmer’s phase selectable output can be changed to forward phase for MLV with simple button-press programming directly on the dimmer or the Lutron app. Diva smart dimmers for Caseta systems are designed with the look of Lutron Diva LED+ dimmers and match existing paddle style dimmers and switches for a classic look throughout any home. The Diva smart dimmers feature an on/off paddle style switch and a captive slider to raise/lower lights to a preset light level. The soft glow lightbar indicates the current status and light level of the dimmer, which can also be used to locate the dimmer in the dark. Similar to the Diva smart dimmer, ELV+ Diva smart dimmers have flexible wiring options and can be wired in single pole or multi-location applications. Create a new 3-way or replace an existing one with the Diva smart dimmer switch. Pair a Pico wireless remote to your dimmer switch and mount the Pico to the bracket on almost any surface - no cutting holes or pulling wire required (remote and bracket sold separately). Use Claro smart accessory switches (DVRF-AS) or existing switches for 3-way applications (for 4-way circuits, Claro accessory switches are required). Activate Caseta dimmers to the Lutron Smart Hub (L-BDG2-WH/ L-BDGPRO2-WH ) for advanced features like schedules, timers, scenes, and sync with voice assistants (Alexa, Siri, or Google) to control lights. Available in 6 gloss colors ; coordinating wall plate and other accessories sold separately.

Specifications

Weight

0.34

Height

4.5

Width

2

Length

3.38

AD Brand (Description)

Lutron

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

DMR SW 120V 4.16A 1 SLIDE WHITE 250W

AD Item Features 01

Works with up to 250W of dimmable LED, 500W ELV/Incandescent/Halogen, or 400W MLV, Phase-Select available

AD Item Features 02

Create a new wireless 3-way without having to pull any wire by pairing a Pico paddle remote (PJ2-P2B) and mounting it to the bracket (PICO-WBX-ADAPT)

AD Item Features 03

Captive slider raises/lowers lights to set preset levels, soft-glow lightbar helps find control in the dark

AD Manufacturer (Description)

LUTRON ELECTRONICS

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

3.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3400

AD Package Weight UOM

LB

AD Package Width

2.0000

AD Package Width UOM

IN

Brand

Lutron

Category

LIGHTING DIMMERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

4.16

Spec 10 Attribute

Operation Mode

Spec 10 Attribute Value

Slide

Spec 11 Attribute

Power Rating

Spec 11 Attribute UOM

W

Spec 11 Attribute Value

250

Spec 12 Attribute

Start Type

Spec 12 Attribute Value

Dimmer

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

32 To 104

Spec 14 Attribute

Type

Spec 14 Attribute Value

3-Way Multi-Location

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V

Spec 15 Attribute Value

120

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Control

Spec 3 Attribute Value

Rocker

Spec 4 Attribute

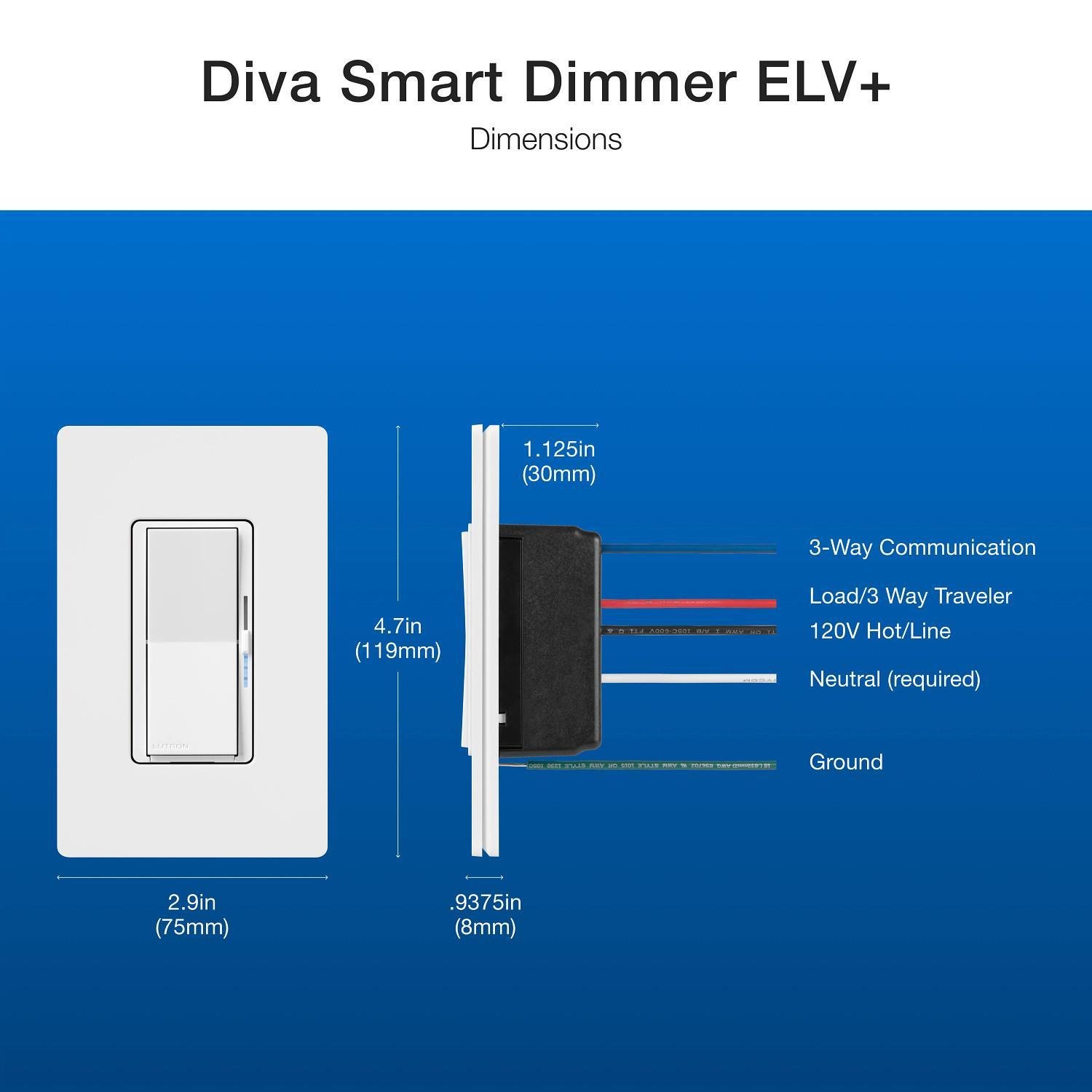

Dimensions

Spec 4 Attribute Value

4.5 in H x 3.375 in W x 2 in D

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Lamp Type

Spec 6 Attribute Value

CFL/Halogen/Incandescent/LED

Spec 7 Attribute

Material

Spec 7 Attribute Value

Resin

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Wall

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

1
