Lutron

MA-PRO-WH - MasetroPro LED Dimmer White

Category Lighting Dimmers
Picture of MA-PRO-WH - MasetroPro LED Dimmer White Picture of MA-PRO-WH - MasetroPro LED Dimmer White
Picture of MA-PRO-WH - MasetroPro LED Dimmer White Picture of MA-PRO-WH - MasetroPro LED Dimmer White
Picture of MA-PRO-WH - MasetroPro LED Dimmer White Picture of MA-PRO-WH - MasetroPro LED Dimmer White
Picture of MA-PRO-WH - MasetroPro LED Dimmer White Picture of MA-PRO-WH - MasetroPro LED Dimmer White
Picture of MA-PRO-WH - MasetroPro LED Dimmer White Picture of MA-PRO-WH - MasetroPro LED Dimmer White
Lutron

MA-PRO-WH - MasetroPro LED Dimmer White

Item Code: 1051517
Category Lighting Dimmers
Manufacturer LUTRON ELECTRONICS
Manufacturer Ref MA-PRO-WH

Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Maestro PRO LED+ Neutral Optional Dimmer Switch features advanced phase selectable dimming, color change kits, and is designed for a broader compatibility range of high efficiency lighting. UL listed to control dimmable LEDs with integrated drivers, ELV, MLV, incandescent, and halogen loads as well as Phillips Mark 10® ballasts and Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers. The large decorator style tap switch turns lights on/off and the dimming buttons allows for local fine-tune dimming. Works with up to 9 Maestro Companion Dimmer Switches (MA-R-xx) to create a multi-location dimming application. Neutral Optional. Screw terminal installation. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Specifications

Height

4.5mm

Width

2.25mm

Length

2.25mm

AD Brand (Description)

Lutron

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

DIMMER 120VAC 1 ON/OFF WHT 250/500/400W

AD Item Features 01

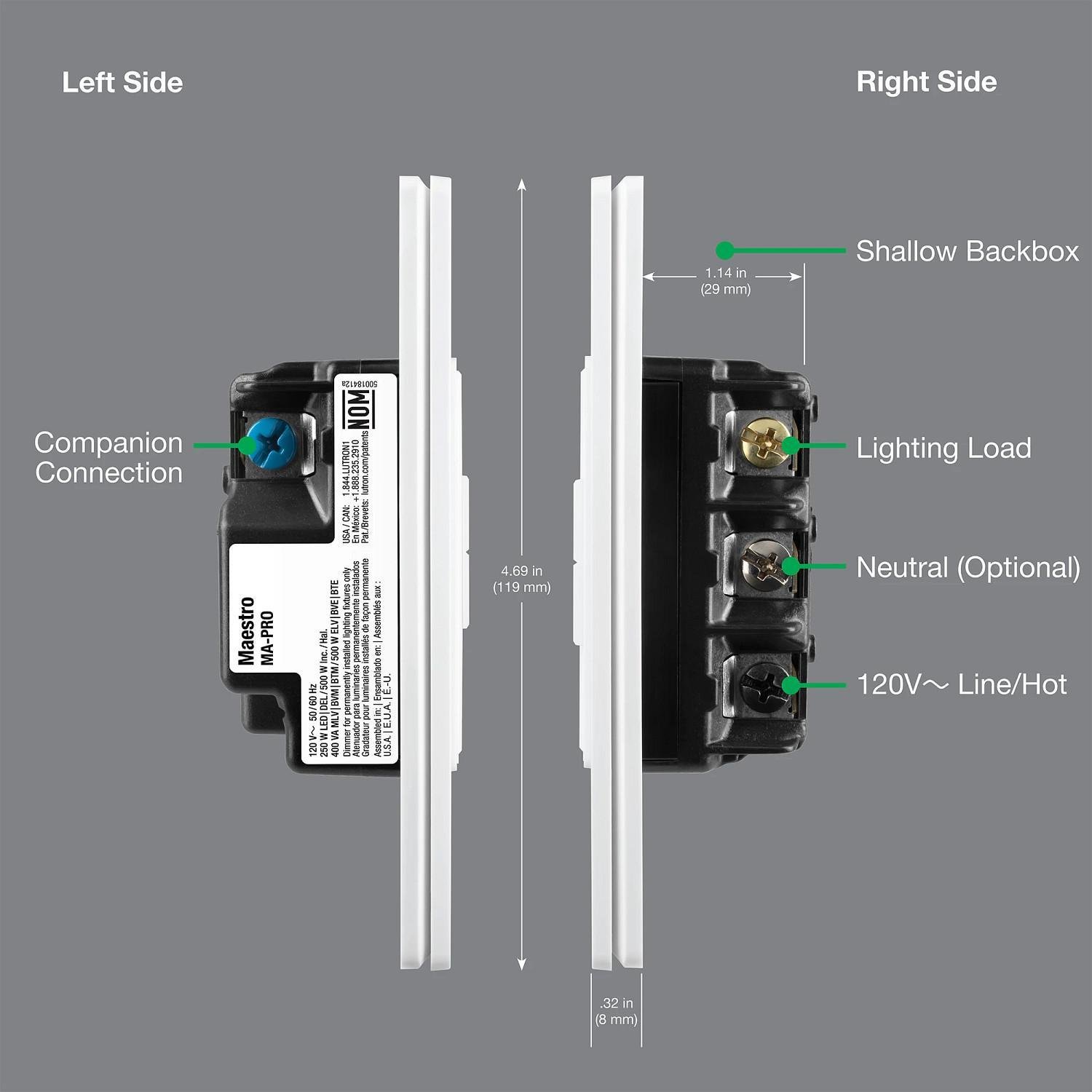

Neutral Optional for LED, CFL, and Incandescent/Halogen, Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1 Percent LED drivers

AD Item Features 02

Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)

AD Item Features 03

Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select

AD Item Features 04

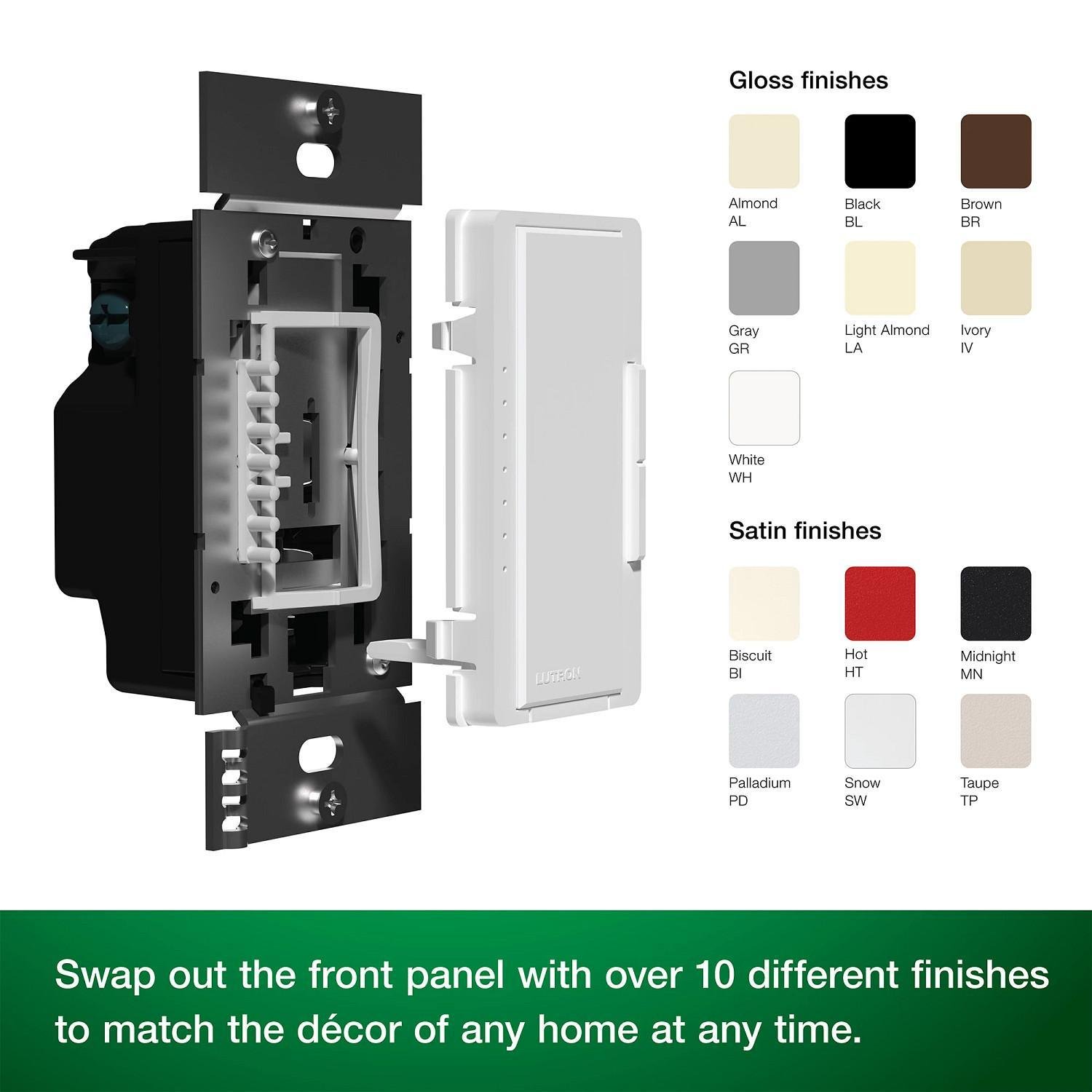

Interchangeable color kits available for front panel (color change kit MK-D sold separately)

AD Item Features 05

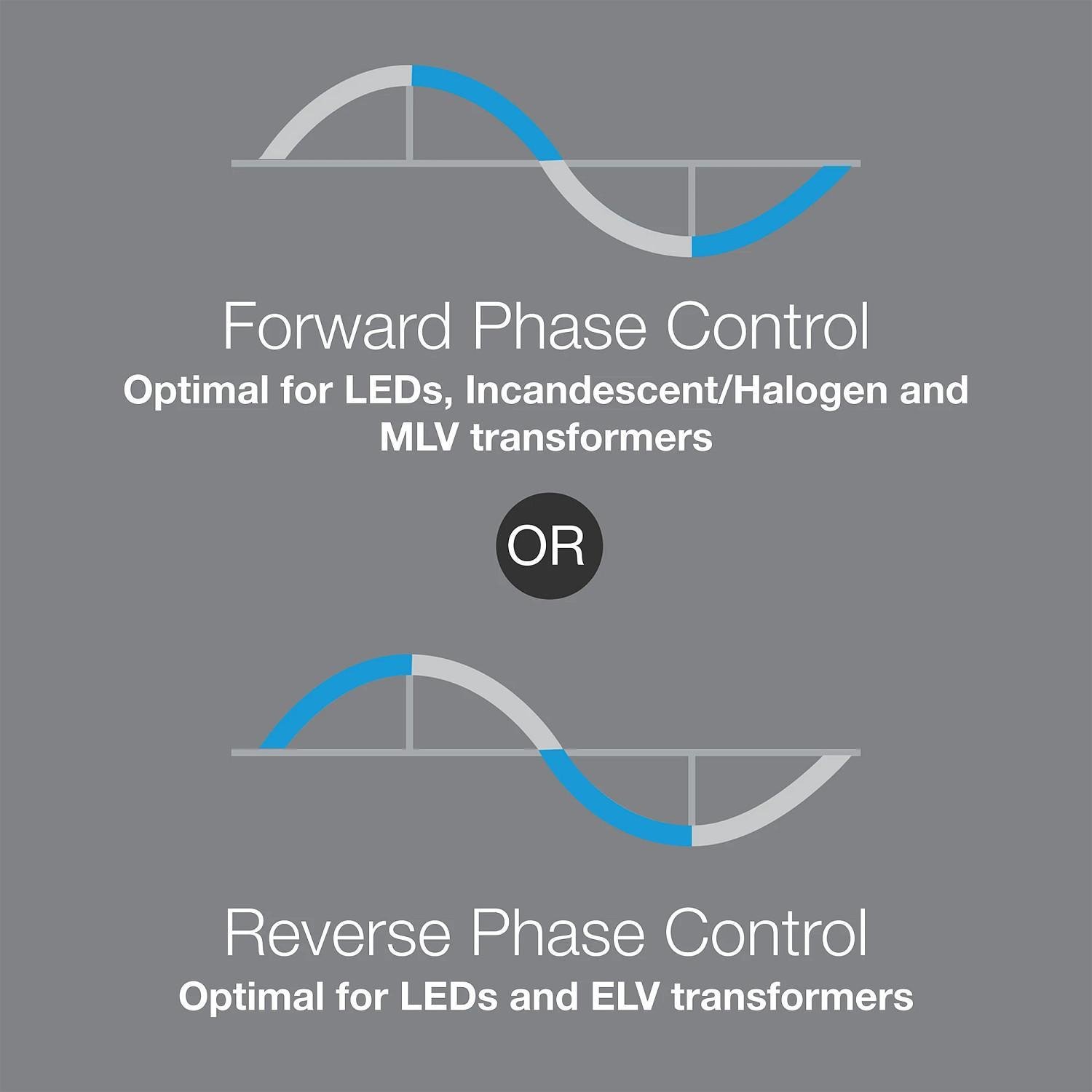

Phase Auto-Select, Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase, When neutral is not connected, the automatic default is forward phase)

AD Manufacturer (Description)

LUTRON ELECTRONICS

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

2.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Width

2.2500

AD Package Width UOM

IN

Brand

Lutron

Category

LIGHTING DIMMERS

Spec 1 Attribute

Color

Spec 1 Attribute Value

White

Spec 10 Attribute

Series

Spec 10 Attribute Value

MA-PRO

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

0 To 40

Spec 12 Attribute

Type

Spec 12 Attribute Value

Phase Selectable

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120

Spec 2 Attribute

Control

Spec 2 Attribute Value

Tap/Touch Rocker

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.69 in H x 2.94 in W x 0.32 in D

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Lamp Type

Spec 5 Attribute Value

CFL/Halogen/Incandescent/LED

Spec 6 Attribute

Material

Spec 6 Attribute Value

Plastic

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

Operation Mode

Spec 8 Attribute Value

On/Off

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

250/500/400
