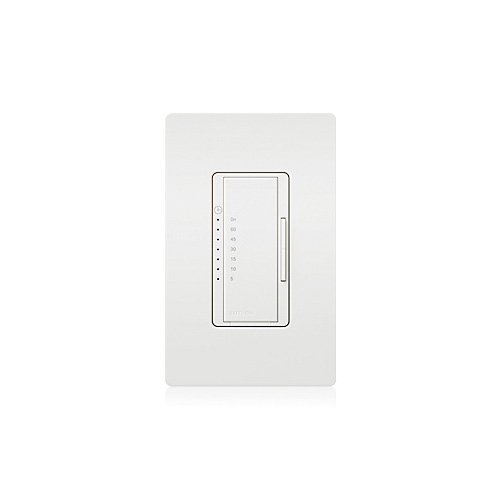

MA-T530G-WH - MAESTRO ECO-TIMER WHITE
Description
Specifications
4.5mm
2.25mm
2.25mm
Bathroom, Kitchen, Exhaust Fan, Lighting and Indoor Applications
Lutron
USA
MX
SWITCH CTRL ECO-TMR COUNTDOWN 1 TO 30MIN
Gloss finish, white color
60 Hz, 600 W
Timer can be set to operate fan or light for 5 to 60 min before turning off automatically
No neutral required
Use timer with exhaust fans in bathrooms to eliminate moisture and reduce mold and mildew growth
5 A incandescent/halogen, MLV on/off lighting load, 3 A general purpose fan current rating
Never forget to turn your fan off again or have to make unnecessary trips back into the room
Timer has orange LED's that indicate time remaining before turn off
Use in the garage to keep the light on as you get into your vehicle and it can turn off automatically after you leave
Save energy by using in closets, attics, basements and other low-traffic areas to ensure the light is never left on for a long time
LUTRON ELECTRONICS
4.5000
IN
2.2500
IN
1
2.2500
IN
Lutron
FAN SPEED SWITCHES & CONTROLS
Amperage Rating
A
5-Mar
Time Setting
MIN
1 to 30
Type
Designer
Voltage Rating
V AC
120
Contact Form
1NO 1 Form A
Dimensions
4.69 in H x 2.94 in W
Electrical Connections
Screw Terminal
Mounting Type
Wall
Number Of Poles
1
Operation Mode
Tap On/Off
Series
Maestro®
Temperature Rating
deg F
32 To 104
