Lutron

MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW

Category Miscellaneous
Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW
Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW
Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW
Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW
Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW Picture of MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW
Lutron

MACL-L3S25-WH - MA LED+ 75W/2.5A DMR/SW

Item Code: 1204240
Category Miscellaneous
Manufacturer LUTRON ELECTRONICS
Manufacturer Ref MACL-L3S25-WH

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

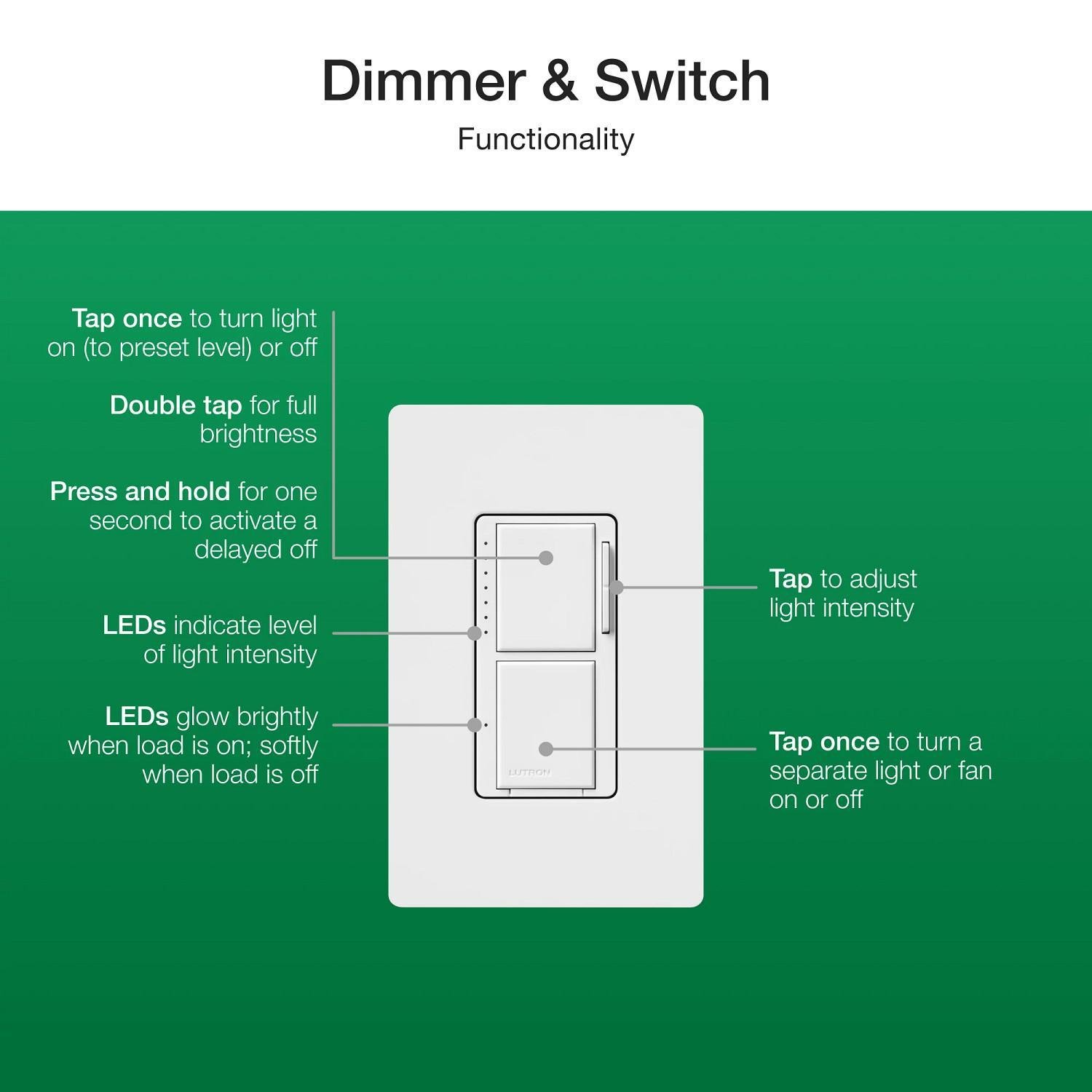

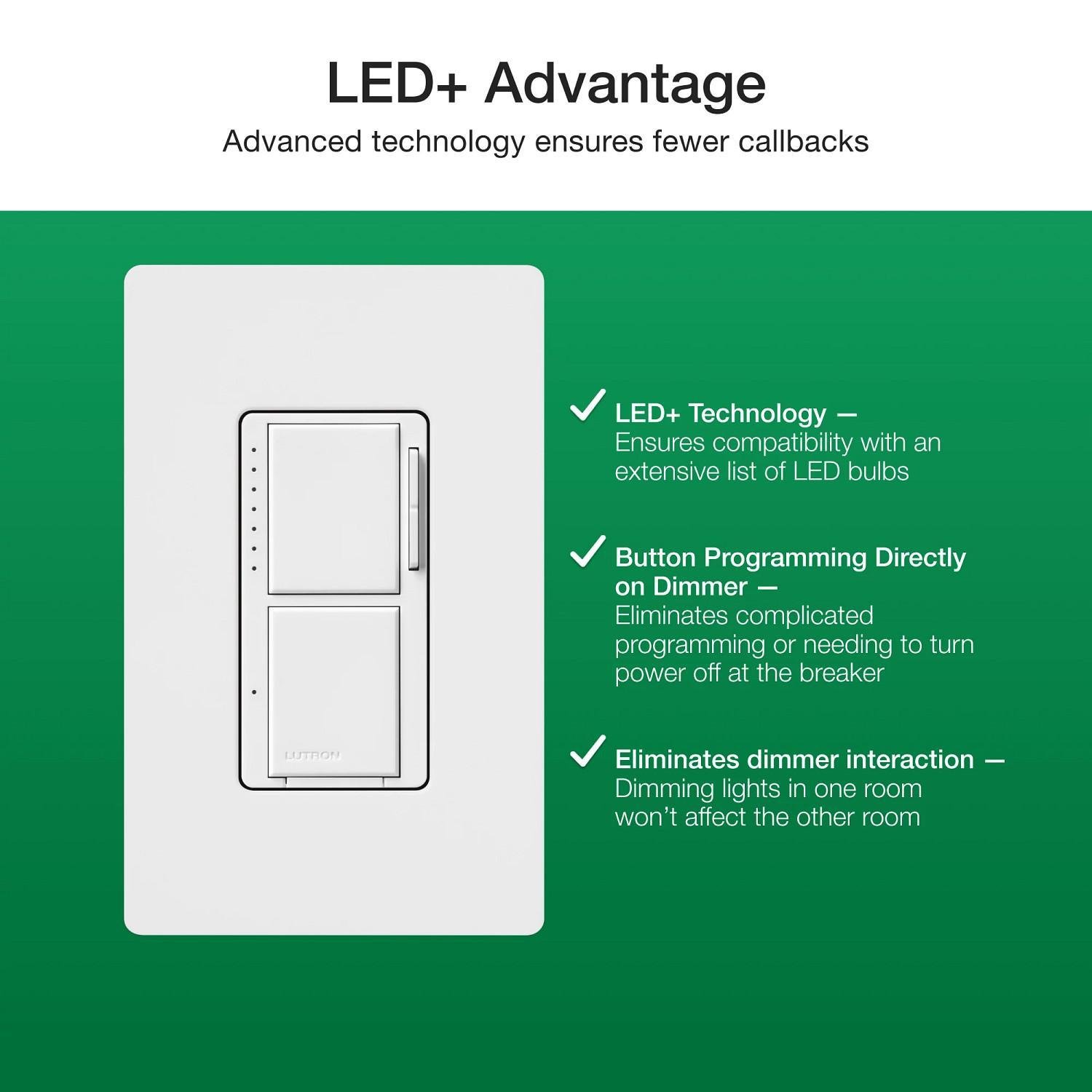

The Maestro LED+ dual dimmer and switch is a 2-in-1 control that incorporates an LED+ dimmer switch at the top and an on/off switch at the bottom. The Maestro LED+ dimmer works with up to 75 watts of LED bulbs, and the on/off switch is rated up to 2.5A for any bulb type or fans, including DC and high efficiency fans. This stacked control allows you to save space by combining two single pole loads into one control and helps avoid cutting additional holes in the wall. Just like Lutron’s other LED+ dimmers, this dual control uses existing wiring in any age home and does not require a neutral wire. The LED+ dimmer switch has an easy low-end trim adjustment for improved bulb performance and smooth, continual dimming. This dual stacked control is also equipped with myLevel Personalization, a simple button programming mode, which allows users to set their preferred brightness, fade on/off times, or disable the indicator lights. The dimmer’s seven green indicator lights brighten when the light is on, and correlate to the light level determined by the raise/lower buttons. When turned off, the indicator lights glow softly and serve as a locator in the dark. The easy-to-operate dimmer switch turns lights on and off to your favorite preset light level. Tap the dimmer switch twice for full on or press, hold, and release for a delayed fade-to-off, allowing for extra time to leave a room before the lights shut off. Tap the bottom switch to turn any light or fan on and off. A single green indicator light brightens when bottom switch load is on, and will remain softly lift when load is off. The Maestro LED+ dual dimmer and switch is ideal for places like bathrooms, under kitchen cabinets, or porch/entryways – making it a great replacement for stacked switches that aren’t rated for LEDs. Coordinates perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Specifications

Weight

0.3

Width

2.4

Length

2.4

AD Application

For indoor use only

AD Brand (Description)

Lutron

AD Country

USA

AD Includes

Front Accessible Service Switch

AD Invoice Description

DGTL DMR 120VAC 2.5A 1 ON/OFF WHITE

AD Item Features 01

Dimming (top) load works with 75W LED bulbs or 300W incandescent/halogen bulbs

AD Item Features 02

Switch (bottom) load works with all lighting or up to 2.5A fans, including DC and high efficiency fans

AD Item Features 03

Single pole, No neutral wire required

AD Item Features 04

1 line (hot) wire and 2 separate load wires required

AD Item Features 05

Space saver stacked dimmer and switch, dim to adjust the brightness level for one light (top) and switch a second light or fan on/off (bottom)

AD Manufacturer (Description)

LUTRON ELECTRONICS

AD Package Height UOM

IN

AD Package Length

2.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

69.1200

AD Package Volume UOM

cu-in

AD Package Weight

0.3000

AD Package Weight UOM

LB

AD Package Width

2.4000

AD Package Width UOM

IN

Brand

Lutron

Category

Miscellaneous

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

2.5

Spec 10 Attribute

Operation Mode

Spec 10 Attribute Value

On/Off

Spec 11 Attribute

Power Rating

Spec 11 Attribute UOM

W

Spec 11 Attribute Value

25, 75, 300

Spec 12 Attribute

Series

Spec 12 Attribute Value

MACL-L3S25

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

32 To 104

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Screw

Spec 15 Attribute

Type

Spec 15 Attribute Value

Dual LED+

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

120

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Control

Spec 3 Attribute Value

Rocker/Tap Switch

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

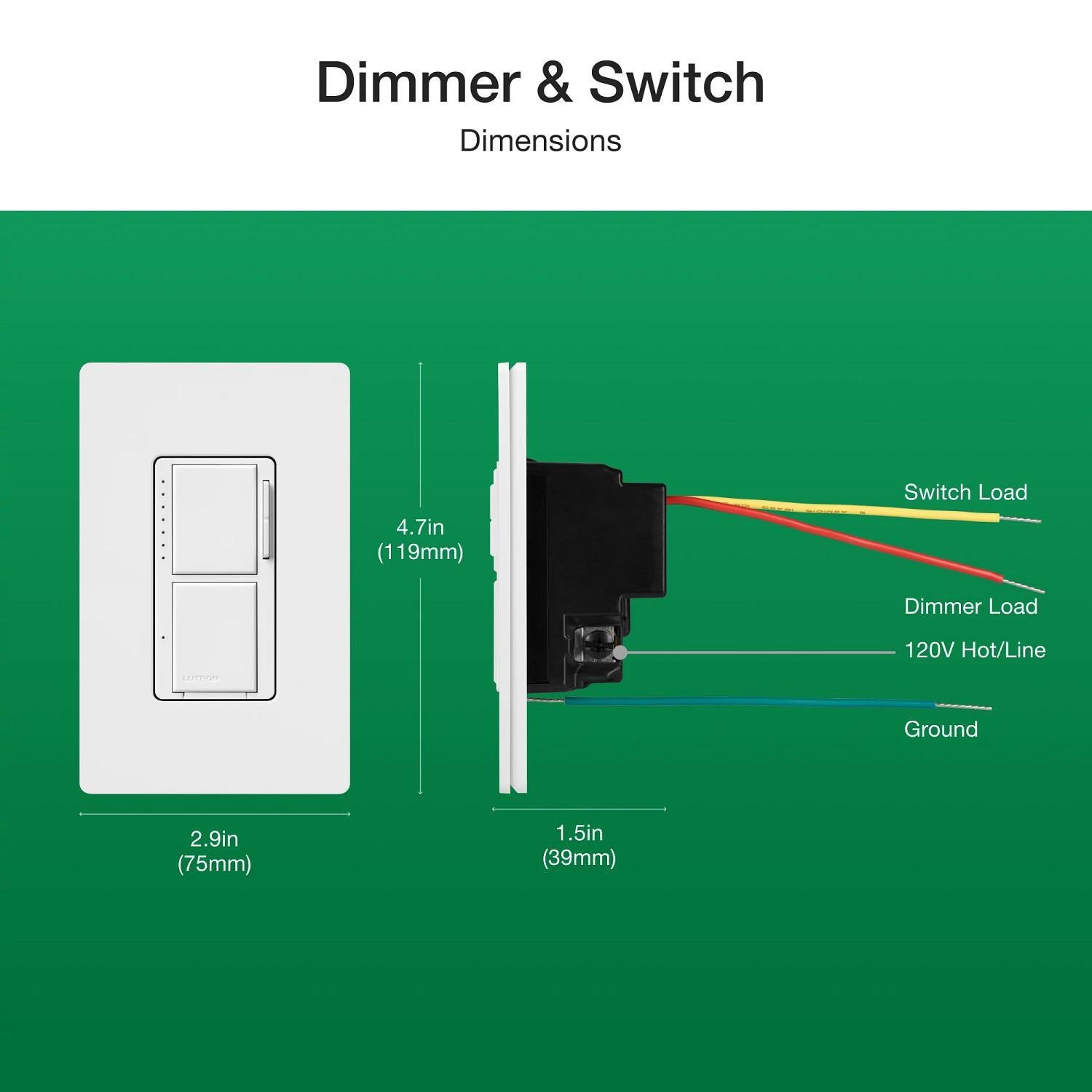

4-11/16 in H x 2-15/16 in W x 5/16 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA SSL-7A

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

60

Spec 7 Attribute

Lamp Type

Spec 7 Attribute Value

CFL/Halogen/Incandescent/LED

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Wall

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

1
