Lutron

MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV

Category Lighting Occupancy Sensors
Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV
Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV
Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV
Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV
Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV Picture of MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV
Lutron

MS-OPS2-IV - Maestro 2A Motion Sensor Single Pole IV

Item Code: 860821
Category Lighting Occupancy Sensors
Manufacturer LUTRON ELECTRONICS
Manufacturer Ref MS-OPS2-IV

Instruction Installation Manual
Specification Sheet
Warranty Information
Call for Availability
Add to Favorites
Compare

Description

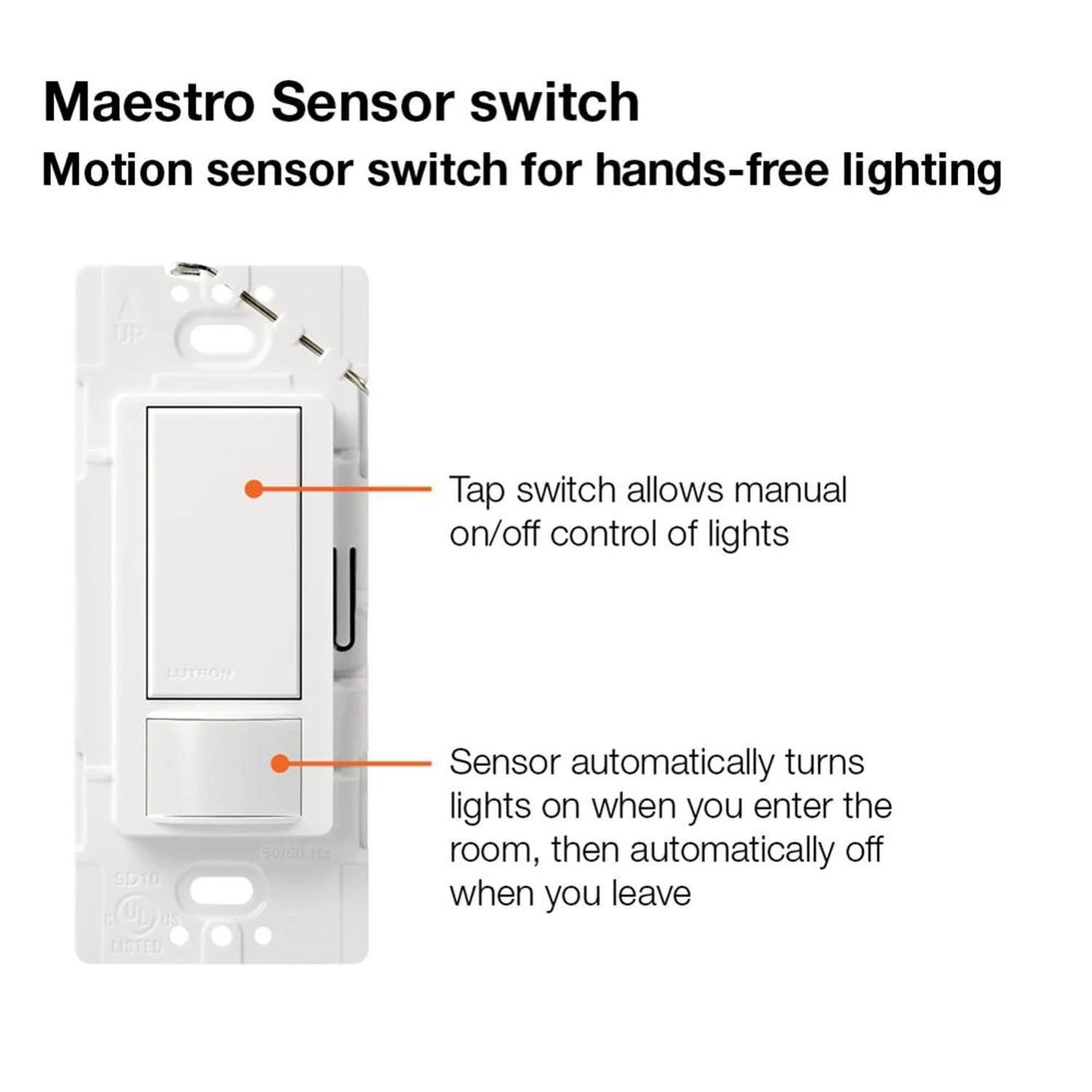

The Lutron Maestro Motion Sensor Switch features Lutron’s advanced motion sensing technology to automatically turn the lights on and off, or manually toggle the lights with the tap switch. The Motion Sensor Switch is rated up to 2A for any lighting type and is single pole only. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensor to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Lutron sensors also have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. Switch the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. The sensitivity of the PIR sensor can also be changed so it only detects larger motion Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Specifications

Brand

Lutron

Category

LIGHTING OCCUPANCY SENSORS

Color

Ivory

Dimensions

4-11/16 in H x 2-15/16 in W x 1-1/8 in D

Series

MS-OPS2

Specifications

2 A at 120/277 V AC, 1 Pole

Suitable For Use With

Incandescent/Halogen/MLV/ELV/CFL/LED/Magnetic Fluorescent/Electronic Fluorescent
