Lutron

MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE

Category Lighting Dimmers
Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE
Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE
Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE
Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE
Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE Picture of MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE
Lutron

MSCL-OP153M-WH - MAESTRO LED+ PIR OCC SENSOR BOX WHITE

Item Code: 863088
Category Lighting Dimmers
Manufacturer LUTRON ELECTRONICS
Manufacturer Ref MSCLOP153MW

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

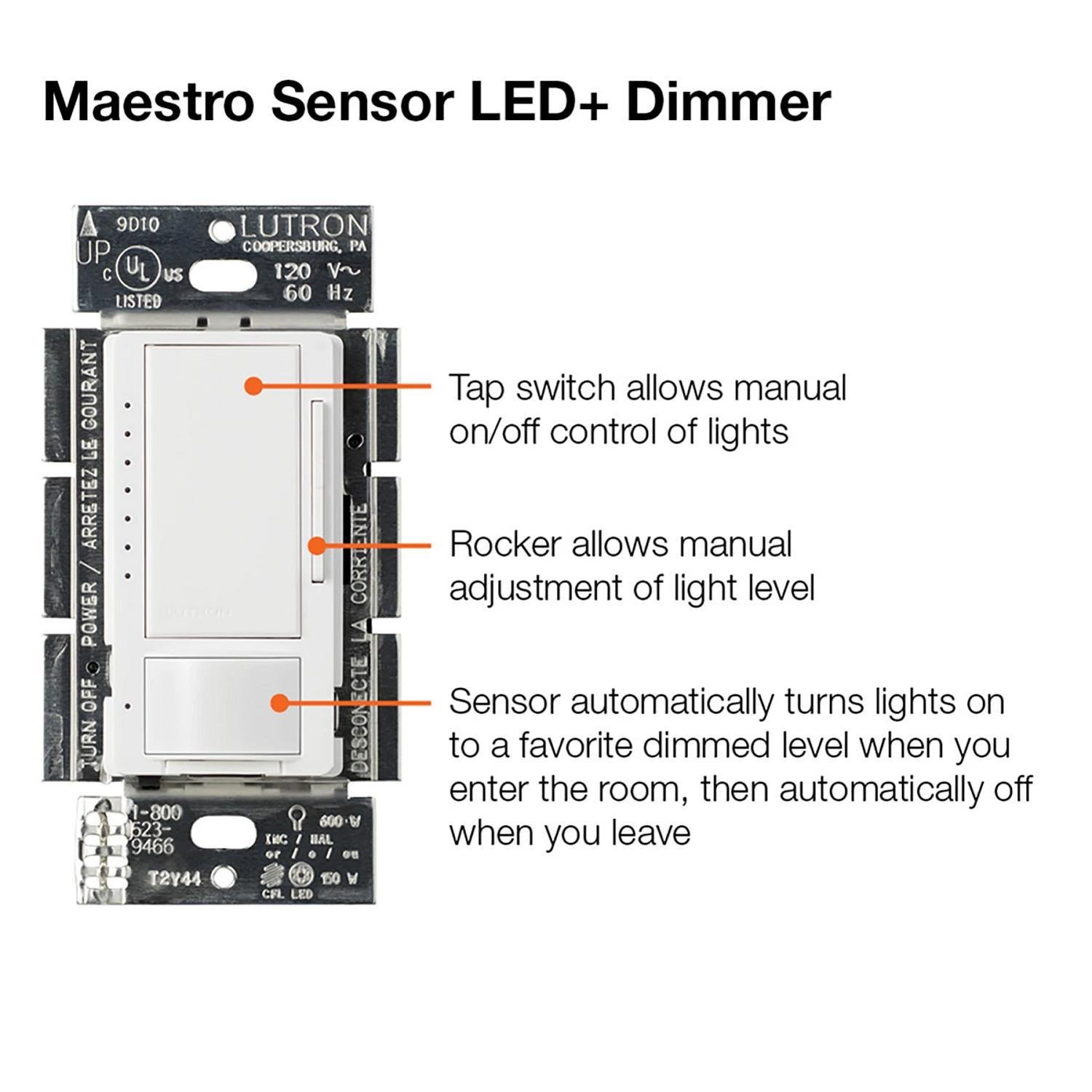

The Lutron Maestro LED+ Motion Sensor Dimmer Switch works just like a Lutron Maestro dimmer, with the addition of Lutron’s advanced motion sensing technology to automatically and gradually turn the lights on and off. The LED+ Motion Sensor Dimmer Switch is rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs. Install in a single pole, 3-way with existing switch, or with Maestro companion dimmers (MA-R/MSC-AD) to dim from up to 9 locations. Use the raise/lower buttons to adjust the brightness for any activity or determine the preset level to ensure lights always turn on to your desired light level. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensing dimmer to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Easy button programming is available to customize both the dimmer and the sensor’s functions, such as timeout, occupied level and sensor mode. Lutron sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The occupied level is the brightness the sensor will turn on when motion is detected. Change the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Specifications

Height

4.5mm

Width

2.25mm

Length

2.25mm

AD Application

Kids Room and Kitchen Applications

AD Brand (Description)

Lutron

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

DIMMER CL SENSING OCCUPANCY 120VAC 1 WHT

AD Item Features 01

Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs, No Neutral or Ground required

AD Item Features 02

Screw Terminal or Push-in Installation, 120V

AD Item Features 03

Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R), compatible with an existing 3-way switch

AD Item Features 04

Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers

AD Item Features 05

180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage), Tamper-resistant lens

AD Manufacturer (Description)

LUTRON ELECTRONICS

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

2.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Width

2.2500

AD Package Width UOM

IN

Brand

Lutron

Category

LIGHTING DIMMERS

Spec 1 Attribute

Color

Spec 1 Attribute Value

White

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

W

Spec 10 Attribute Value

600

Spec 11 Attribute

Series

Spec 11 Attribute Value

Maestro®

Spec 12 Attribute

Start Type

Spec 12 Attribute Value

Preset

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

32 To 104

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Screw

Spec 15 Attribute

Type

Spec 15 Attribute Value

Multi-Location

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

120

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

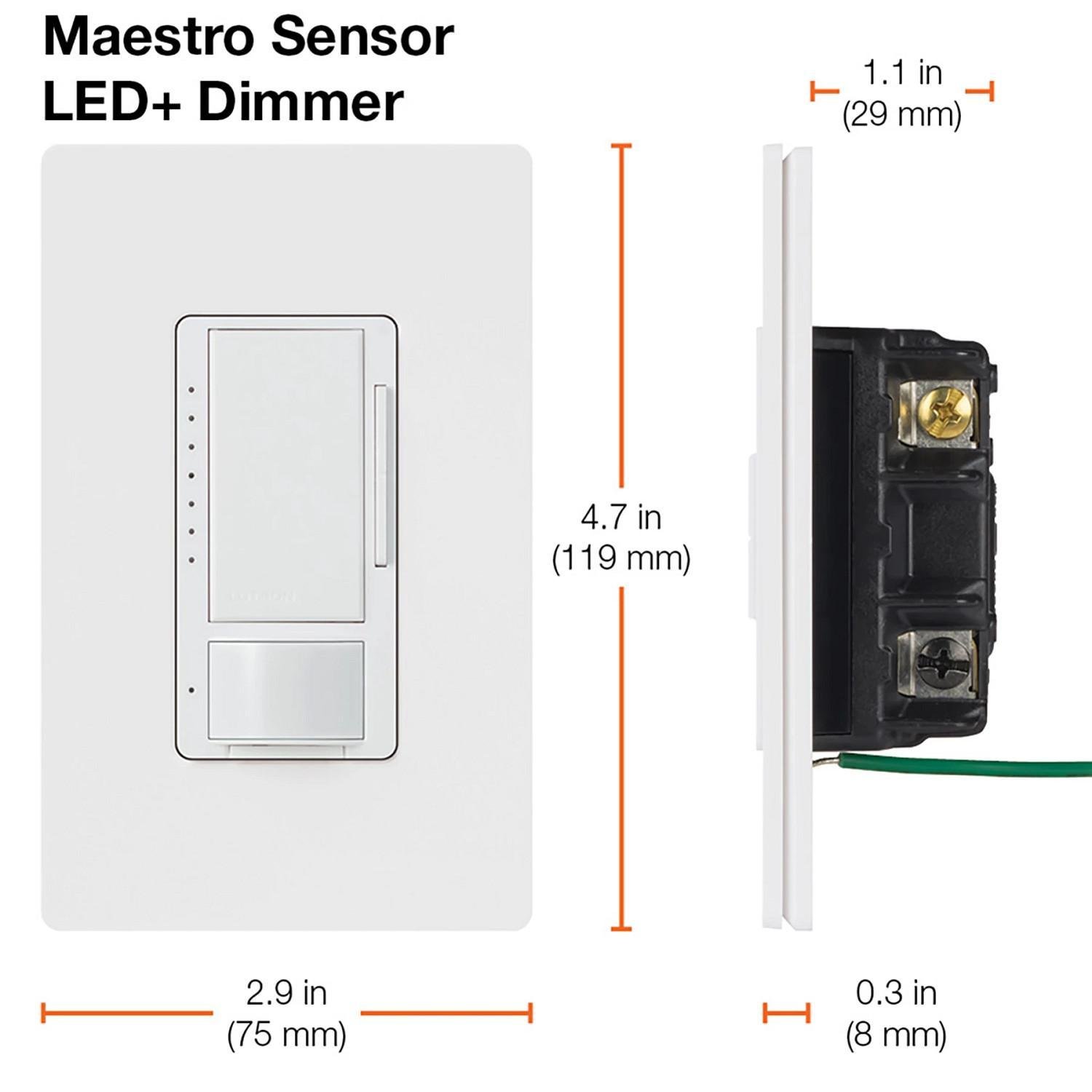

2-15/16 in W x 1-1/8 in D x 4-11/16 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA WD7

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Lamp Type

Spec 5 Attribute Value

CFL/Halogen/Incandescent/LED

Spec 6 Attribute

Material

Spec 6 Attribute Value

Plastic

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Wall

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

1

Spec 9 Attribute

Operation Mode

Spec 9 Attribute Value

On/Off
