Lutron

PD-5NE-WH - Caséta ELV Dimmer 250W LED White

Category Lighting Dimmers
Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White
Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White
Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White
Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White
Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White Picture of PD-5NE-WH - Caséta ELV Dimmer 250W LED White
Lutron

PD-5NE-WH - Caséta ELV Dimmer 250W LED White

Item Code: 965367
Category Lighting Dimmers
Manufacturer LUTRON ELECTRONICS
Manufacturer Ref PD-5NE-WH

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

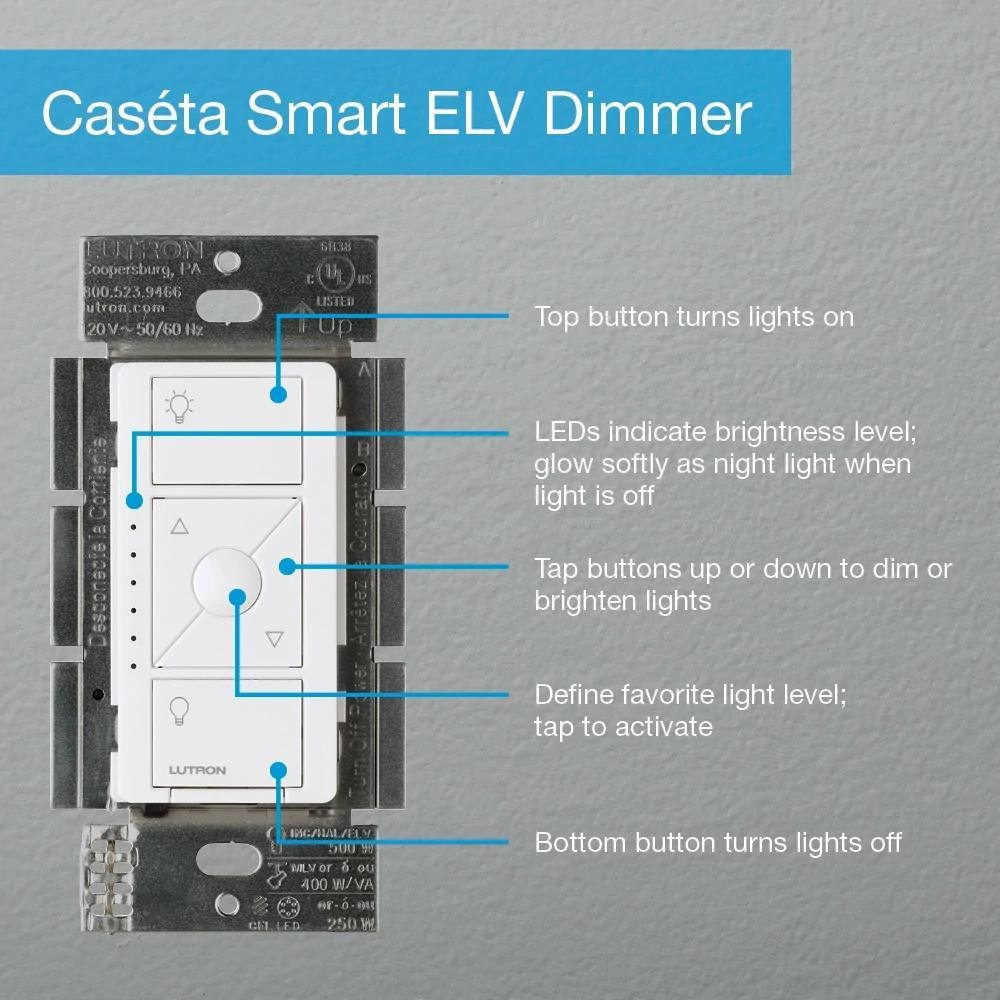

The Caseta ELV+ Smart Dimmer Switch with phase selectable dimming works with up to 250W of dimmable LED, 500W of incandescent/halogen/electronic low-voltage (ELV), or 400-Watt of magnetic low-voltage (MLV); Neutral wire connection and 10-Watt minimum load required for all load types. Out of the box, the dimmer is set to reverse phase for ELV/incandescent/halogen light loads. However, since it is phase selective, the dimmer output can be changed to forward phase for MLV lighting loads and other certain LED bulbs with simple button press programming. The Caseta ELV + dimmer features a preset button in the center to save and recall your favorite light level. Existing hardwired 3-way switches will not work with this dimmer, for 3-way and multi-location applications Pico remotes must be used with this dimmer. Replace an existing switch with a Pico remote control and wall plate adapter to dim from every location (PICO-WBX-ADAPT sold separately). Use the Lutron Smart Hub to connect the Caseta ELV+ Dimmer Smart switch to leading smart home devices - including Alexa, Apple Home, Google Home, Ring, Sonos, and more. Not only does the smart hub unlock smart control and device integration - but it also doesn't use Wi-Fi to control your lights. With the Lutron Smart Hub you stay connected even when your Wi-Fi goes down and you avoid slowing your internet speed down with more devices. Enable the Smart Away feature to randomly turn lights on and off, to make it look like you're home, even if you're away (Lutron Smart Hub, L-BDG2-WH required). Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Specifications

AD Application

Lighting Control

AD Brand (Description)

Lutron

AD Country

USA

AD Invoice Description

SWITCH DMR 120VAC 1 50 TO 60HZ WALL BOX

AD Item Features 01

Works with up to 250W of dimmable LED, 500W of incandescent/halogen or ELV, or 400W MLV, Phase-Select available

AD Item Features 02

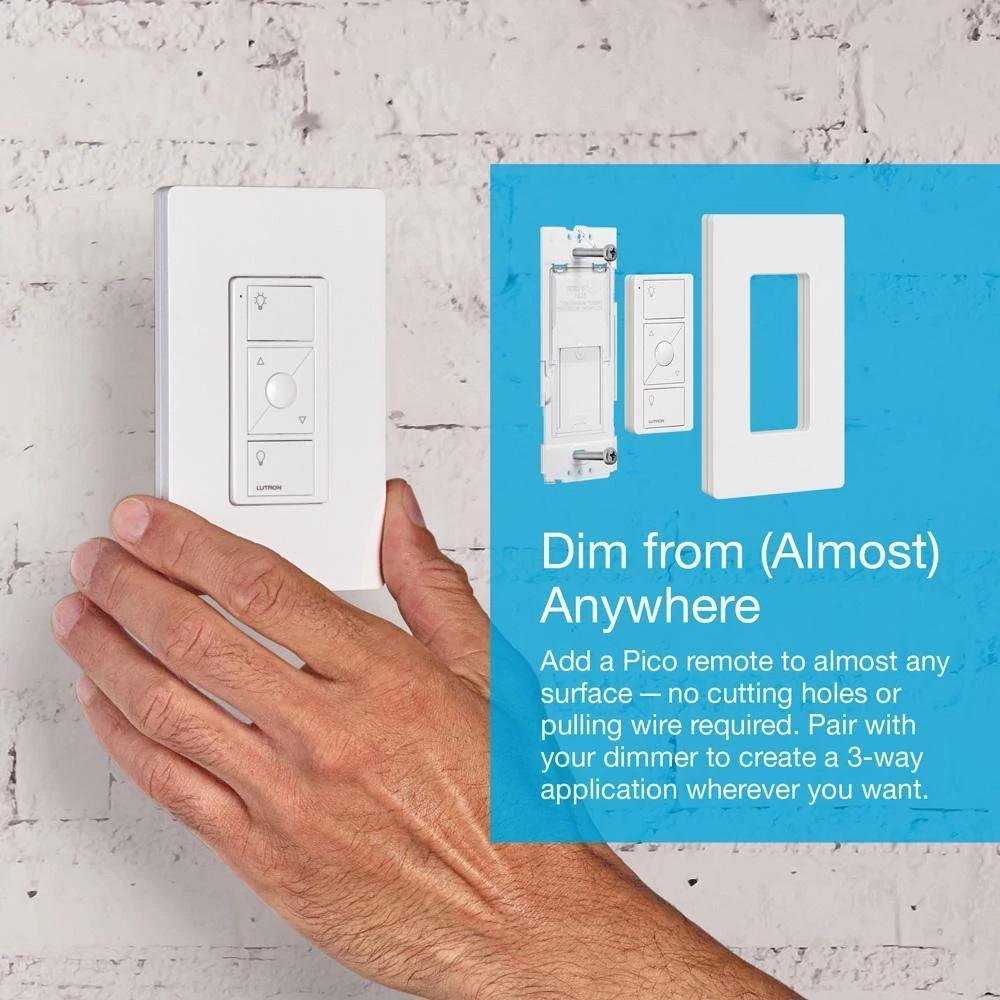

Create a 3-way and add a 2nd switch anywhere by pairing with a mountable Pico remote (PJ2-WALL-WH-L01 sold separately), Cannot be wired to existing 3-way switches

AD Item Features 03

Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more

AD Item Features 04

Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)

AD Manufacturer (Description)

LUTRON ELECTRONICS

AD Package Quantity

1

Brand

Lutron

Category

LIGHTING DIMMERS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

4.69 In (119 Mm) X 2.94 In (75 Mm)

Spec 2 Attribute

Frequency Rating

Spec 2 Attribute UOM

HZ

Spec 2 Attribute Value

50 To 60

Spec 3 Attribute

Material

Spec 3 Attribute Value

Plastic

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Wall Box

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

1

Spec 6 Attribute

Start Type

Spec 6 Attribute Value

Wireless In-wall Dimmer

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

0 To 40

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120
