RR-PROC3-CW - RA3 PROCESSOR
Description
Specifications
0.84lb
3.3mm
11.6mm
6.2mm
For Allow for Setup, Control and Monitoring of RadioRA Devices and Lutron Wireless Shades from a Smartphone or Tablet using the Lutron App
Lutron
USA
J-Box Ceiling and Recessed Wall Mounts
DMR ACCESS RADIO RA3/RADIO RA2
New QuickFind software makes it easy to locate the processor on the home network during setup

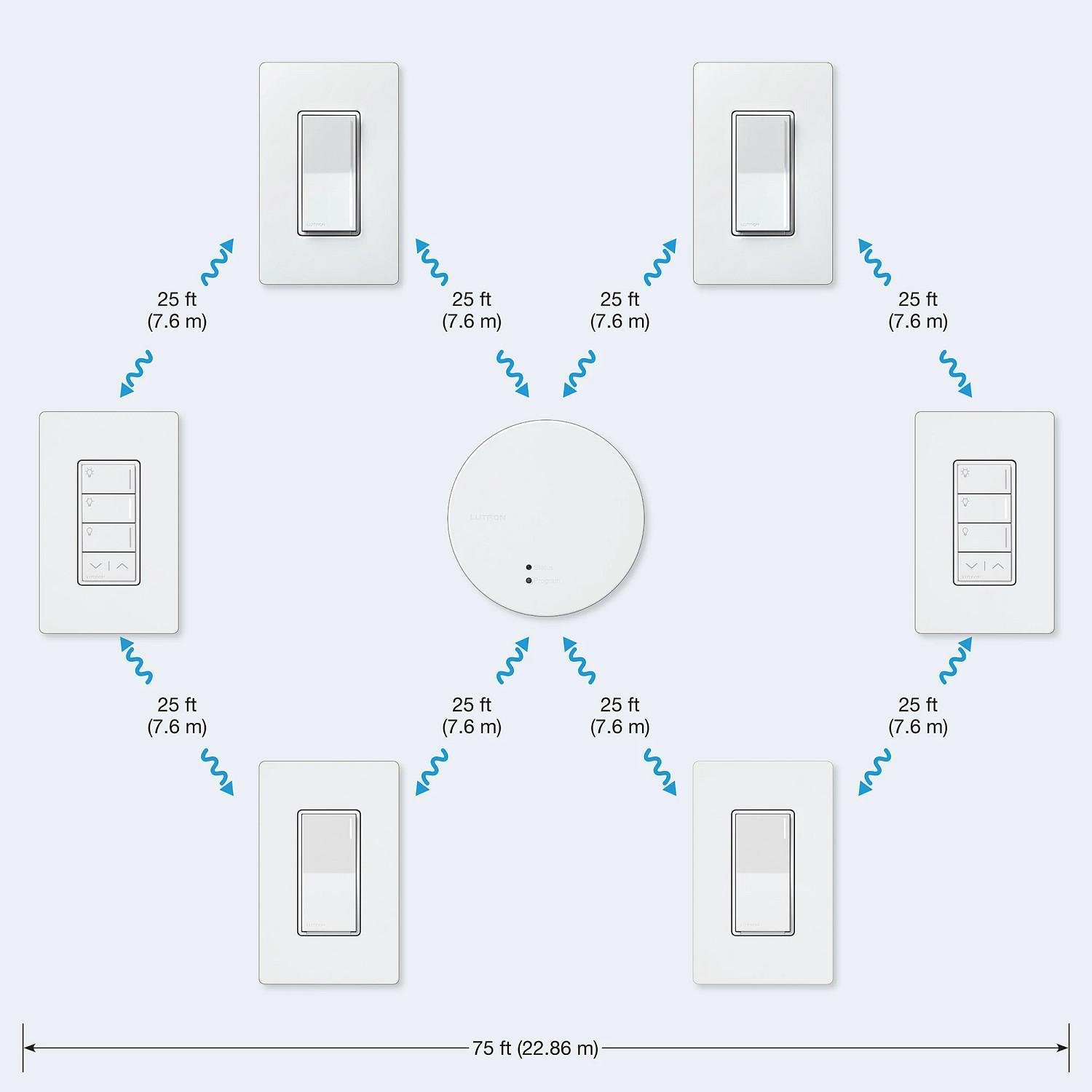

Install the processor centrally in the home for optimal RF coverage with Power over Ethernet (PoE) switch or injector (included in kit) with either recess-, shelf-, or junction box -mount adapters, no more need for a power supply and nearby 120v outlet

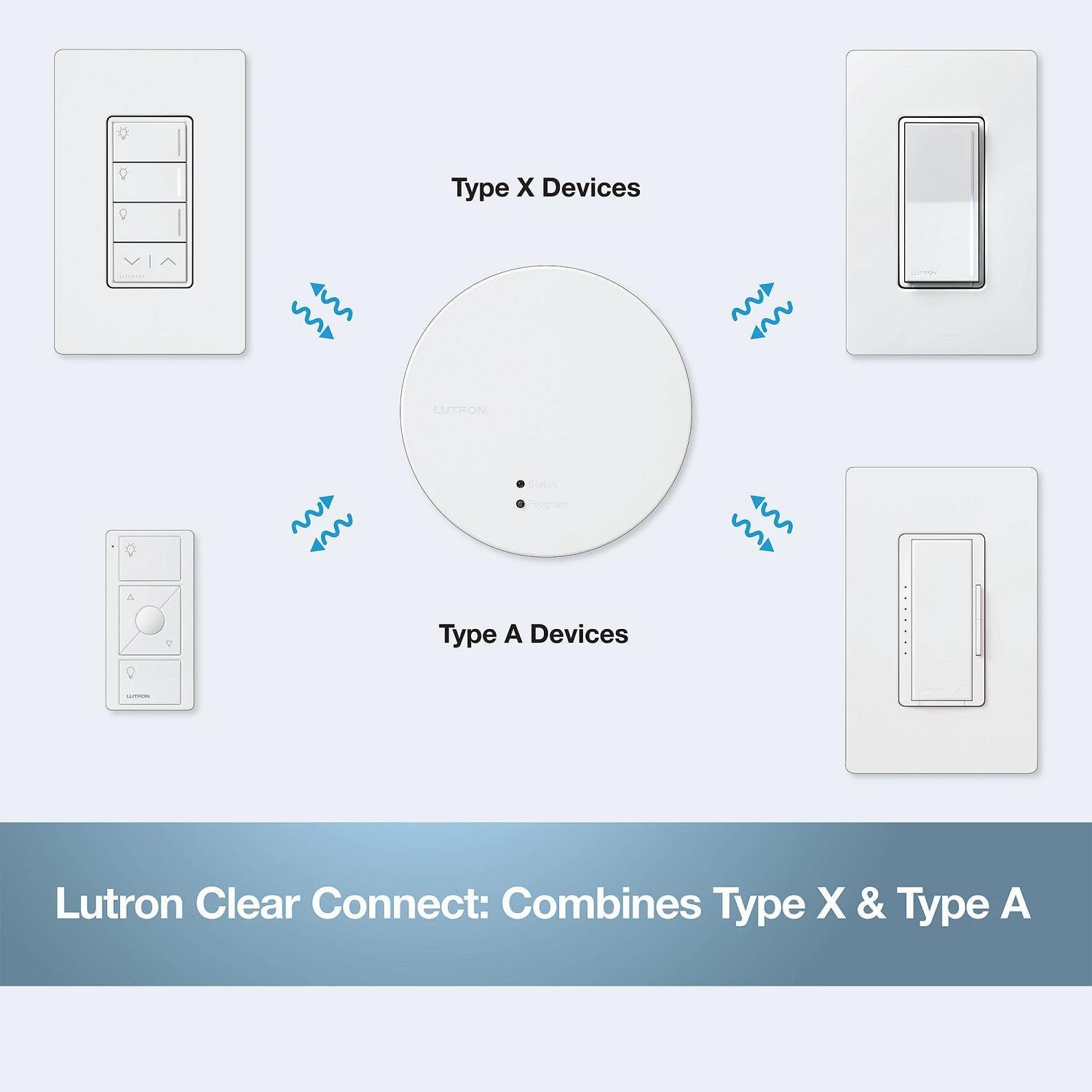

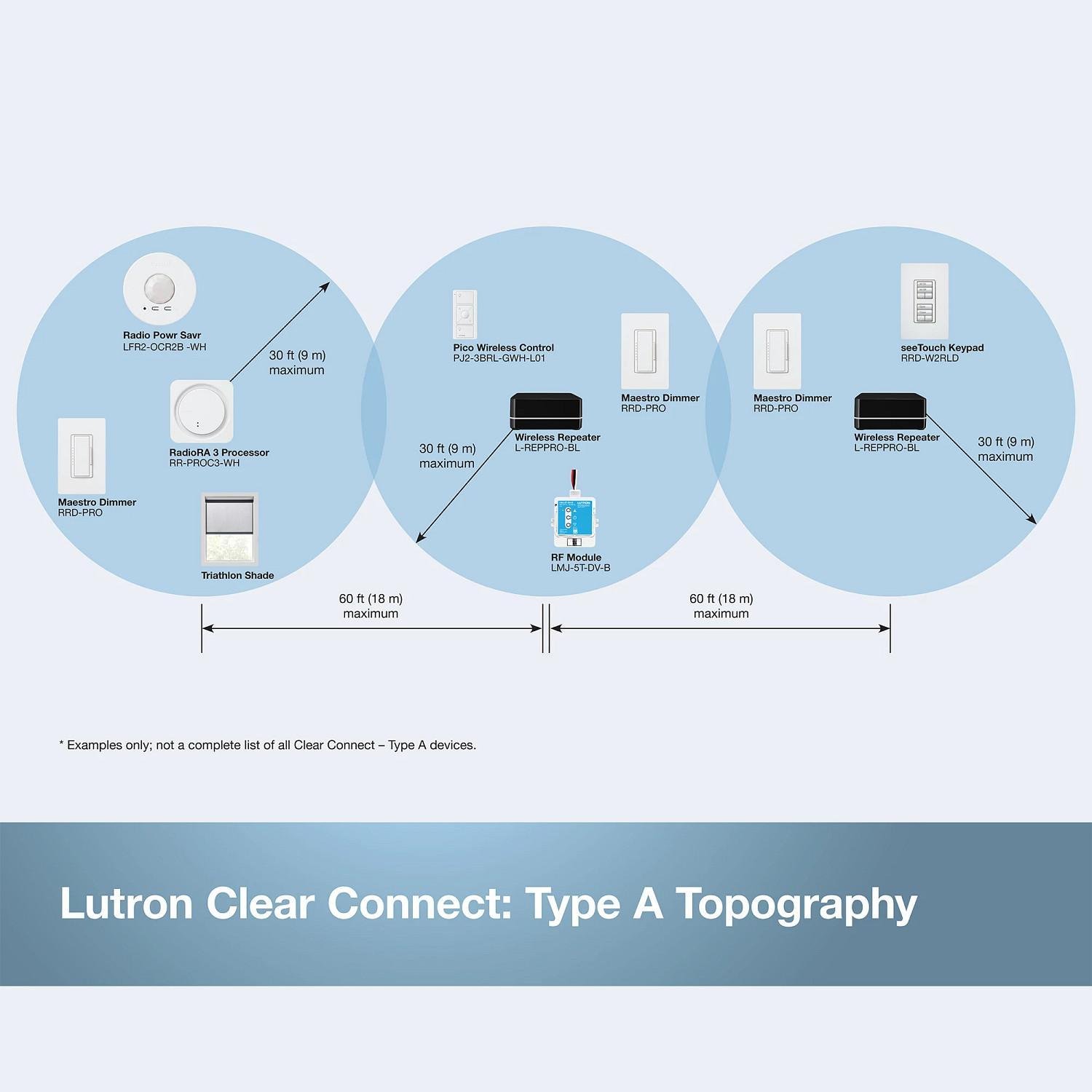

One RadioRA 3 processor can communicate with up to 100 Clear Connect - Type X devices, 95 Clear Connect - Type A devices, and 4 Type A repeaters per processor, Two RA 3 Processors can be paired into one system, doubling the device limit and range
Backwards Compatible, RadioRA 2 and RadioRA 2 Select systems can be upgraded to RadioRA 3 (some device limitations apply) and RadioRa2 project files can be converted with one click
Enable the cloud sync on the project file for backup, sharing between coworkers, and remote transfers, Also use the Lutron app to provide remote assistance to adjust scenes and schedules without having to roll a truck
LUTRON ELECTRONICS
3.3000
IN
6.2000
IN
1
241.9200
cu-in
0.8400
LB
11.6000
IN
Lutron
Lighting Accessories
Dimensions

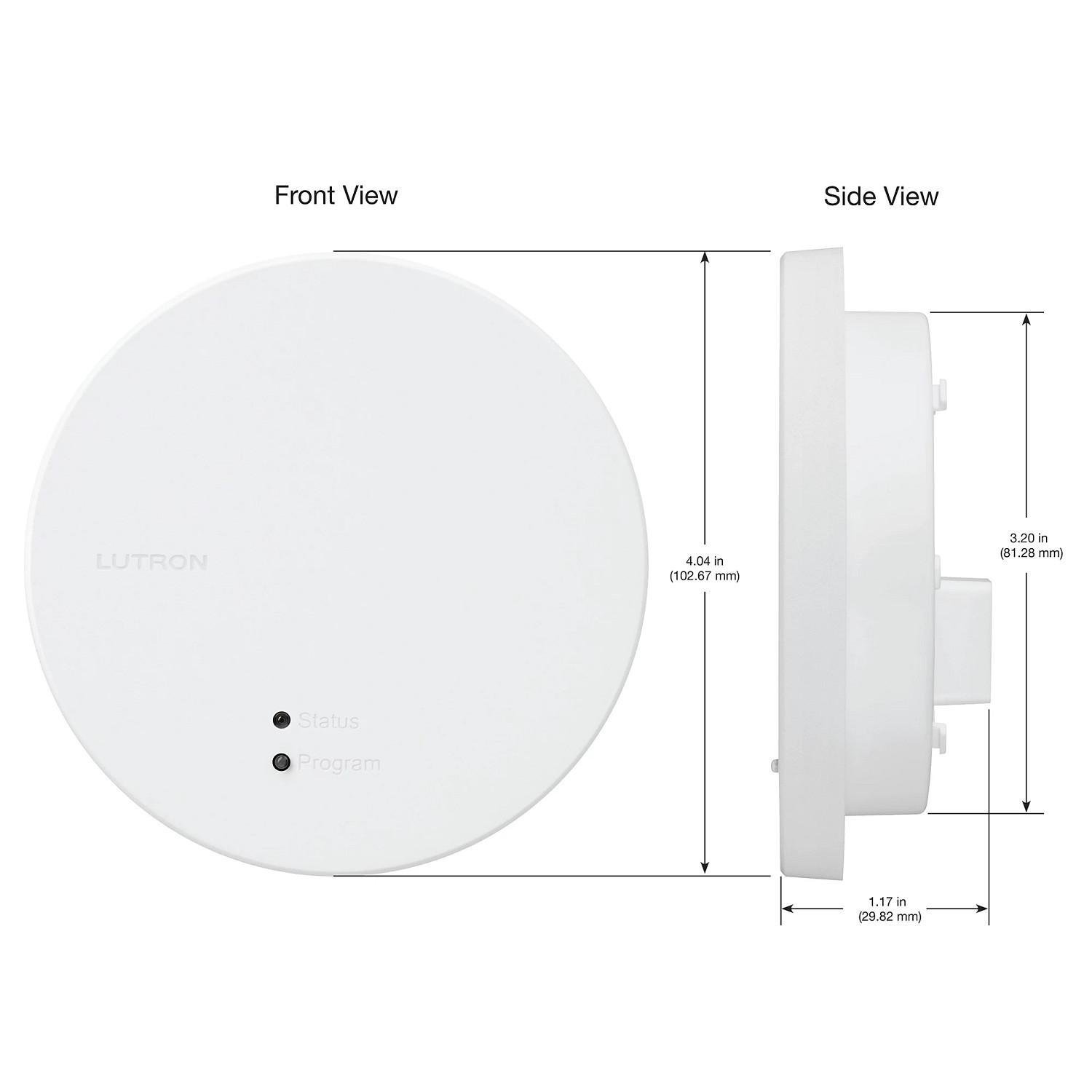

4.04 in H x 1.17 in W
Series
RadioRA3
Suitable For Use With
Radio RA3/Radio RA2
Type
All-In-One
