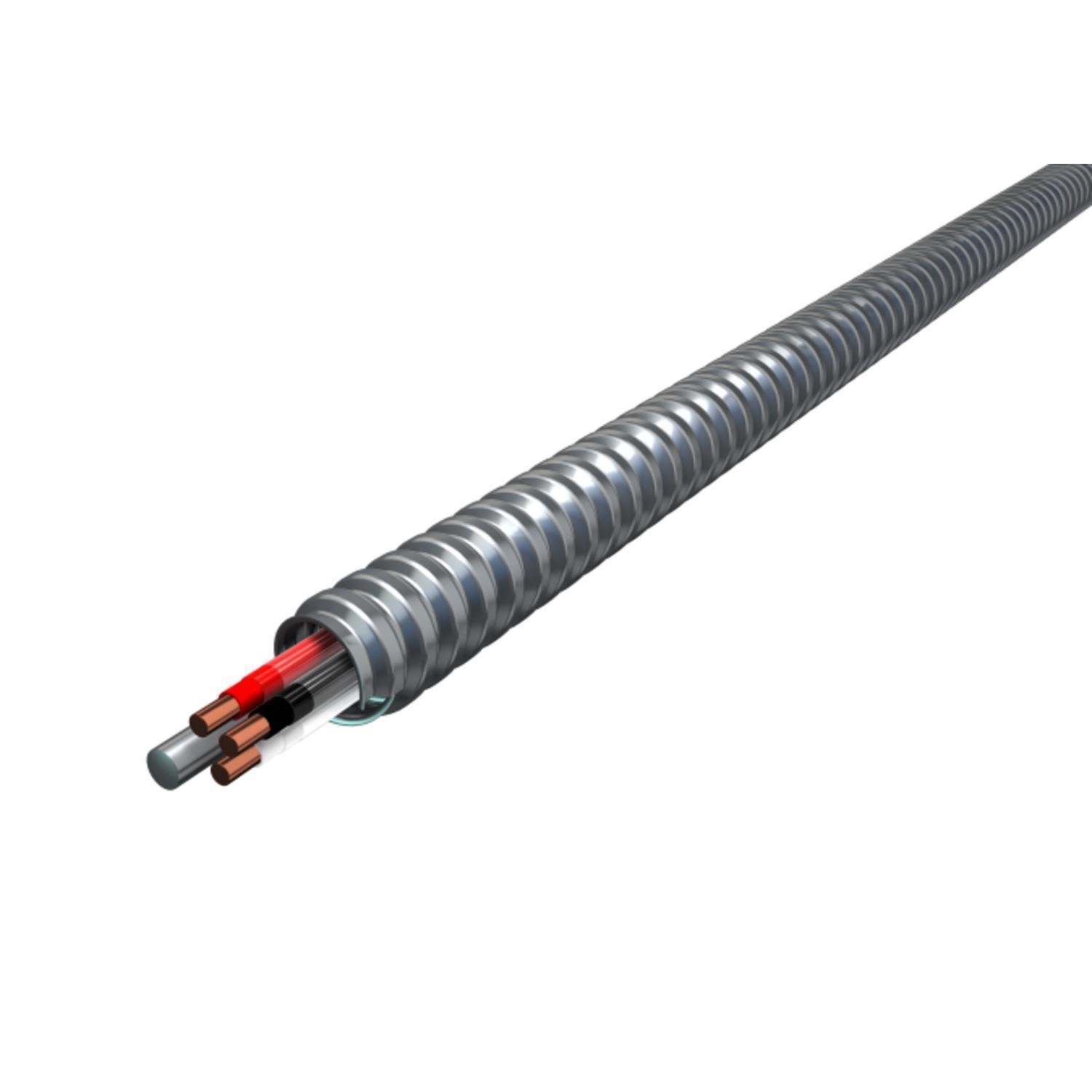

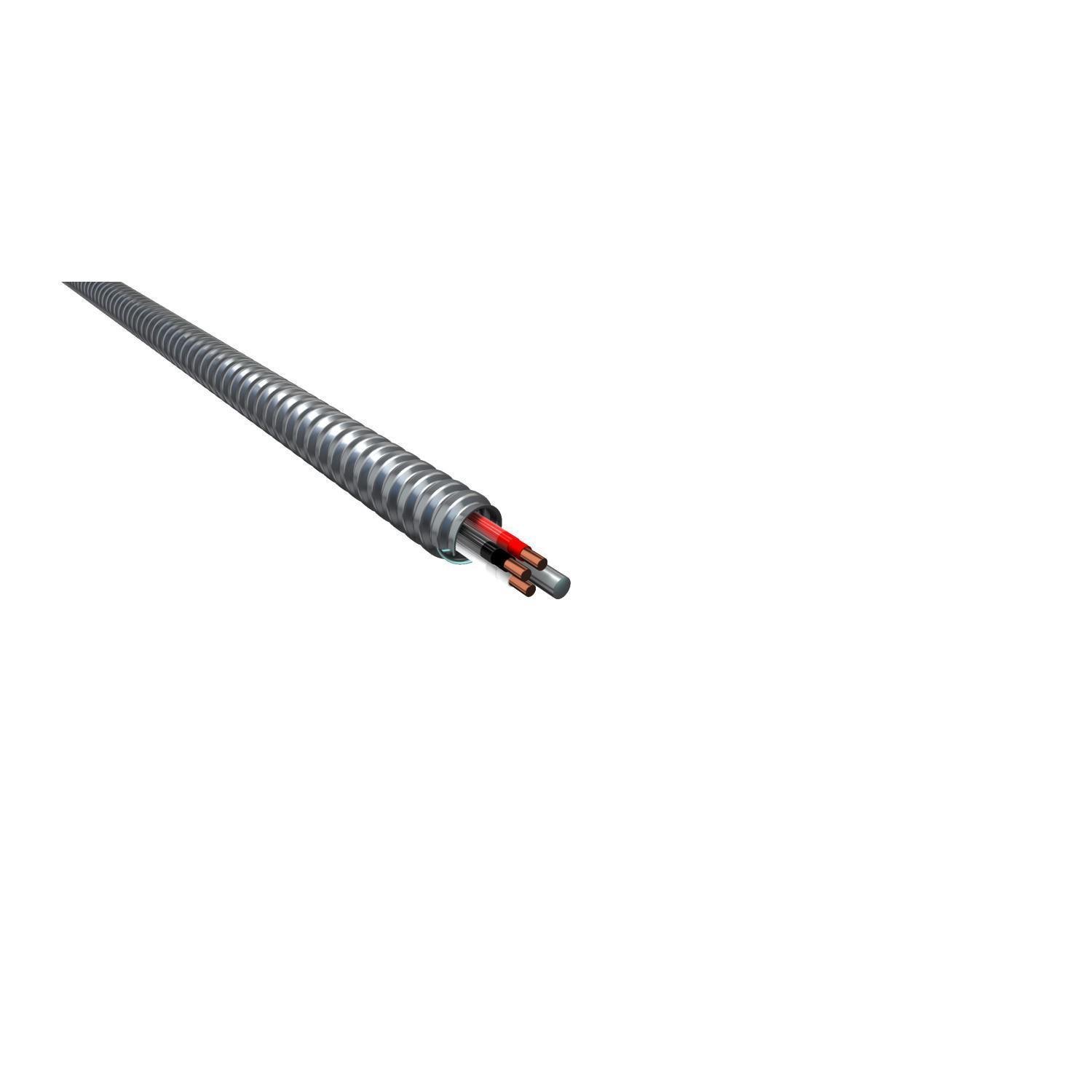

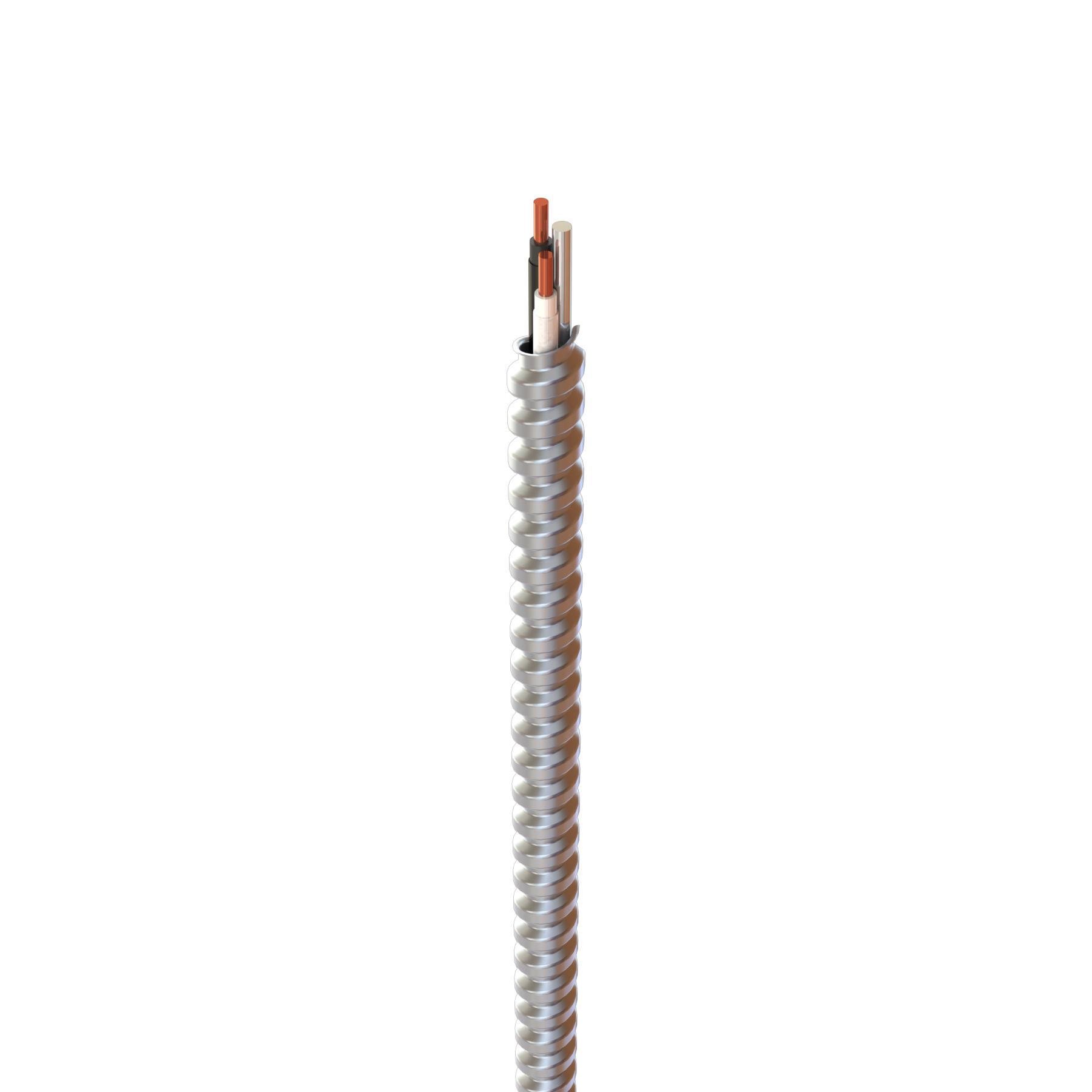

3104Z60-00 - 12-2 BK WE MC Quik® Lite, Plain Interlocked Aluminum Armor , 1000' Reel, Type MCI-A
Description
Specifications
105.5lb
12.5mm
24mm
24mm
13844227
For commercial, industrial, multi-residential branch circuits for power, lighting, control and signal circuit, exposed or concealed, dry locations, fished, surface mounted, embedded in plaster, environmental air-handling spaces
AFC CABLE SYSTEMS
USA
US
Catalog
Specification Sheet
00077680284068
13844227
CABLE ARMD 600VAC 2 SOL COPPER 12AWG
Cable System
Technically equivalent and economically superior to traditional raceway and wire installations
Wrap Free
Protective polypropylene covering is extruded directly over the THHN insulation to eliminate the need for an overall assembly tape wrapping the twisted conductors reducing installation time and general waste on the jobsite
Armor in conjunction with the aluminum ground/bonding conductor serves as a grounding means
Reduced installation time with the removal of green grounding conductor
MC-Quik Lite 3104Z60-00 Type MCI-A Armored Cable With Neutral Conductor, Reel Packaging, 600 V AC, (2) 12 AWG Solid Copper Conductor, 1000 ft L ; Atkore ; AFC Cable Systems ; 3104Z6000 ; 077680284068 ; Alum Armor Copper Conductors
Atkore
12.5000
IN
24.0000
IN
1
105.5000
LB
24.0000
IN
3104Z60-00 ; 3104Z6000 ; 13844227 ; 077680284068 ; 77680284068 ; 07768028406 ; 00077680284068
General Wire
ALUM ARMOR CU CONDUCTORS - AC90 - CORFLEX
Conductor Size
AWG
12
Type
Type MCI-A
Voltage Rating
V AC
600
Conductor Type
Solid Copper
Insulation Material
THHN
Jacket Material
Interlocked Aluminum Strip
Length
Ft
1000
Number of Conductors
2
Outside Diameter
IN
0.463
Packaging Type
Reel
Temperature Rating
deg C
90
