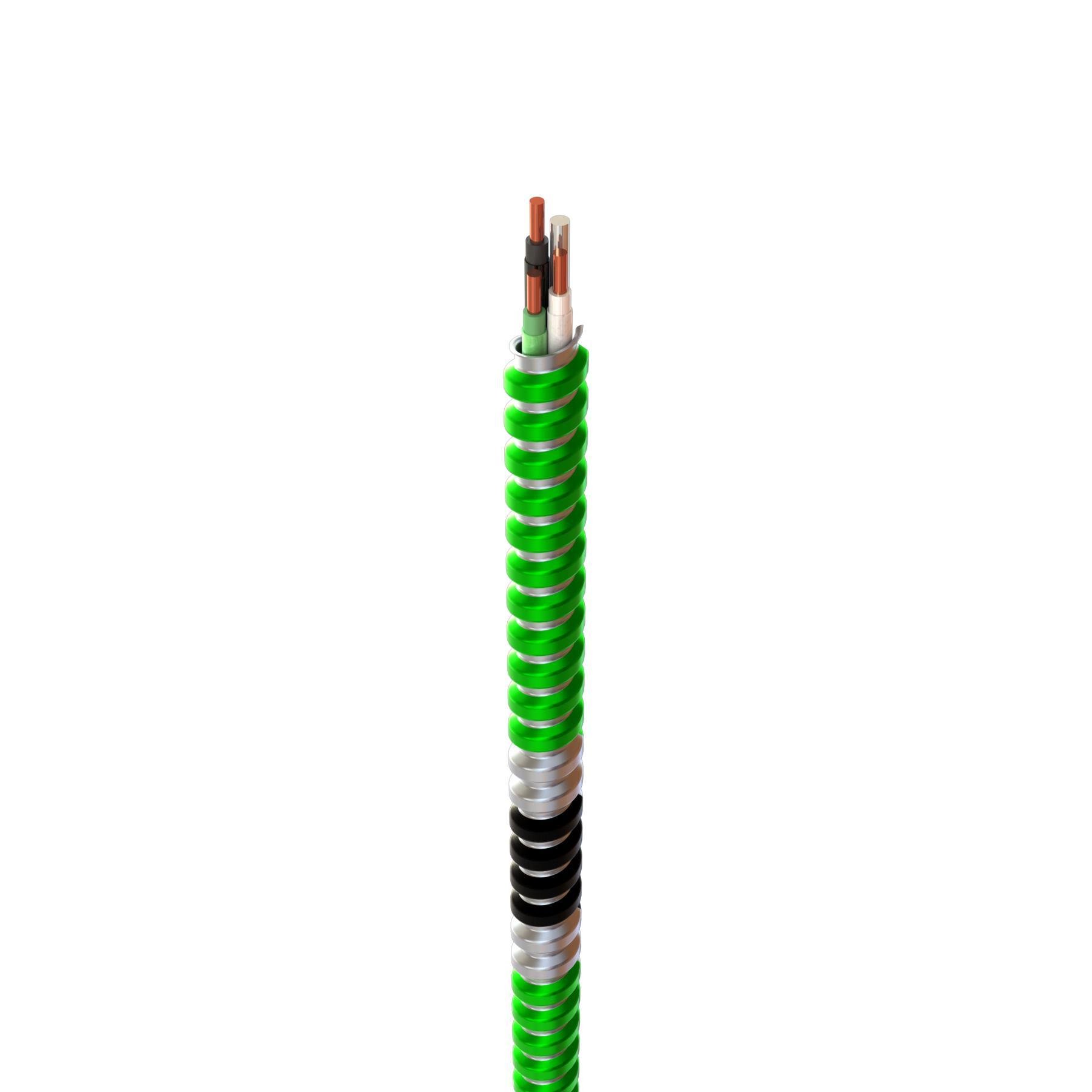

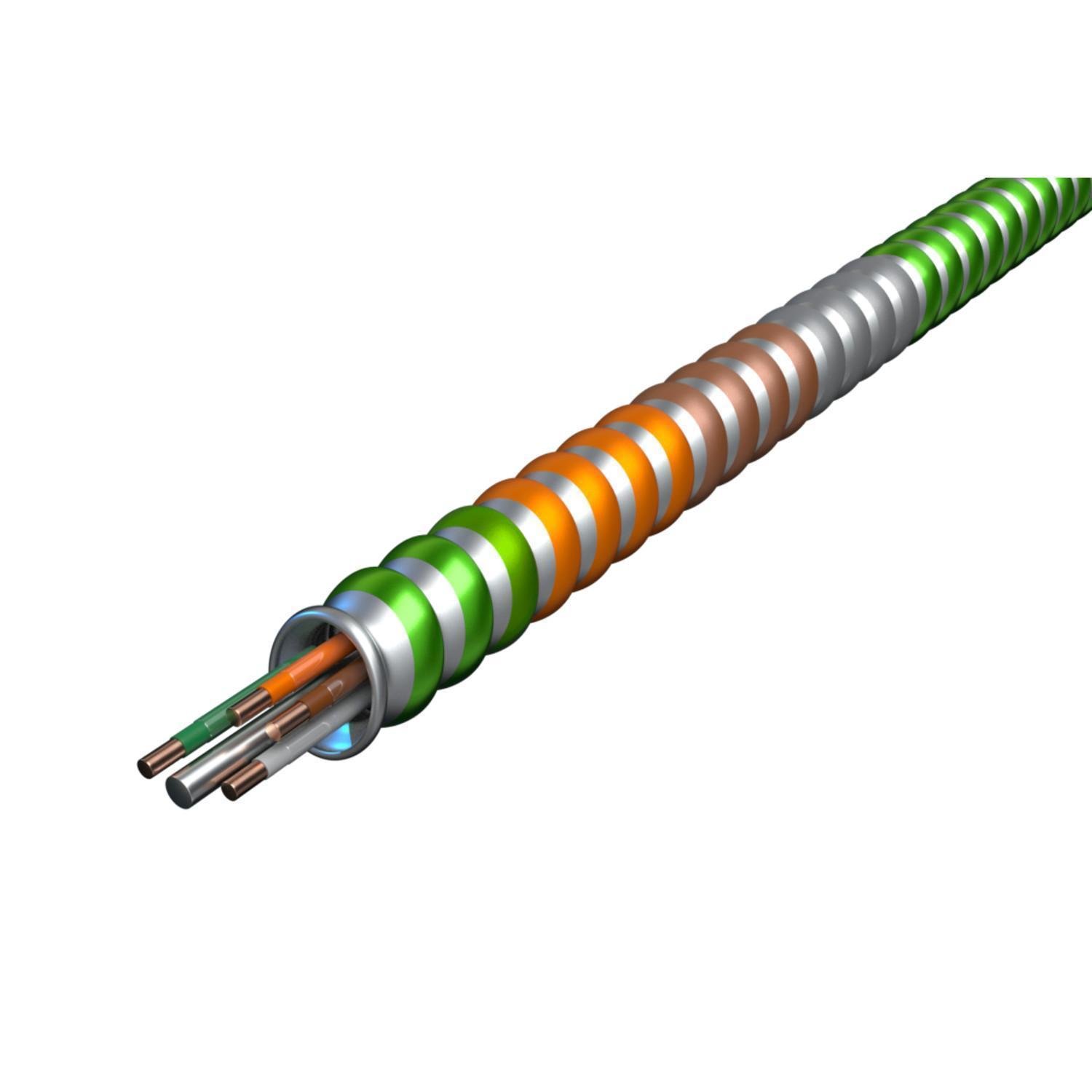

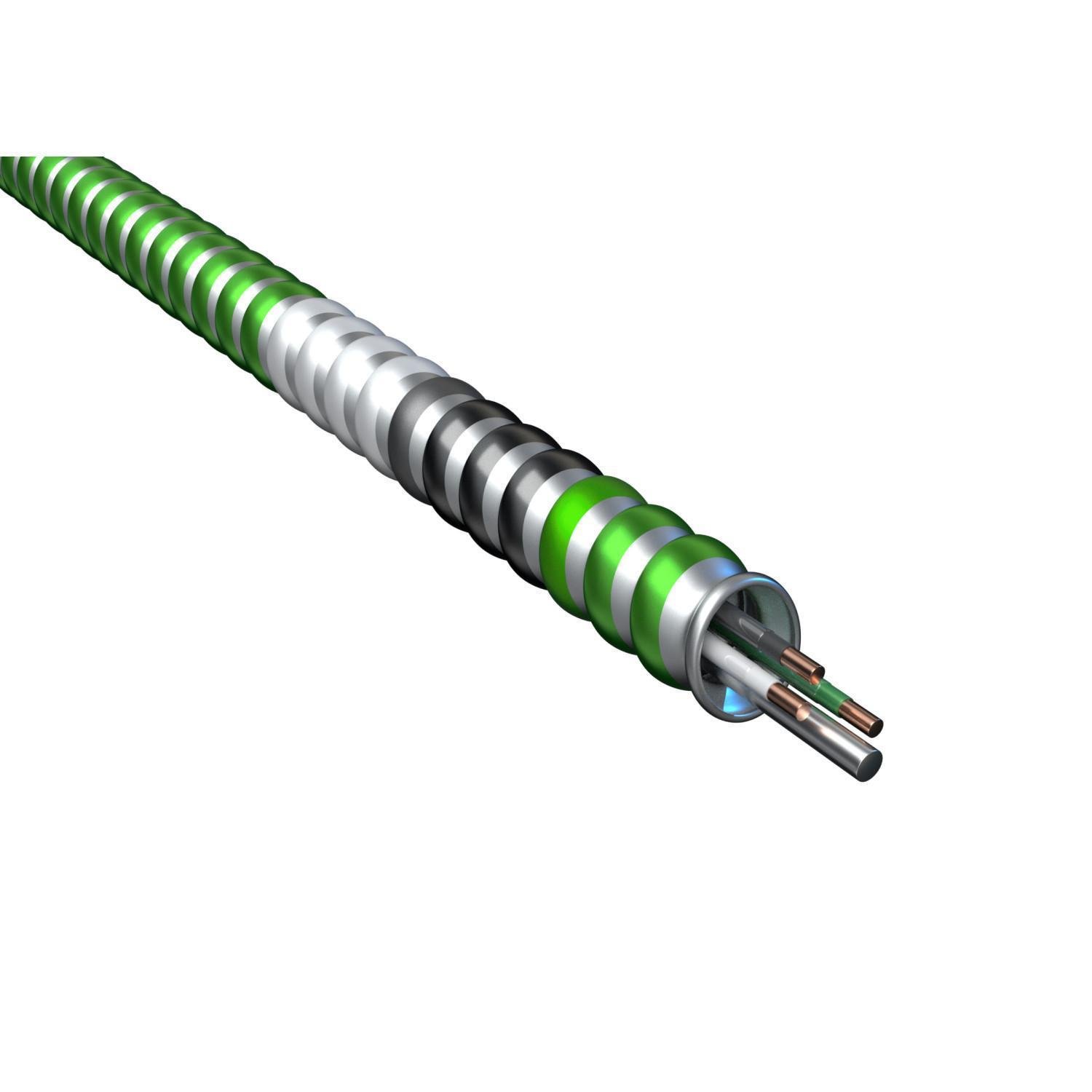

5804-60-00 - AFC 5804-60-00 12-2 MC-STAT LITE BK
Description
Specifications
137lb
13.5mm
24mm
24mm
13431124
AFC CABLE SYSTEMS
USA
US
Catalog
Specification Sheet
00077680258892
13431124
CABLE CARE HEALTH 600VAC 2 SOL COPPER
Technically equivalent and economically superior to traditional raceway and wire installations
Wrap Free
Protective polypropylene covering is extruded directly over the THHN insulation to eliminate the need for an overall assembly tape wrapping the twisted conductors reducing installation time and general waste on the jobsite
ColorSpec ID/Color-Trak ID System
Lime green aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type
Armor plus full-sized aluminum ground wire is the equipment grounding mean, second equipment grounding means is full sized insulated copper grounding conductor
MC-Stat Lite 5804-60-00 Type MC Health Care Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (2) 12 AWG Solid Copper Conductor, 1000 ft L ; Atkore ; AFC Cable Systems ; 58046000 ; 077680258892 ; Interlocked Armor Cables
Atkore
13.5000
IN
24.0000
IN
1
137.0000
LB
24.0000
IN
5804-60-00 ; 58046000 ; 13431124 ; 077680258892 ; 77680258892 ; 07768025889 ; 00077680258892
General Wire
CU Interlocked Alum Armor Cables - Teck
Conductor Size
AWG
12
Type
Type MC
Voltage Rating
V AC
600
Conductor Type
Solid Copper
Insulation Material
THHN
Jacket Material
Interlocked Steel/Aluminum Armor
Length
Ft
1000
Number of Conductors
2
Outside Diameter
IN
0.523
Packaging Type
Reel
Temperature Rating
deg C
90
