AFC Cable Systems

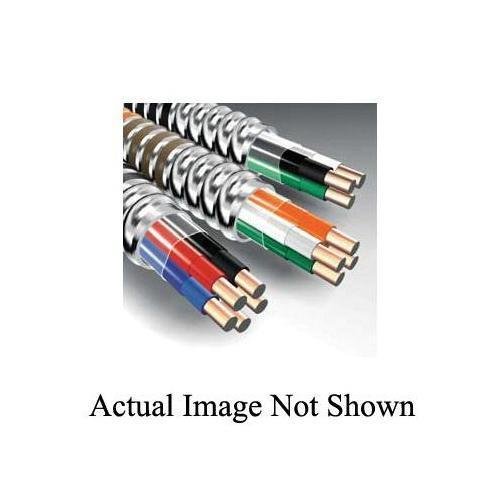

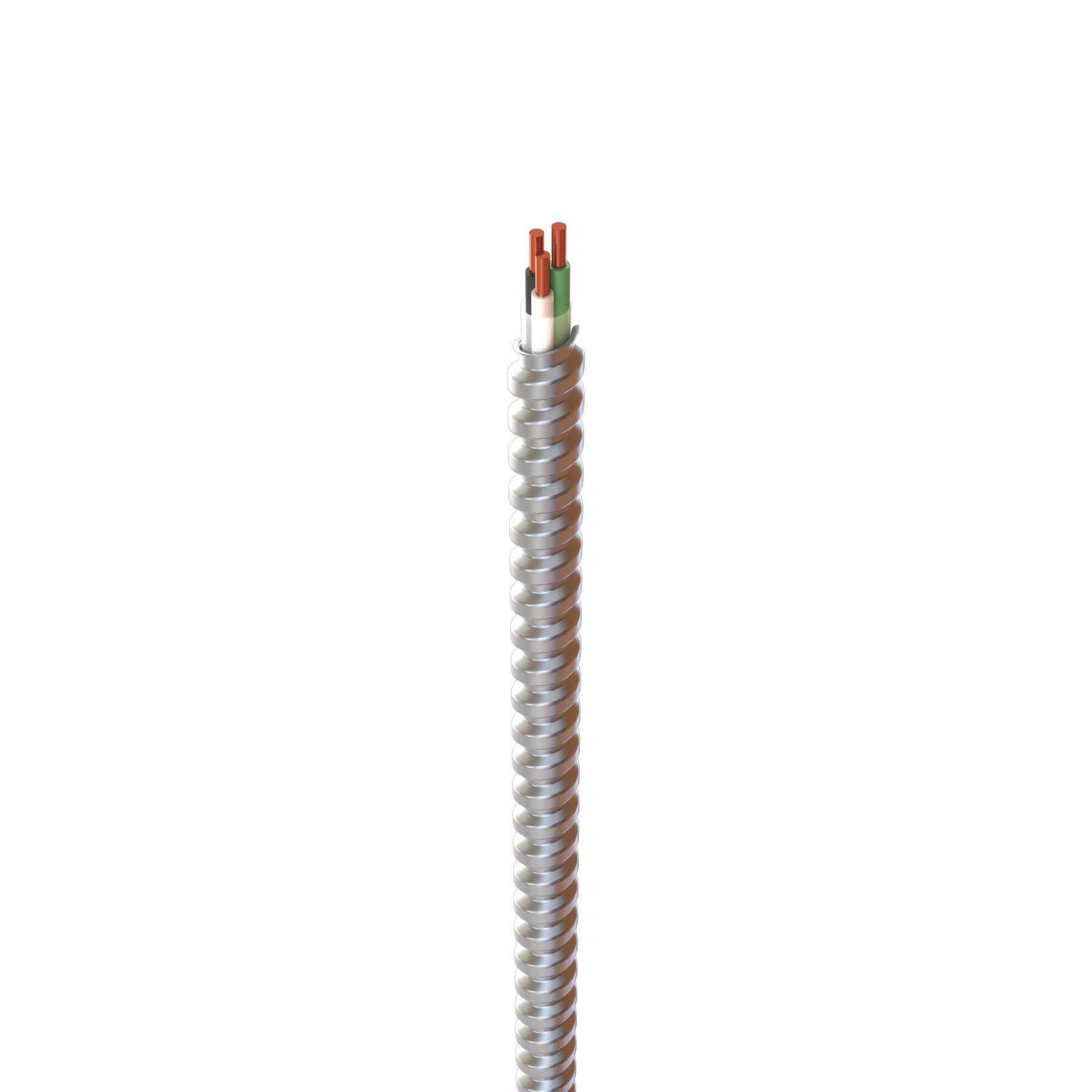

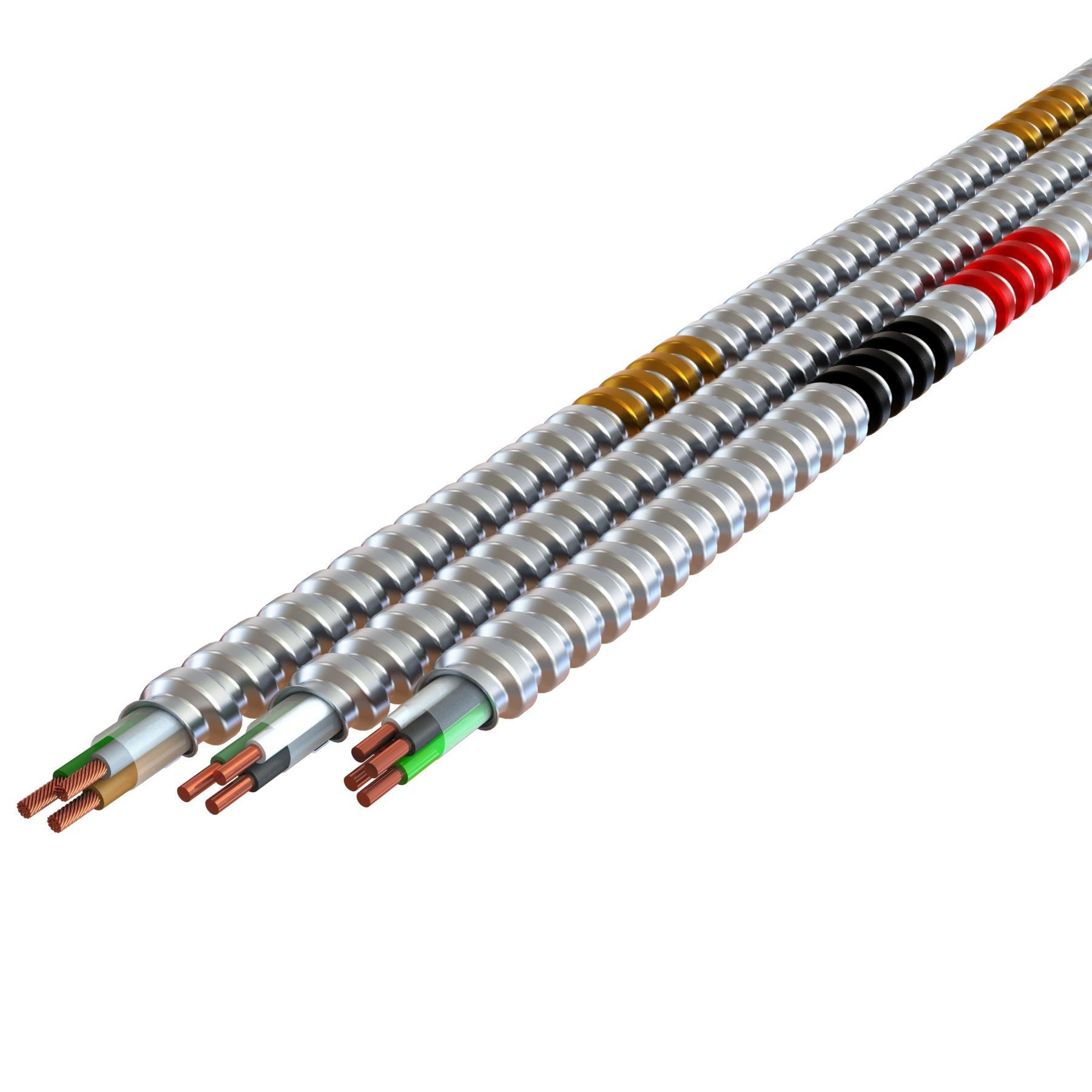

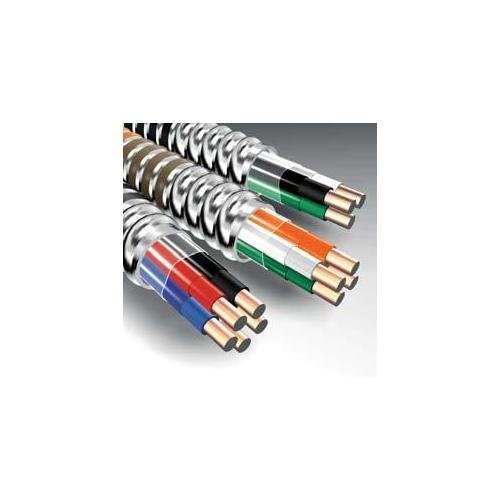

2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R

Category CU Interlocked Alum Armor Cables - Teck
Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R
Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R
Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R
Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R Picture of 2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R
AFC Cable Systems

2105S60-00 - AFC 2105S60-00 12-3 MC LITE 1000' R

Item Code: 12716
Category CU Interlocked Alum Armor Cables - Teck
Manufacturer Ref MC123R
Minimum order quantity 1000

Document
Document
Call for Availability
Add to Favorites
Compare

Description

MC Lite Type MC Cable, Traditional, With Ground And Neutral, 3 Conductors, 12 AWG Conductor And Ground, Solid Copper, Outside Diameter: 0.53 IN, 600 V, 90 DEG C (Dry), THHN Insulation, Polypropylene Tape Shield, Interlocking Aluminum Strip Armor, Color: 120/208 V: Black, Red, White, Green, 1000 FT Reel, Weight: 135 LB/1000 FT, UL 83, 1479, 1569, 1581, 2556 File Numbers E80042 And R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant, ISO 9001 Certified. ColorSpec ID System

Specifications

Weight

150lb

Height

12.5mm

Width

24mm

Length

24mm

AD Brand (Description)

AFC CABLE SYSTEMS

AD Country

USA

AD Country Of Origin

US

AD Gtin

00077680229274

AD Invoice Description

CABLE ARMD 600VAC 3 SOL COPPER 12AWG

AD Item Features 01

Aluminum armor with phase/circuit stripes

AD Item Features 02

MC Lite® is a traditional type MC cable containing one or more copper grounding, conductors the armor is not an equipment grounding means

AD Item Features 03

May be surface mounted, fished and/or embedded in plaster

AD Item Features 04

Interlocking aluminum strip, utlizilizing ColorSpec® ID system

AD Manufacturer (Description)

Atkore

AD Package Height

12.5000

AD Package Height UOM

IN

AD Package Length

24.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

150.0000

AD Package Weight UOM

LB

AD Package Width

24.0000

AD Package Width UOM

IN

Brand

General Wire

Category

CU Interlocked Alum Armor Cables - Teck

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

12

Spec 10 Attribute

Type

Spec 10 Attribute Value

Type MC Traditional

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Solid Copper

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

THHN/THWN

Spec 4 Attribute

Jacket Material

Spec 4 Attribute Value

Interlocked Aluminum Strip

Spec 5 Attribute

Length

Spec 5 Attribute UOM

Ft

Spec 5 Attribute Value

1000

Spec 6 Attribute

Number of Conductors

Spec 6 Attribute Value

3

Spec 7 Attribute

Outside Diameter

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

0.53

Spec 8 Attribute

Packaging Type

Spec 8 Attribute Value

Reel

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
