AFC Cable Systems

2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel

Category Steel Armor CU Conductors

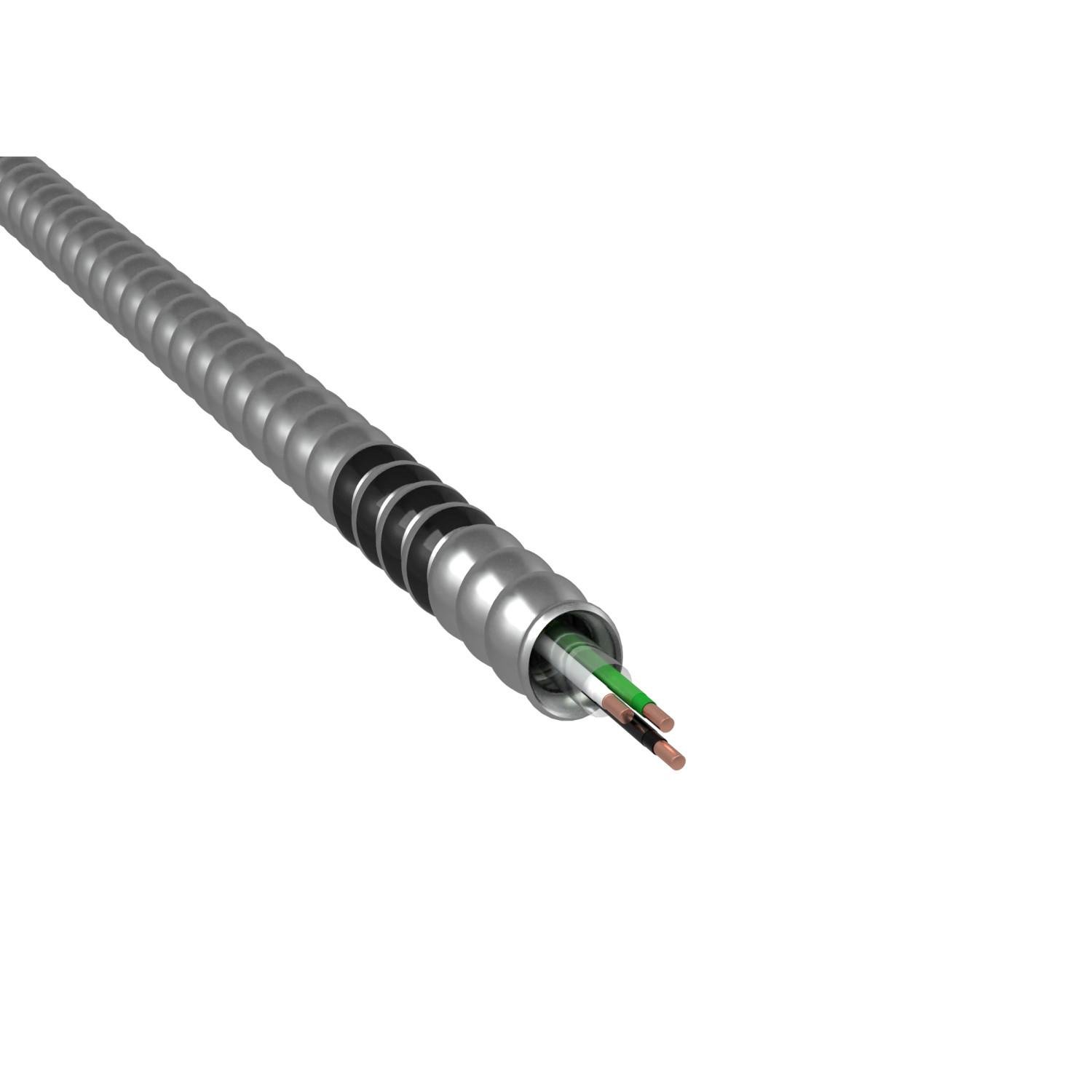

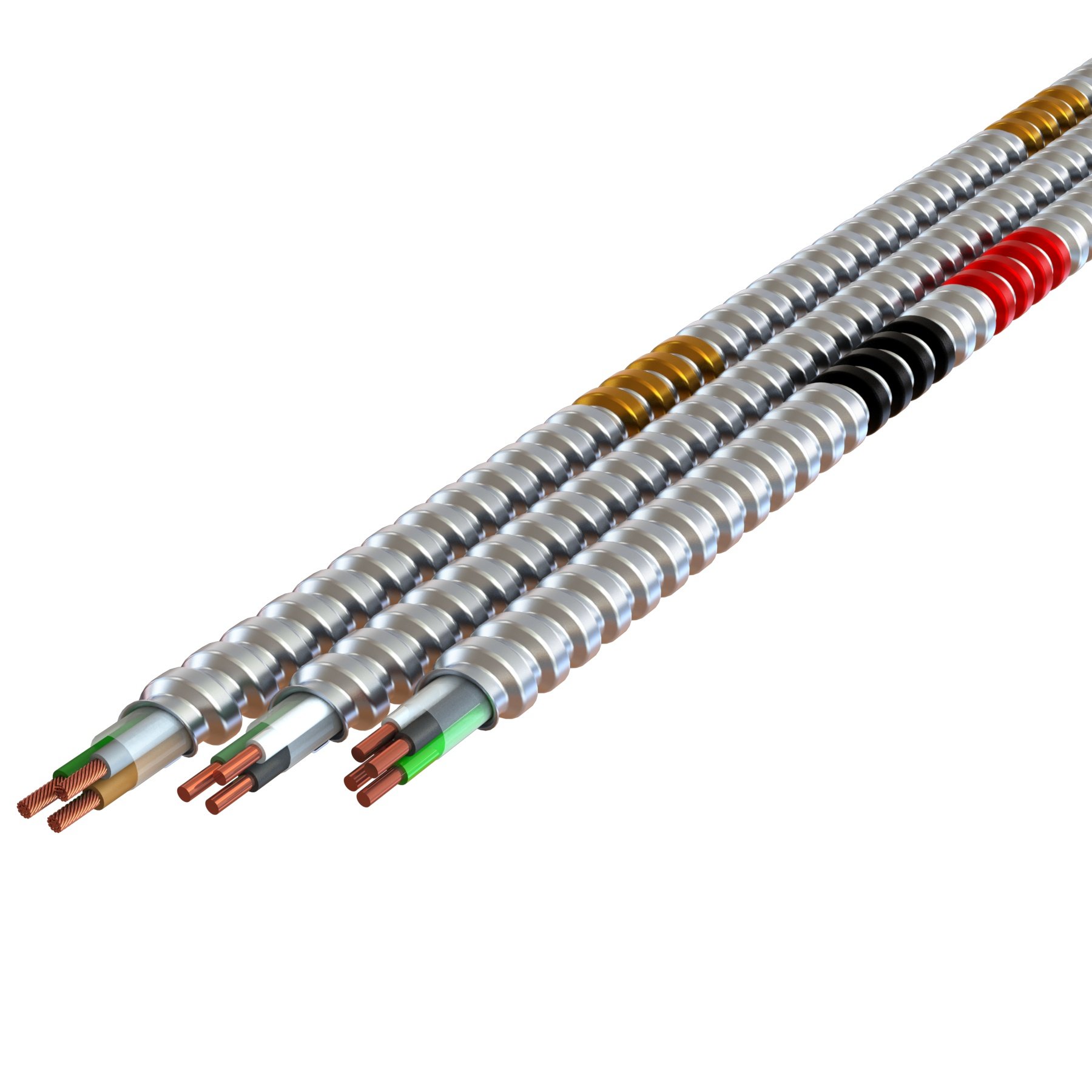

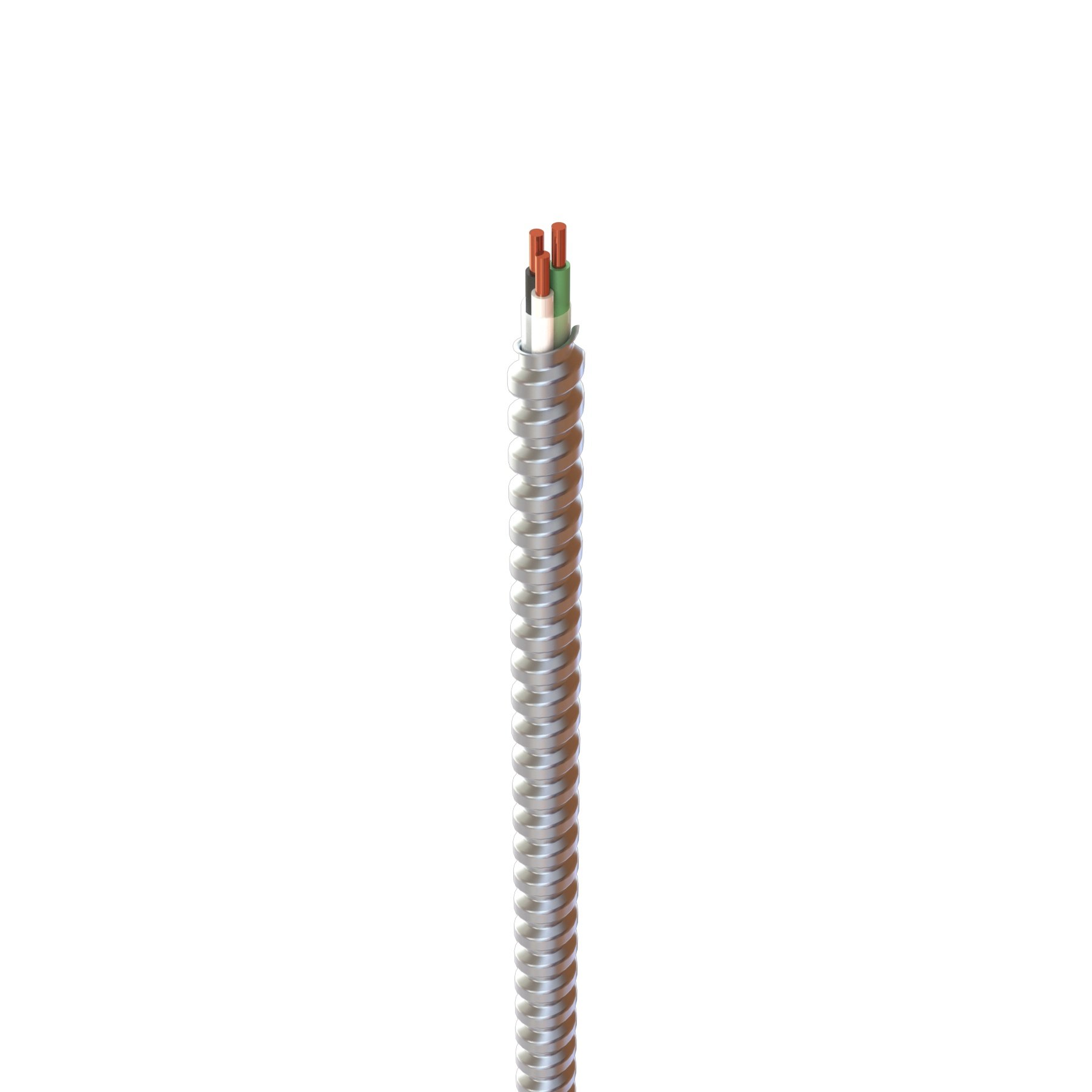

Picture of 2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel Picture of 2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel
Picture of 2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel Picture of 2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel
Picture of 2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel Picture of 2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel
AFC Cable Systems

2138-45-00 - MC Lite® Aluminum Armored Cable, 1-4 AWG, 120V, 500 ft. Reel

Item Code: 185531
Category Steel Armor CU Conductors
Manufacturer Ref MC14
Call for Availability
Add to Favorites
Compare

Description

Atkore's aluminum interlocked armor Type MC cables are named MC Lite® and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

Specifications

Weight

749lb

AD Alternative Part Number

20584488

AD Application

Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.

AD Brand (Description)

AFC CABLE SYSTEMS

AD Country

USA

AD Country Of Origin

US

AD IDEA Index ID

20584488

AD Invoice Description

ALUM AR C C REEL 600V 4/1 1/6AWG

AD Item Features 01

Technically equivalent and economically superior to traditional raceway and wire installations

AD Item Features 02

ColorSpec ID/Color-Trak ID System

AD Item Features 03

Plain aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type

AD Item Features 04

No ColorSpec on Low Voltage BK WE GN 12-2, all 10 AWG and larger configurations

AD Keywords

2138-45-00 Type MC Armor Copper Conductor, Reel Packaging, 600 V, (4/1) Conductors 1/6 AWG Conductor Stranded Copper Conductor, 500 ft L ; AFC Cable Systems ; 2138-45-00 ; 20584488 ; 077680159656 ; Alum Armor Copper Conductors

AD Manufacturer (Description)

Atkore

AD Package Quantity

1

AD Package Weight

749.0000

AD Package Weight UOM

LB

AD Part Number Keywords

2138-45-00 ; 21384500 ; 077680159656 ; 77680159656 ; 07768015965

Brand

General Wire

Category

STEEL ARMOR CU CONDUCTORS

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

6-Jan

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Stranded Copper

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

THHN/THWN

Spec 4 Attribute

Length

Spec 4 Attribute UOM

Ft

Spec 4 Attribute Value

500

Spec 5 Attribute

Number of Conductors

Spec 5 Attribute Value

1-Apr

Spec 6 Attribute

Outside Diameter

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

1.356

Spec 7 Attribute

Packaging Type

Spec 7 Attribute Value

Reel

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type MC

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V

Spec 9 Attribute Value

600
