Atkore

MCGLIDE122R BE/WE - MC Glide Lite 12/2

Category CU Interlocked Alum Armor Cables - Teck

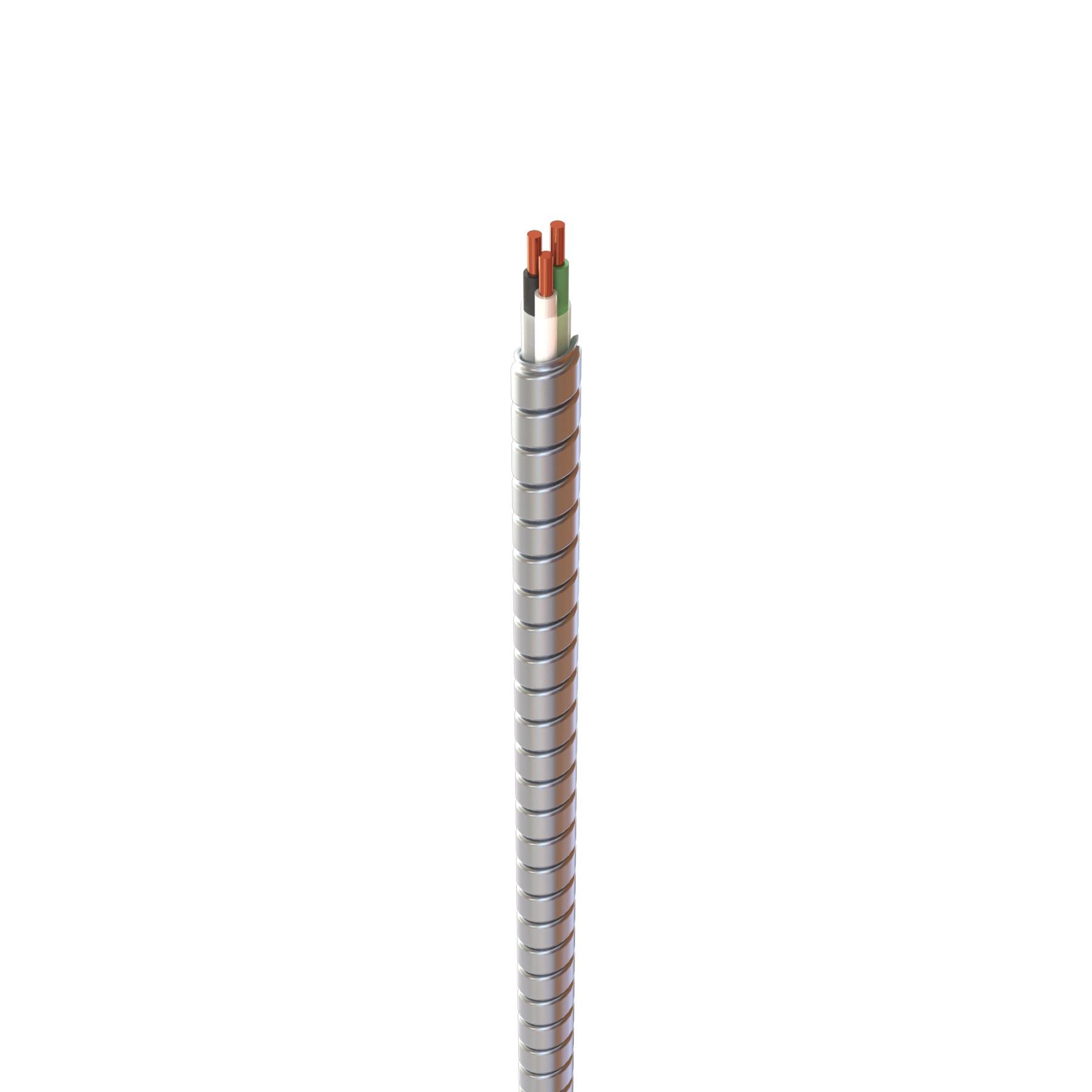

Picture of MCGLIDE122R BE/WE - MC Glide Lite 12/2 Picture of MCGLIDE122R BE/WE - MC Glide Lite 12/2
Picture of MCGLIDE122R BE/WE - MC Glide Lite 12/2 Picture of MCGLIDE122R BE/WE - MC Glide Lite 12/2
Atkore

MCGLIDE122R BE/WE - MC Glide Lite 12/2

Item Code: 1102487
Category CU Interlocked Alum Armor Cables - Teck
Manufacturer Ref MCGLIDE122R BE/WE
Minimum order quantity 1000

Document
Call for Availability
Add to Favorites
Compare

Description

Atkore's MC Glide is a Metal Clad (Type MC) Cable with a low-profile interlocked armor design that reduces worker fatigue and speeds up installation. Like its predecessor, MC Lite, MC Glide Lite has an aluminum interlocked armor that provides mechanical protection. These cables have no conductor count limit, offer various conductor bundle combinations, and meet UL Standard 1569 and NEC 330. They consist of THHN/THWN rated conductors twisted and wrapped with polypropylene assembly tape, and come with an insulated green equipment grounding conductor.

Specifications

Length

48mm

AD Application

For applications requiring isolated, redundant, or dedicated grounding conductors

AD Brand (Description)

Atkore

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

ALUM ARMOR COPPER COND REEL 600V 3 12AWG

AD Item Features 01

Cable System

AD Item Features 02

Technically equivalent and economically superior to traditional raceway and wire installations

AD Item Features 03

Easier Pulls. U.S. Patented armor profile is designed to reduce fatigue on your workers when pulling cable through metal studs and ceilings

AD Item Features 04

Time Savings

AD Item Features 05

From the first pull, installing MC Glide Tuff will be smoother, faster, and easier to work with

AD Item Features 06

No need for new tools

AD Item Features 07

Works with the same tools, fittings and supports as traditional MC Cables

AD Item Features 08

Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request

AD Manufacturer (Description)

Atkore

AD Package Length

48.0000

AD Package Length UOM

IN

AD Package Quantity

1

Brand

General Wire

Category

CU Interlocked Alum Armor Cables - Teck

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

12

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Solid Copper

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

THHN/THWN

Spec 4 Attribute

Length

Spec 4 Attribute UOM

Ft

Spec 4 Attribute Value

1000

Spec 5 Attribute

Number of Conductors

Spec 5 Attribute Value

3

Spec 6 Attribute

Outside Diameter

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

0.44

Spec 7 Attribute

Packaging Type

Spec 7 Attribute Value

Reel

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type MC

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V

Spec 9 Attribute Value

600
