Atkore

MCGLIDETUFF122 BK/WE - 12/2 MC Glide Tuff Steel, Black & White

Category CU Interlocked Steel Armor Cables - Teck

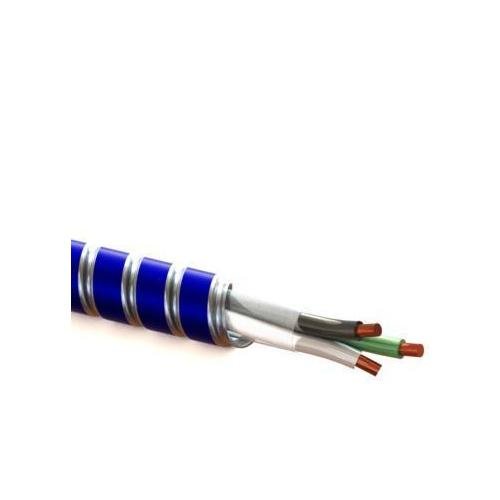

Picture of MCGLIDETUFF122 BK/WE - 12/2 MC Glide Tuff Steel, Black & White
Atkore

MCGLIDETUFF122 BK/WE - 12/2 MC Glide Tuff Steel, Black & White

Item Code: 1136580
Category CU Interlocked Steel Armor Cables - Teck
Manufacturer Ref MCGLIDETUFF122 BK/WE
Minimum order quantity 250

Catalog
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

In 2021, Atkore launched MC Glide Tuff, a low-profile interlocked armor design that reduces fatigue on workers during cable installation. Like its predecessor, MC Tuff, MC Glide Tuff has a lightweight, high-strength blue galvanized steel interlocked armor that features ColorSpec®ID/ColorTrak® ID for easy identification. These cables have no conductor count limit, offer various conductor bundle combinations, and meet UL Standard 1569 and NEC 330. They consist of THHN/THWN rated conductors twisted and wrapped with polypropylene assembly tape, and come with an insulated green equipment grounding conductor.

Purchasing Quantities

FOOT

1

CX

250

Specifications

Weight

37.93lb

Height

6.5mm

Width

13mm

Length

48mm

Brand

General Wire

Category

CU INTERLOCKED STEEL ARMOR CABLE - TECK

Conductor Size

12 AWG

Conductor Type

Solid

Insulation Material

THHN/THWN

Jacket Color

Blue

Jacket Material

Steel

Length

250 ft

Number of Conductors

2

Outside Diameter

0.455 in

Packaging Type

Coil

Resistance

Heat/Water

Series

MC Glide Tuff

Temperature Rating

90 deg C

Type

Steel Armored Cable

Voltage Rating

600 V

Atkore
