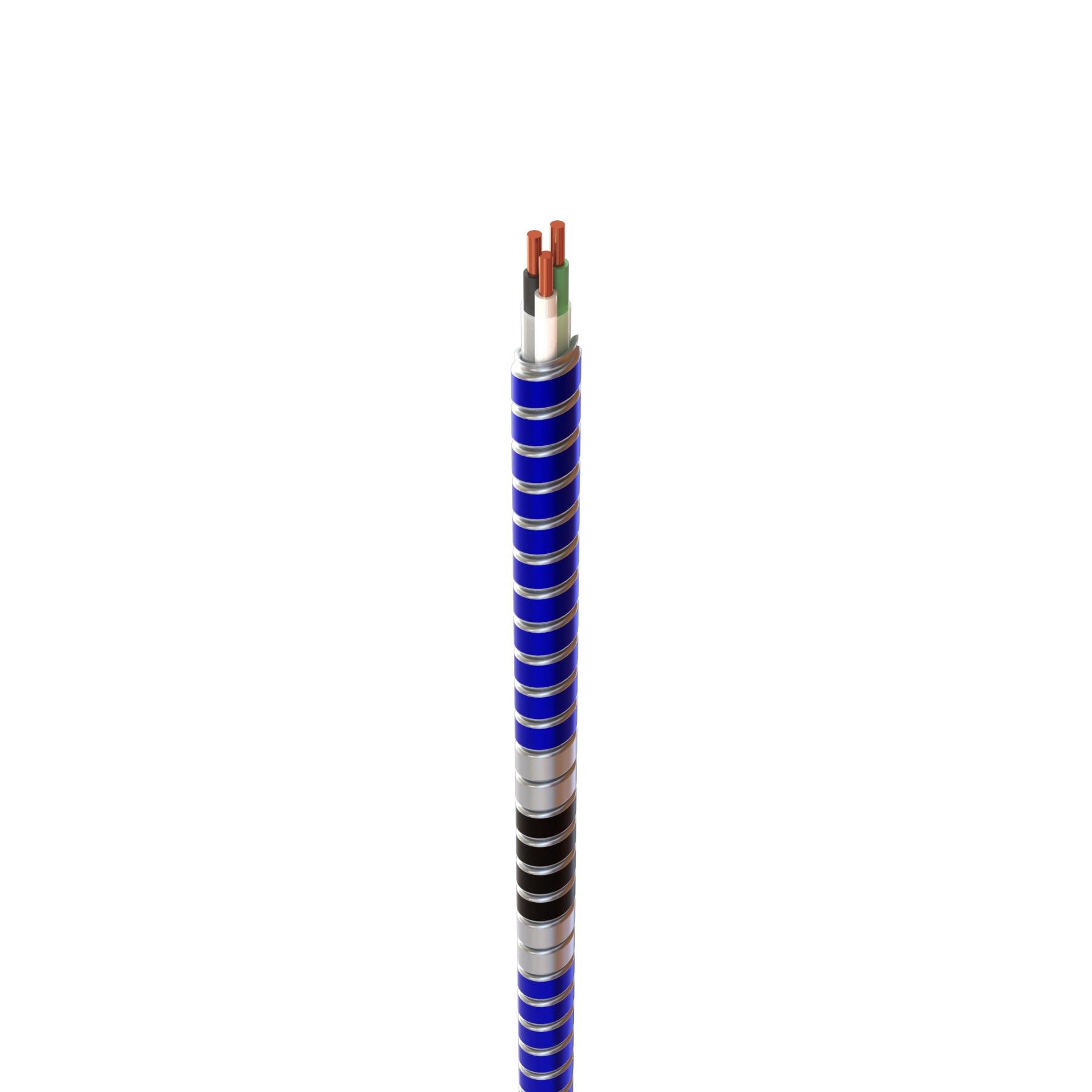

1704B42T04 - MC Glide Tuff™ Blue Interlocked Galvanized Steel Armor w/Phase ID - Type MC - 250' Coil
Description
Specifications
48mm
For applications requiring isolated, redundant, or dedicated grounding conductors
Atkore
USA
US
STL ARMOR COPPER COND COIL 600V 2 12AWG
Technically equivalent and economically superior to traditional raceway and wire installations
ColorSpec ID/Color-Trak ID System
Lightweight blue galvanized steel armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type
Easier Pulls. U.S. Patented armor profile is designed to reduce fatigue on your workers when pulling cable through metal studs and ceilings
Time Savings
From the first pull, installing MC Glide Tuff will be smoother, faster, and easier to work with
No need for new tools
Works with the same tools, fittings and supports as traditional MC Cables
Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request
Atkore
48.0000
IN
1
General Wire
CU Interlocked Steel Armor Cables - Teck
Conductor Size
AWG
12
Voltage Rating
V
600
Conductor Type
Copper
Insulation Material
THHN/THWN
Length
Ft
250
Number of Conductors
2
Outside Diameter
IN
0.44
Packaging Type
Coil
Temperature Rating
deg C
90
Type
Type MC
