Mencom

CHI-10 - Standard, Rectangular Base, Bulkhead mount, size 57.27, Double Latch

Category Miscellaneous

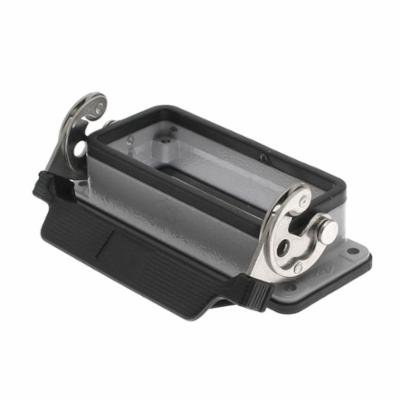

Picture of CHI-10 - Standard, Rectangular Base, Bulkhead mount, size 57.27, Double Latch
Mencom

CHI-10 - Standard, Rectangular Base, Bulkhead mount, size 57.27, Double Latch

Item Code: 924830
Category Miscellaneous
Manufacturer Ref CHI-10

Document
Document
Call for Availability
Add to Favorites
Compare

Description

ILME is a globally recognized leader in the heavy duty industrial connector industry. The standard aluminum die cast enclosures (Hoods/Bases) use a patented stainless steel locking system that provides consistent clamping force and IP65 protection even after 500 mating cycles. Hoods and surface mount bases come with a wide range of PG, Metric, or NPT openings. Single lever, double lever, center latch, top entry, front entry, side entry, high construction, surface mount, bulkhead mount, and extra large options are just a few of the available solutions offered to meet your specific application.

Specifications

Weight

0.25lb

AD All Features

IP66/NEMA 4/4x/12 enclosure rating

AD Brand (Description)

Mencom

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BASE INSR RECT BHD AL -40 TO 125 DEG C

AD Item Features 01

IP66/NEMA 4/4x/12 enclosure rating

AD Item Features 02

57.27 in insert dimension

AD Manufacturer (Description)

Mencom Corp

AD Package Quantity

1

AD Package Weight

0.2500

AD Package Weight UOM

LB

Brand

Mencom Corp.

Category

Miscellaneous

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

115.5 mm W x 45.5 mm D

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Epoxy Coated

Spec 3 Attribute

Material

Spec 3 Attribute Value

Aluminum

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Bulkhead

Spec 5 Attribute

Series

Spec 5 Attribute Value

CN Series

Spec 6 Attribute

Specifications

Spec 6 Attribute Value

600 V AC Voltage, 16 A Current, 10 Pole

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

-40 To 125

Spec 8 Attribute

Type

Spec 8 Attribute Value

Single Latch Standard
