Mencom

CHI-16LS - Standard, Rectangular Base, Bulkhead mount, size 77.27, Single Latch & cover

Category Miscellaneous

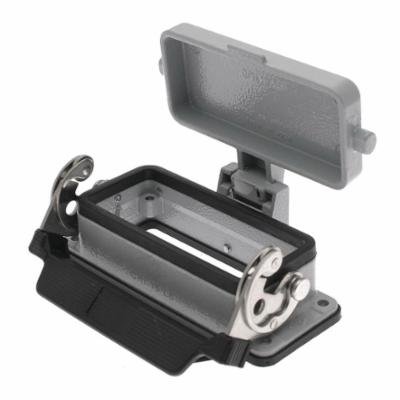

Picture of CHI-16LS - Standard, Rectangular Base, Bulkhead mount, size 77.27, Single Latch & cover
Mencom

CHI-16LS - Standard, Rectangular Base, Bulkhead mount, size 77.27, Single Latch & cover

Item Code: 545192
Category Miscellaneous
Manufacturer Ref CHI-16LS

Document
Document
Call for Availability
Add to Favorites
Compare

Description

ILME is a globally recognized leader in the heavy duty industrial connector industry. The standard aluminum die cast enclosures (Hoods/Bases) use a patented stainless steel locking system that provides consistent clamping force and IP65 protection even after 500 mating cycles. Hoods and surface mount bases come with a wide range of PG, Metric, or NPT openings. Single lever, double lever, center latch, top entry, front entry, side entry, high construction, surface mount, bulkhead mount, and extra large options are just a few of the available solutions offered to meet your specific application.

Specifications

Weight

0.42lb

AD All Features

NEMA 4/4x/12/ IP66 degree of protection

AD Brand (Description)

Mencom

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Line Drawing

AD Invoice Description

BASE INSR RECT BHD AL -40 TO 125 DEG C

AD Item Features 01

NEMA 4/4x/12/ IP66 degree of protection

AD Item Features 02

77.27 mm insert dimension

AD Keywords

CHI-16LS CN Series Single Latch Standard Rectangular Insert Base, Bulkhead Mount, Aluminum ; Mencom Corp ; Mencom ; CHI16LS ; 157470180128 ; Rectangular Insert Bases

AD Manufacturer (Description)

Mencom Corp

AD Package Quantity

1

AD Package Weight

0.4200

AD Package Weight UOM

LB

AD Part Number Keywords

CHI-16LS ; CHI16LS ; 157470180128 ; 15747018012

Brand

Mencom Corp.

Category

Miscellaneous

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

115.5 mm W x 45.5 mm D

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Epoxy Coated

Spec 3 Attribute

Material

Spec 3 Attribute Value

Aluminum

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Bulkhead

Spec 5 Attribute

Series

Spec 5 Attribute Value

CN Series

Spec 6 Attribute

Specifications

Spec 6 Attribute Value

600 V AC Voltage, 16 A Current, 16 Pole

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

-40 To 125

Spec 8 Attribute

Type

Spec 8 Attribute Value

Single Latch Standard
