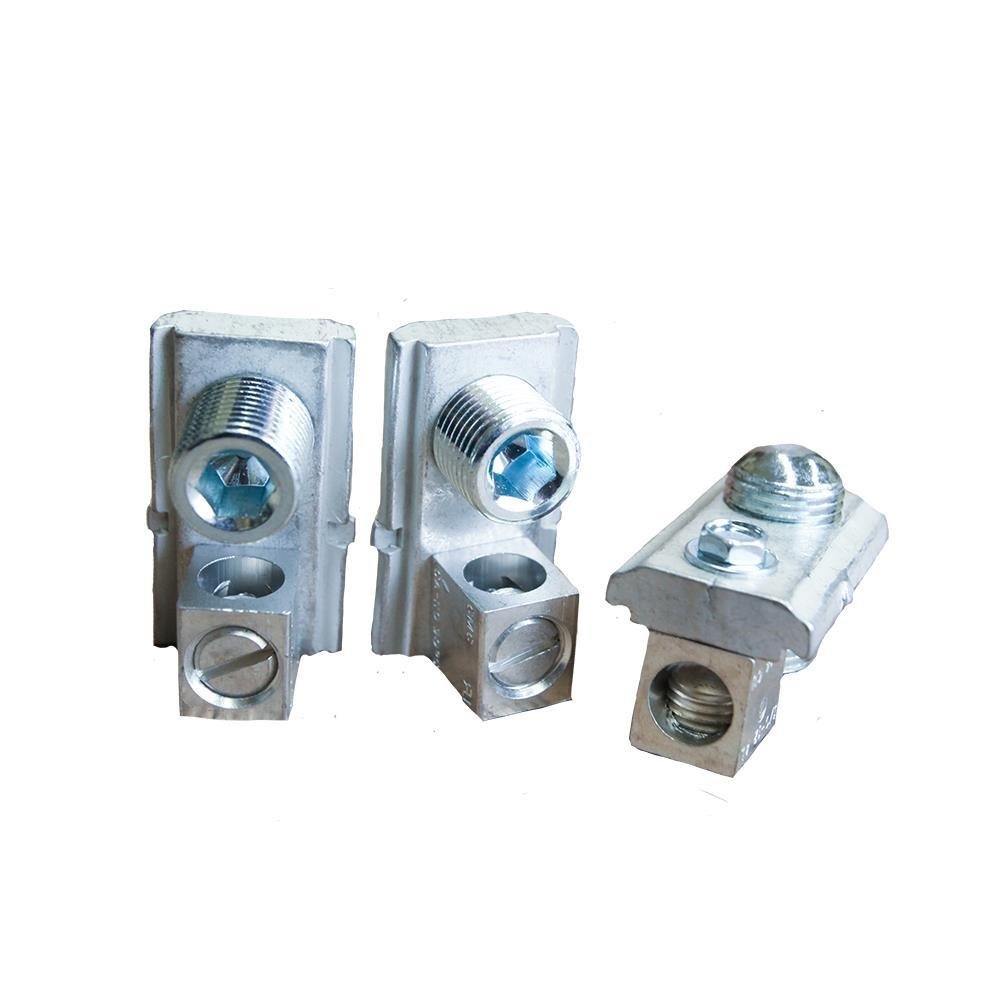

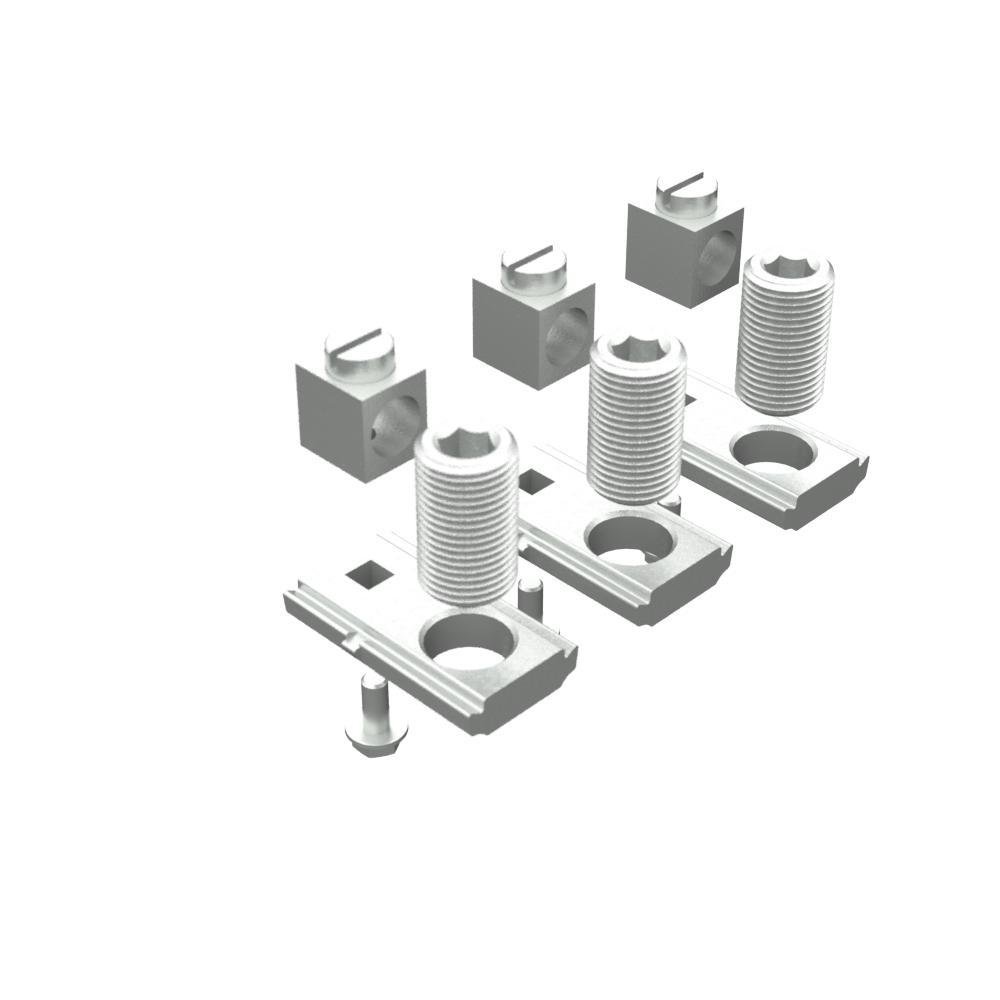

K4977-EXT - Tap Connector Kit External Hex Slide Nut With 14-1/0 Box Connector 300 Volt Maximum 3 Per Kit
Description
Specifications
0.5lb
7.5mm
1.54mm
8mm
For wire termination
Milbank
USA
US
Warranty Information
Instruction/Installation Manual
00784572274365
(3) Tap Connector
SET CONNECTOR TAP 300 VAC VOLTAGE
Connectors designed for either line-side or load-side installation
Recommended for load-side 100 A feeds to outdoor lighting, water well pumps, hot tubs, outbuildings, whole house surge suppressors and swimming pools
Replaces the existing slide-in nut assembly on Milbank 200 A sockets and allows for up to 100 A tap connection in addition to the 6 AWG to 350 kcmil connectors
Ideal for line-side connection when incorporating renewable energy net metering that utilizes two meters
200 A amperage rating
6 AWG to 350 kcmil wire size/12 to 1/0 AWG tap size
K4977-INT Tap Connector Set With Internal Hex Set Screw, 300 V AC Voltage ; Milbank Manufacturing ; Milbank ; K4977INT ; 784572274365 ; Metering Miscellaneous Accessories
Milbank Manufacturing
7.5000
IN
8.0000
IN
1
0.5000
LB
1.5400
IN
K4977-INT ; K4977INT ; 784572274365 ; 78457227436 ; 00784572274365
Milbank
METER SOCKET & METERING ACCESSORIES
Specifications
300 V AC Voltage
