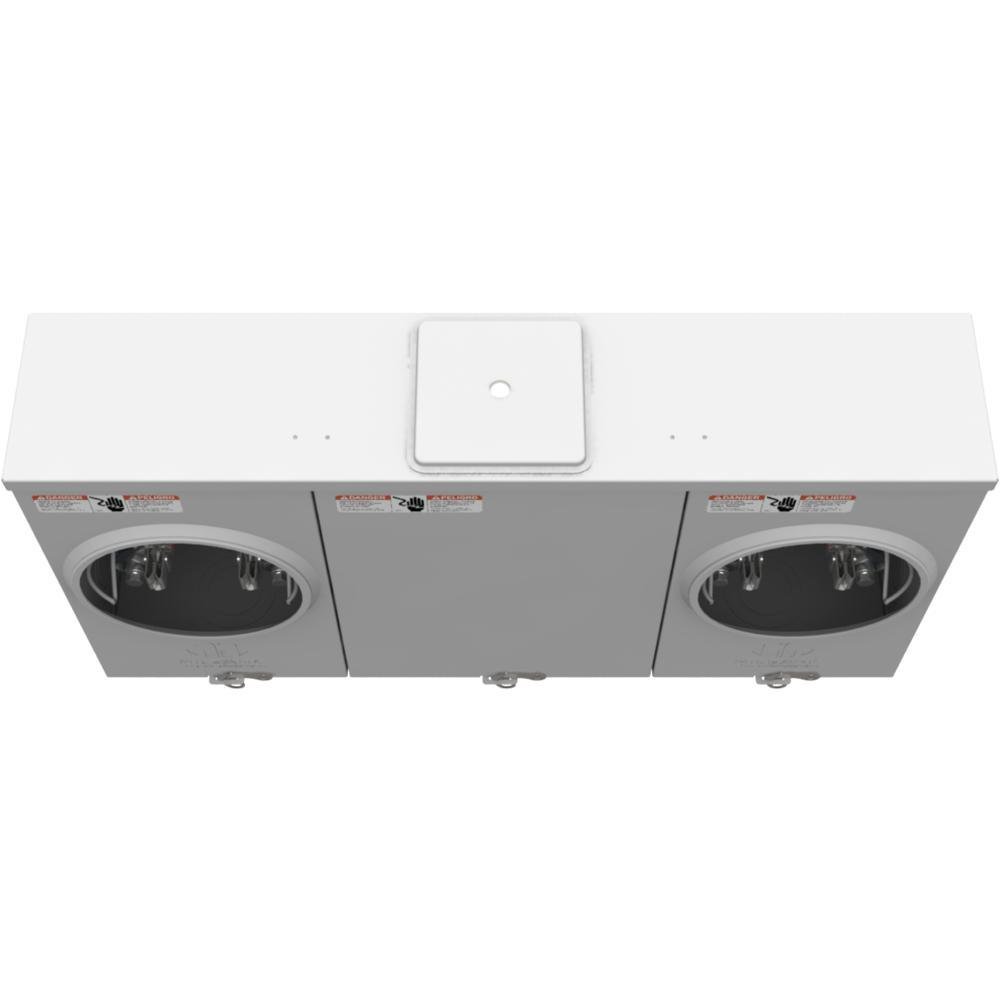

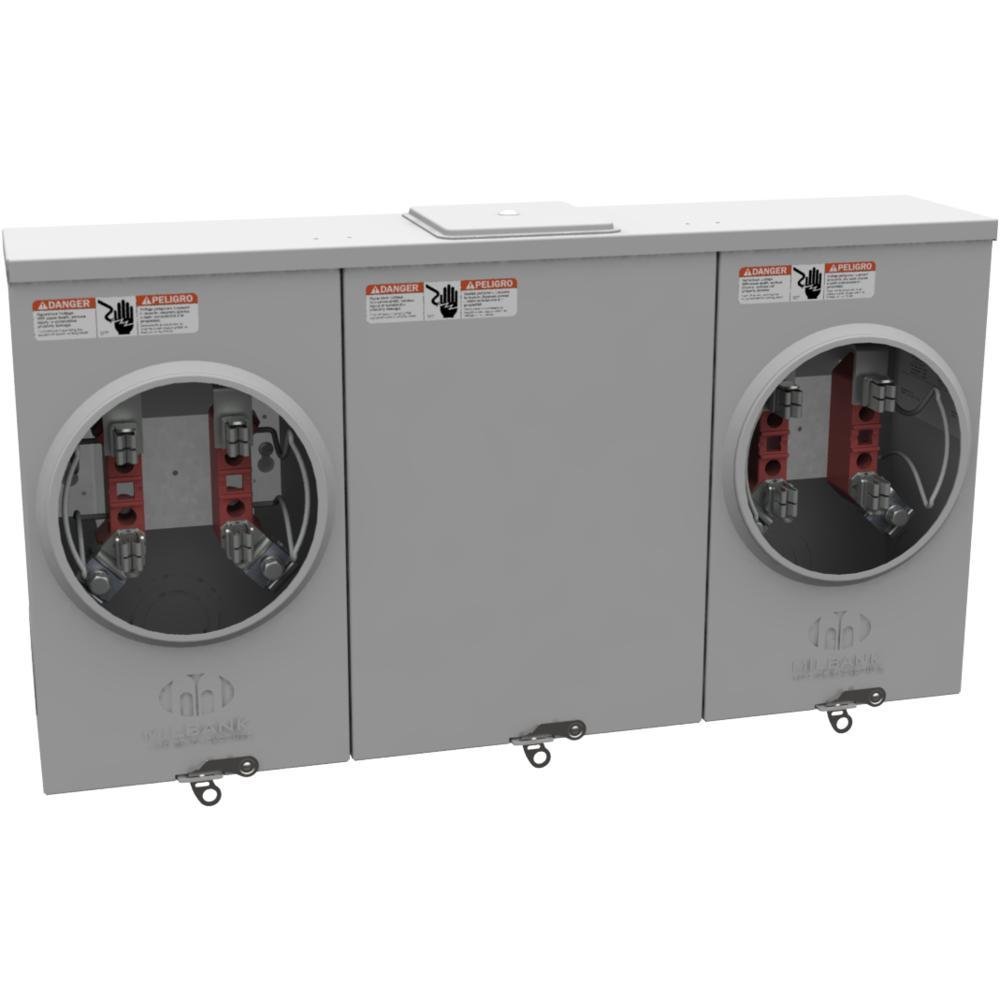

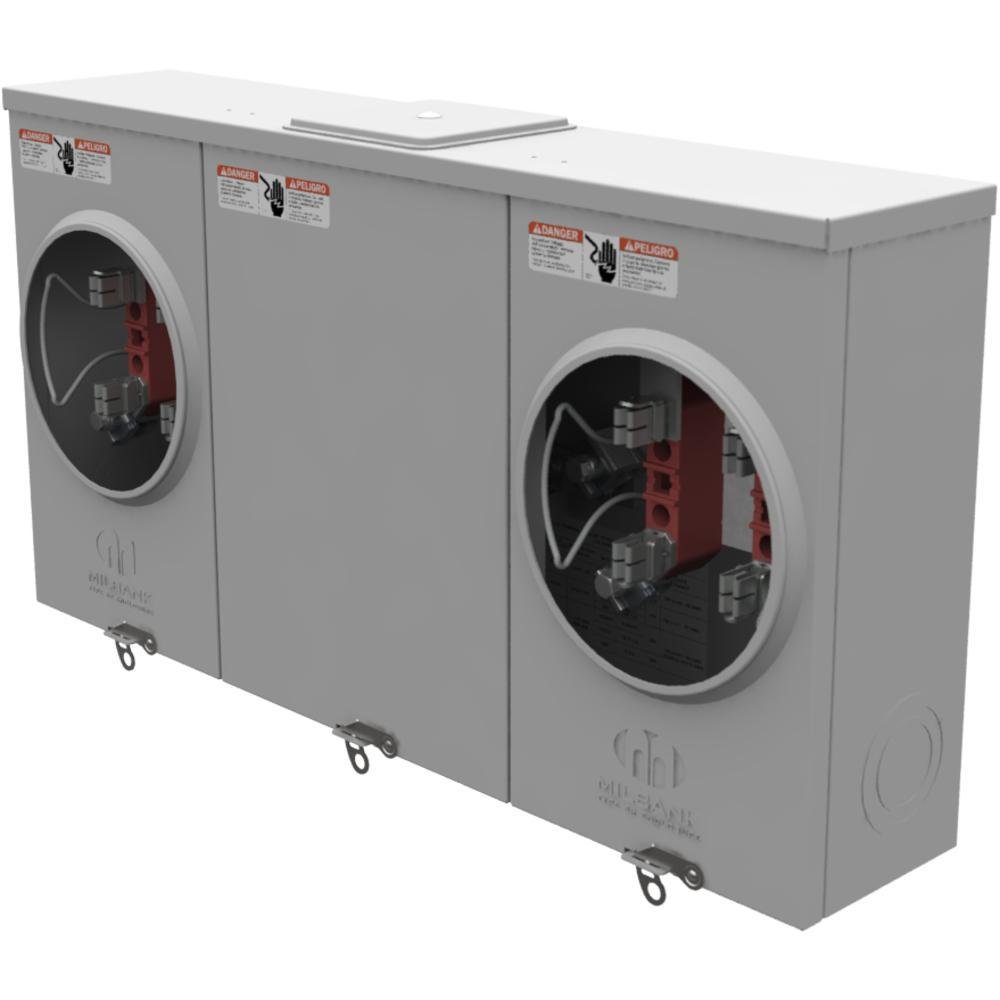

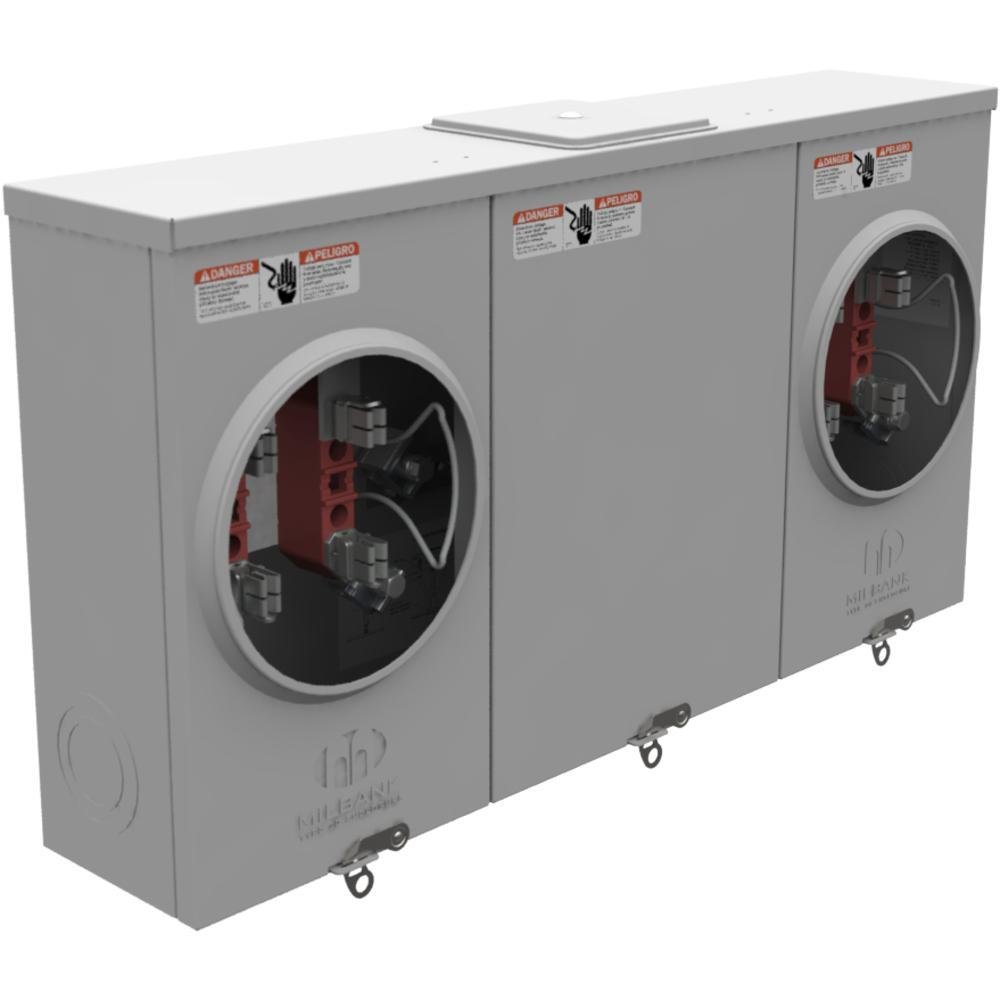

U1252-X-K1 - 4 Terminal Ringless Large Closing Plate 2 Position Single Connector 6-350kcmil 200 Ampere
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
29lb
Height
14mm
Width
26.5mm
Length
5.13mm
AD All Features
G90 galvanized steel with powder coat finish enclosure
AD Brand (Description)
Milbank
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
SOCKET MTR 300VAC 200A 1PH NEMA 3R 60HZ
AD Item Features 01
G90 galvanized steel with powder coat finish enclosure
AD Manufacturer (Description)
Milbank Manufacturing
AD Package Height
14.0000
AD Package Height UOM
IN
AD Package Length
5.1300
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
29.0000
AD Package Weight UOM
LB
AD Package Width
26.5000
AD Package Width UOM
IN
Brand
Milbank
Category
GANGED METER SOCKETS
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
200
Spec 10 Attribute
Terminal Type
Spec 10 Attribute Value
Lay-In/Single Mechanical
Spec 11 Attribute
Type
Spec 11 Attribute Value
Ringless
Spec 12 Attribute
Voltage Rating
Spec 12 Attribute UOM
V AC
Spec 12 Attribute Value
300
Spec 13 Attribute
Wire Size
Spec 13 Attribute Value
6 AWG to 350 kcmil
Spec 2 Attribute
Dimensions
Spec 2 Attribute Value
14 in H x 26-1/2 in W x 5-1/8 in D
Spec 3 Attribute
Enclosure Type
Spec 3 Attribute Value
NEMA 3R
Spec 4 Attribute
Feed Type
Spec 4 Attribute Value
Center/Overhead/Underground
Spec 5 Attribute
Frequency Rating
Spec 5 Attribute UOM
HZ
Spec 5 Attribute Value
60
Spec 6 Attribute
Hub Type
Spec 6 Attribute Value
Large Closing Plate
Spec 7 Attribute
Mounting Type
Spec 7 Attribute Value
Surface
Spec 8 Attribute
Number of Jaws
Spec 8 Attribute Value
4
Spec 9 Attribute
PHASE
Spec 9 Attribute Value
1
