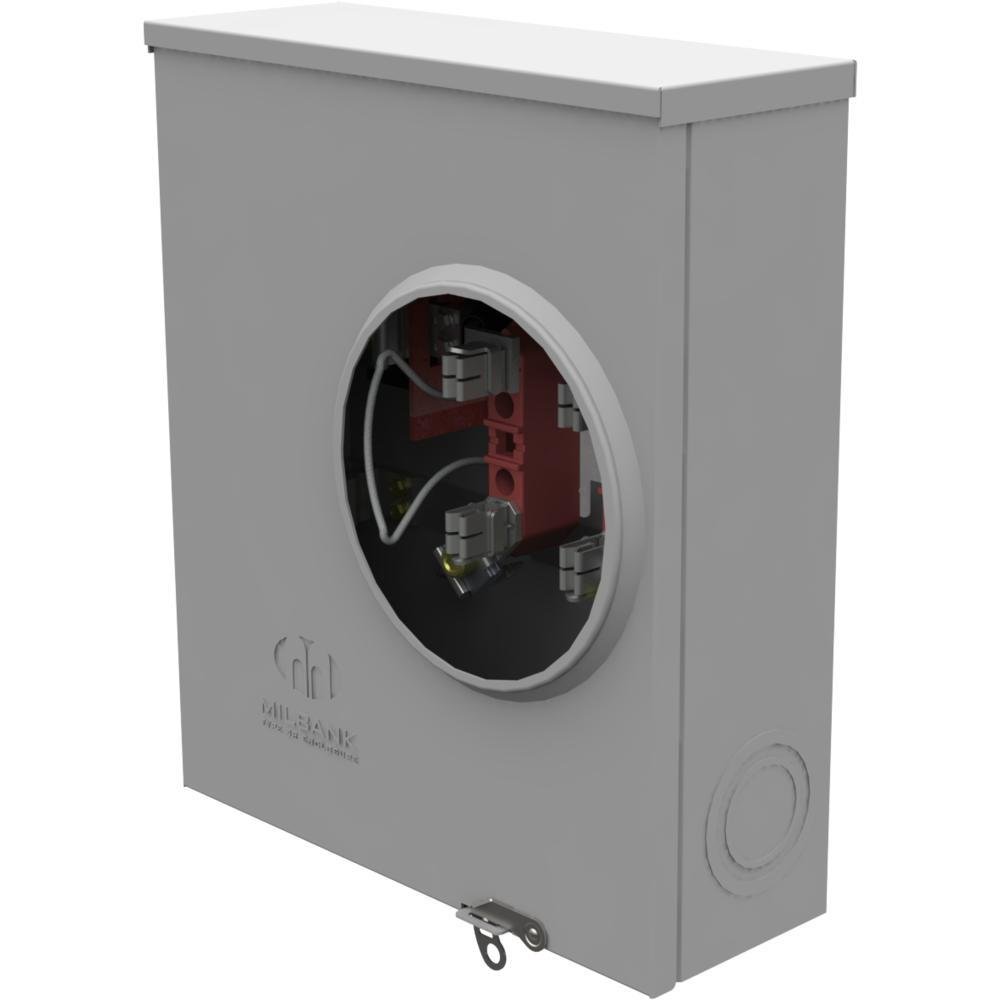

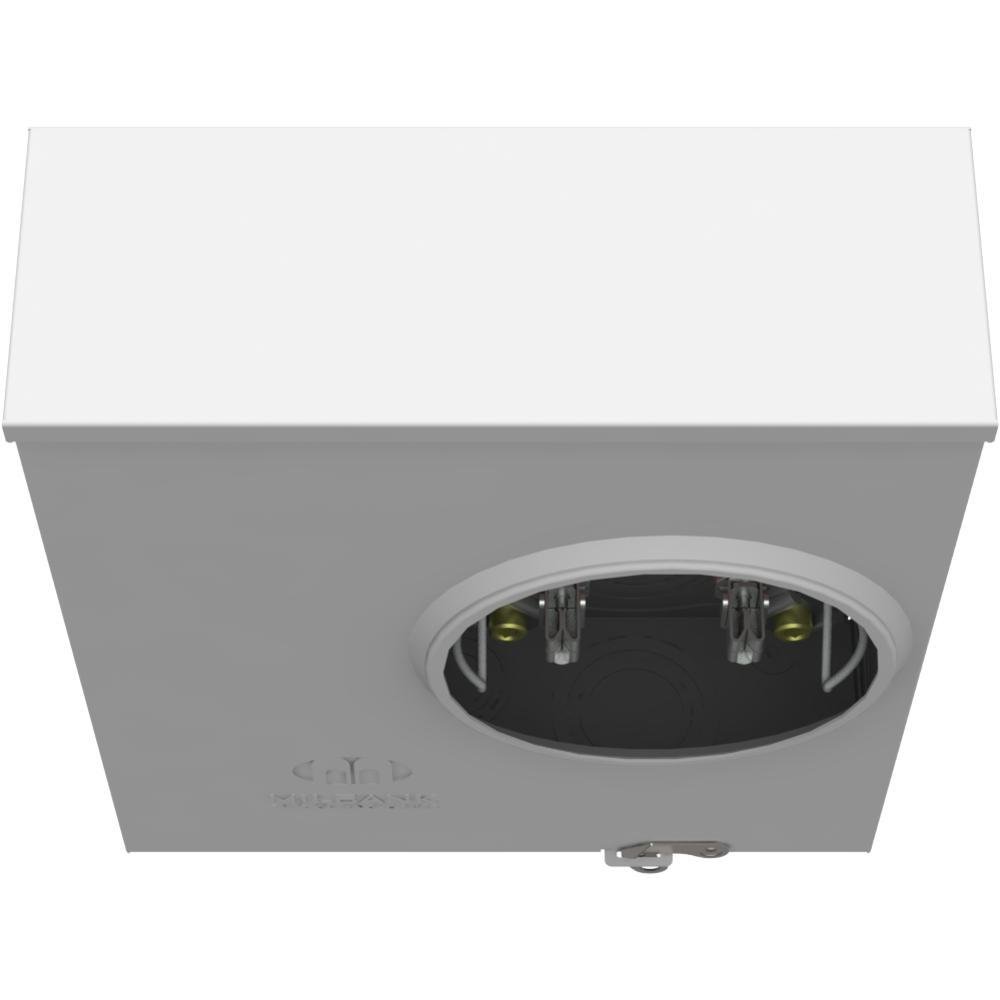

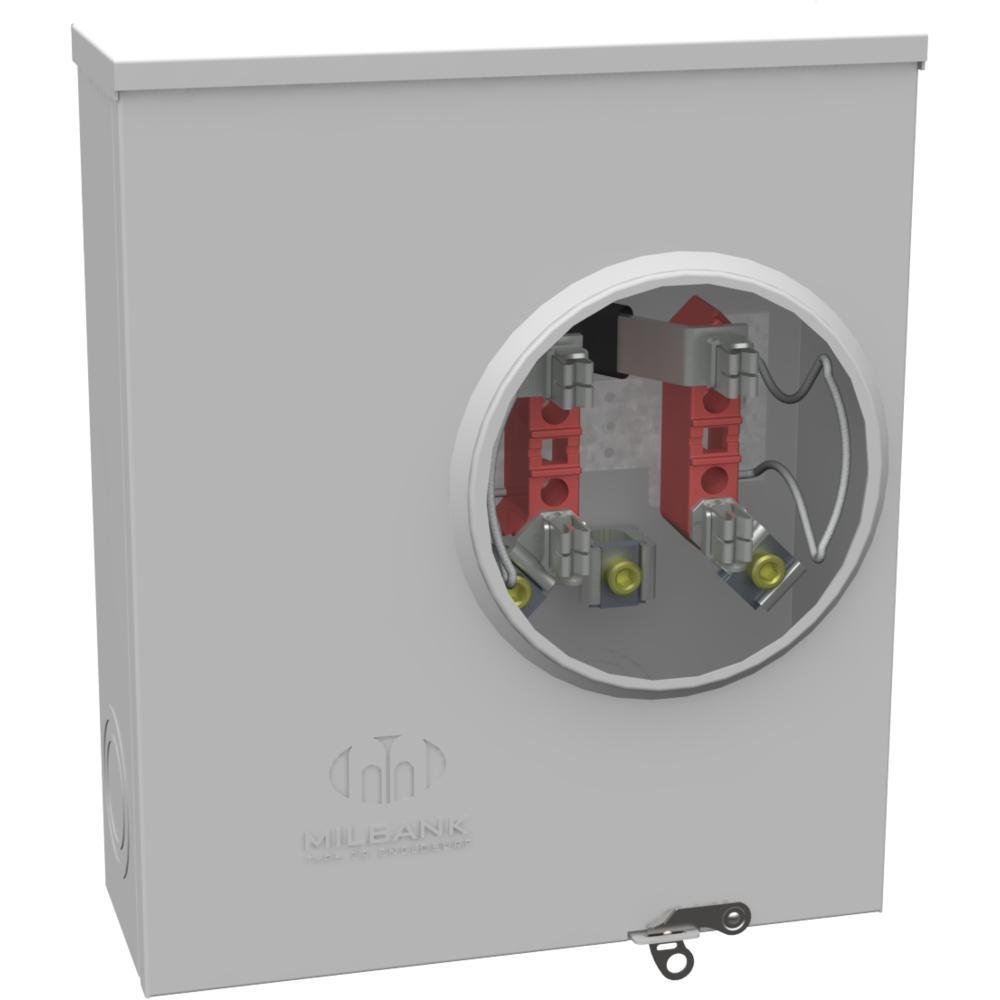

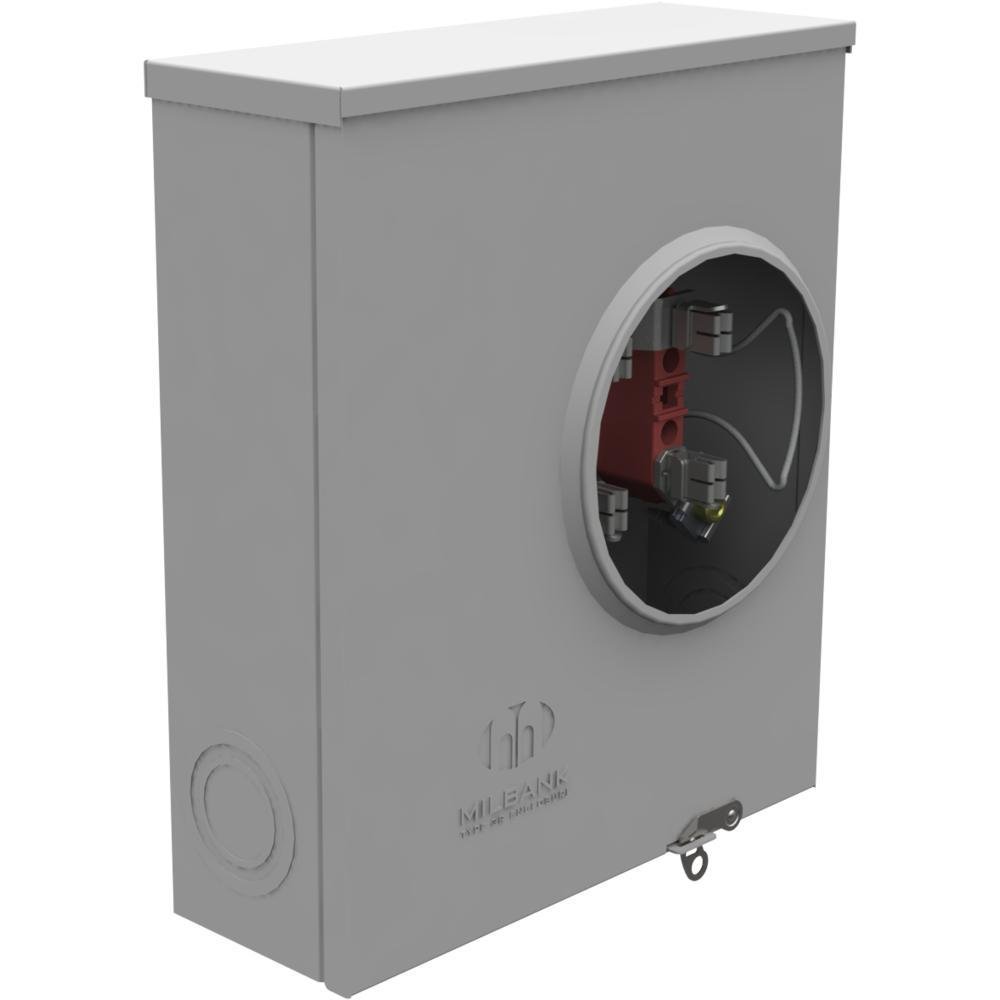

U1980-O - 4 Terminal Ringless Plain Top Switch Underground
Description
Specifications
15lb
15.25mm
13mm
4.5mm
No cutouts
For use with meter mounting base
Milbank®
USA
US
Warranty Information
Instruction/Installation Manual
00784572134508
SOCKET MTR 600VAC 200A 1 NEMA 3R 60HZ
No cutouts
G90 galvanized steel with powder coat finish enclosure
2 AWG to 350 kcmil aluminum/copper, line/load wire
U1980-O 1-Position Meter Socket, 600 V AC, 200 A, 1 Phase, NEMA 3R Enclosure ; Milbank Manufacturing ; Milbank ; U1980O ; 784572134508 ; Meter Sockets - Single Position
Milbank Manufacturing
15.2500
IN
4.5000
IN
1
15.0000
LB
13.0000
IN
U1980-O ; U1980O ; 784572134508 ; 78457213450 ; 00784572134508
Milbank
RESIDENTIAL SINGLE METER SOCKETS
Amperage Rating
A
200
PHASE
1
Terminal Type
Single Lay-In Line Side/Load Side Connector
Type
1-Position
Voltage Rating
V AC
600
Wire Size
2 AWG to 350 kcmil
Cover Type
Ringless
Dimensions
4-1/2 in ID x 13 in OD x 15-1/4 in H
Enclosure Type
NEMA 3R
Feed Type
Side Wired/Underground
Frequency Rating
HZ
60
Hub Type
Plain Top
Mounting Type
Surface
Number of Jaws
4
