Milbank

U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed

Category Commercial Meter Mains

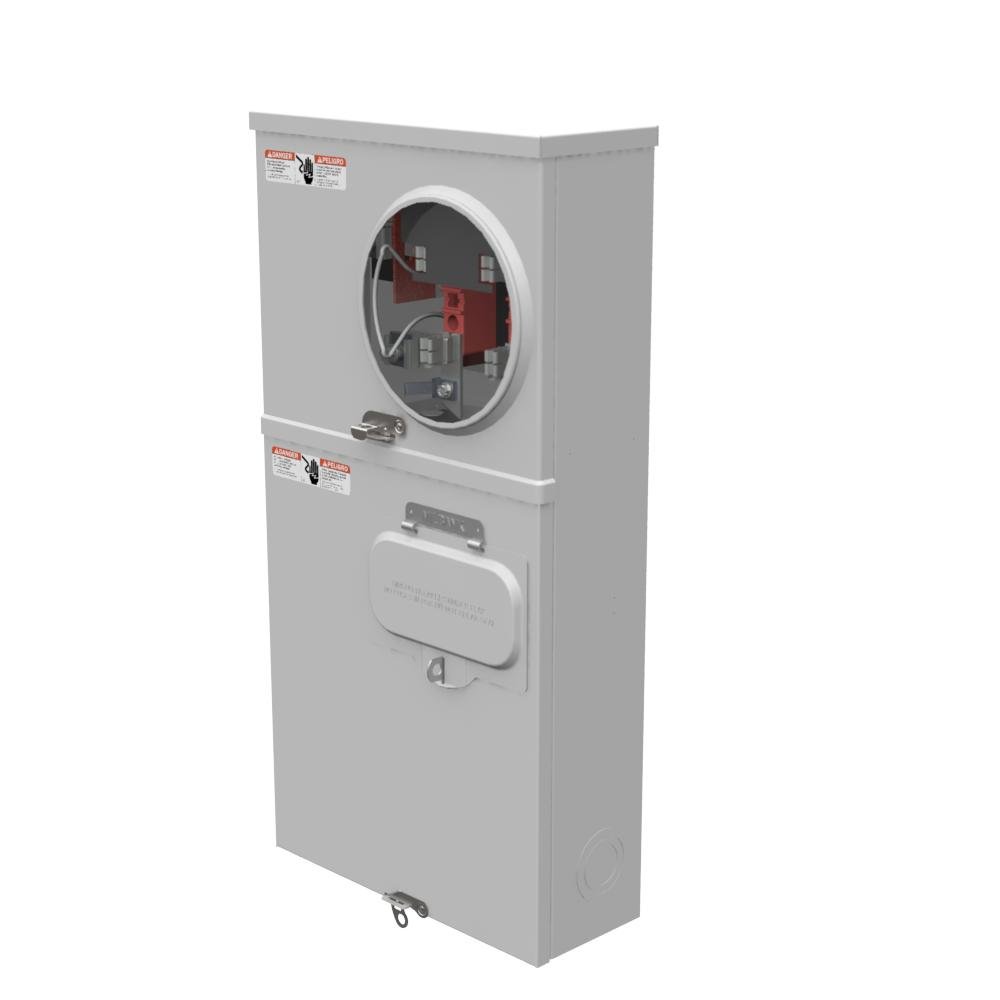

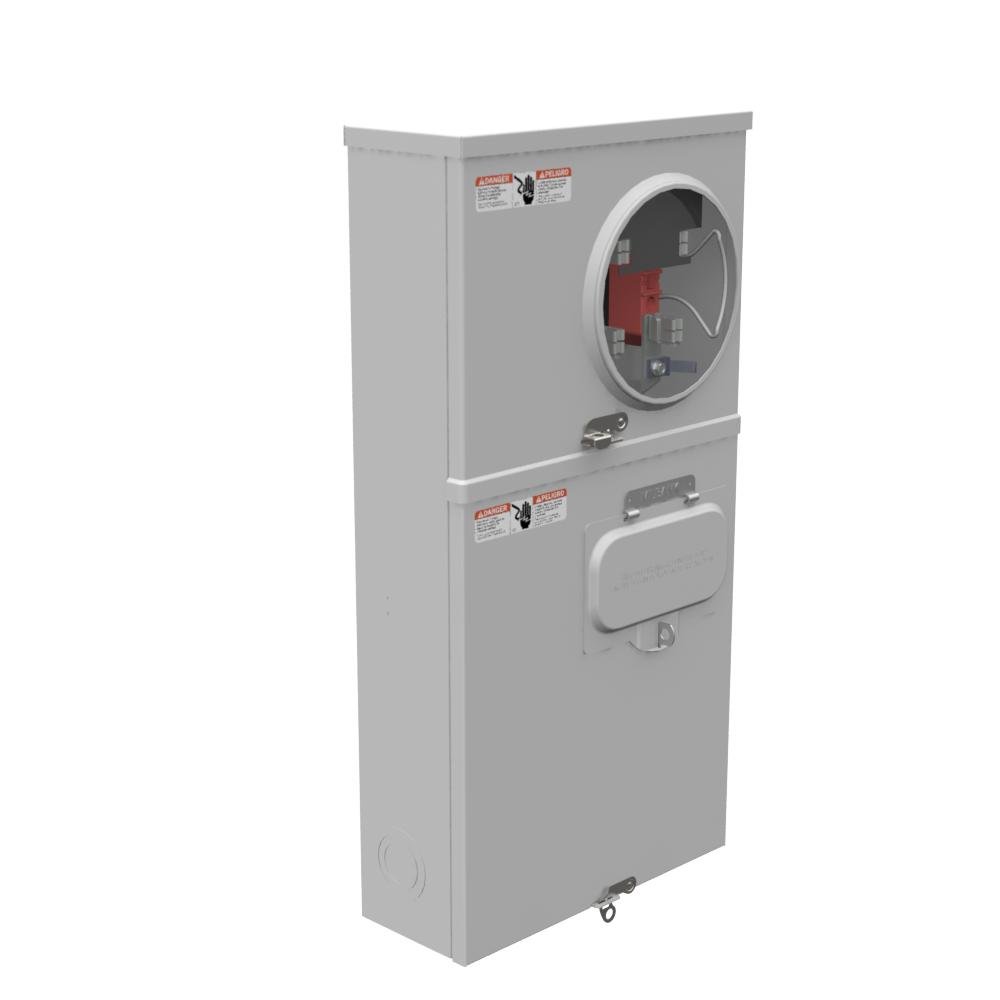

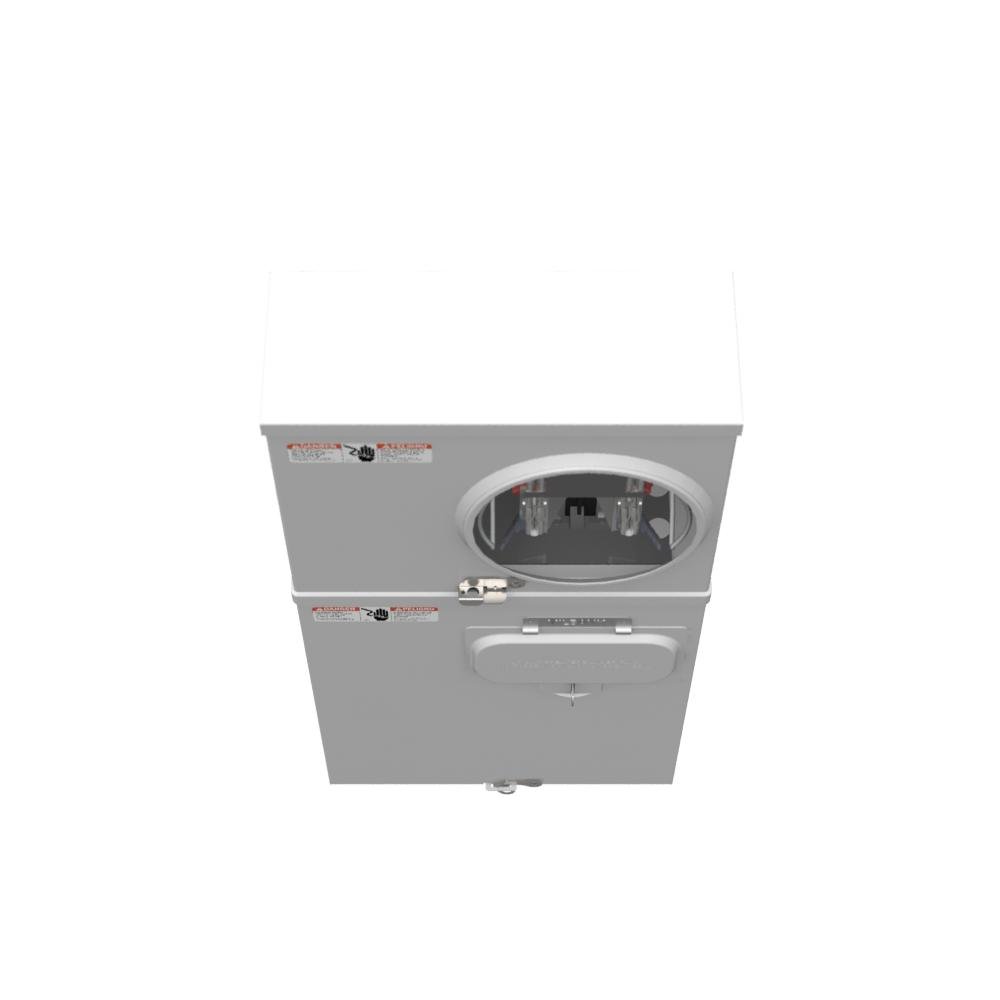

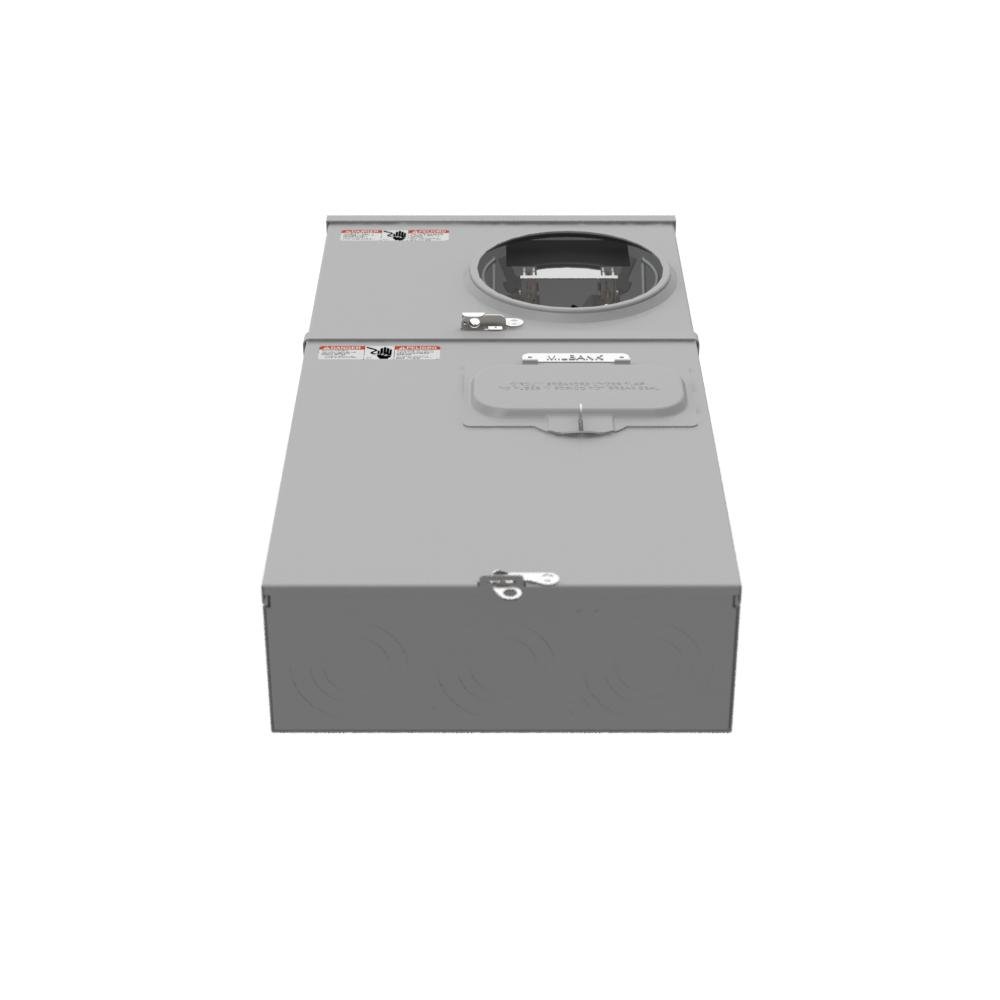

Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed
Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed
Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed
Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed
Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed Picture of U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed
Milbank

U3798-O-200 - 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed

Item Code: 45799
Category Commercial Meter Mains
Manufacturer Ref U3798-O-200

Document
Call for Availability
Add to Favorites
Compare

Description

The Milbank Ringless Meter Socket with Main is a UL Listed, Type 3R surface-mounted unit designed for single-phase applications up to 240 volts AC. It features a 200-amp continuous rating and includes one 200-amp main breaker. Constructed from durable G90 galvanized steel with a protective powder coat finish, it offers robust weather resistance. This meter socket supports underground cable entry via a side wireway and is equipped with true knockouts, a plain top, a 2-barrel ground lug, and lay-in terminals. It includes four terminals, supports a line side wire range of 6 AWG to 350 kcmil, and a load side range of 1 AWG to 300 kcmil. Additional features include a glass polyester insulation, no bypass provision, and dimensions of 4.844" L x 13" W x 25.813" H.

Specifications

Height

25.81mm

Width

13mm

Length

4.84mm

AD Application

For Meter Socket With Main

AD Brand (Description)

Milbank

AD Country

USA

AD Invoice Description

MTR SKT - SGL POSN 240V 200A 1PH 60HZ

AD Manufacturer (Description)

Milbank Manufacturing

AD Package Quantity

1

Brand

Milbank

Category

COMMERCIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V

Spec 10 Attribute Value

240

Spec 2 Attribute

Frequency Rating

Spec 2 Attribute UOM

HZ

Spec 2 Attribute Value

60

Spec 3 Attribute

Hub Type

Spec 3 Attribute Value

Plain Top

Spec 4 Attribute

Insulation

Spec 4 Attribute Value

Glass Polyester

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

4 Terminal

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Lay-In

Spec 9 Attribute

Type

Spec 9 Attribute Value

Ringless
