Milbank

U3990-XL-200 - 4 Terminal Ringless Small Closing Plate 1-200 Ampere Main Breaker Wide Shell

Category Meter Socket Circuit Breaker Combinations

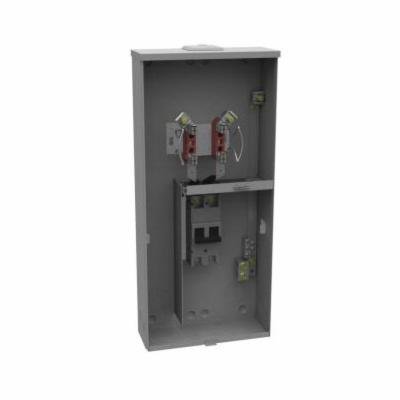

Picture of U3990-XL-200 - 4 Terminal Ringless Small Closing Plate 1-200 Ampere Main Breaker Wide Shell
Milbank

U3990-XL-200 - 4 Terminal Ringless Small Closing Plate 1-200 Ampere Main Breaker Wide Shell

Item Code: 13055
Category Meter Socket Circuit Breaker Combinations
Manufacturer Ref U3990XL200

Document
Call for Availability
Add to Favorites
Compare

Description

The Milbank U3990-XL-200 Ringless Meter Socket is a rugged, reliable solution for residential and light commercial metering applications. Designed to support a single-phase system with up to 240V AC at 200 continuous amperes, it provides secure and accurate metering with a 4-terminal configuration. Certified UL Listed and rated Type 3R for outdoor use, this socket ensures durability in harsh environments with its G90 galvanized steel construction and powder-coated finish. Built with glass polyester insulation for enhanced safety, the U3990-XL-200 offers versatile mounting options with overhead or underground cable entry. A 200-amp main breaker comes pre-installed, supporting straightforward, surface-mounted installation. For easy wiring, it includes lay-in terminals, a 3-barrel ground lug, and accommodates line side wire ranges from 6 AWG to 350 kcmil and load side wire ranges from 1 AWG to 300 kcmil. Measuring 29 inches high, 13 inches wide, and 4.844 inches deep, the compact unit features a small closing plate with no bypass provision, ensuring a sleek, functional design for seamless metering installations.

Specifications

Height

29mm

Width

13mm

Length

4.84mm

AD All Features

Lay-in line side and single mechanical load side terminal

AD Brand (Description)

Milbank

AD Country

USA

AD Invoice Description

SOCKET MTR 240VAC 200A 1 NEMA 3R 60HZ

AD Item Features 01

Lay-in line side and single mechanical load side terminal

AD Item Features 02

Small closing plate hub

AD Item Features 03

G90 galvanized steel with powder coat finish enclosure

AD Item Features 04

1-cutout

AD Manufacturer (Description)

Milbank Manufacturing

AD Package Quantity

1

Brand

Milbank

Category

METER SOCKET CIRCUIT BREAKER COMBINATIONS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

240

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

29 in H x 13 in W x 4-13/16 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

60

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Line/Load

Spec 9 Attribute

Type

Spec 9 Attribute Value

Ringless
