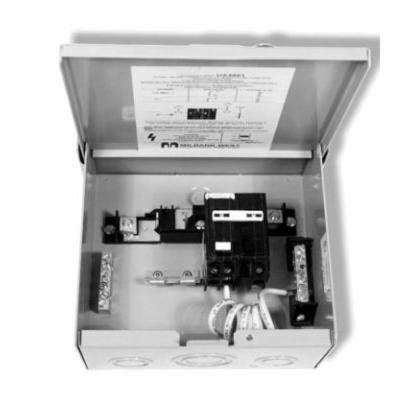

U4881-O-60GB - Unmetered Small Closing Plate Surface Mount 60 Ampere Breaker
Description
Specifications
8.5mm
7.5mm
3.75mm
For use as hot tub disconnect or sub panel enclosure
Milbank
USA
Catalog
ENCLOSURE BRKR 3-3/4IN 7-1/2IN NEMA 3R 2
Easy Installation
50 or 60 a GFCI breaker protection
3 or 4-wires installation
2 extra 1-pole breaker spaces
Use as a 100 A, 4 circuit sub panel enclosure
U4881-O has provision for (2) 2-poles or (4) 1-pole small frame breakers
14 to 1/0, 14 to 1/0, 14 to 1/0 AWG copper/aluminum line and load connector wire range, ground connector wire range
U4881-O-60GB Breaker Enclosure With GFCI Protection, 3-3/4 in L x 7-1/2 in W x 8-1/2 in H, NEMA 3R, Steel ; Milbank Manufacturing ; Milbank ; U4881O60GB ; 784572279308 ; Circuit Breaker Enclosures
Milbank Manufacturing
1
U4881-O-60GB ; U4881O60GB ; 784572279308 ; 78457227930
Milbank
Color
Gray
Width
IN
7/1/2002
Electrical Ratings
60 A, 120/240 V AC
Finish
Baked Powder Coated
Height
IN
8/1/2002
Length
IN
3/3/2004
Material
Steel
Mounting Type
Surface
NEMA Rating
NEMA 3R
Number Of Poles
2
