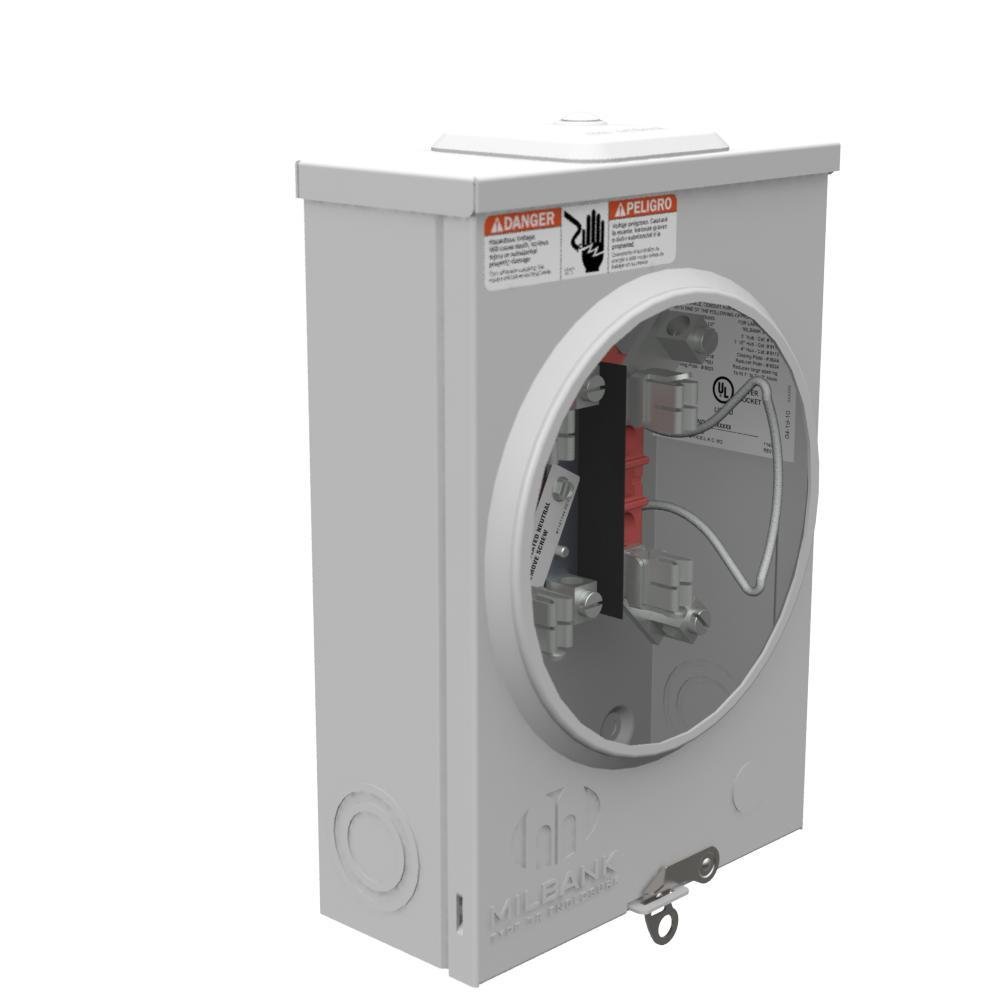

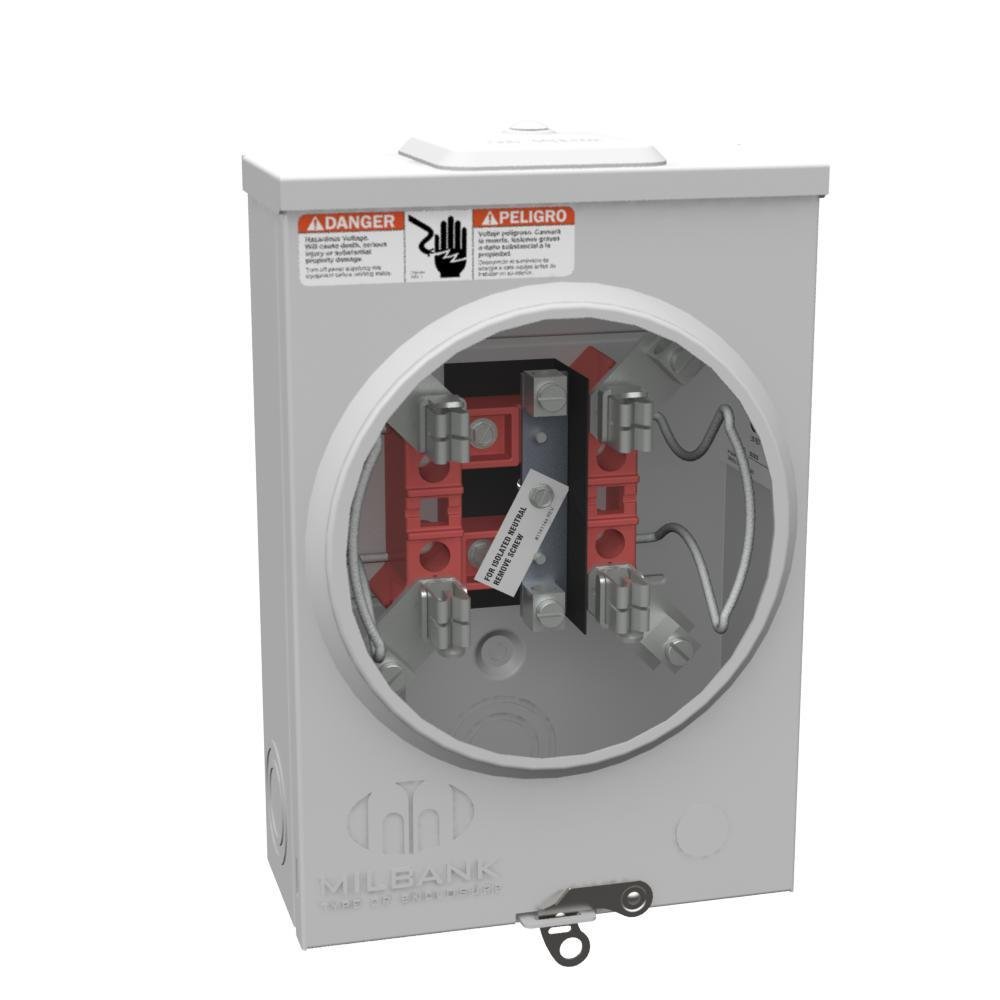

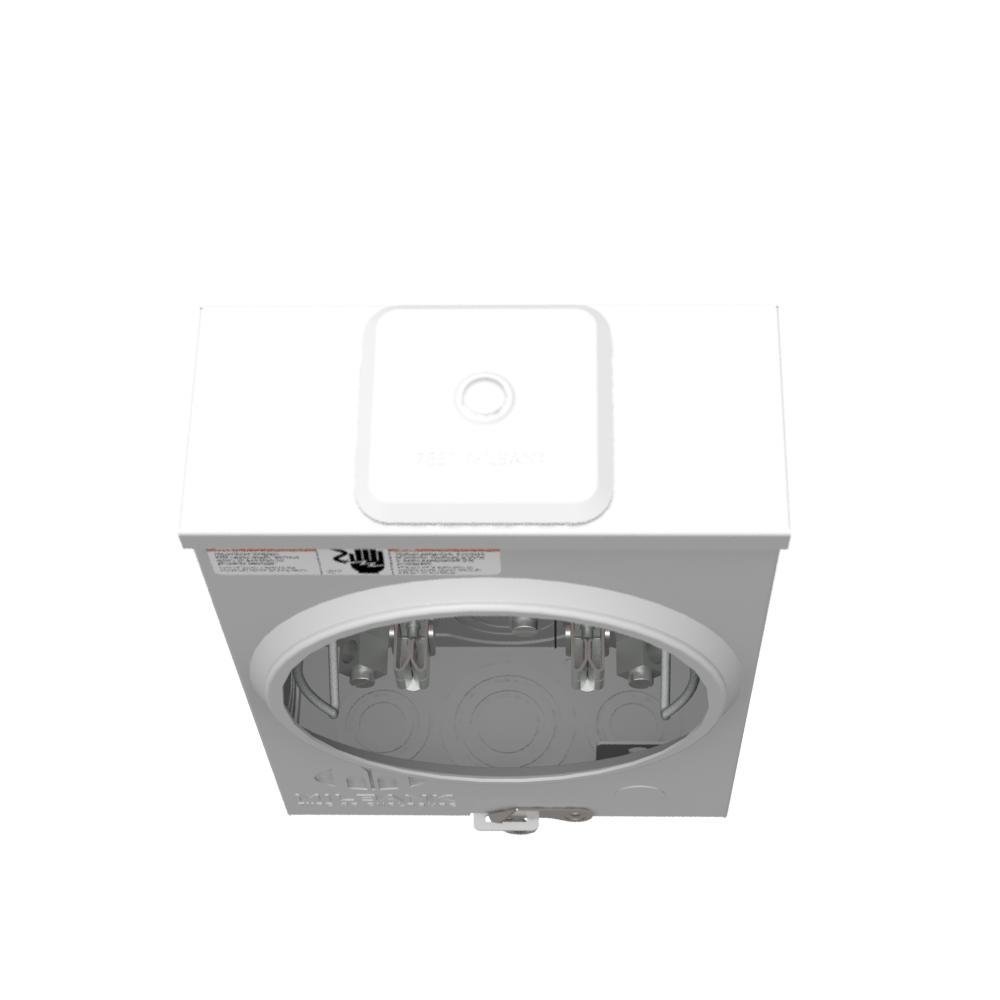

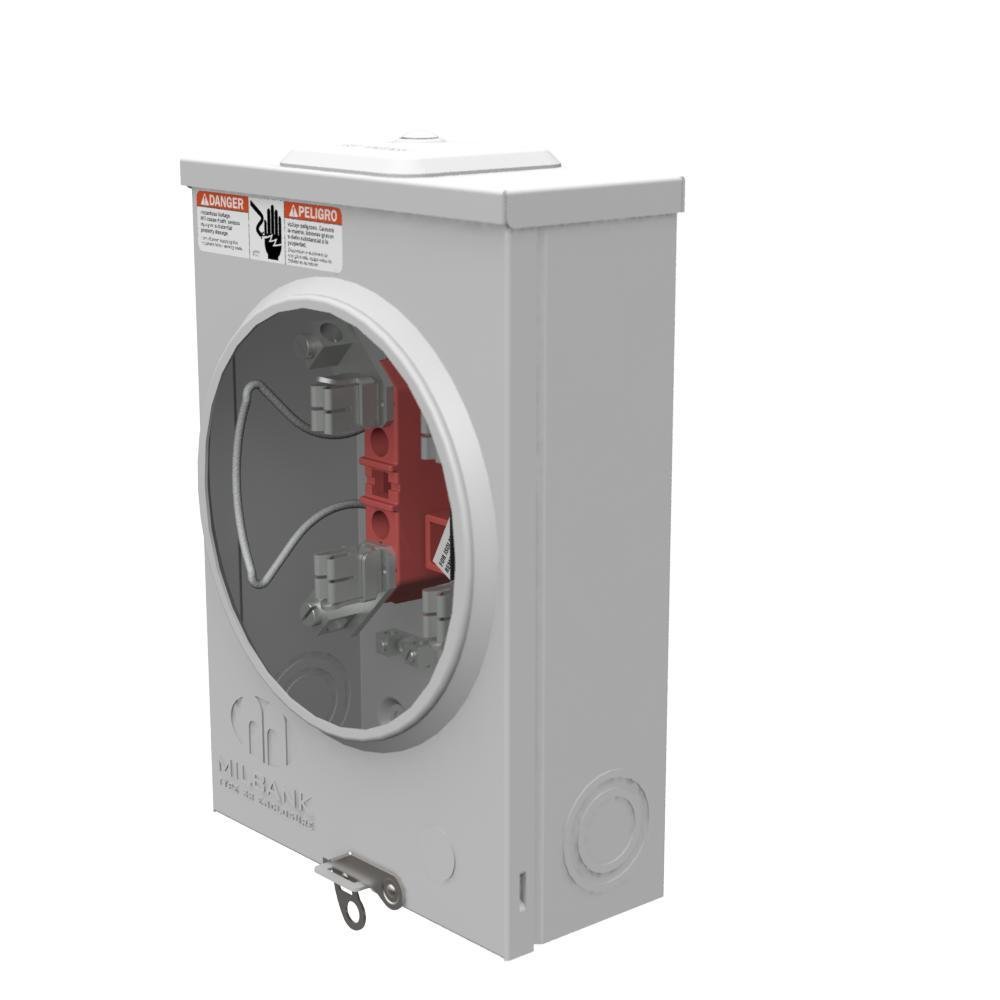

U5934-XL-BLG - 4 Terminal Ringless Small Closing Plate 7-8 In Barrel Lock Ground With Bracket Provision
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
6.55lb
Height
11.5mm
Width
8mm
Length
3.61mm
AD All Features
Single mechanical line-side and load-side terminal connectors
AD Application
For meter mounting base
AD Brand (Description)
Milbank
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
SOCKET MTR 600VAC 100A 1 NEMA 3R 60HZ
AD Item Features 01
Single mechanical line-side and load-side terminal connectors
AD Item Features 02
G90 galvanized steel enclosure material with powder coat finish
AD Manufacturer (Description)
Milbank Manufacturing
AD Package Height
11.5000
AD Package Height UOM
IN
AD Package Length
3.6100
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
6.5500
AD Package Weight UOM
LB
AD Package Width
8.0000
AD Package Width UOM
IN
Brand
Milbank
Category
COMMERCIAL SINGLE METER SOCKETS
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
100
Spec 10 Attribute
Terminal Type
Spec 10 Attribute Value
Single Mechanical
Spec 11 Attribute
Type
Spec 11 Attribute Value
Ring Less
Spec 12 Attribute
Voltage Rating
Spec 12 Attribute UOM
V AC
Spec 12 Attribute Value
600
Spec 13 Attribute
Wire Size
Spec 13 Attribute UOM
AWG
Spec 13 Attribute Value
14 to 1/0
Spec 2 Attribute
Dimensions
Spec 2 Attribute Value
11-1/2 in W x 3-5/16 in D x 8 in H
Spec 3 Attribute
Enclosure Type
Spec 3 Attribute Value
NEMA 3R
Spec 4 Attribute
Feed Type
Spec 4 Attribute Value
Overhead/Underground
Spec 5 Attribute
Frequency Rating
Spec 5 Attribute UOM
HZ
Spec 5 Attribute Value
60
Spec 6 Attribute
Hub Type
Spec 6 Attribute Value
Closing Plate
Spec 7 Attribute
Mounting Type
Spec 7 Attribute Value
Surface
Spec 8 Attribute
Number of Jaws
Spec 8 Attribute Value
4
Spec 9 Attribute
PHASE
Spec 9 Attribute Value
1
