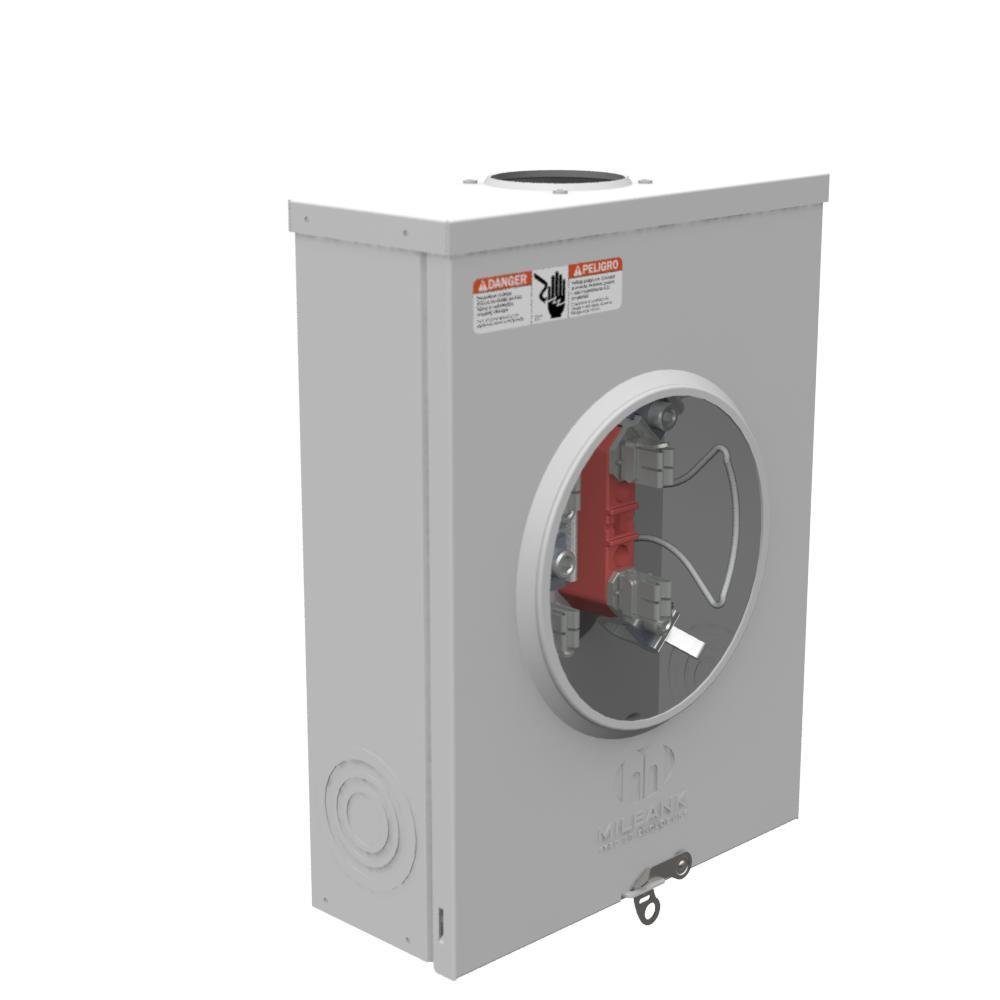

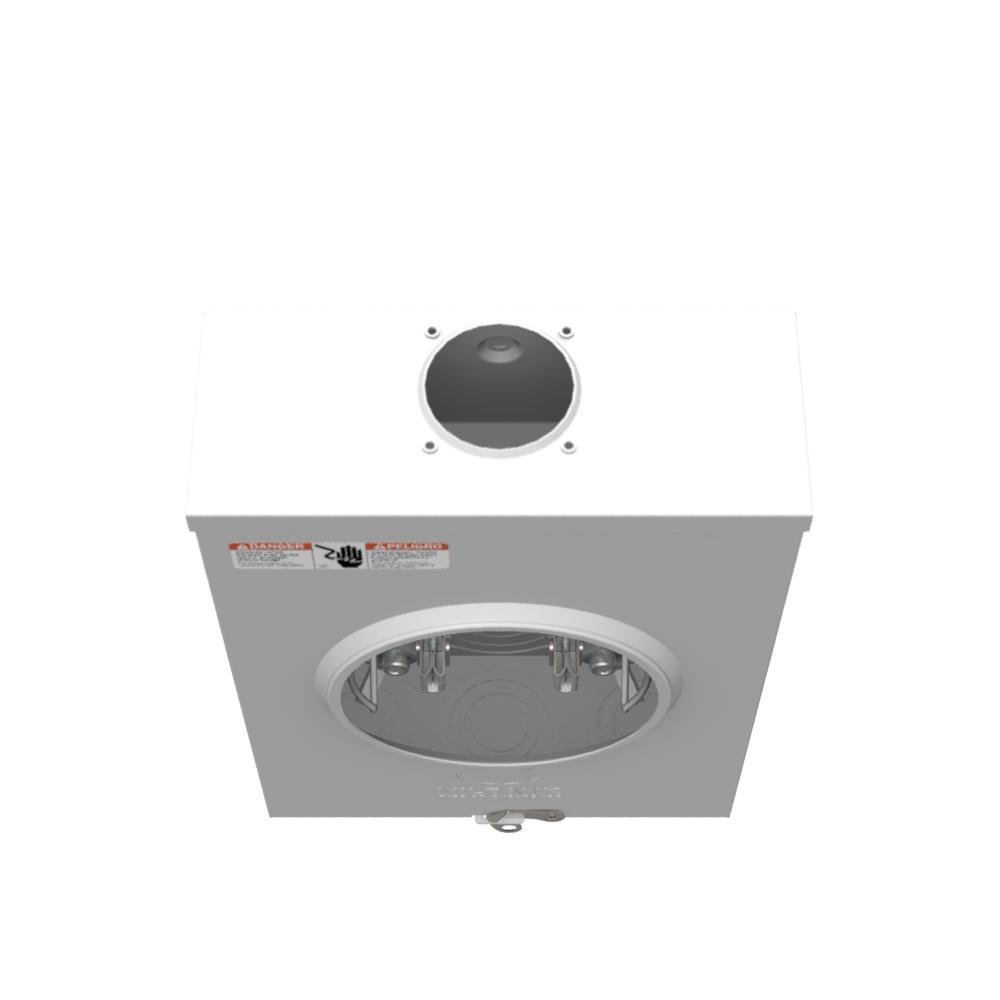

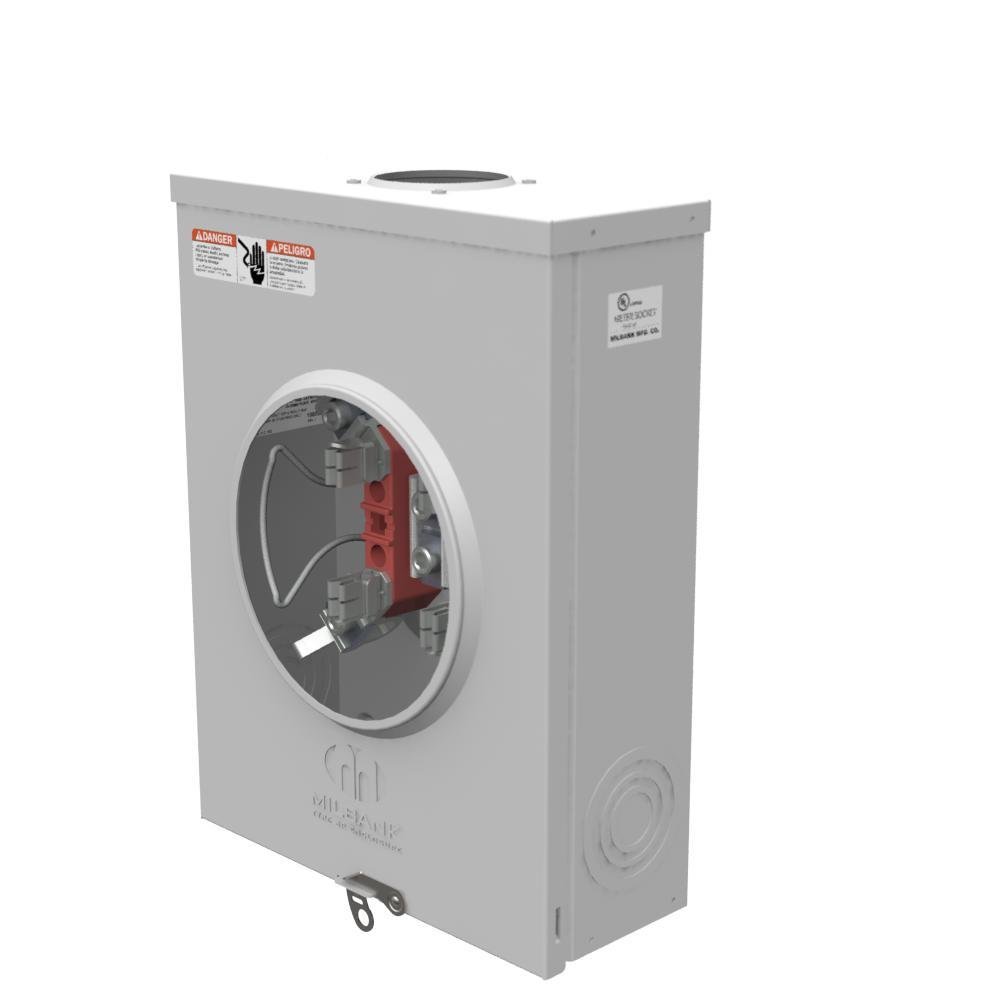

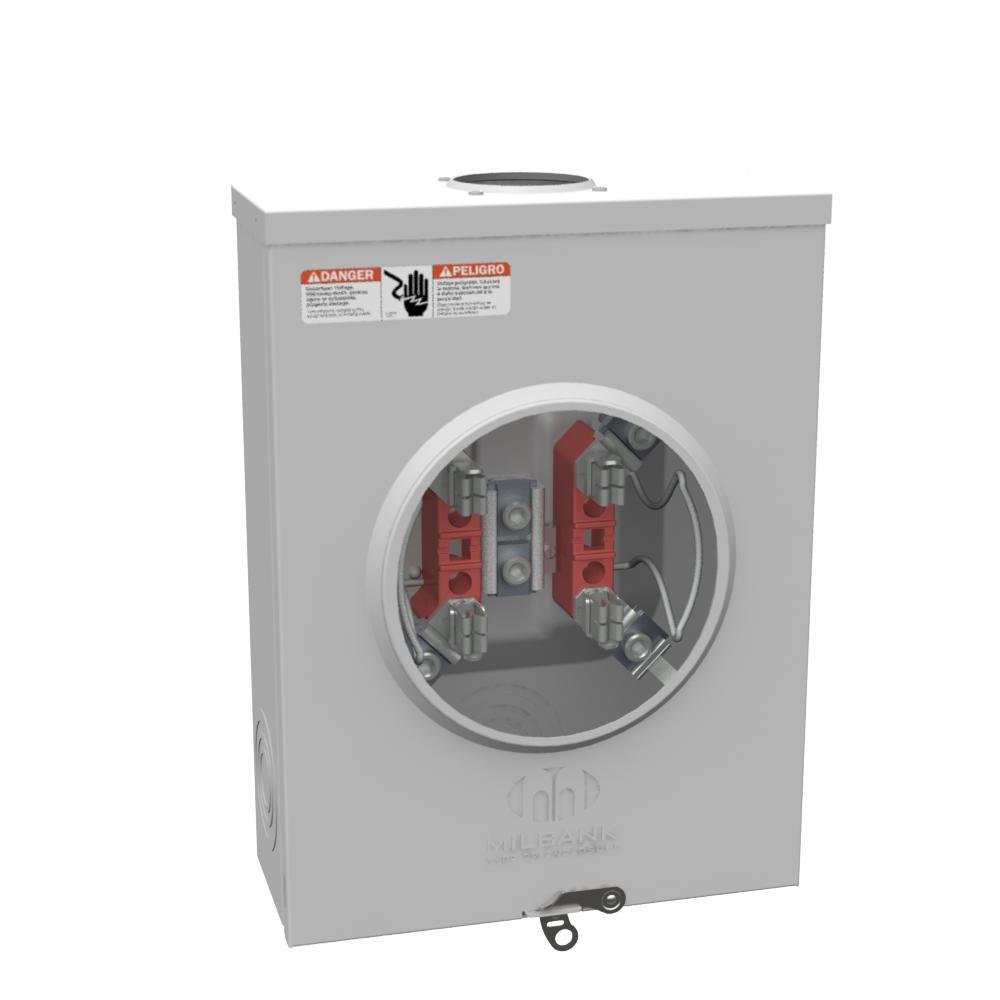

U7040-RL-TG-KK-RGE - 4 Terminal Ringless Small Hub Open Triplex Ground Horn Bypass Rochester Gas And Electric Wide Shell
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
10.93lb
Height
14.56mm
Width
11mm
Length
4.13mm
AD All Features
No cutouts
AD Application
For use with meter mounting base
AD Brand (Description)
Milbank®
AD Country
USA
AD Country Of Origin
US
AD Gtin
00784572140264
AD Invoice Description
SOCKET MTR 600VAC 200A 1 NEMA 3R 60HZ
AD Item Features 01
No cutouts
AD Item Features 02
G90 galvanized steel with powder coat finish enclosure
AD Item Features 03
6 AWG to 350 kcmil aluminum/copper, line/load wire
AD Manufacturer (Description)
Milbank Manufacturing
AD Package Height
14.5600
AD Package Height UOM
IN
AD Package Length
4.1300
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
10.9300
AD Package Weight UOM
LB
AD Package Width
11.0000
AD Package Width UOM
IN
Brand
Milbank
Category
RESIDENTIAL SINGLE METER SOCKETS
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
200
Spec 10 Attribute
PHASE
Spec 10 Attribute Value
1
Spec 11 Attribute
Terminal Type
Spec 11 Attribute Value
Single Lay-In Line Side/Load Side Connector
Spec 12 Attribute
Type
Spec 12 Attribute Value
1-Position
Spec 13 Attribute
Voltage Rating
Spec 13 Attribute UOM
V AC
Spec 13 Attribute Value
600
Spec 14 Attribute
Wire Size
Spec 14 Attribute Value
6 AWG to 350 kcmil
Spec 2 Attribute
Cover Type
Spec 2 Attribute Value
Ringless
Spec 3 Attribute
Dimensions
Spec 3 Attribute Value
4-1/8 in ID x 11 in OD x 14-9/16 in H
Spec 4 Attribute
Enclosure Type
Spec 4 Attribute Value
NEMA 3R
Spec 5 Attribute
Feed Type
Spec 5 Attribute Value
Overhead/Underground
Spec 6 Attribute
Frequency Rating
Spec 6 Attribute UOM
HZ
Spec 6 Attribute Value
60
Spec 7 Attribute
Hub Type
Spec 7 Attribute Value
Small Opening
Spec 8 Attribute
Mounting Type
Spec 8 Attribute Value
Surface
Spec 9 Attribute
Number of Jaws
Spec 9 Attribute Value
4
