Milbank®

U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground

Category Residential Single Meter Sockets

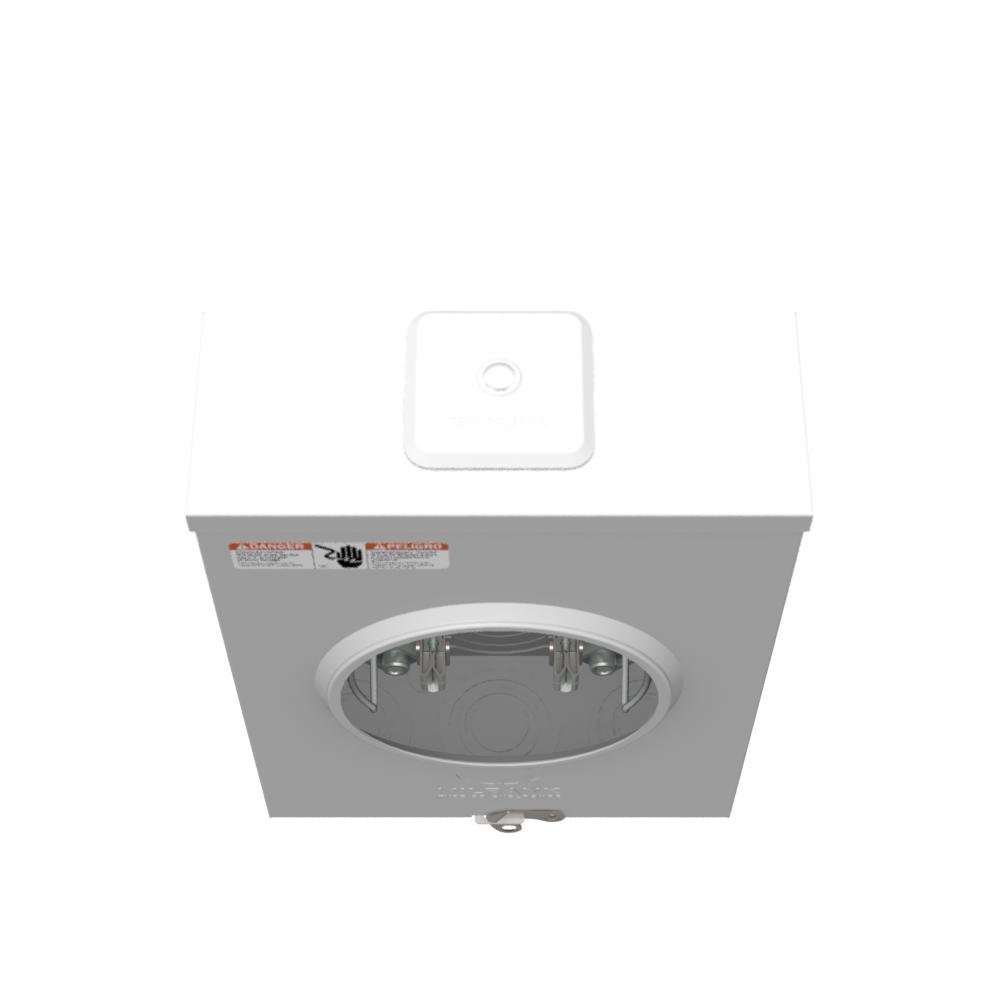

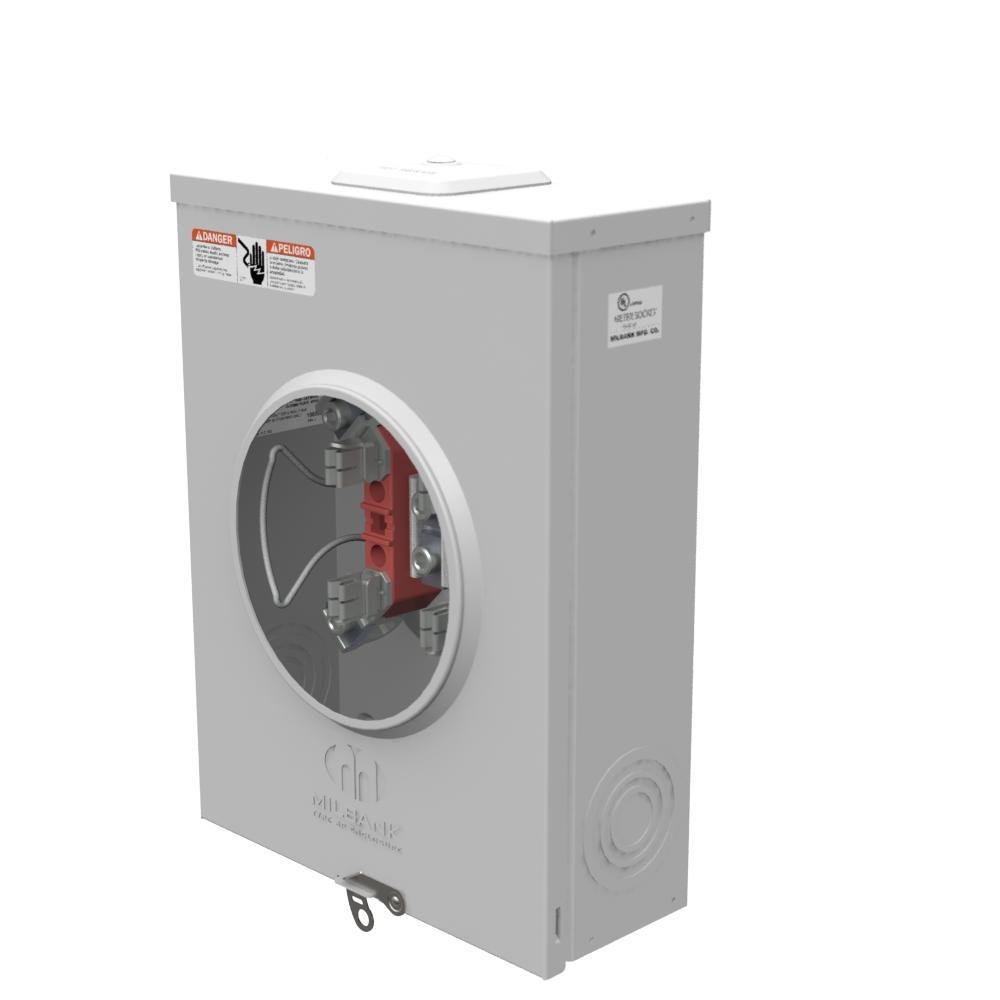

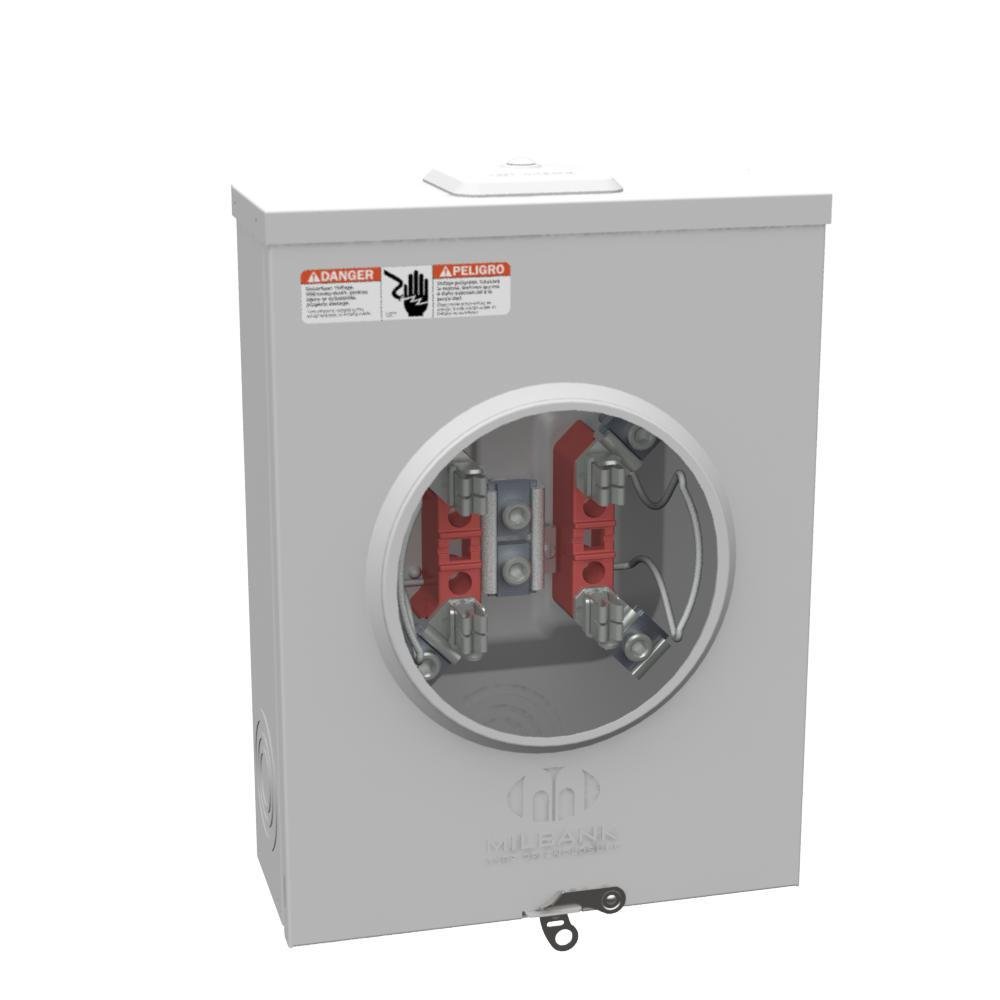

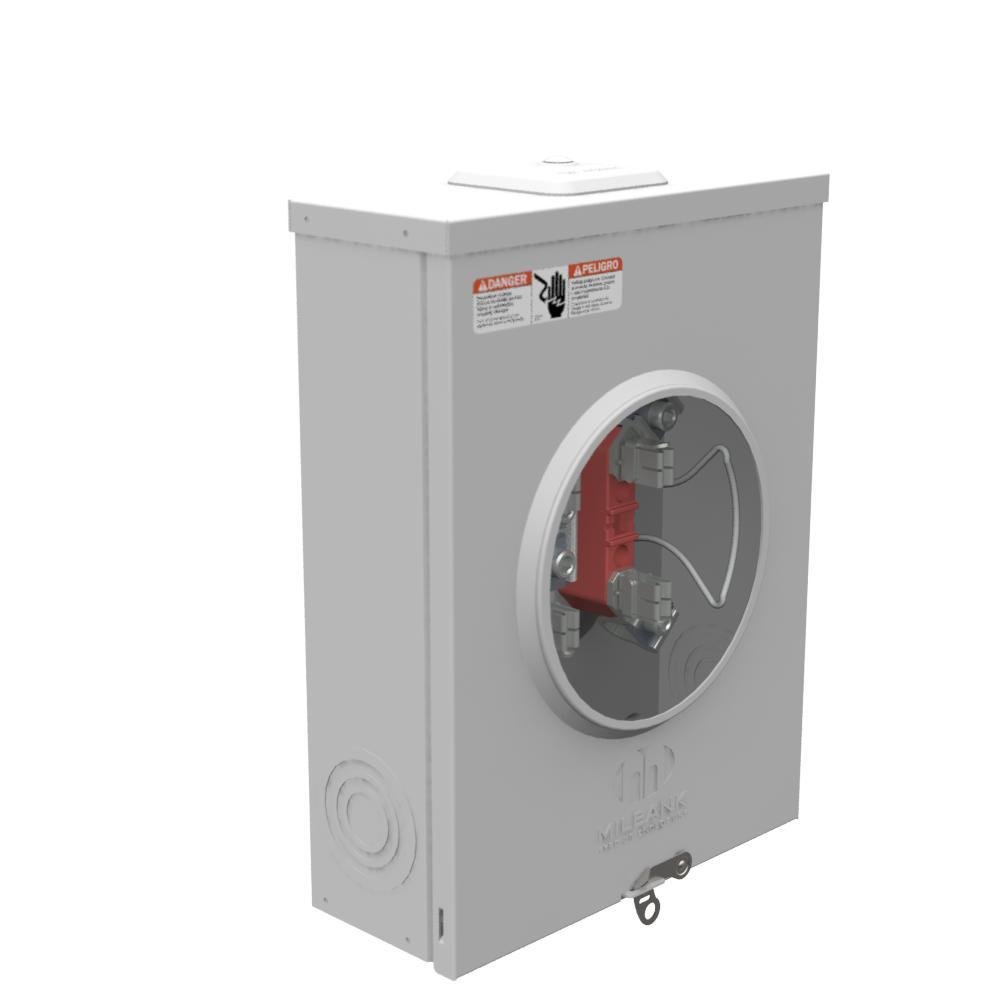

Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground
Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground
Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground
Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground
Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground Picture of U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground
Milbank®

U7040-XL-TG - 4 Terminal Ringless Small Closing Plate Triplex Ground

Item Code: 13059
Category Residential Single Meter Sockets
Manufacturer Ref U7040XLTG

Document
Call for Availability
Add to Favorites
Compare

Description

4 TERM RNGLS SML CLS PLT TRIPLEX GND

Purchasing Quantities

EACH

1

SK

48

Specifications

Weight

11lb

Height

14.56mm

Width

11mm

Length

4.13mm

AD All Features

No cutouts

AD Application

For use with meter mounting base

AD Brand (Description)

Milbank®

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Warranty Information

AD Document Caption 2

Instruction/Installation Manual

AD Gtin

00784572140356

AD Invoice Description

SOCKET MTR 600VAC 200A 1 NEMA 3R 60HZ

AD Item Features 01

No cutouts

AD Item Features 02

G90 galvanized steel with powder coat finish enclosure

AD Item Features 03

2 AWG to 350 kcmil aluminum/copper, line/load wire

AD Keywords

U7040-XL-TG 1-Position Meter Socket, 600 V AC, 200 A, 1 Phase, NEMA 3R Enclosure ; Milbank Manufacturing ; Milbank ; U7040XLTG ; 784572140356 ; Meter Sockets - Single Position

AD Manufacturer (Description)

Milbank Manufacturing

AD Package Height

14.5600

AD Package Height UOM

IN

AD Package Length

4.1300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

11.0000

AD Package Weight UOM

LB

AD Package Width

11.0000

AD Package Width UOM

IN

AD Part Number Keywords

U7040-XL-TG ; U7040XLTG ; 784572140356 ; 78457214035 ; 00784572140356

Brand

Milbank

Category

RESIDENTIAL SINGLE METER SOCKETS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Single Lay-In Line Side/Load Side Connector

Spec 12 Attribute

Type

Spec 12 Attribute Value

1-Position

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

2 AWG to 350 kcmil

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4-1/8 in ID x 11 in OD x 14-9/16 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

60

Spec 7 Attribute

Hub Type

Spec 7 Attribute Value

Small Closing Plate

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number of Jaws

Spec 9 Attribute Value

4
