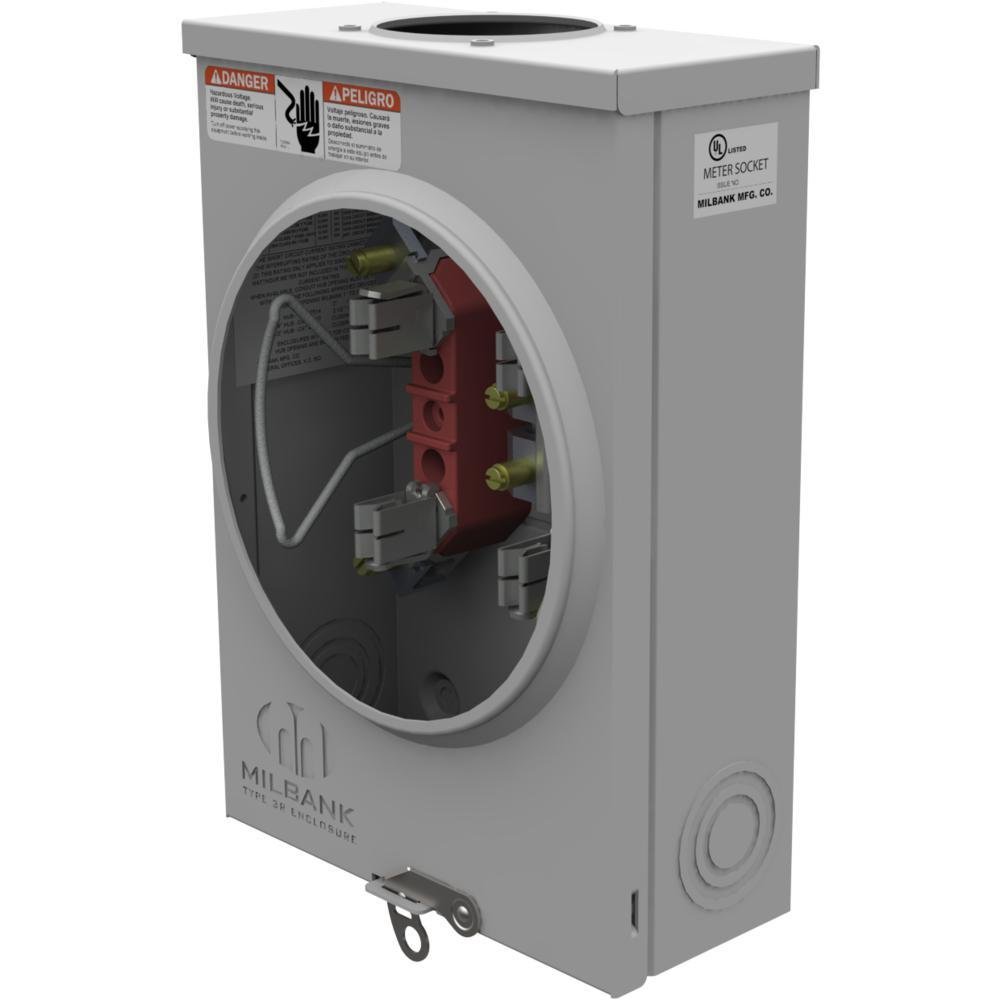

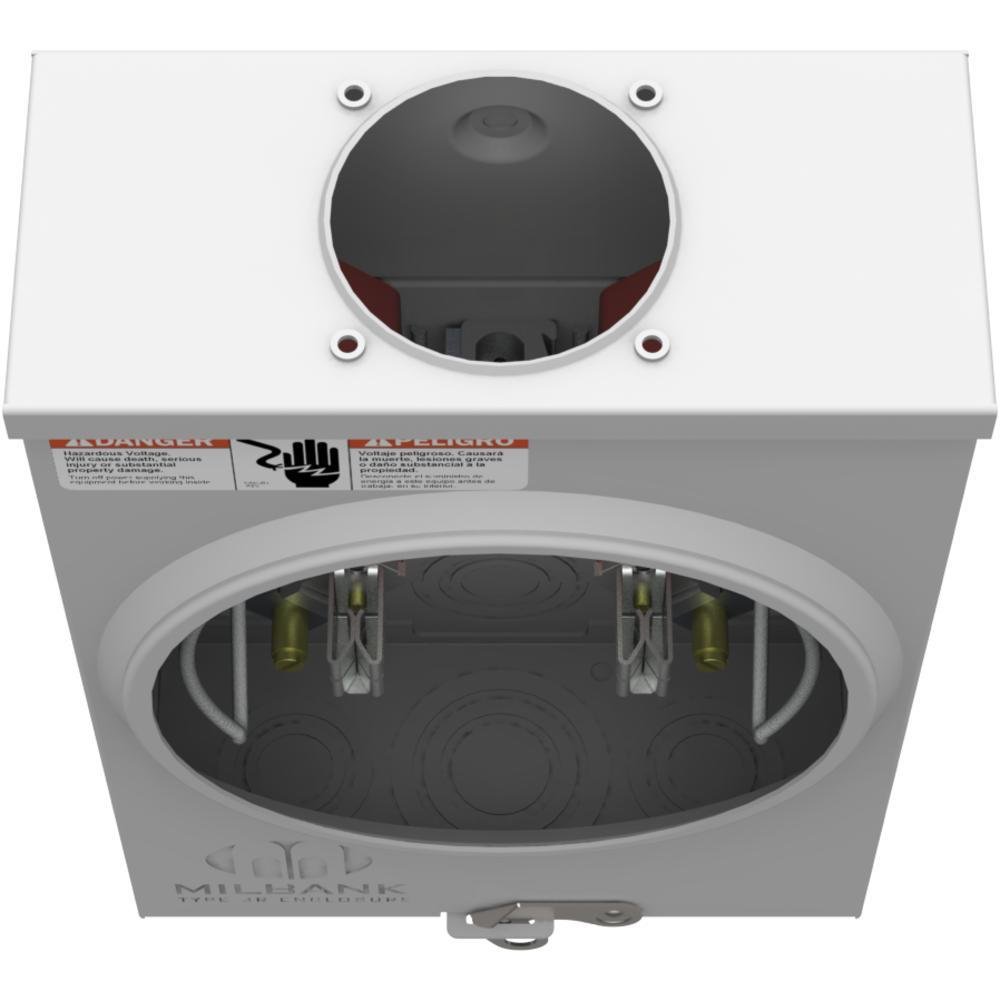

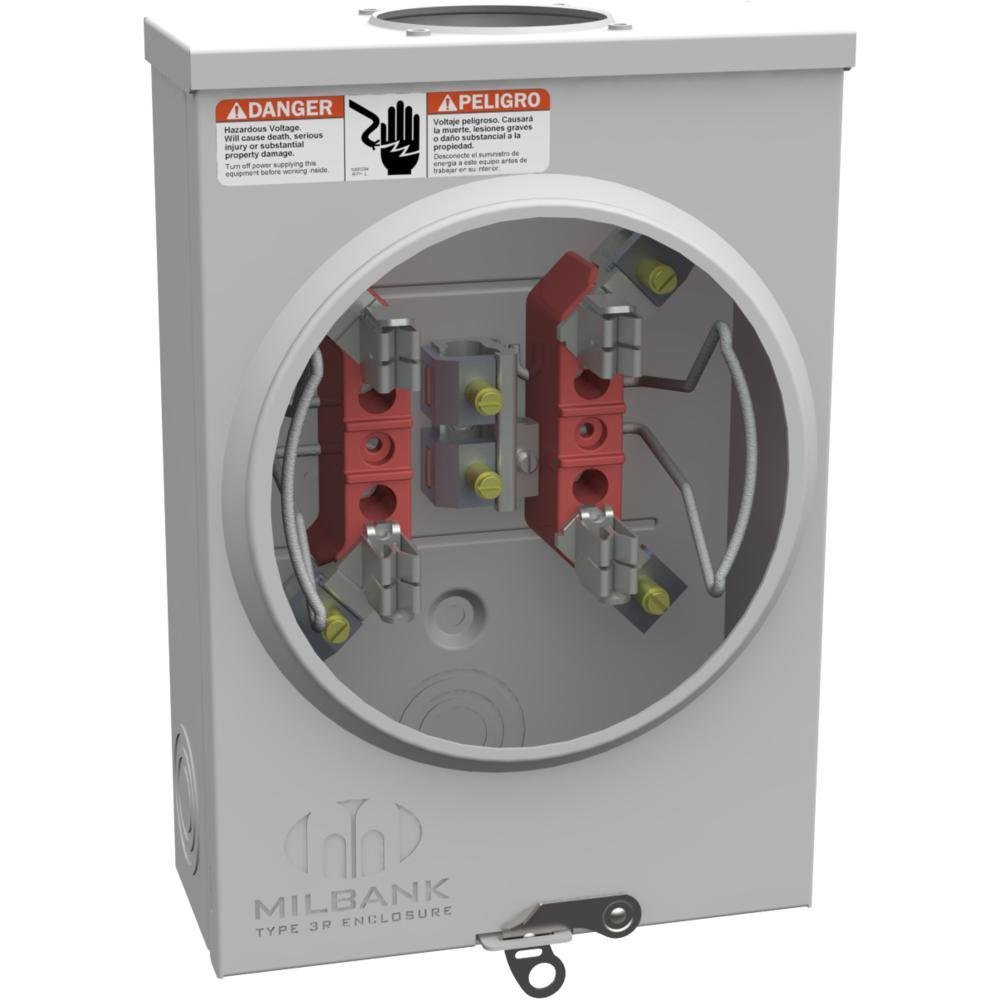

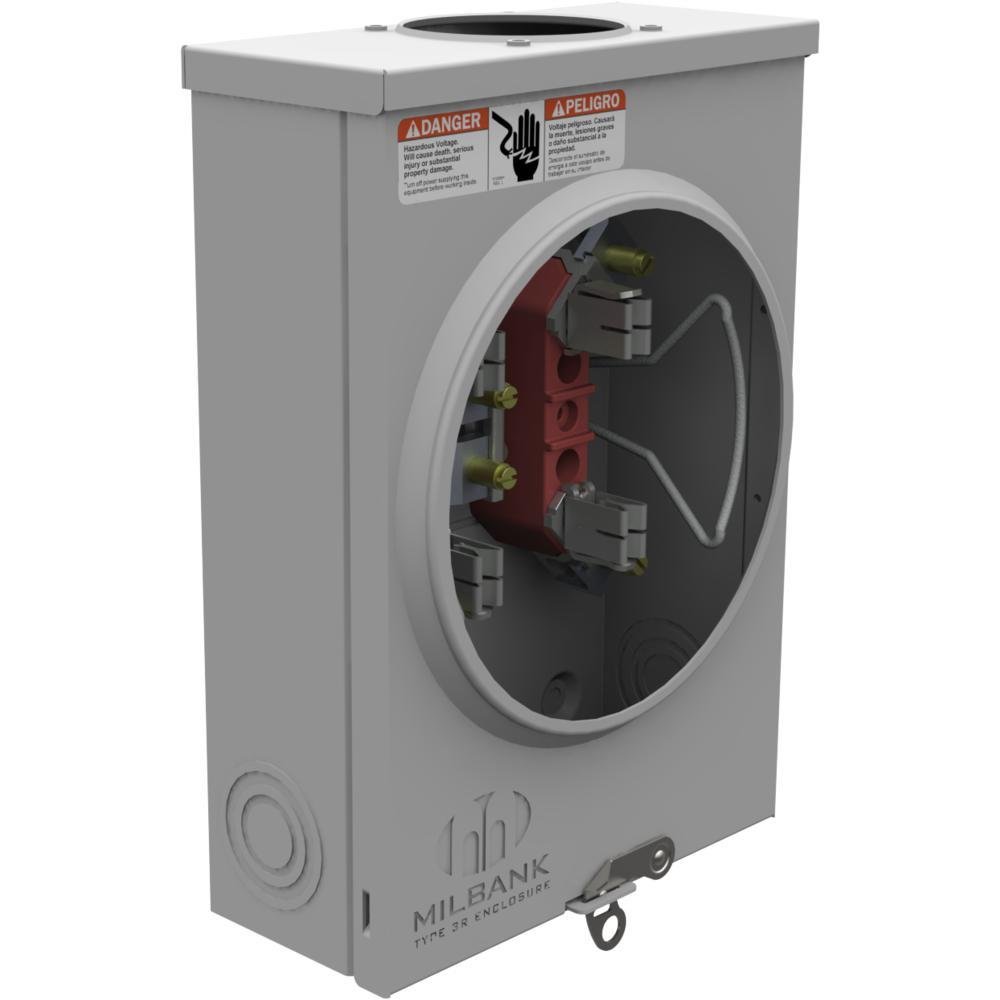

U7487-RL-TG - 4 Terminal Ringless Small Hub Open Triplex Ground 125 Ampere
Description
Specifications
6.8lb
11.5mm
8mm
3.31mm
No cutouts
For use with meter mounting base
Milbank®
USA
US
Warranty Information
Specification Sheet
Instruction/Installation Manual
00784572141179
SOCKET MTR 600VAC 125A 1 NEMA 3R 60HZ 4
No cutouts
G90 galvanized steel with powder coat finish enclosure
6 to 2/0 AWG aluminum/copper, line/load wire
U7487-RL-TG 1-Position Meter Socket, 600 V AC, 125 A, 1 Phase, NEMA 3R Enclosure ; Milbank Manufacturing ; Milbank ; U7487RLTG ; 784572141179 ; Meter Sockets - Single Position
Milbank Manufacturing
11.5000
IN
3.3100
IN
1
6.8000
LB
8.0000
IN
U7487-RL-TG ; U7487RLTG ; 784572141179 ; 78457214117 ; 00784572141179
Milbank
RESIDENTIAL SINGLE METER SOCKETS
Amperage Rating
A
125
PHASE
1
Terminal Type
Lay-in Line Side/Lay-in Load Side
Type
1-Position
Voltage Rating
V AC
600
Wire Size
AWG
6 To 2/0
Cover Type
Ringless
Dimensions
3-5/16 in ID x 8 in OD x 11-1/2 in H
Enclosure Type
NEMA 3R
Feed Type
Overhead/Underground
Frequency Rating
HZ
60
Hub Type
Small Opening
Mounting Type
Surface
Number of Jaws
4
