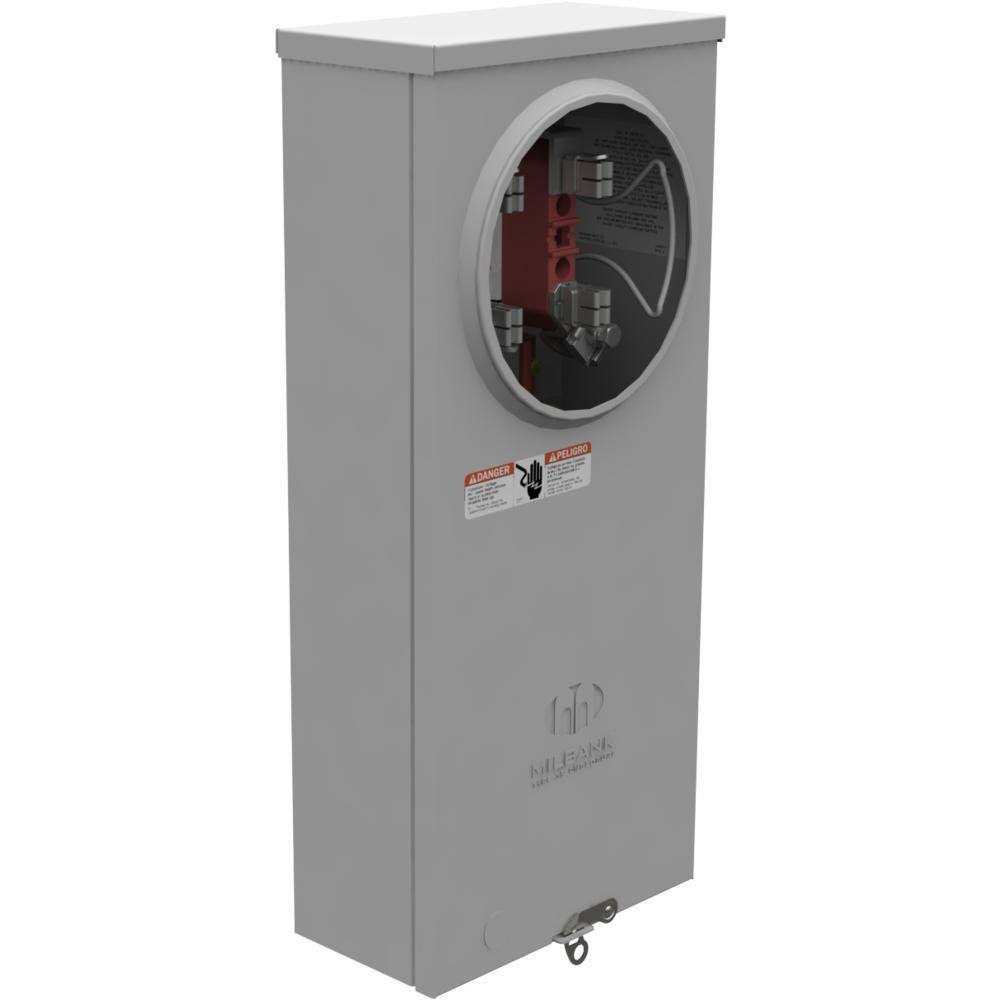

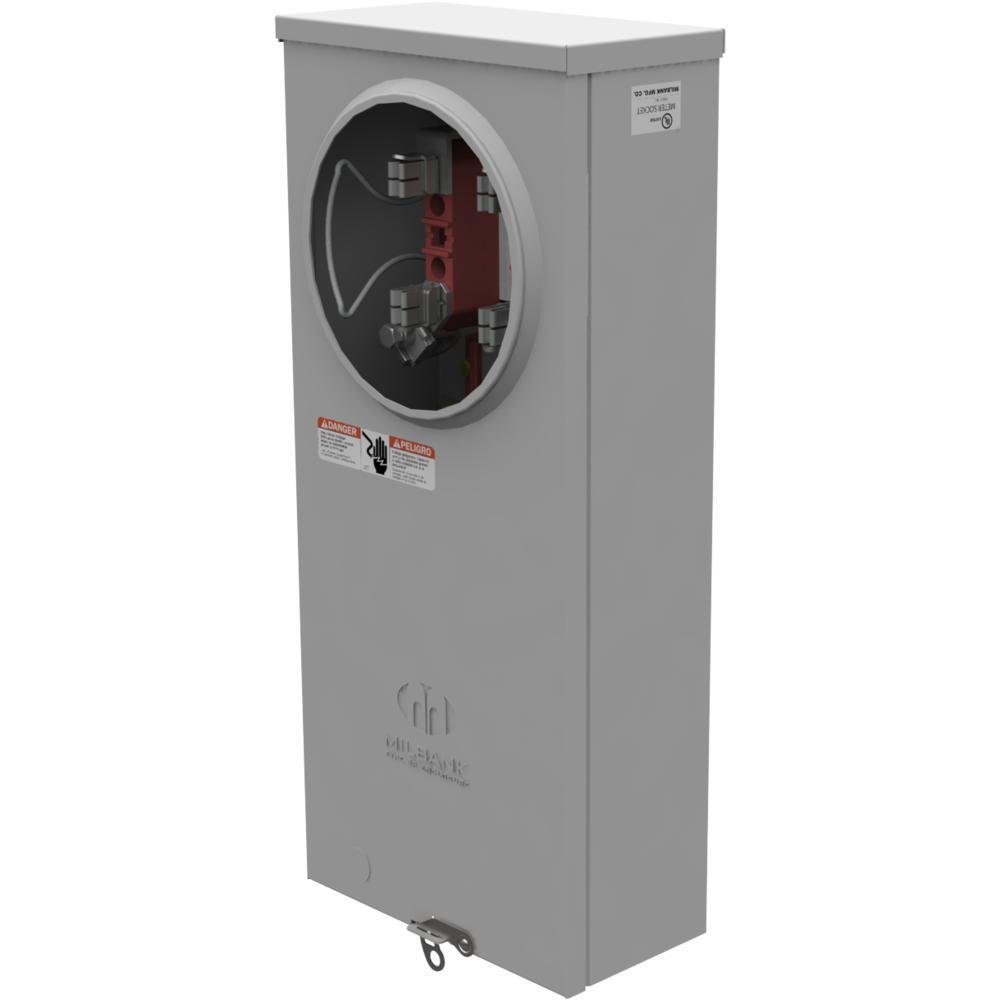

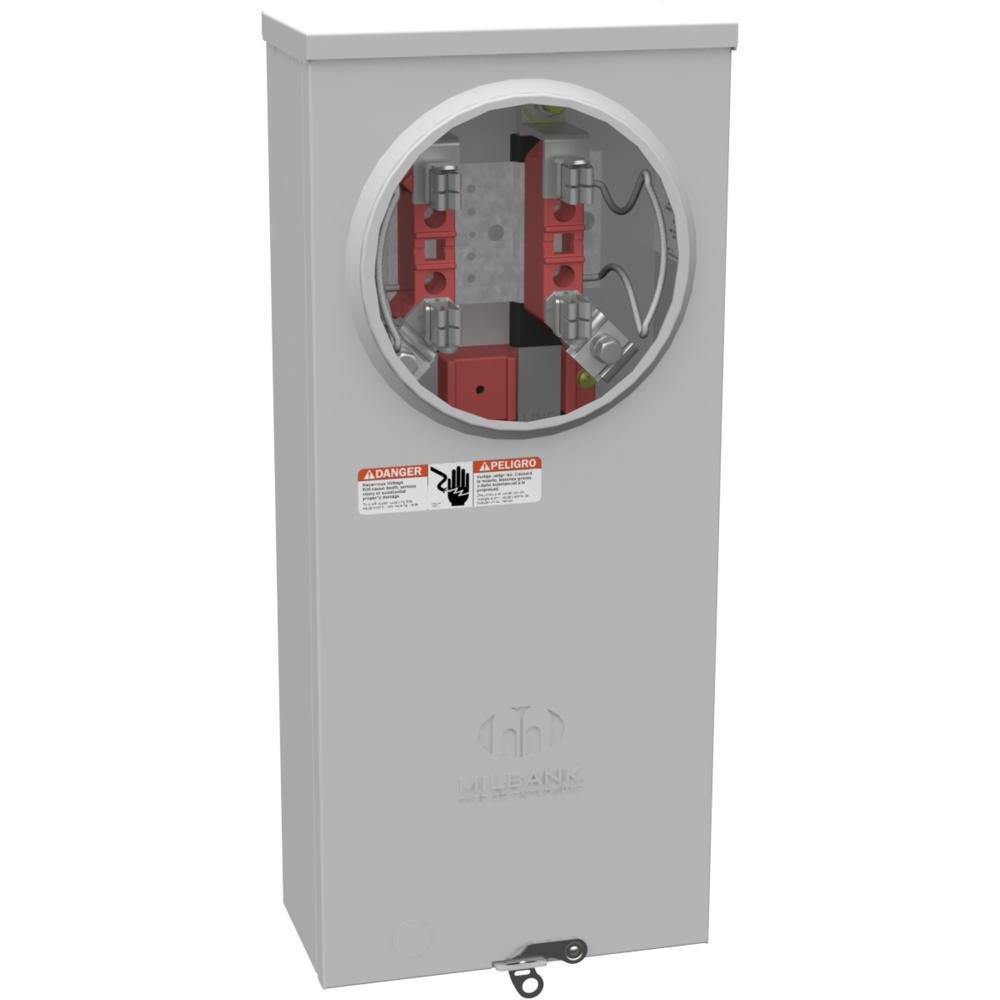

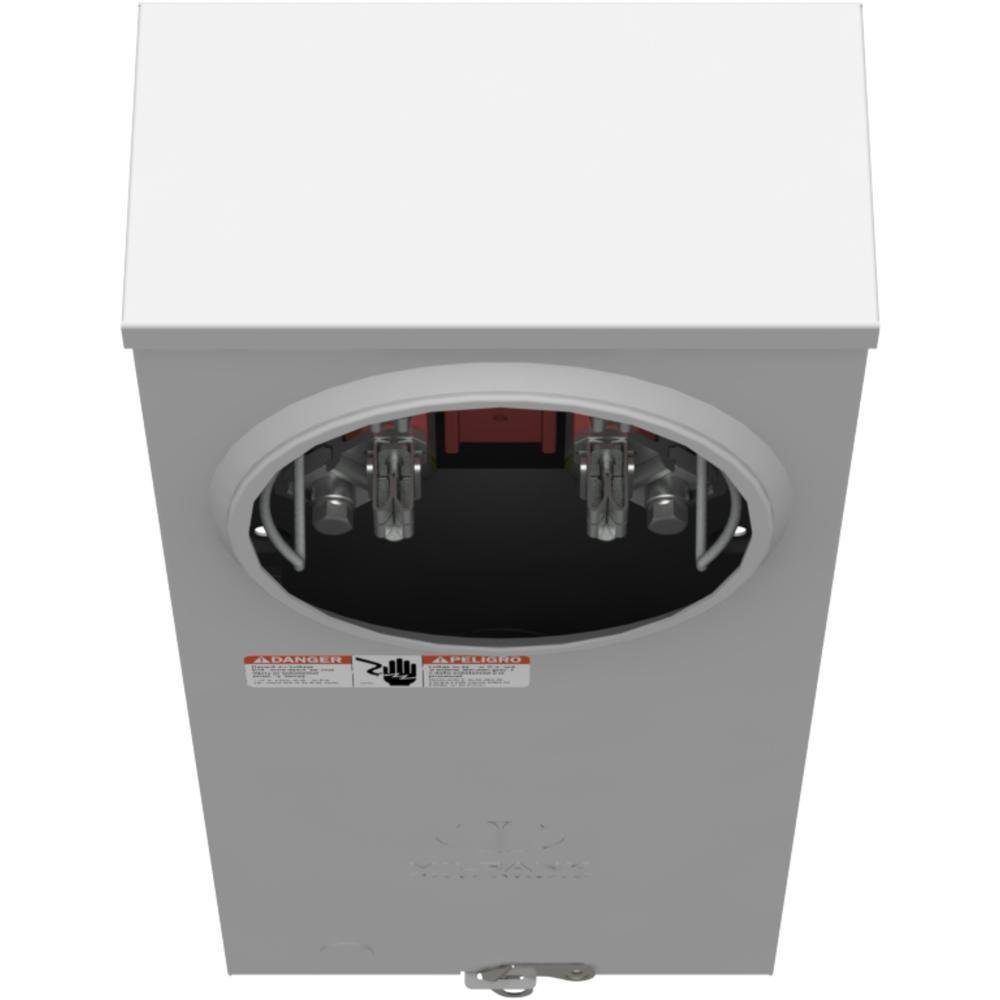

U9090-O - 4 Terminal Ringless Plain Top Stud Type
Description
Specifications
14.25lb
20.75mm
9mm
4.5mm
Lay-in line-side and load-side terminal
For meter mounting base
Milbank
USA
US
Warranty Information
Instruction/Installation Manual
00784572142367
SOCKET MTR 600VAC 200A 1 NEMA 3R 60HZ
Lay-in line-side and load-side terminal
G90 galvanized steel enclosure material with powder coat finish
U9090-O Ring Less Meter Socket, 600 V AC, 200 A, 1 Phase, NEMA 3R Enclosure ; Milbank Manufacturing ; Milbank ; U9090O ; 784572142367 ; Meter Sockets - Single Position
Milbank Manufacturing
20.7500
IN
4.5000
IN
1
14.2500
LB
9.0000
IN
U9090-O ; U9090O ; 784572142367 ; 78457214236 ; 00784572142367
Milbank
COMMERCIAL SINGLE METER SOCKETS
Amperage Rating
A
200
Terminal Type
Lay-In
Type
Ring Less
Voltage Rating
V AC
600
Wire Size
6 AWG to 350 kcmil
Dimensions
9 in W x 20-3/4 in D x 4-1/2 in H
Enclosure Type
NEMA 3R
Feed Type
Underground
Frequency Rating
HZ
60
Hub Type
Plain Top
Mounting Type
Surface
Number of Jaws
4
PHASE
1
