3M

5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case

Category Splices, Closures, Trays

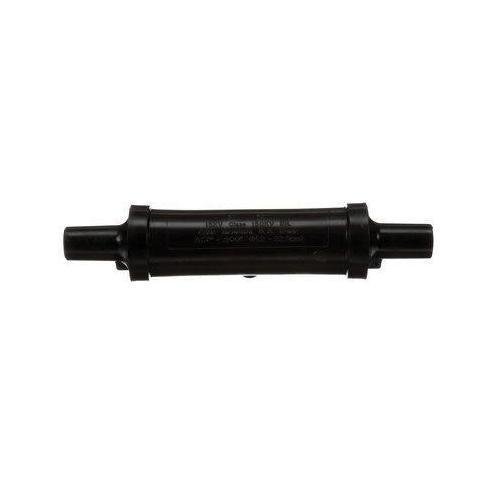

Picture of 5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case Picture of 5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case
Picture of 5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case Picture of 5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case
Picture of 5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case Picture of 5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case
3M

5451R-CIR-21A - 3M QS-II Cable Repair Splice 5451R-CIR-21A, Concentric Neutral, 2-1 AWG Stranded, 1-1/0 AWG Solid, 1 per case

Item Code: 13309
Category Splices, Closures, Trays
Manufacturer 3M
Manufacturer Ref 5451R-CIR-21A

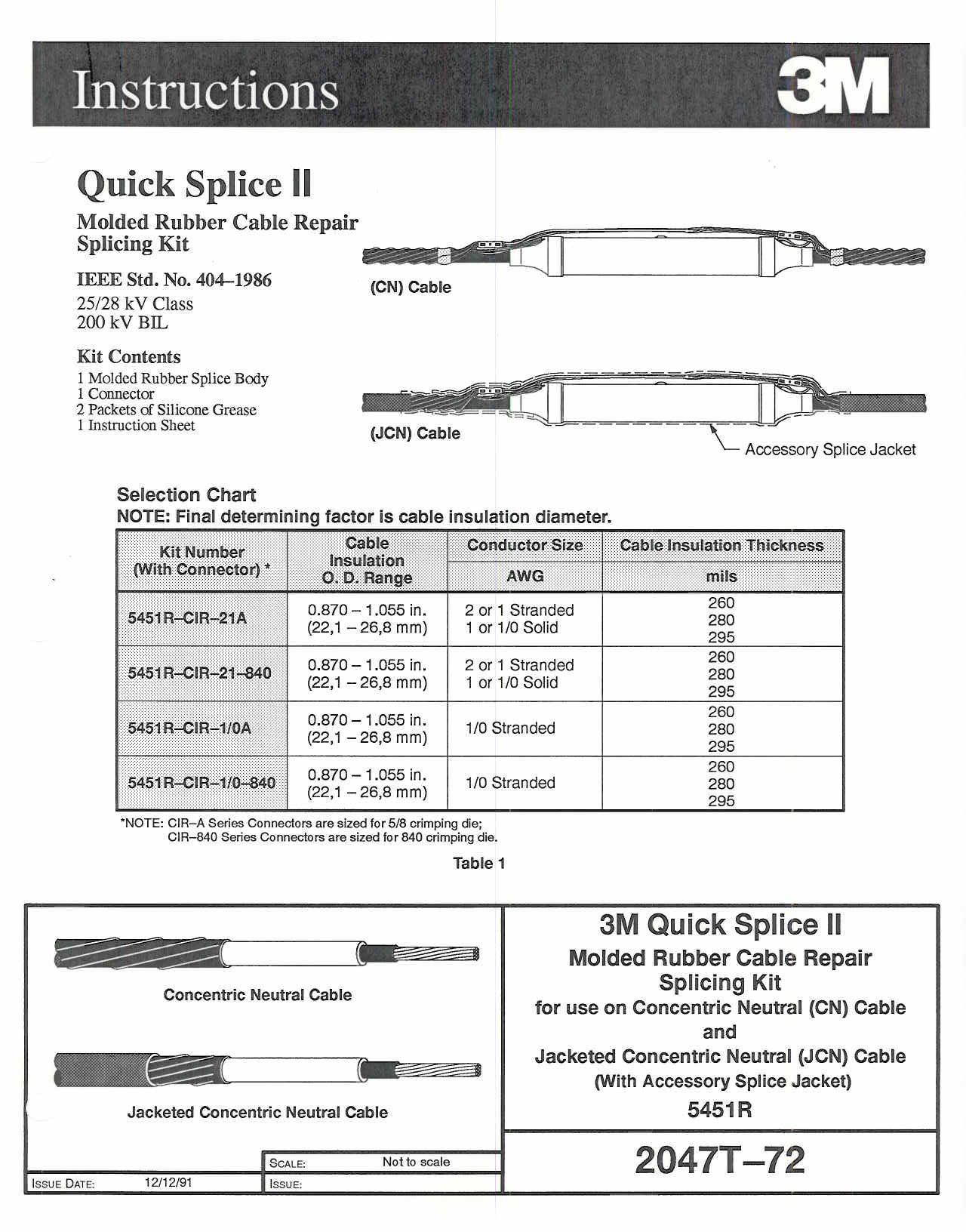

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

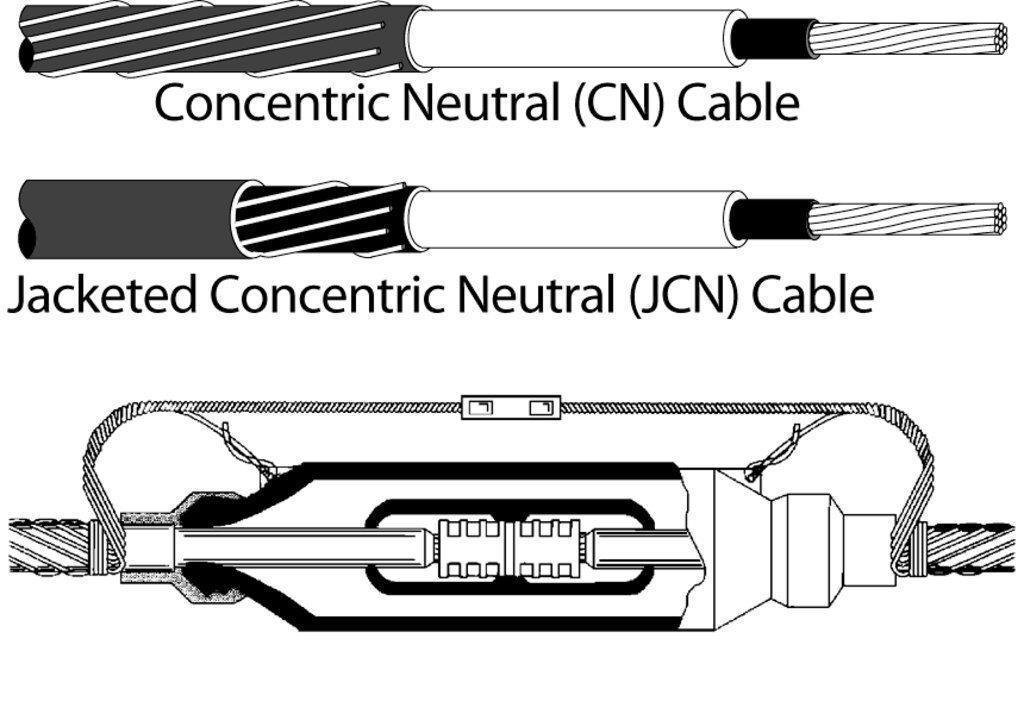

This splice kit is a 25/28 kV class inline splice designed to repair damaged jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. Each kit contains one splice.

Specifications

Weight

3lb

Height

3.5mm

Width

3.8mm

Length

21.5mm

AD All Features

Withstands a temperature range of 194 to 266 deg F (90 to 130 deg C)

AD Application

For joining JCN, CN distribution class power cables, special in-line compression connector for connecting either aluminum or copper conductors, direct burial, aerial installations and submerged location applications

AD Brand (Description)

3M

AD Country

USA

AD Country Of Origin

US

AD Includes

CIR-21A Connector, Molded Rubber Splice Body, (2) Packets of Silicone Grease, Template and Instruction Sheet

AD Invoice Description

INSUL SPLC KIT 25-28KV 25/28KV

AD Item Features 01

Withstands a temperature range of 194 to 266 deg F (90 to 130 deg C)

AD Manufacturer (Description)

3M

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

21.5000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.0000

AD Package Weight UOM

LB

AD Package Width

3.8000

AD Package Width UOM

IN

AD Product Description

3M™ B5005113051 In-Line Repair Splice Kit

Brand

3M

Category

SPLICES, CLOSURES, TRAYS

Spec 1 Attribute

Cable Type

Spec 1 Attribute Value

Concentric Neutral/Jacketed Concentric Neutral

Spec 10 Attribute

Splice Length

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

18.4

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

90

Spec 12 Attribute

Type

Spec 12 Attribute Value

In-Line Repair

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

KV

Spec 13 Attribute Value

25/28

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black/white

Spec 3 Attribute

Conductor Size

Spec 3 Attribute UOM

AWG

Spec 3 Attribute Value

2 To 1/0

Spec 4 Attribute

Connector Type

Spec 4 Attribute Value

CIR-21A

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

2.47 in Dia

Spec 6 Attribute

Insulation Size

Spec 6 Attribute Value

0.87 to 1.055 in OD

Spec 7 Attribute

Material

Spec 7 Attribute Value

EPDM Rubber

Spec 8 Attribute

Number of Conductors

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

QS-II 5451R
