3M

8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case

Category Splices, Closures, Trays

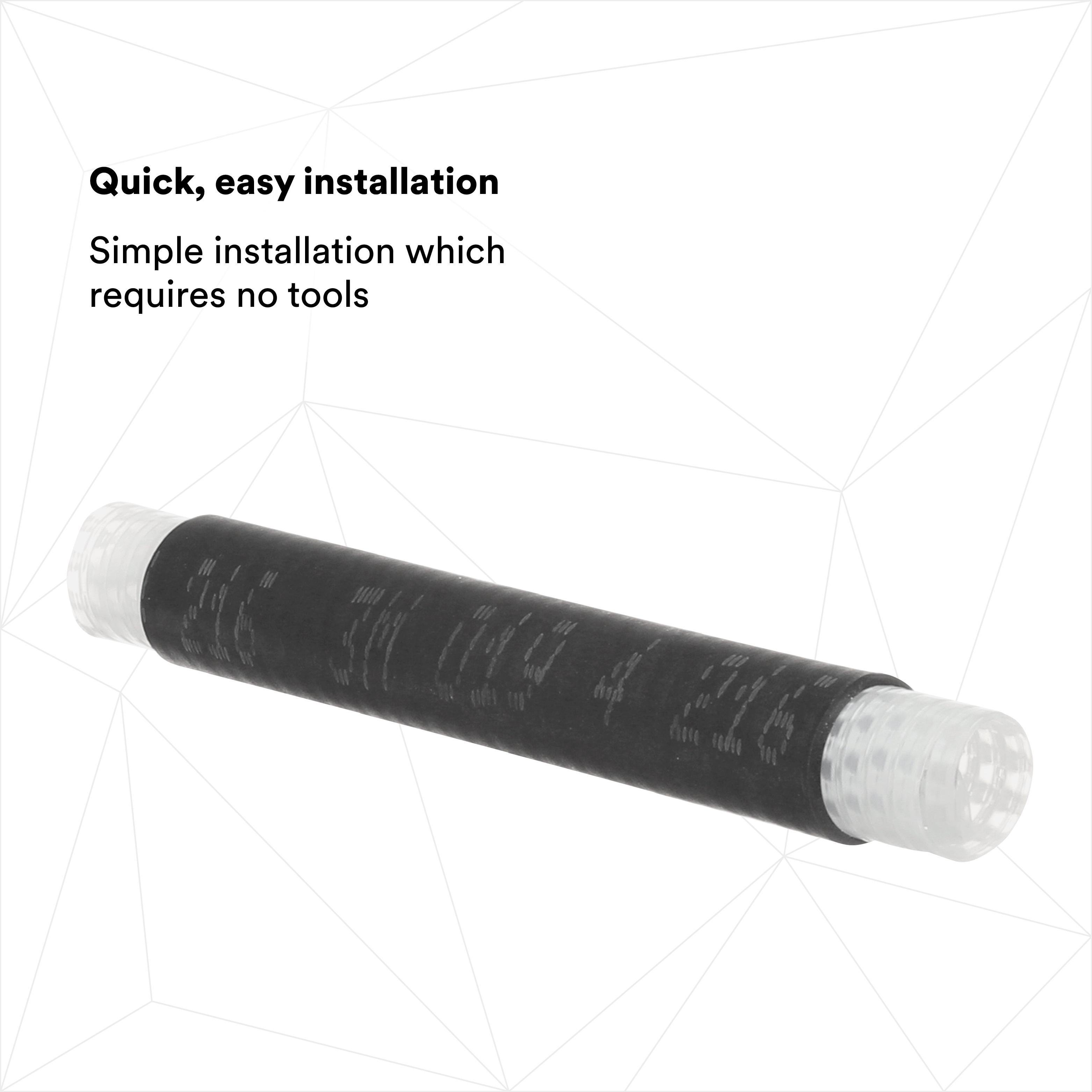

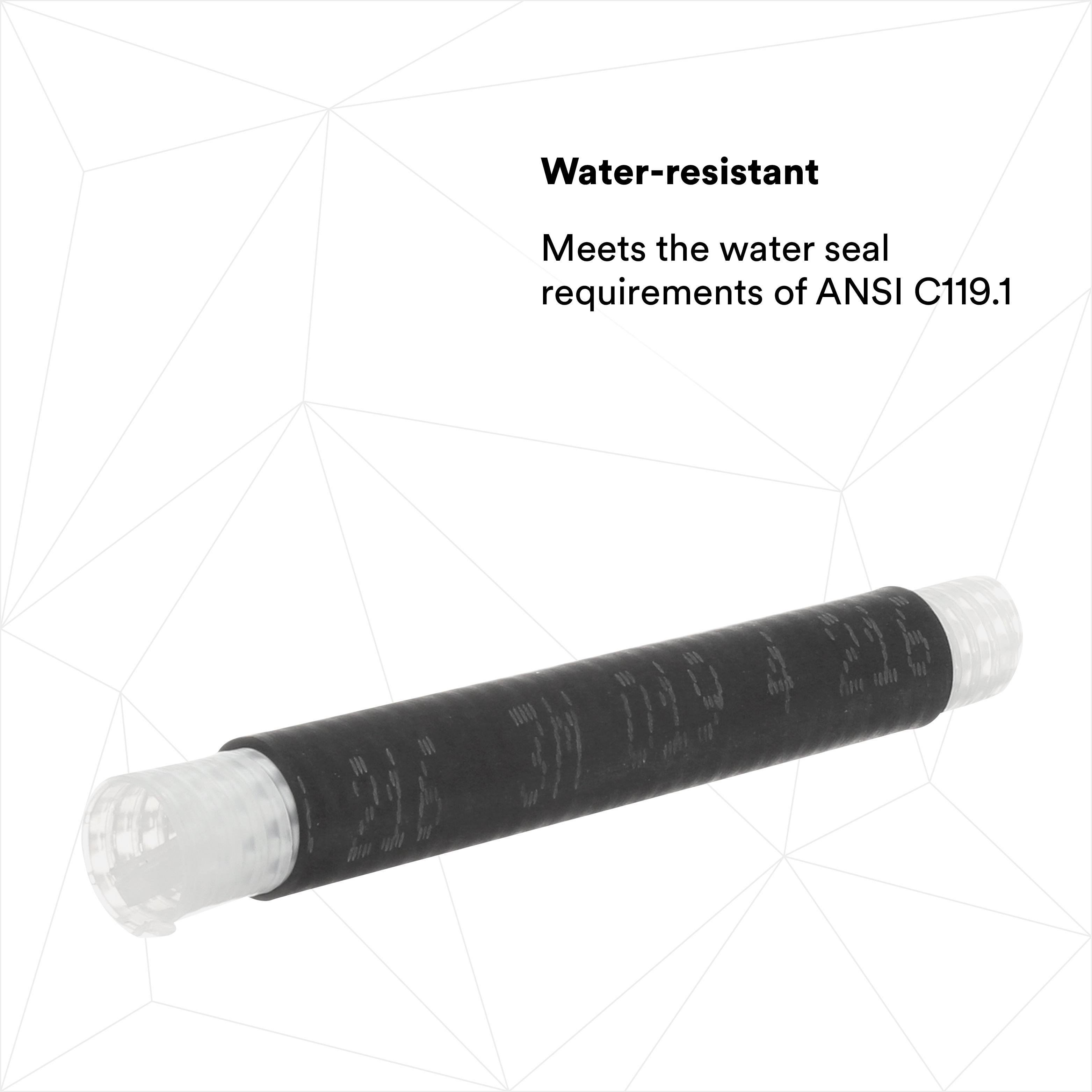

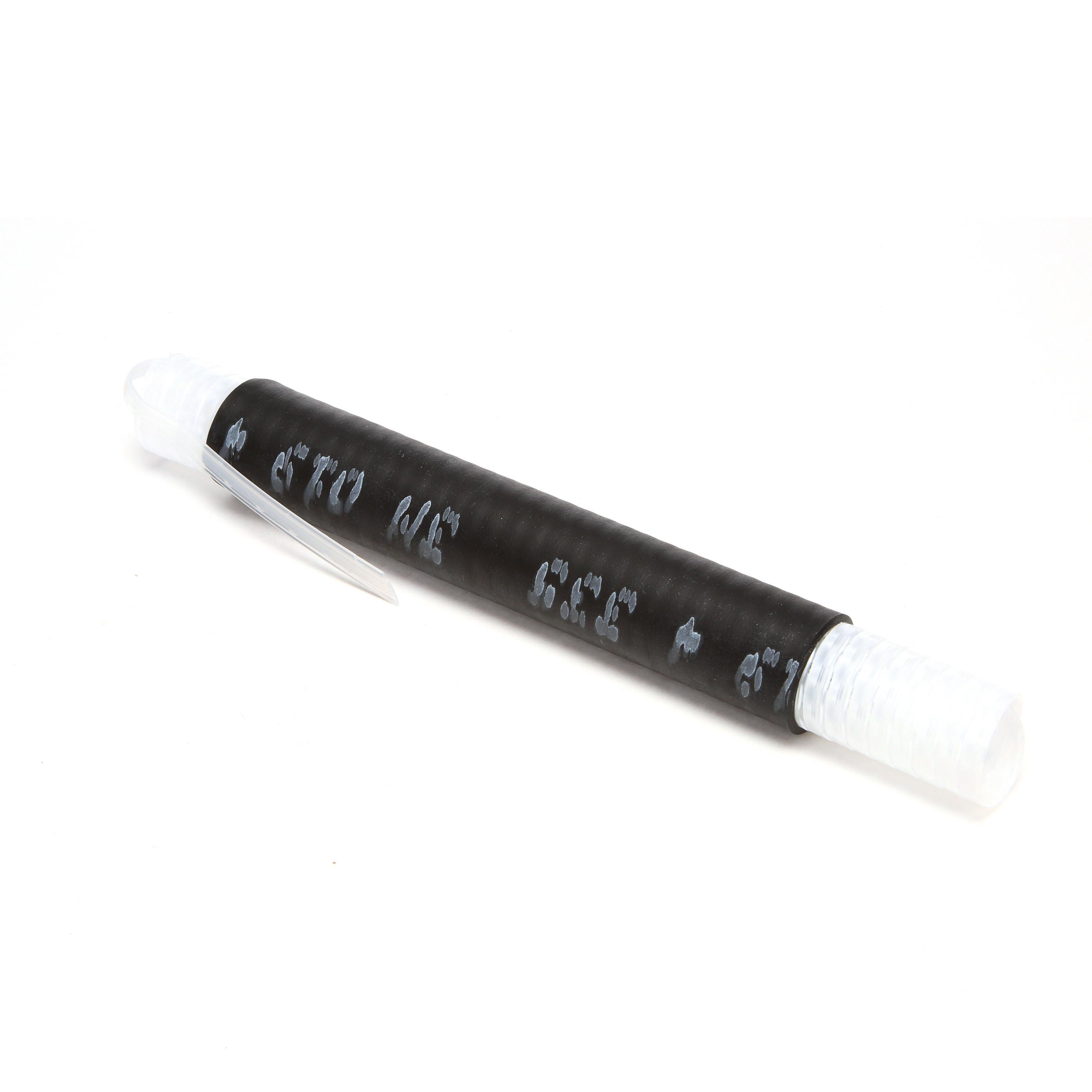

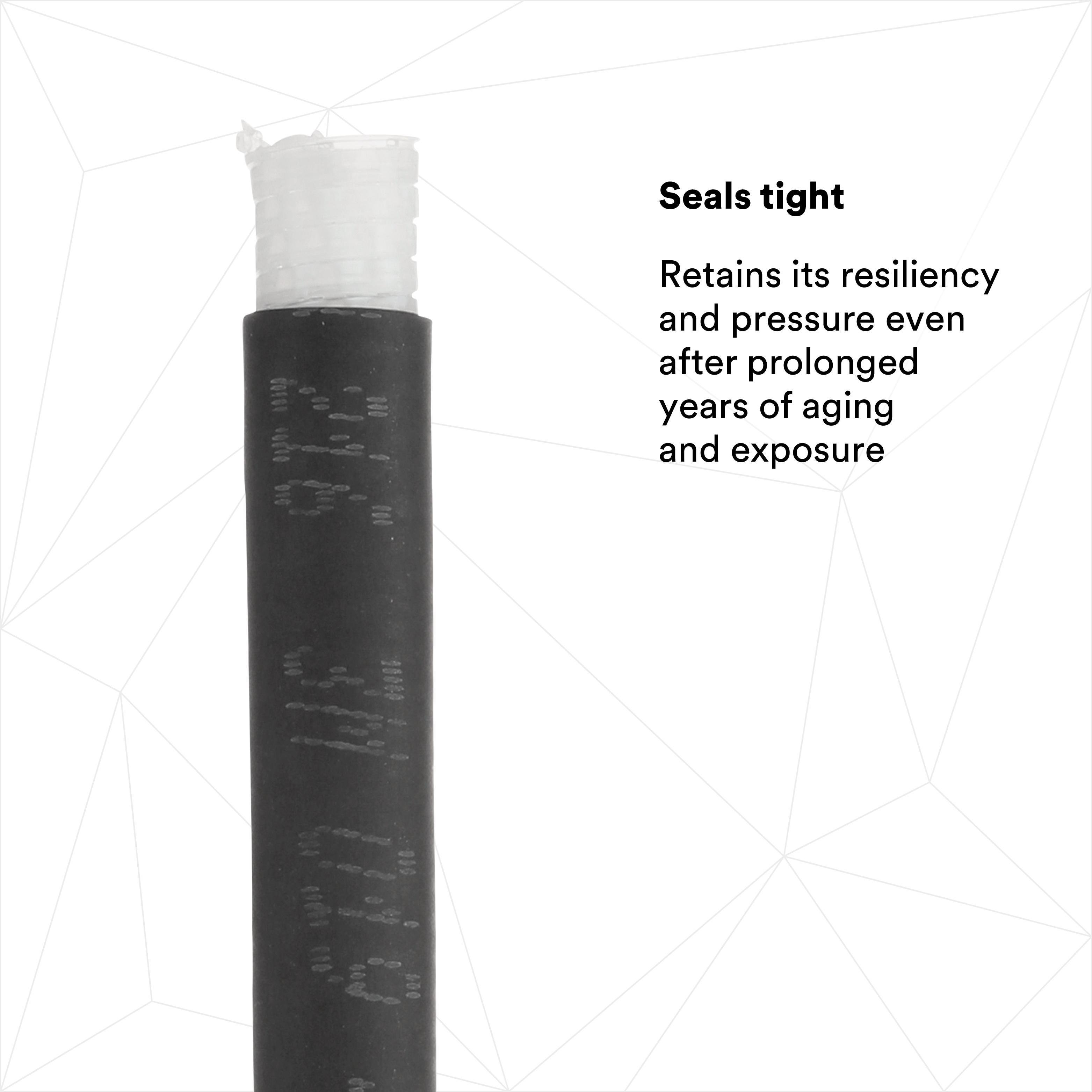

Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case
Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case
Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case
Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case
Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case Picture of 8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case
3M

8423-6 - 3M Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10 per case

Item Code: 13320
Category Splices, Closures, Trays
Manufacturer 3M
Manufacturer Ref 8423-6

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Insulate submersible or direct buried dig-in repairs and secondary splices with this 3M™ 8420 Connector Insulator. It provides physical protection of lugs or connectors that are air-insulated and can be used on all solid dielectric cable splices and insulated wires. Use it for connectors and cables that have a diameter ranging between 0.31 to 0.56 in, and with conductors sized 6 to 4 AWG. The EPDM rubber construction is eco-friendly because it’s free of sulfur or chlorides. This cold shrink insulating product is ANSI Certified and RoHS 2011/65/EU Compliant for quality assurance.

Specifications

Weight

1lb

Height

5.7mm

Width

7.8mm

Length

9.3mm

AD Application

Copper or Aluminum Conductors, Direct Burial and Submersible, Indoor and Outdoor Applications

AD Brand (Description)

3M

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SHRINK-ON TBG CONN INSULATOR 14.2MM 48MM

AD Item Features 01

Simple installation which requires no tools

AD Item Features 02

Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts

AD Item Features 03

Made of EPDM rubber which contains no chlorides or sulfur

AD Item Features 04

Covers a wide range of cable cross sections

AD Item Features 05

Withstands temperatures of -40 to 90 degC (-40 to 194 degF)

AD Manufacturer (Description)

3M

AD Package Height

5.7000

AD Package Height UOM

IN

AD Package Length

9.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.0000

AD Package Weight UOM

LB

AD Package Width

7.8000

AD Package Width UOM

IN

Brand

3M

Category

SPLICES, CLOSURES, TRAYS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Dielectric Strength

Spec 2 Attribute UOM

V/mil

Spec 2 Attribute Value

365

Spec 3 Attribute

Elongation

Spec 3 Attribute Value

7.5

Spec 4 Attribute

Length

Spec 4 Attribute UOM

MM

Spec 4 Attribute Value

152

Spec 5 Attribute

Material

Spec 5 Attribute Value

EPDM Rubber Insulation

Spec 6 Attribute

Maximum Diameter

Spec 6 Attribute UOM

MM

Spec 6 Attribute Value

48

Spec 7 Attribute

Minimum Diameter

Spec 7 Attribute UOM

MM

Spec 7 Attribute Value

14.2

Spec 8 Attribute

Series

Spec 8 Attribute Value

8420

Spec 9 Attribute

Tensile Strength

Spec 9 Attribute UOM

PSI

Spec 9 Attribute Value

1400
