3M

8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case

Category Splices, Closures, Trays

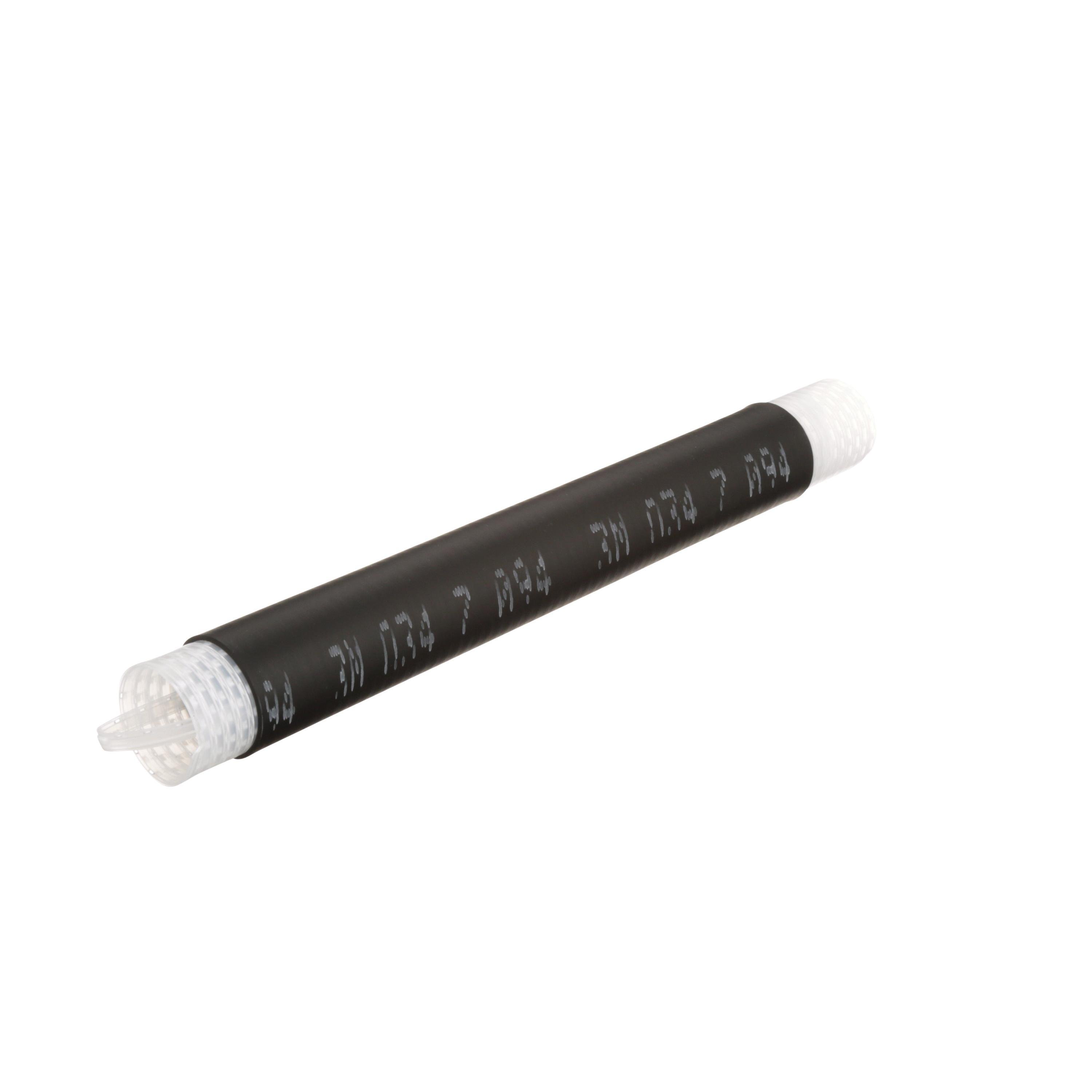

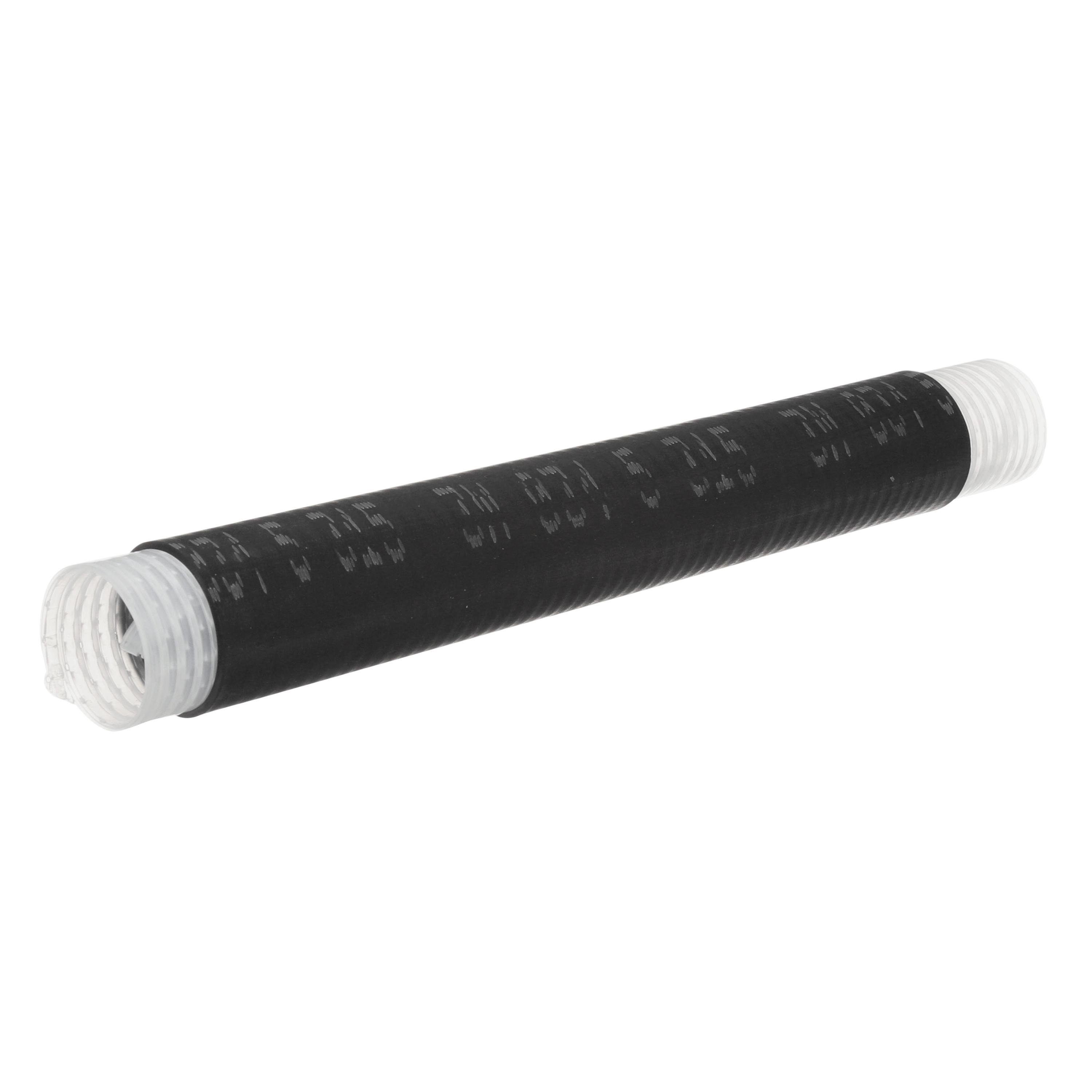

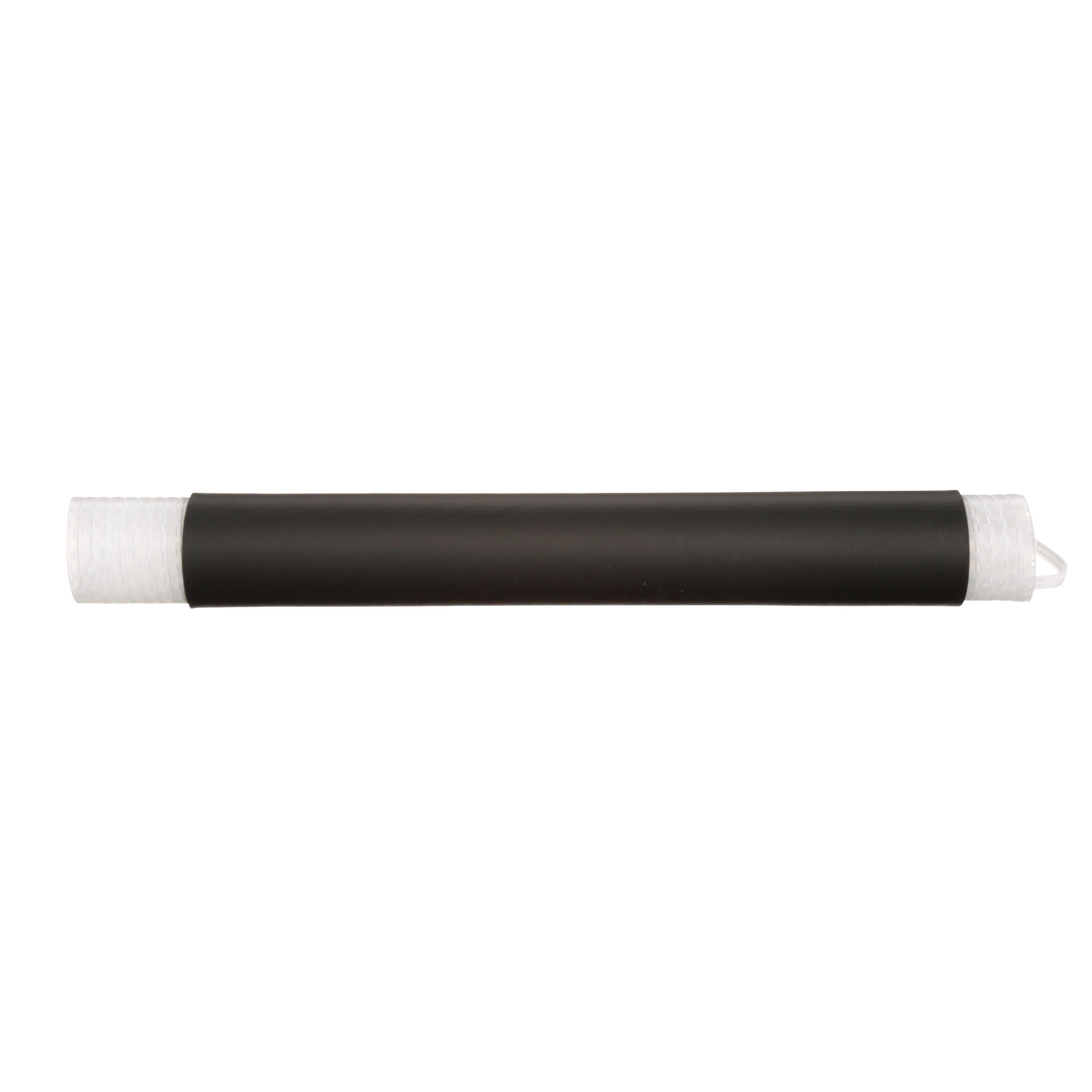

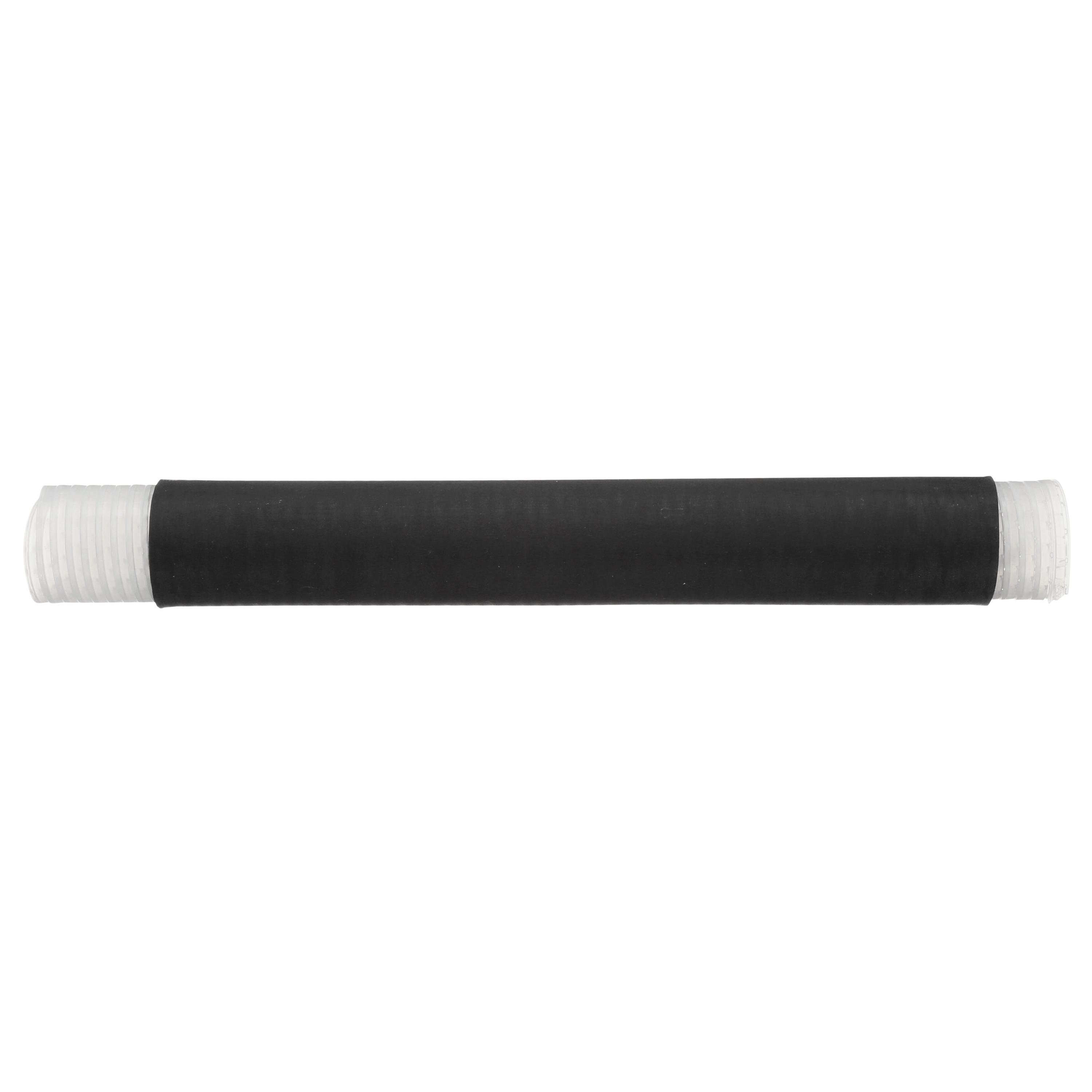

Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case
Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case
Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case
Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case
Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case Picture of 8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case
3M

8426-11 - 3M™ Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil(70-125 mm²), 10/Case

Item Code: 13323
Category Splices, Closures, Trays
Manufacturer 3M
Manufacturer Ref 8426-11

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M’s proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range from -40–194°F (-40–90°C).The 8420 insulator meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV.Applications: Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated to 1000 V. Good for repairs and environmental sealing for communication and other non-electrical applications.Important: Use insulation jacket or connector O.D. for final ordering criteria.* Mastic pads included for cable O.D. build-up. ** Kit contains adapters. *** These sizes are listed for availability only and are not designed to be usedas primary insulation. These tubes are for conduit sealing and breakouts. ****Maximum connector length: 5.625Point of Purchase packaging designated by P. Example: 8423-6P

Specifications

Weight

2.7lb

Height

5.8mm

Width

8.4mm

Length

14.4mm

AD Application

Copper or Aluminum Conductors, Direct Burial and Submersible, Indoor/Outdoor Applications

AD Brand (Description)

3M

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SHRINK-ON TBG CONN INSULATOR 30.1MM

AD Item Features 01

Simple installation which requires no tools

AD Item Features 02

Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts

AD Item Features 03

Made of EPDM rubber which contains no chlorides or sulfur

AD Item Features 04

Covers a wide range of cable cross sections

AD Item Features 05

Withstands temperatures of -40 to 90 degC (-40 to 194 degF)

AD Manufacturer (Description)

3M

AD Package Height

5.8000

AD Package Height UOM

IN

AD Package Length

14.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.7000

AD Package Weight UOM

LB

AD Package Width

8.4000

AD Package Width UOM

IN

Brand

3M

Category

SPLICES, CLOSURES, TRAYS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Dielectric Strength

Spec 2 Attribute UOM

V/mil

Spec 2 Attribute Value

365

Spec 3 Attribute

Elongation

Spec 3 Attribute Value

7.5

Spec 4 Attribute

Material

Spec 4 Attribute Value

EPDM Rubber Insulation

Spec 5 Attribute

Maximum Diameter

Spec 5 Attribute UOM

MM

Spec 5 Attribute Value

13.9

Spec 6 Attribute

Minimum Diameter

Spec 6 Attribute UOM

MM

Spec 6 Attribute Value

30.1

Spec 7 Attribute

Series

Spec 7 Attribute Value

8420

Spec 8 Attribute

Tensile Strength

Spec 8 Attribute UOM

PSI

Spec 8 Attribute Value

1400

Spec 9 Attribute

Type

Spec 9 Attribute Value

Splice
