3M

8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case

Category Splices, Closures, Trays

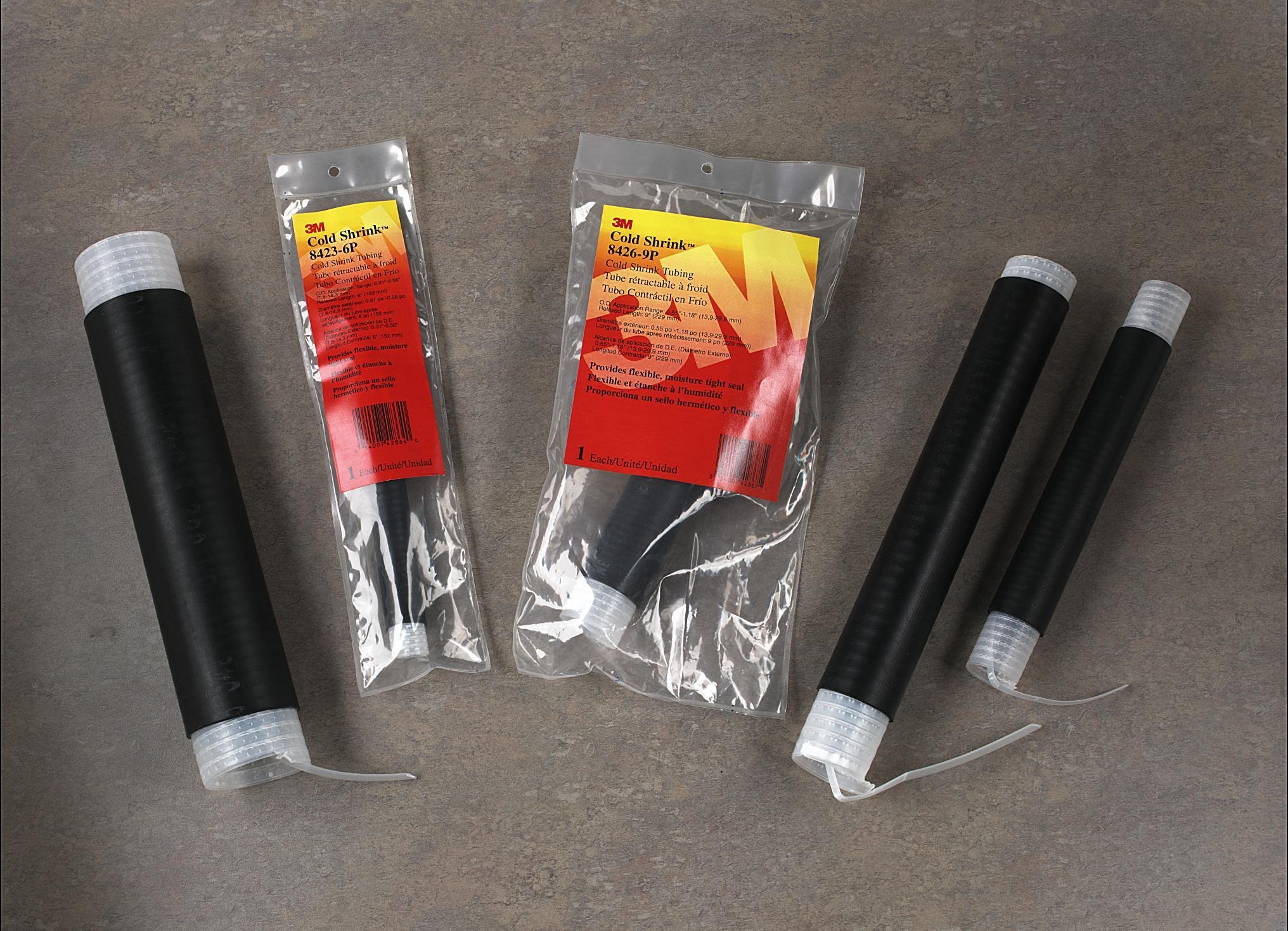

Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case
Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case
Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case
Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case
Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case Picture of 8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case
3M

8426-9 - 3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²),10/case

Item Code: 13324
Category Splices, Closures, Trays
Manufacturer 3M
Manufacturer Ref 8426-9

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

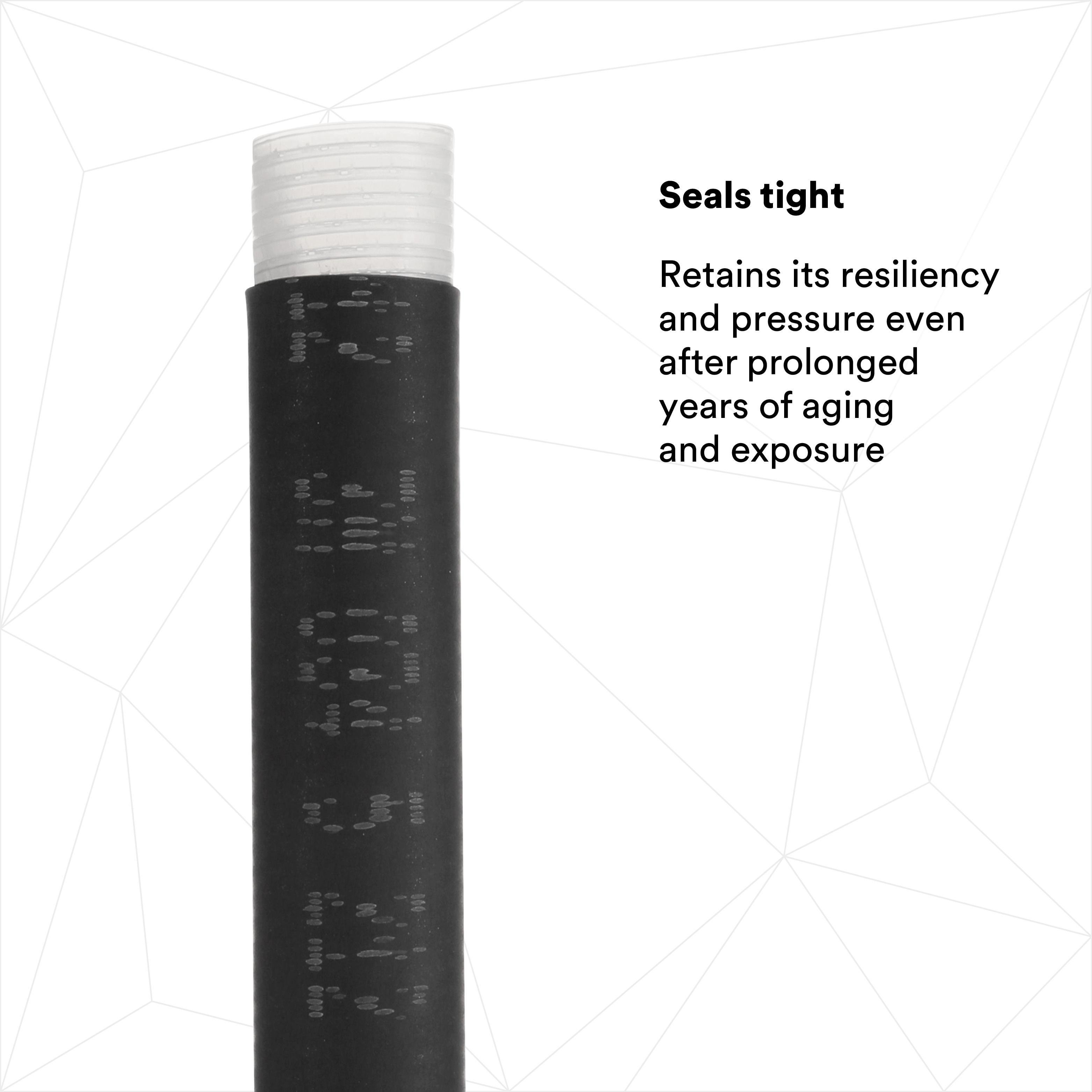

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M’s proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range from -40–194°F (-40–90°C).The 8420 insulator meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV.Applications: Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated to 1000 V. Good for repairs and environmental sealing for communication and other non-electrical applications.Important: Use insulation jacket or connector O.D. for final ordering criteria.* Mastic pads included for cable O.D. build-up. ** Kit contains adapters. *** These sizes are listed for availability only and are not designed to be usedas primary insulation. These tubes are for conduit sealing and breakouts. ****Maximum connector length: 5.625Point of Purchase packaging designated by P. Example: 8423-6P

Specifications

Weight

2.2lb

Height

5.8mm

Width

8.4mm

Length

14.4mm

AD Application

Copper or Aluminum Conductors, Direct Burial and Submersible, Indoor and Outdoor Applications

AD Brand (Description)

3M

AD Country

USA

AD Country Of Origin

US

AD Includes

9 in Insulating Sleeve

AD Invoice Description

SHRINK-ON TBG CONN INSULATOR 30.1MM

AD Item Features 01

Simple installation which requires no tools

AD Item Features 02

Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts

AD Item Features 03

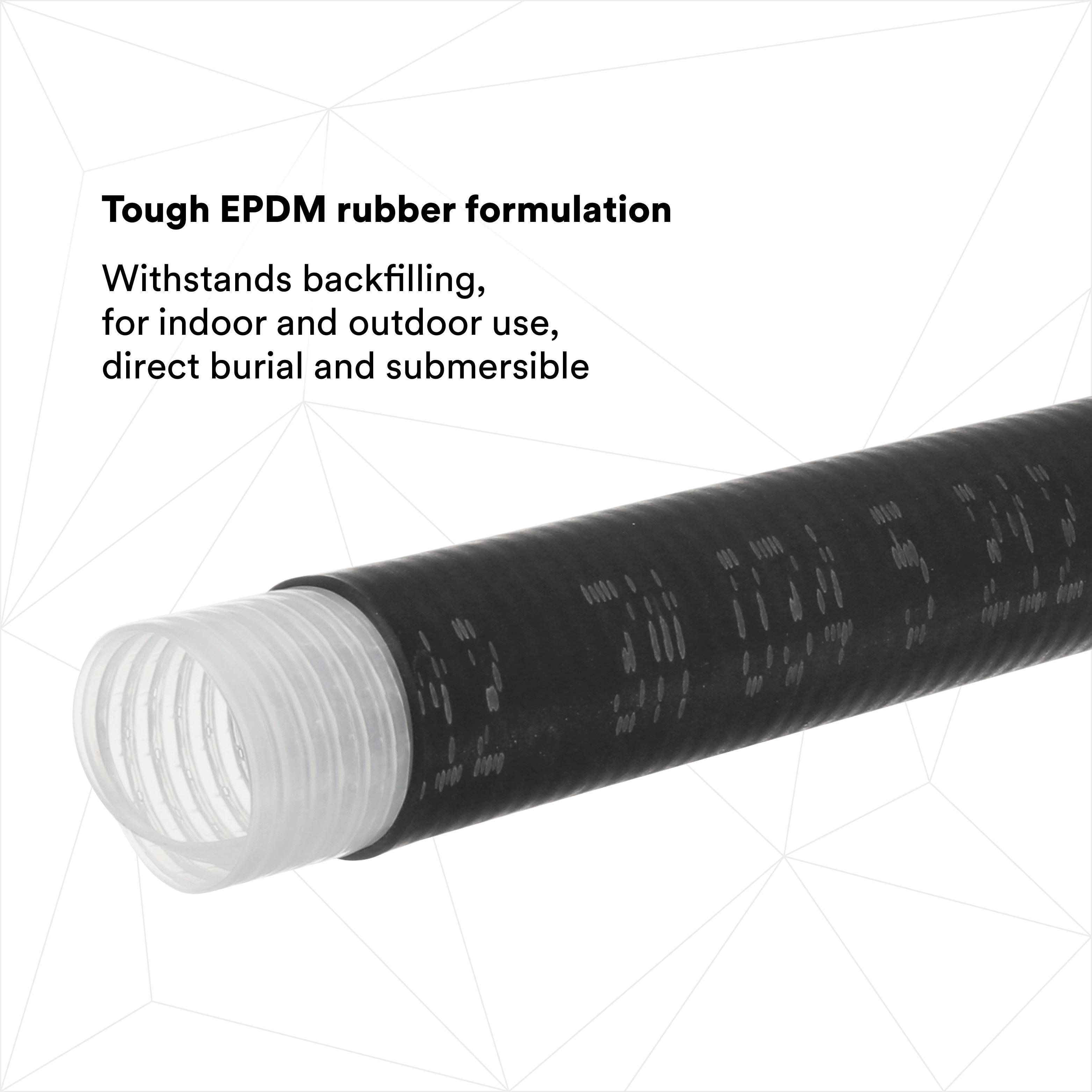

Made of EPDM rubber which contains no chlorides or sulfur

AD Item Features 04

Covers a wide range of cable cross sections

AD Item Features 05

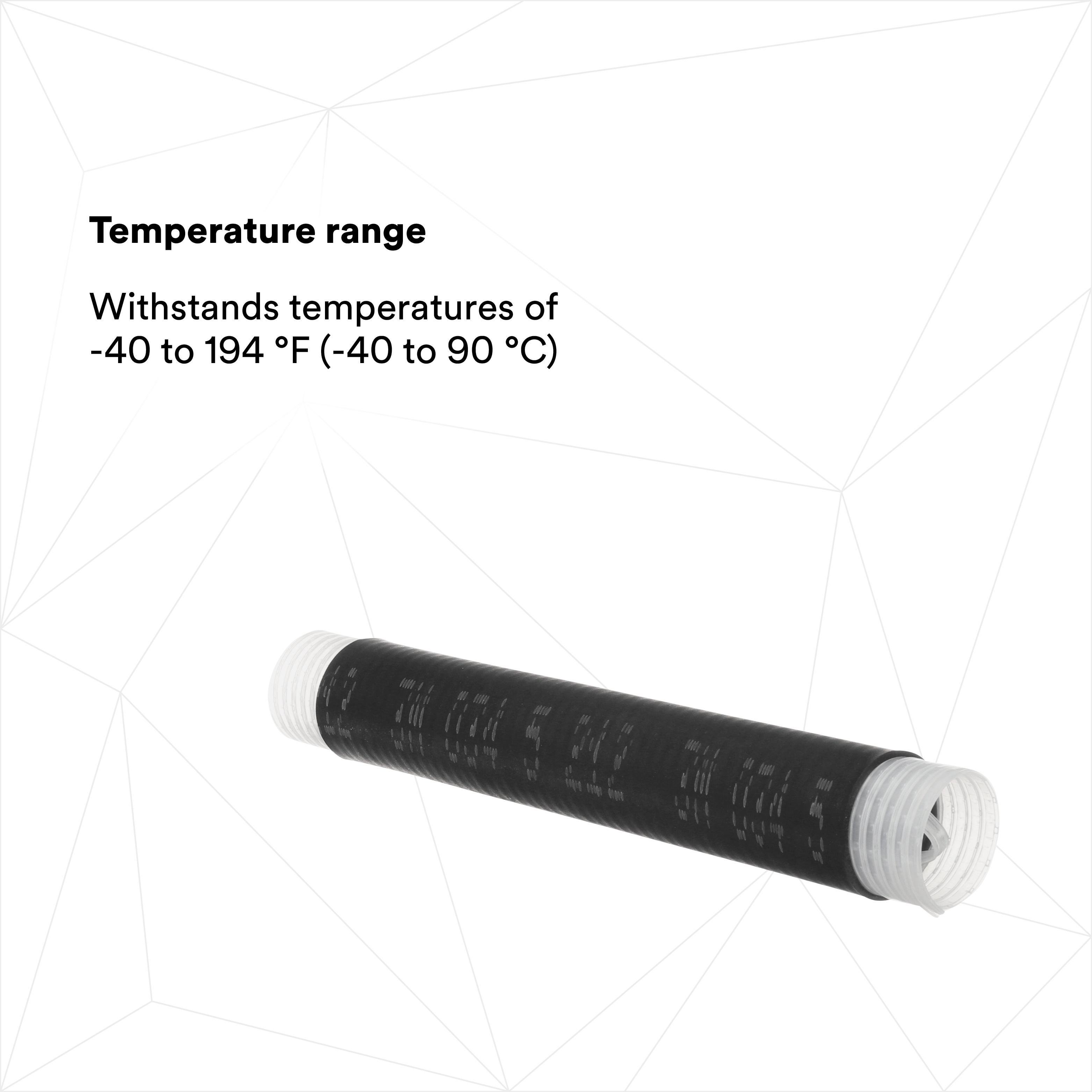

Withstands temperatures of -40 to 90 degC (-40 to 194 degF)

AD Manufacturer (Description)

3M

AD Package Height

5.8000

AD Package Height UOM

IN

AD Package Length

14.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.2000

AD Package Weight UOM

LB

AD Package Width

8.4000

AD Package Width UOM

IN

Brand

3M

Category

SPLICES, CLOSURES, TRAYS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Dielectric Strength

Spec 2 Attribute UOM

V/mil

Spec 2 Attribute Value

365

Spec 3 Attribute

Elongation

Spec 3 Attribute Value

7.5

Spec 4 Attribute

Material

Spec 4 Attribute Value

EPDM Rubber Insulation

Spec 5 Attribute

Maximum Diameter

Spec 5 Attribute UOM

MM

Spec 5 Attribute Value

13.9

Spec 6 Attribute

Minimum Diameter

Spec 6 Attribute UOM

MM

Spec 6 Attribute Value

30.1

Spec 7 Attribute

Series

Spec 7 Attribute Value

8420

Spec 8 Attribute

Tensile Strength

Spec 8 Attribute UOM

PSI

Spec 8 Attribute Value

1400

Spec 9 Attribute

Type

Spec 9 Attribute Value

Splice
