Highland

FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag

Category Small Terminals & Connectors

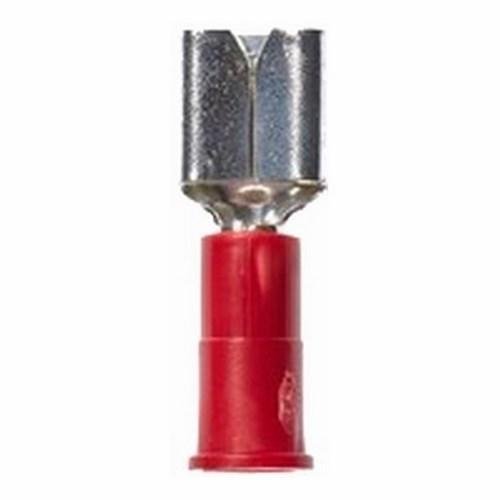

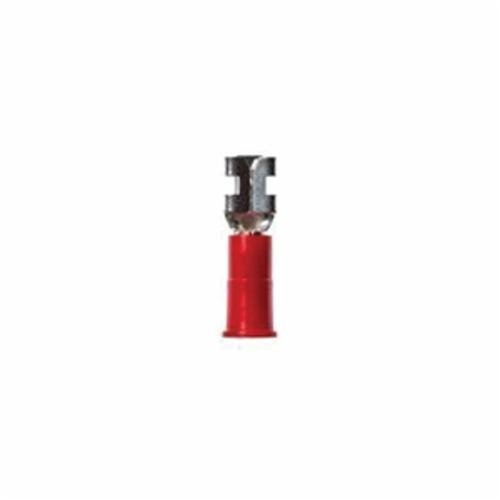

Picture of FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag Picture of FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag
Picture of FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag Picture of FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag
Picture of FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag Picture of FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag
Highland

FDV18-250Q - 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG22-18, 25/bag

Item Code: 759913
Category Small Terminals & Connectors
Manufacturer 3M
Manufacturer Ref FDV18-250Q

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

3M™ Highland™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Specifications

Weight

0.8lb

Height

4.38mm

Width

5.38mm

Length

5.75mm

AD Application

Building Fixtures or Luminaires, Signs and Wire Applications

AD Brand (Description)

Highland

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

FEM CRP TERM 22TO18AWG

AD Item Features 01

Made of durable brass for good conductivity and has corrosion-resistant tin plating

AD Item Features 02

Free hanging (in-line) mounting

AD Item Features 03

Mates with 1/4 in wide male tab

AD Item Features 04

Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

AD Item Features 05

Dents and rolled edges of this female disconnect terminal offer excellent holding force

AD Item Features 06

Allows for quick and easy disconnect of wires

AD Manufacturer (Description)

3M

AD Package Height

4.3800

AD Package Height UOM

IN

AD Package Length

5.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8000

AD Package Weight UOM

LB

AD Package Width

5.3800

AD Package Width UOM

IN

Brand

3M

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Type

Spec 1 Attribute Value

Butted Seam

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-40 to 221

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Crimp

Spec 12 Attribute

Type

Spec 12 Attribute Value

Insulated Standard

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600/1000

Spec 2 Attribute

Color

Spec 2 Attribute Value

Red

Spec 3 Attribute

Conductor Size

Spec 3 Attribute UOM

AWG

Spec 3 Attribute Value

22 To 18

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

0.87 in L

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Tin Plated

Spec 6 Attribute

Insulated

Spec 6 Attribute Value

Insulated

Spec 7 Attribute

Material

Spec 7 Attribute Value

Vinyl

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel

Spec 9 Attribute

Tab Size

Spec 9 Attribute Value

0.25 in W x 0.032 in THK
