3M™

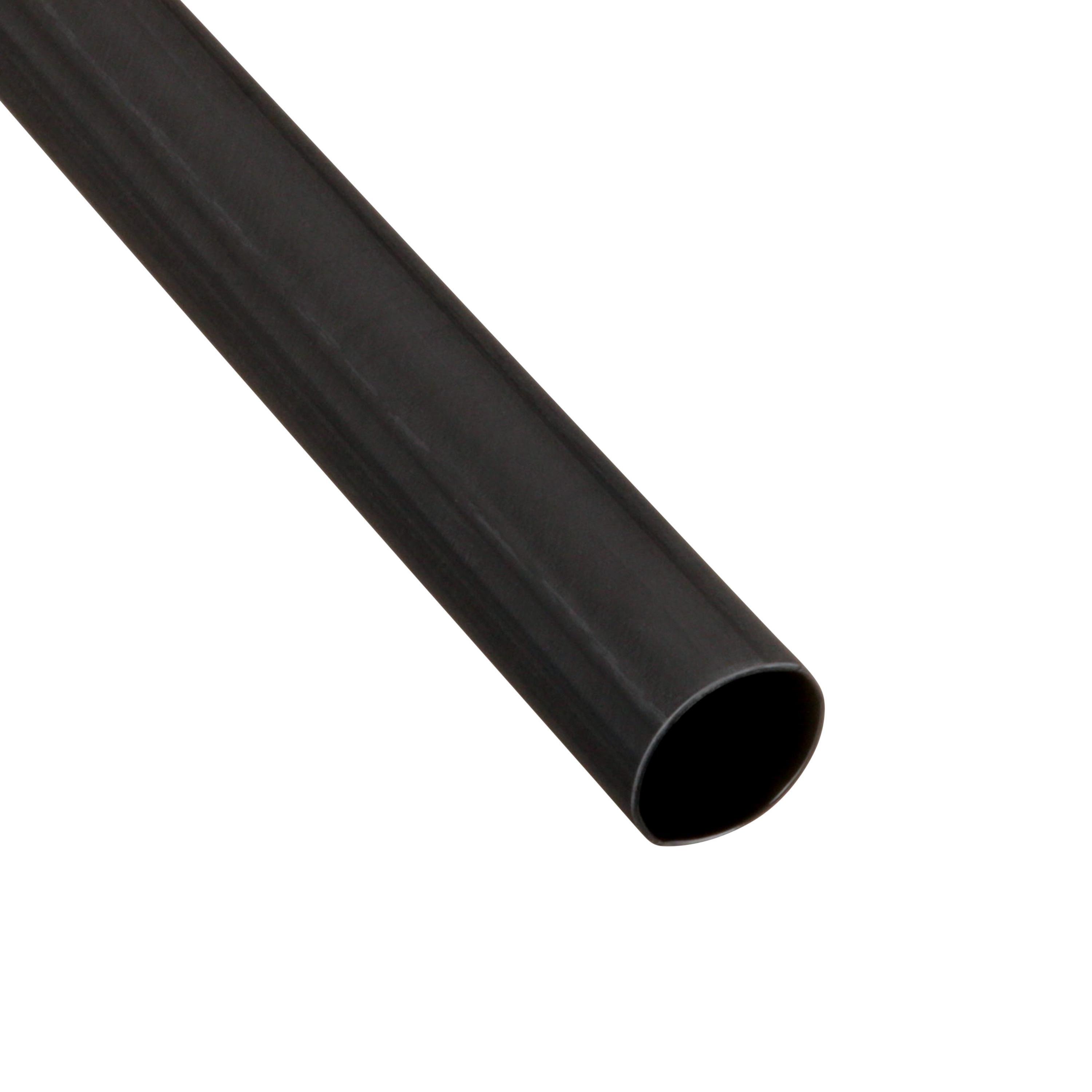

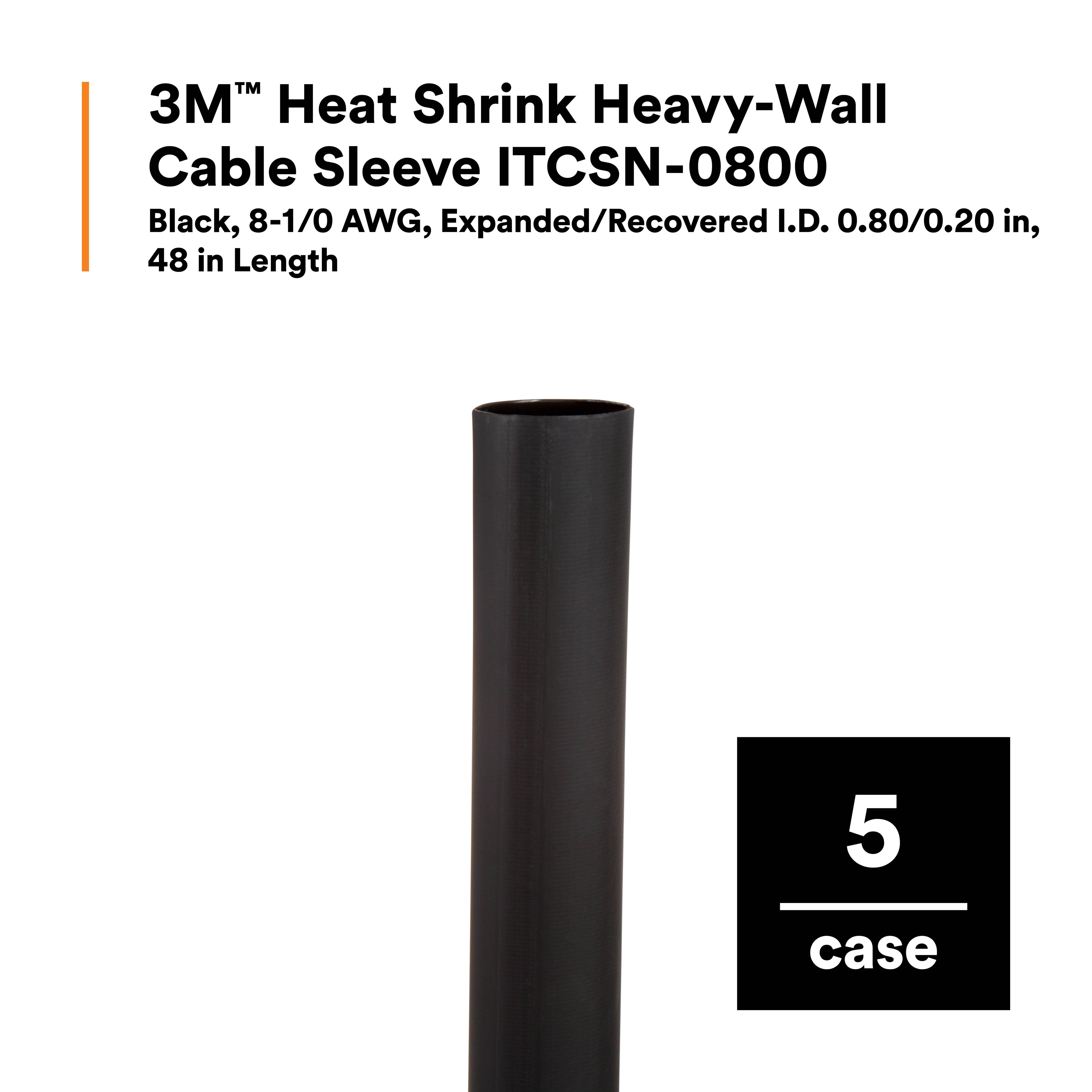

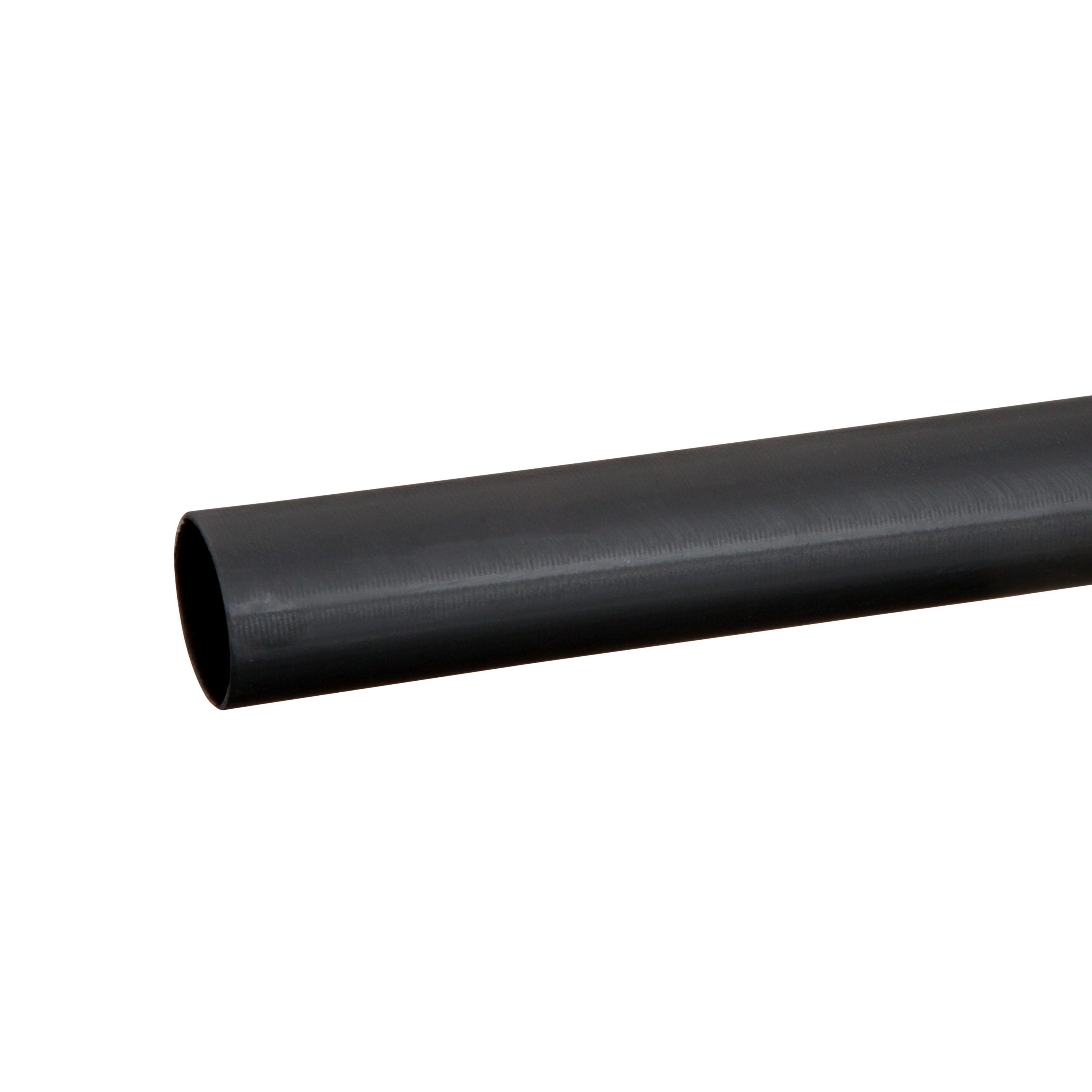

ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve

Category Tape, Markers, Soldering & Insulating Materials
Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve
Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve
Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve
Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve
Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve Picture of ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve
3M™

ITCSN-0800-48IN-BLACK-5-PCS - Heat Shrink Cable Sleeve

Item Code: 13347
Category Tape, Markers, Soldering & Insulating Materials
Manufacturer 3M
Manufacturer Ref ITCSN-0800-48IN-BLACK-5-PCS

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Heat Shrink Cable Sleeve; Type Heat; Voltage Rating 600 V; Cable Size 8 to 1/0 AWG; Wall Type Heavy; Shrink Temperature 250 Deg F; Material Cross Linked Polyolefin; Shrink Ratio 3:1; Minimum Expanded Diameter 0.8 Inch; Maximum Recovered Diameter 0.2 Inch; Length 48 Inch; Temperature Rating -55 to 110 Deg C; Color Black; Approval UL 486-D, CSA; Cable Outer Diameter 0.65 to 0.24 Inch; Packaging Quantity 5 Pieces per Case; Application Indoor, Outdoor or Overhead Use, Insulating Secondary Splices, Relocation of Service, Dig-In Repairs, Sheath Repairs; ROHS Compliant

Specifications

Weight

2.2lb

Height

3.3mm

Width

3.3mm

Length

50.9mm

AD Application

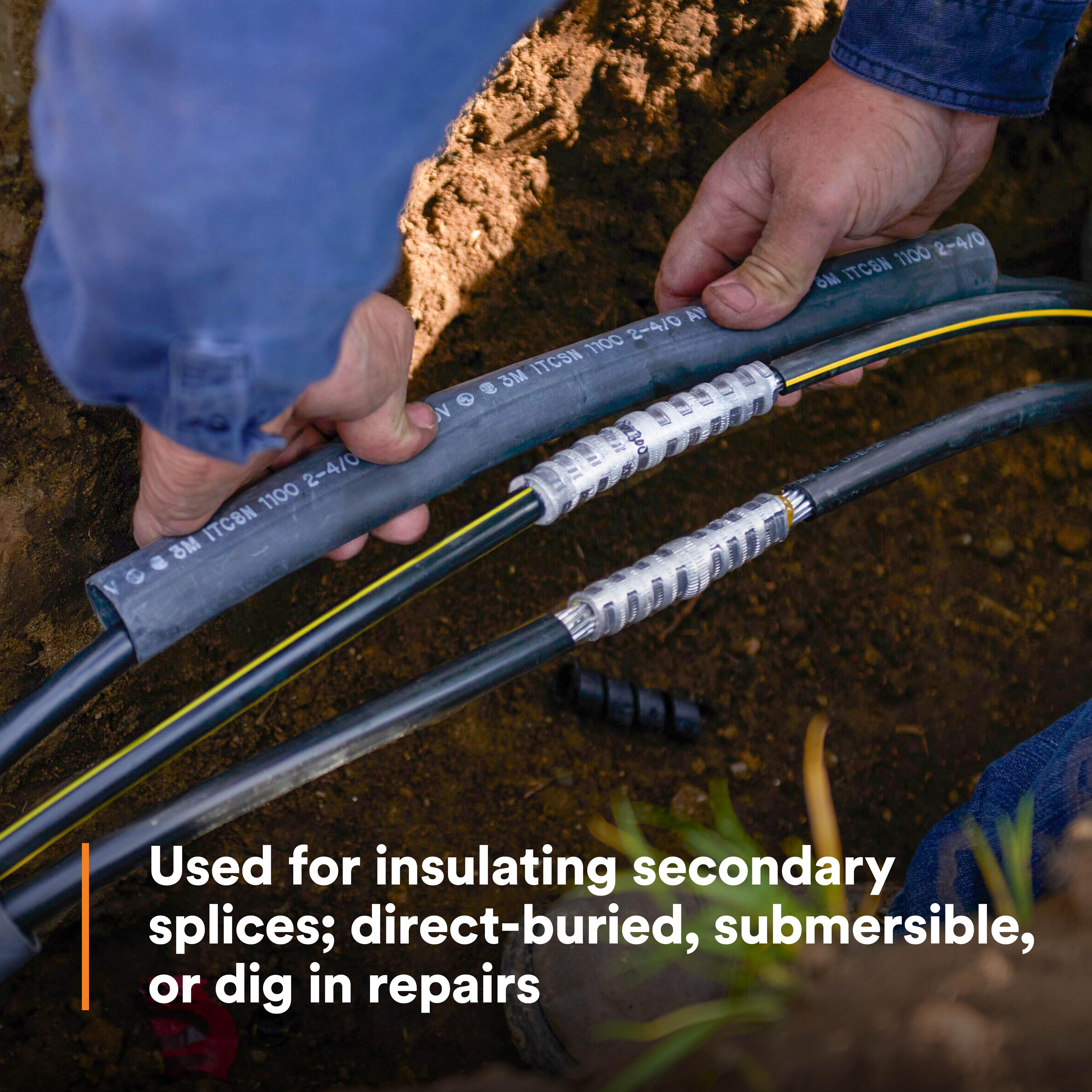

For insulating secondary splices, as well as direct buried, submersible, dig-in repairs, as well as physical protection of high voltage, air insulated connectors or lugs and electrical insulation for 1 kV rated applications

AD Brand (Description)

3M™

AD Country

USA

AD Country Of Origin

US

AD Gtin

00054007089032

AD Invoice Description

HEAT SHRINK TBG 0.8IN 0.2IN 48IN

AD Item Features 01

DURABLE CONSTRUCTION - Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin, non-adhesive options are also available

AD Item Features 02

HIGHLY RESISTANT - Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals

AD Item Features 03

WIDE OPERATING TEMPERATURE RANGE - Withstands temperatures between 67 - 30 deg F (55 - 10 deg C)

AD Manufacturer (Description)

3M

AD Package Height

3.3000

AD Package Height UOM

IN

AD Package Length

50.9000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.2000

AD Package Weight UOM

LB

AD Package Width

3.3000

AD Package Width UOM

IN

Brand

3M

Category

TAPE, MARKERS, SOLDERING & INSULATING MATERIALS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

600

Spec 11 Attribute

Wall Type

Spec 11 Attribute Value

Heavy Duty

Spec 12 Attribute

Wire Size

Spec 12 Attribute UOM

AWG

Spec 12 Attribute Value

8 to 1/0

Spec 2 Attribute

Inner Diameter Expanded

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

0.8

Spec 3 Attribute

Inner Diameter Recovered

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

0.2

Spec 4 Attribute

Length

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

48

Spec 5 Attribute

Material

Spec 5 Attribute Value

Polyolefin

Spec 6 Attribute

Series

Spec 6 Attribute Value

ITCSN

Spec 7 Attribute

Shrink Ratio

Spec 7 Attribute Value

3:01

Spec 8 Attribute

Shrink Temperature

Spec 8 Attribute UOM

deg F

Spec 8 Attribute Value

250

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-67 to 230
