7100136954 - 3M™ Performance Plus™ Wire Connectors
Description
Specifications
0.79lb
10mm
2.99mm
6.5mm
For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
3M
Canada
US

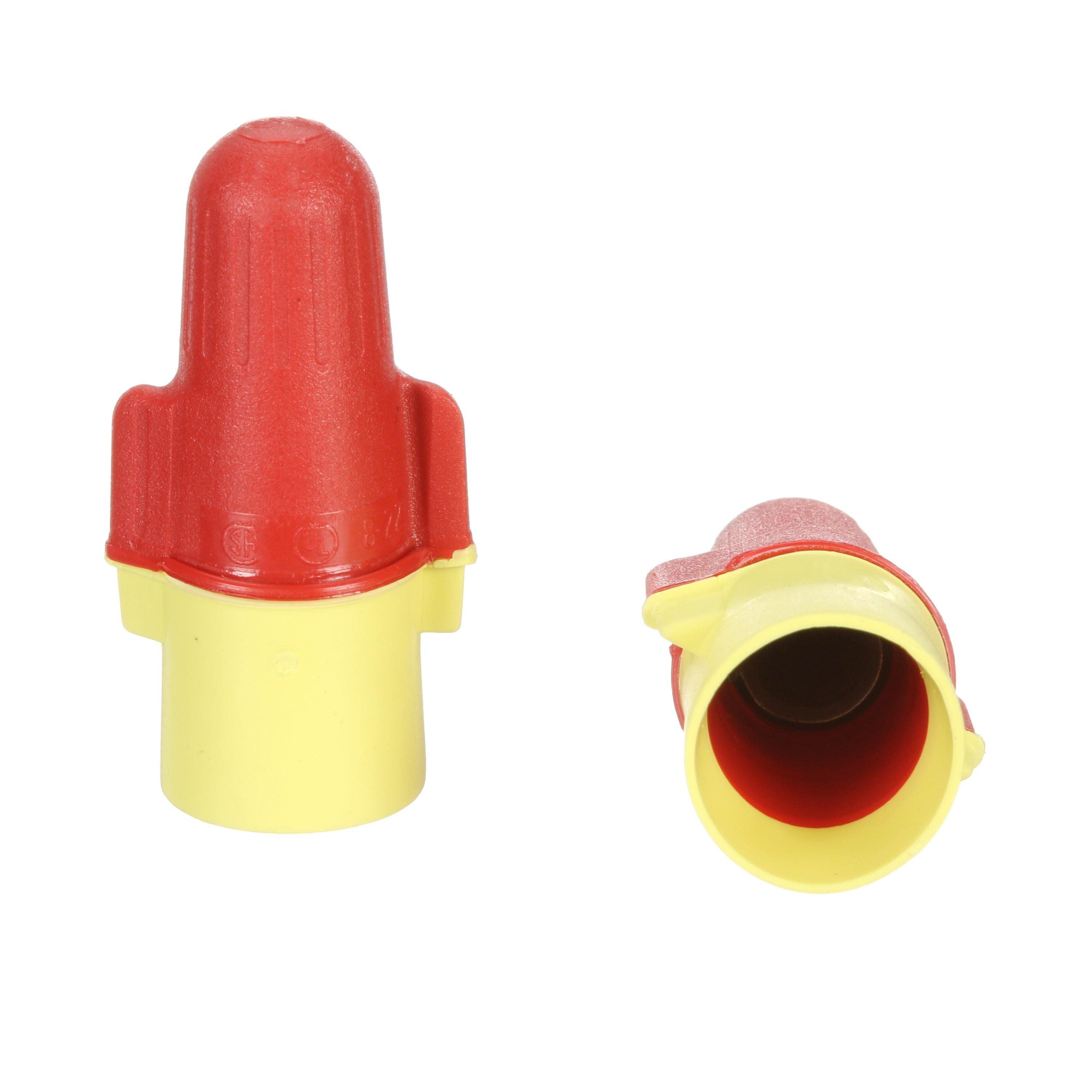

TW-ON CONN ROUNDED WING
Polypropylene and thermoplastic elastomer insulation
New design allows easier installation, smooth, fast and easy-on the hands
Flexible skirts provide safety provides protection against potential shock situations
Simplifies selection of the right connector for a wide range of wiring jobs, there's also less inventory to manage, and a better chance you'll have the connector you need to do every job
Corrosion Resistant Coating
A better bite for a better connection, wires feed into the connector more easily, improving the security of the connection and increasing the level of pull-out
1000 V for signs, fixtures or luminaires
(2) 18 AWG, (2) 8 AWG, (5) 12 AWG wire combinations

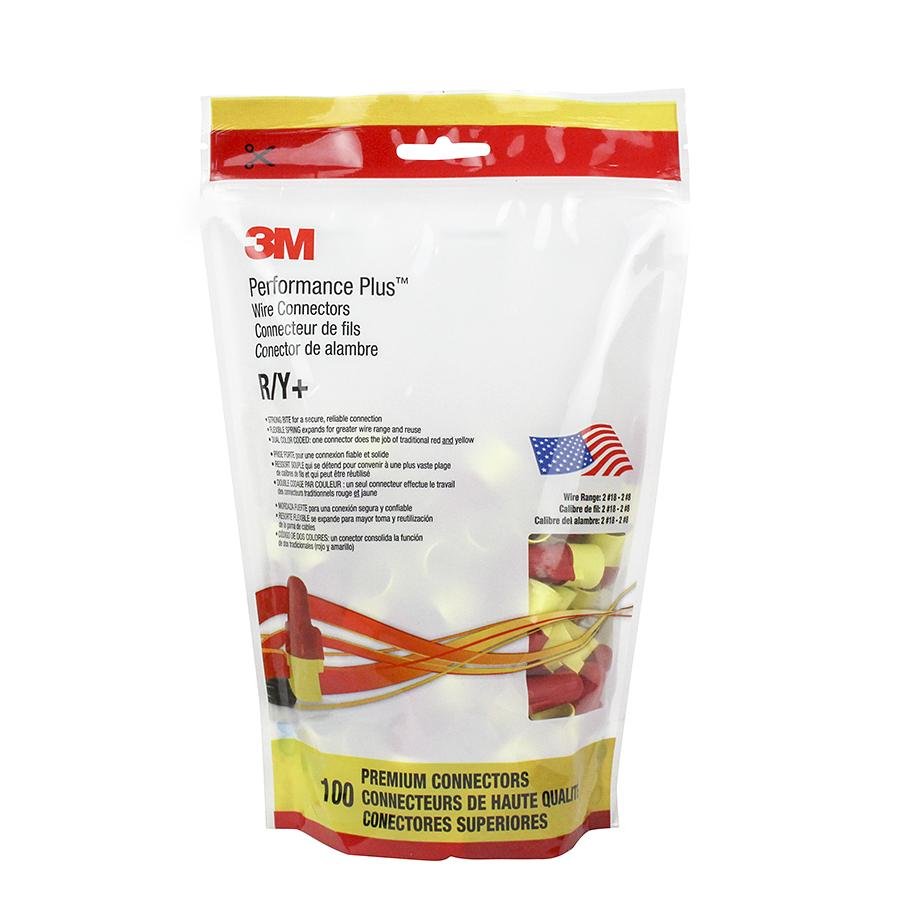

100/Box
Wiring Connectors
Small Wire Connectors
Twist-On Connectors
3M
10.0000
IN
6.5000
IN
1
0.7900
LB
2.9900
IN
3M
FIXTURE CONNECTORS (WIRE NUTS, ETC.)
Color
Red/yellow
Wire Type
ALUMINUM/COPPER
Material
Spring Steel
Series
Performance Plus R/Y+
Shell Style
Winged
Spring Type
Live Action/Square Wire
Temperature Rating
deg F
221
Type
Flame Retardant
Voltage Rating
V AC
600
Wire Size
AWG
22 To 8
