Highland

RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag

Category Small Terminals & Connectors

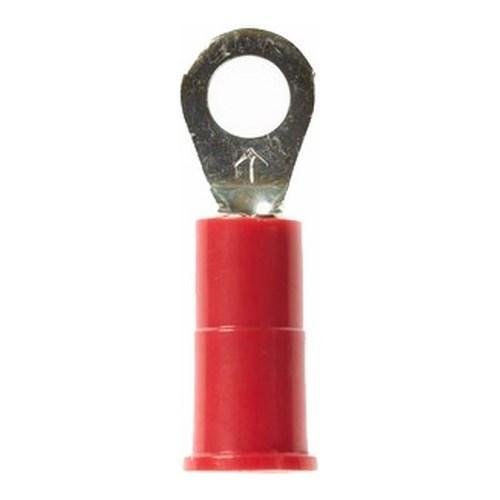

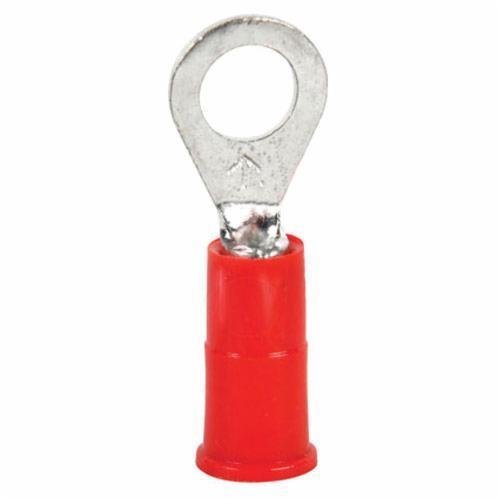

Picture of RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag Picture of RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag
Picture of RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag Picture of RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag
Picture of RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag Picture of RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag
Highland

RV18-6Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag

Item Code: 759667
Category Small Terminals & Connectors
Manufacturer 3M
Manufacturer Ref RV18-6Q

Document
Document
Call for Availability
Add to Favorites
Compare

Description

3M™ Highland™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Specifications

Weight

0.6lb

Height

4.38mm

Width

5.38mm

Length

5.75mm

AD Application

Building Fixtures or Luminaires, Signs and Wire Applications

AD Brand (Description)

Highland

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RING LUG 22TO18AWG 0.8IN BUTTED SEAM

AD Item Features 01

Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

AD Item Features 02

Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

AD Item Features 03

Standard-style ring tongue fits around the stud

AD Item Features 04

Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

AD Item Features 05

Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)

AD Manufacturer (Description)

3M

AD Package Height

4.3800

AD Package Height UOM

IN

AD Package Length

5.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6000

AD Package Weight UOM

LB

AD Package Width

5.3800

AD Package Width UOM

IN

Brand

3M

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Size

Spec 1 Attribute Value

1/4 in ID x 1/4 in L

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-40 to 221

Spec 11 Attribute

Tongue Size

Spec 11 Attribute Value

0.25 in W x 0.03 in THK

Spec 12 Attribute

Tongue Type

Spec 12 Attribute Value

Ring

Spec 13 Attribute

Type

Spec 13 Attribute Value

Insulated Standard

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600/1000

Spec 2 Attribute

Barrel Type

Spec 2 Attribute Value

Butted Seam

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Conductor Size

Spec 4 Attribute UOM

AWG

Spec 4 Attribute Value

22 To 18

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Tin Plated

Spec 6 Attribute

Length

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

0.8

Spec 7 Attribute

Material

Spec 7 Attribute Value

Vinyl

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

0.145 in Dia Max Insulation, 0.22 in Clearance

Spec 9 Attribute

Stud Size

Spec 9 Attribute Value

#6
