3M

RV18-8Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag

Category Small Terminals & Connectors

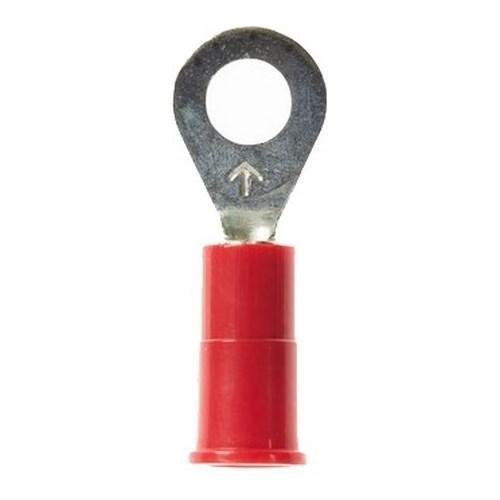

Picture of RV18-8Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag Picture of RV18-8Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag
Picture of RV18-8Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag Picture of RV18-8Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag
3M

RV18-8Q - 3M™ Highland™ Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18,standard-style ring tongue fits around the stud, 25/bag

Item Code: 759869
Category Small Terminals & Connectors
Manufacturer 3M
Manufacturer Ref RV18-8Q

Document
Document
Call for Availability
Add to Favorites
Compare

Description

3M™ Highland™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Specifications

Weight

0.7lb

Height

4.38mm

Width

5.38mm

Length

5.75mm

AD Brand (Description)

3M

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RING LUG 22TO18AWG 0.93IN BUTTED RED

AD Item Features 01

Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

AD Item Features 02

Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

AD Item Features 03

Standard-style ring tongue fits around the stud

AD Item Features 04

Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

AD Item Features 05

Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)

AD Item Features 06

600V-rated for building wire and 1000V for signs, fixtures or luminaires

AD Manufacturer (Description)

3M

AD Package Height

4.3800

AD Package Height UOM

IN

AD Package Length

5.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.7000

AD Package Weight UOM

LB

AD Package Width

5.3800

AD Package Width UOM

IN

Brand

3M

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Size

Spec 1 Attribute Value

0.135 in ID x 0.25 in L

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

1000

Spec 2 Attribute

Barrel Type

Spec 2 Attribute Value

Butted

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Conductor Size

Spec 4 Attribute UOM

AWG

Spec 4 Attribute Value

22 To 18

Spec 5 Attribute

Conductor Type

Spec 5 Attribute Value

Tin Plated Copper

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

0.31 in W x 0.03 in THK

Spec 7 Attribute

Length

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

0.93

Spec 8 Attribute

Stud Size

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

8

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-40 to 221
