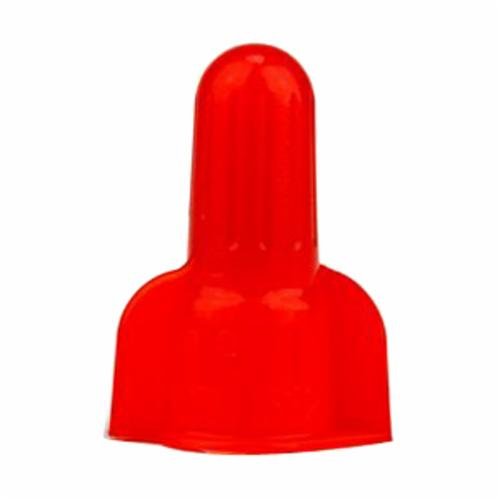

7010348434 - 3M™ Electrical Spring Connector 512-BAG, 20-8 AWG, Red, 500 per Box
Description
Specifications
63.1lb
12.9mm
15.7mm
24.9mm
For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection or to Insulate a Single Wire End
3M
USA
US
TW-ON CONN WINGED
Nylon Insulated
Generous expansion room accommodates a wide range of solid or stranded wire
Corrosion Resistant Coating
Designed for speed and efficiency, spin-on quickly and tighten-down easily
1000 V for signs, fixtures or luminaires
2 - 10 18 AWG, 2 - 7 16 AWG, 1 - 6 14 AWG, 1 - 5 12 AWG, 1 - 3 10 AWG, 1 - 2 8 AWG, (1) 6 AWG wire combinations
Straight, twist-on connector provides quick connection
automotive and marine, commercial, industrial and residential construction
3M
12.9000
IN
24.9000
IN
1
63.1000
LB
15.7000
IN
3M
FIXTURE CONNECTORS (WIRE NUTS, ETC.)
Color
Red
Wire Size
AWG
22 To 8
Wire Type
ALUMINUM/COPPER
Dimensions
1.22 in H x 0.89 in W
Material
Spring Steel
Series
512
Shell Style
Winged
Spring Type
Live Action/Square Wire
Temperature Rating
deg F
221
Type
Flame Retardant Insulated
Voltage Rating
V AC
600
